Description

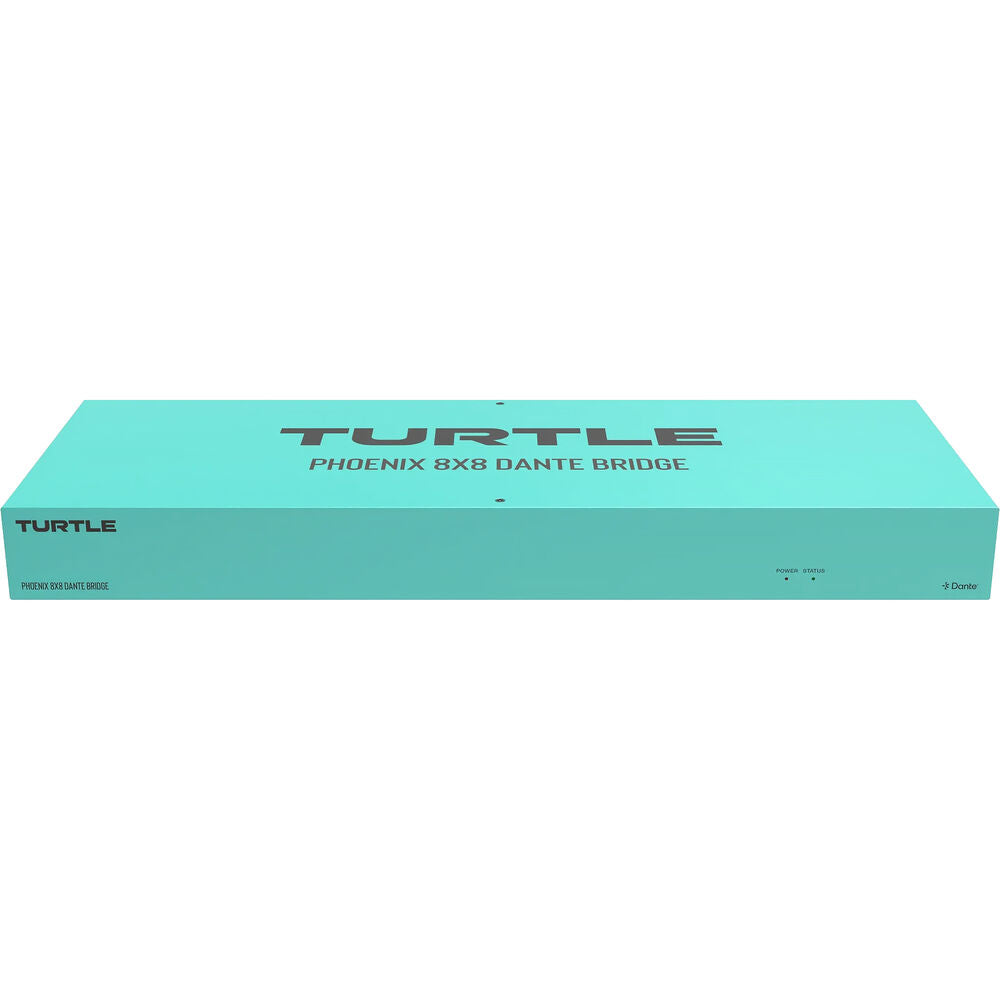

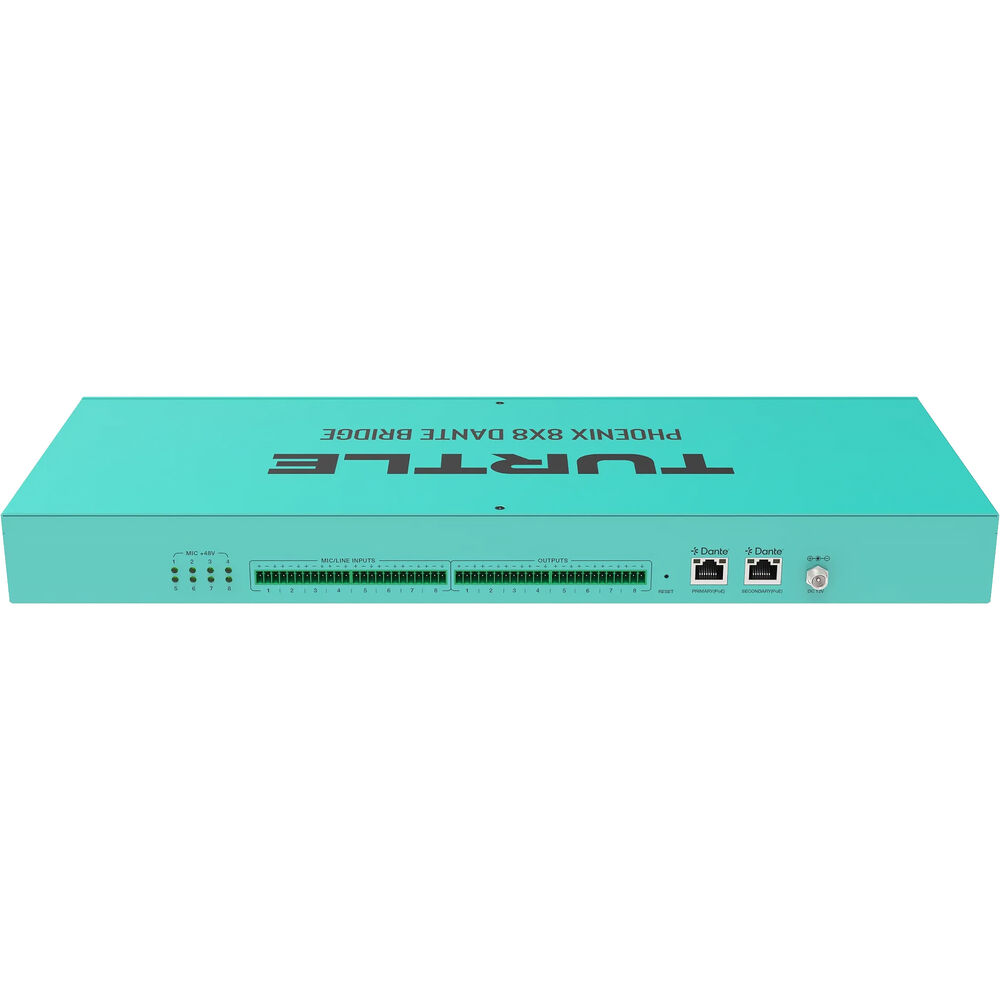

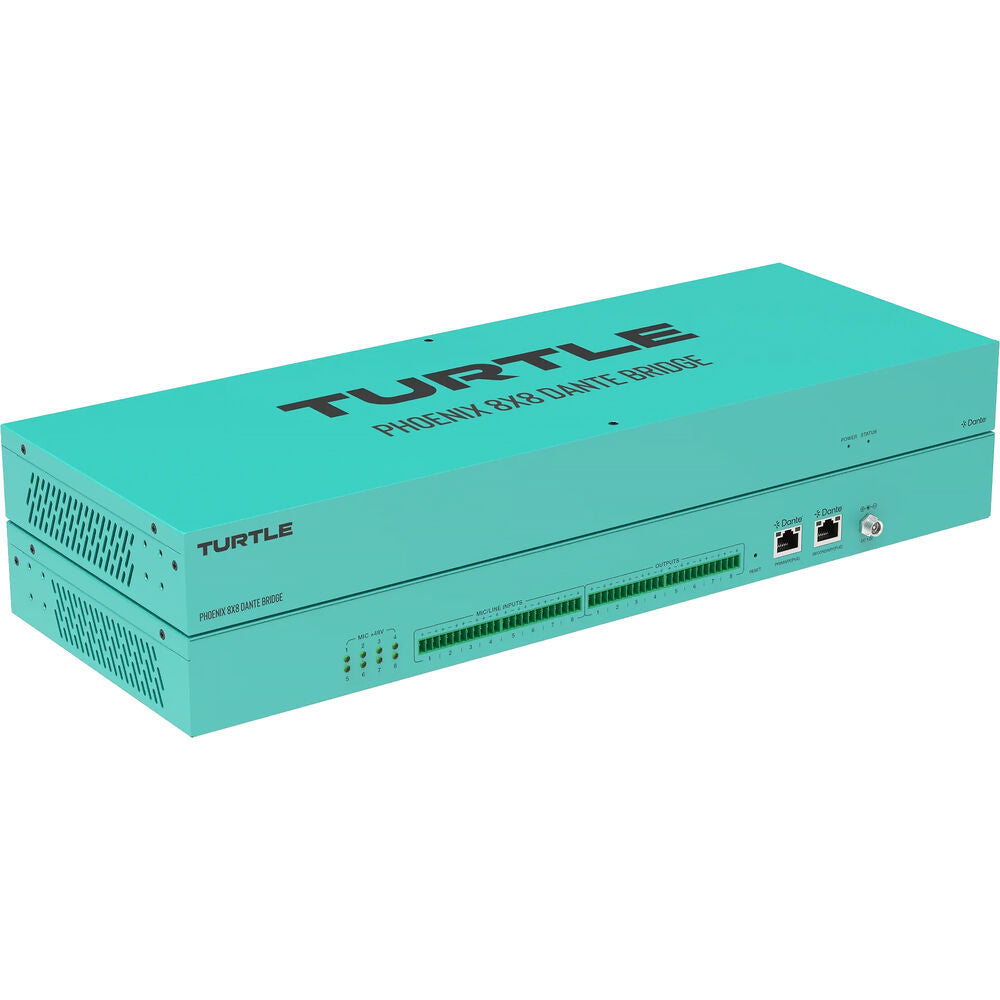

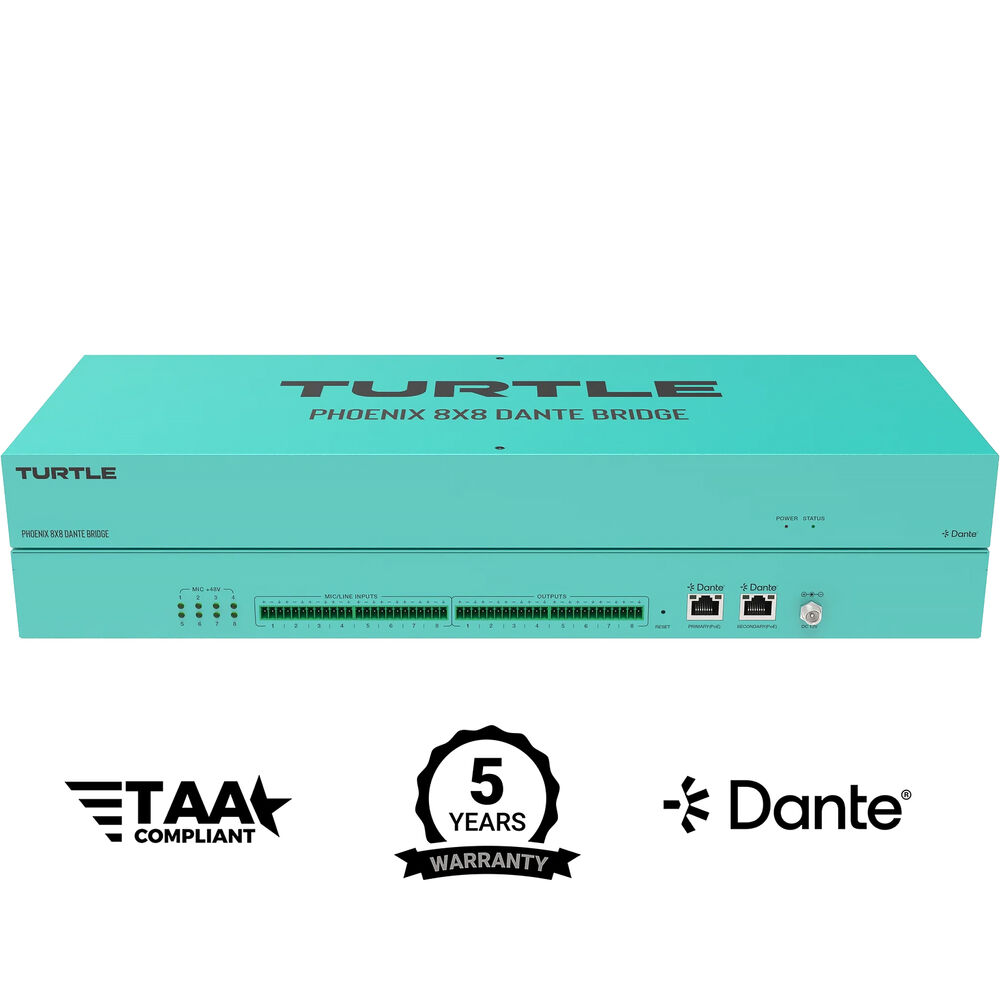

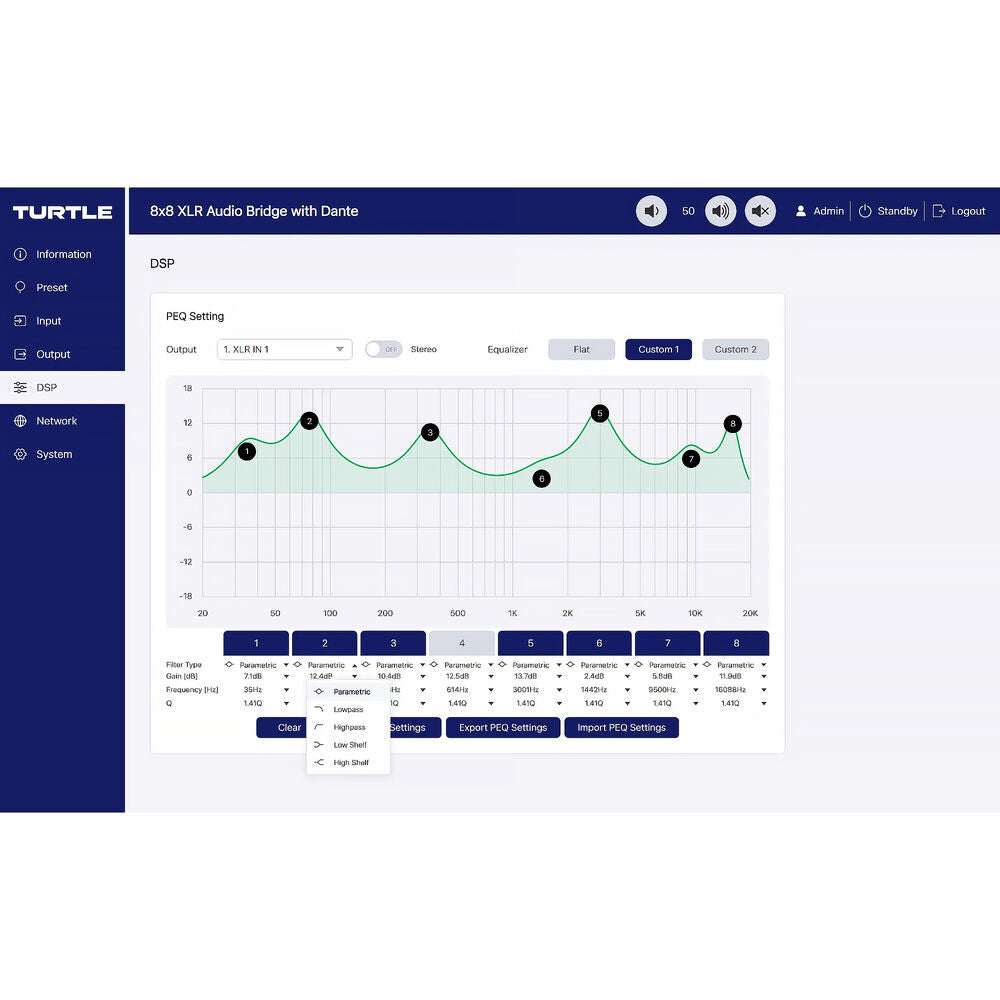

Built for professional installs, Turtle AV Phoenix 8x8 is a compact Dante bridge with 8 analog inputs and 8 outputs, each on Euroblock connectors with 48V phantom power for easy mic integration. The unit includes a full-featured WebGUI for DSP control, preset management, EQ, delay, and system settings.
The Phoenix 8x8 is API controllable, rack-mountable with included Turtle Ears, housed in a rugged metal chassis, and finished in signature Turtle Aqua. Dual network ports provide Primary and Secondary Dante support, PoE on both ports, and a locking DC connector for triple power redundancy. The Phoenix 8x8 includes 1 RU Turtle Ears for rack-mounting the unit into a standard 19" rack.
| Form Factor | Desktop |
| Converter Type | A/D Converter |
| Number of Channels | 8 |
| Maximum Sampling Rate | 96 MHz |
| Number of Microphone Inputs | No |
| Analog Audio I/O | 8x Block 3-Pin Mic/Line Input |
| Digital Audio I/O | Block 3-Pin AES3 Output |
| Form Factor | Desktop |
| Converter Type | A/D Converter |
| Number of Channels | 8 |
| Conversion Formats | Dante |
| Converter Circuitry | A/D Chipset: |
| Display | No |
| Maximum Sampling Rate | 96 MHz |
| Number of Microphone Inputs | No |
| Analog Audio I/O | 8x Block 3-Pin Balanced Mic/Line Input |
| Phantom Power | 48 V |
| Digital Audio I/O | 8x Block 3-Pin AES3 Output |
| Host Connection / USB | No |
| USB (Non-Host) | No |
| Sync I/O | No |
| Network I/O | 2x RJ45 Dante |
| MIDI I/O | No |
| Expansion Slots | No |
| Wireless | No |
| Sample Rates | Up to 96 kHz |
| Sample Rate Conversion | On Dante Outputs (48 to kHz) |
| Latency | 1 ms 2 ms 5 ms |
| Sync Sources | Dante |
| Clocking | Dante: |
| OS Compatibility | Windows |
| Required Hardware | Ethernet Port |
| Power Requirements | AC/DC Power Adapter (Included) |
| DC Input Power | 12 VDC |
| Power Consumption | 3.96 W |
| Rackmount Size | 1 U |
| Operating Conditions | -4 140°F / -20 60°C |
| Package Weight | 4.995 lb |
| Box Dimensions (LxWxH) | 14.7 x 9.8 x 3.7" |
