Triad-Orbit SM-SW1 Modular Speaker Mounting Solution for JBL 7 Series Kit

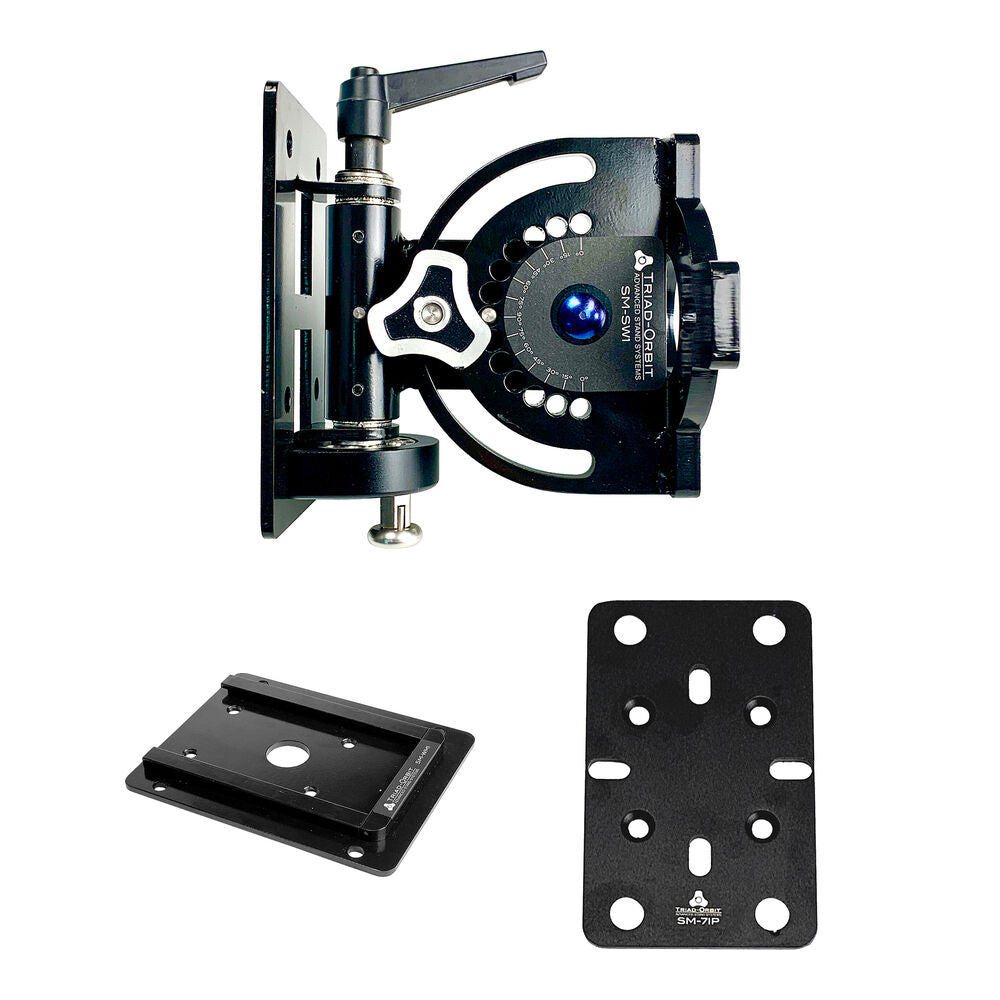

This Triad-Orbit SM-SW1 Modular Speaker Mounting Solution Kit from B&H is designed for mounting a JBL 7 Series speaker (such as the 708i/708P or 705i/705P) on a wall. The kit includes an SM-SW1 speaker mount swivel to securely position the speaker, an SM-WM1 slide-in wall mounting plate to mount the swivel onto the wall, and an SM-7iP plate to mount the JBL speaker onto the swivel. Pre-adjust pan at 30° increments and tilt at 15° increments.

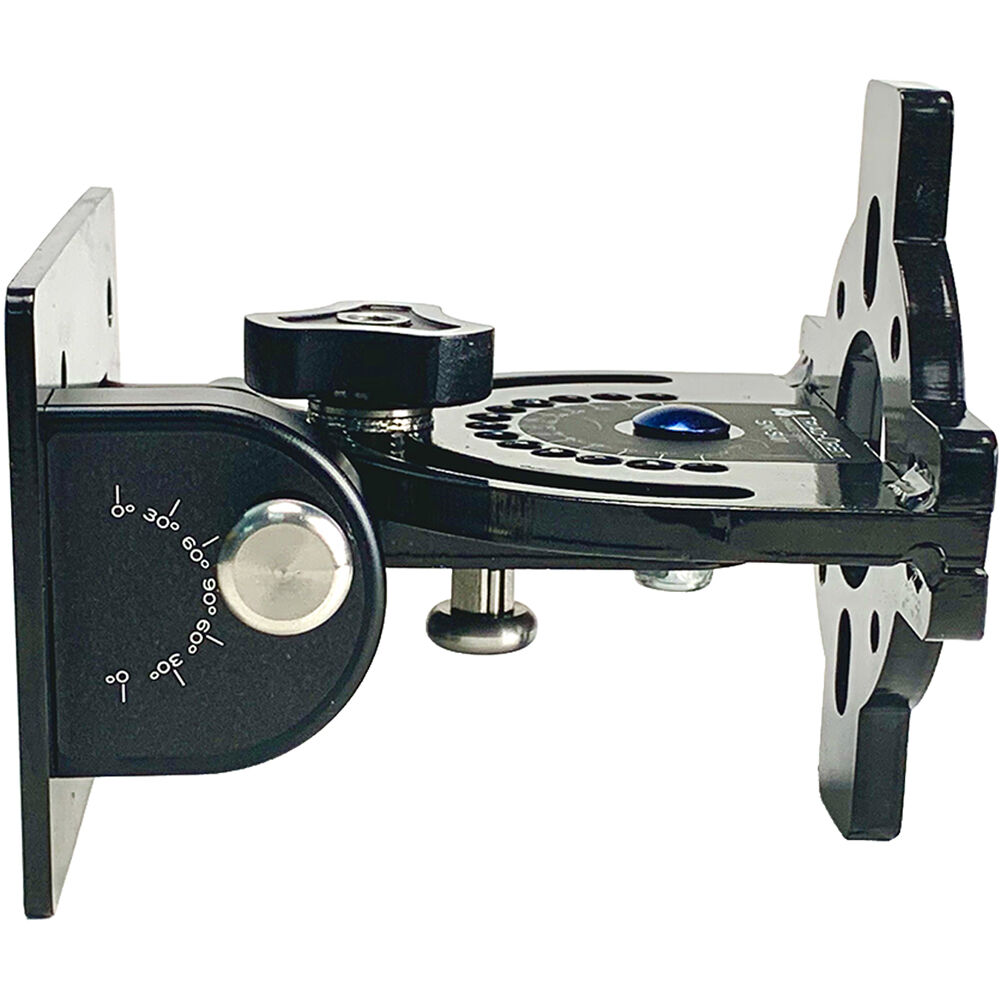

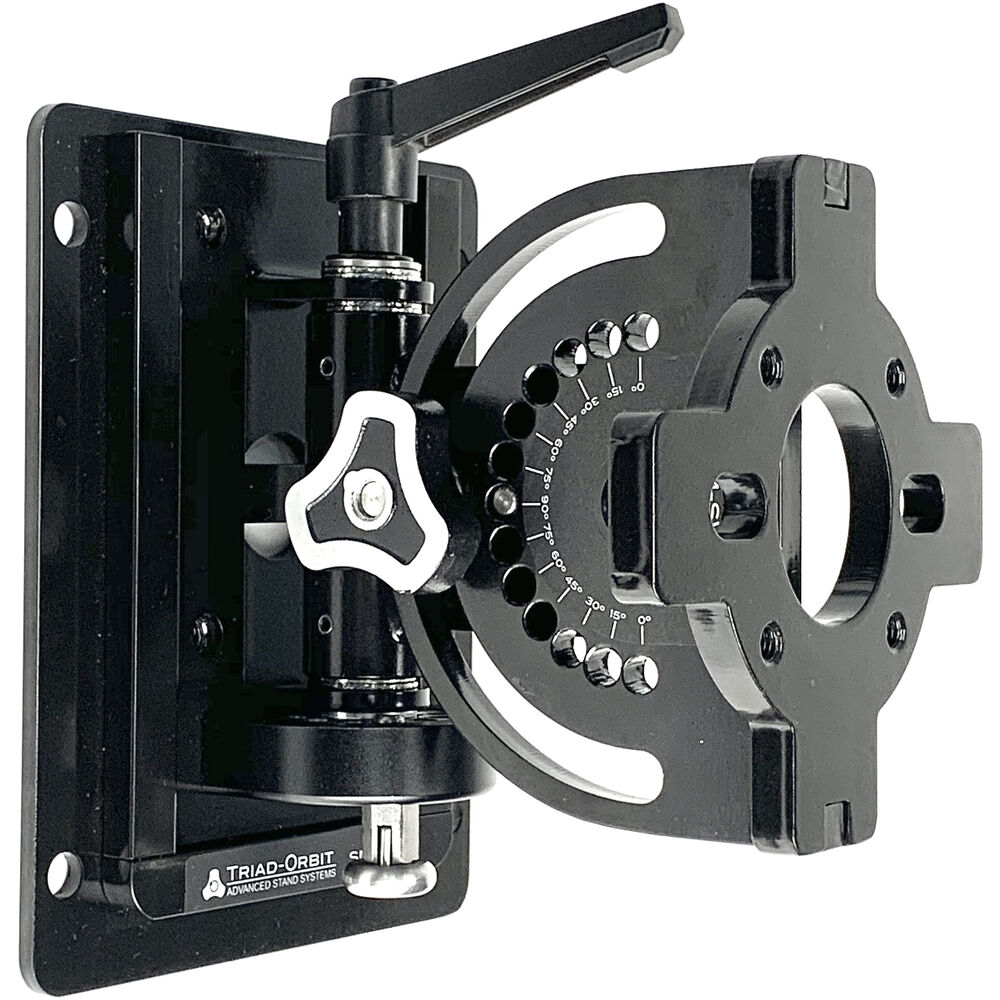

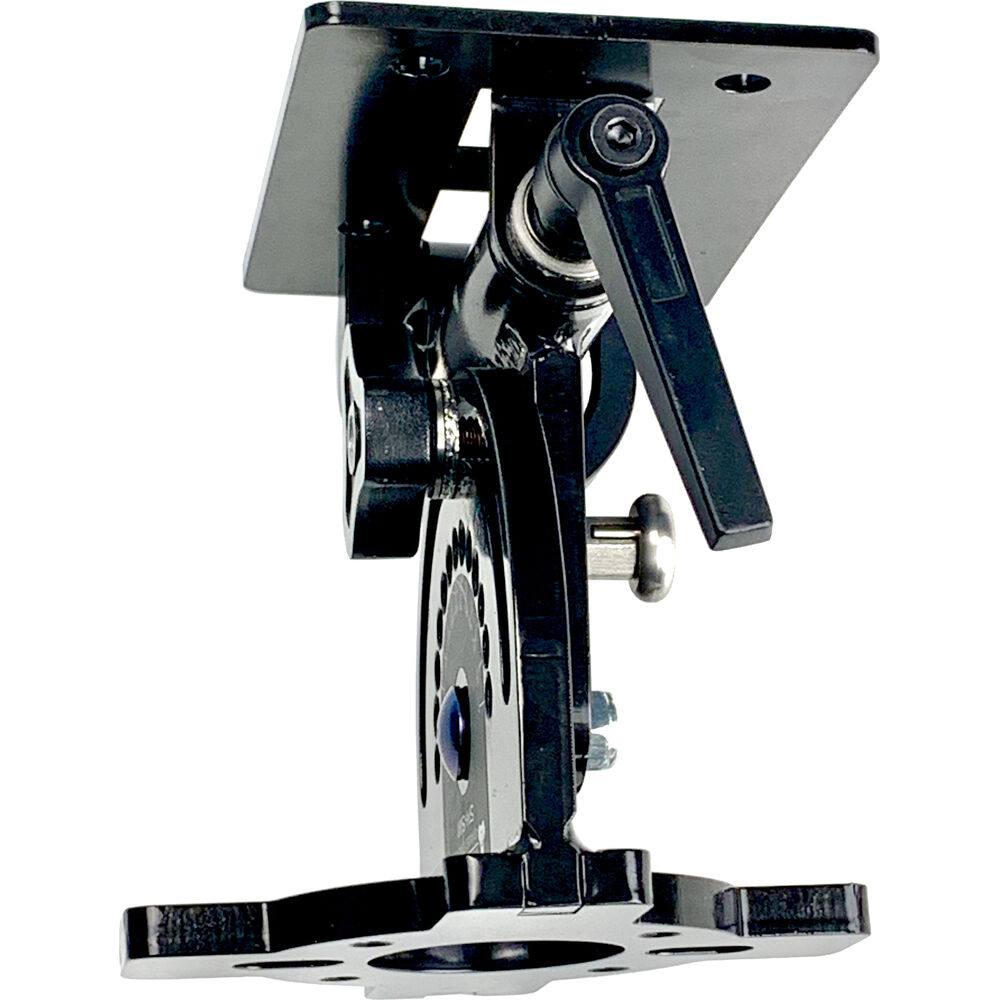

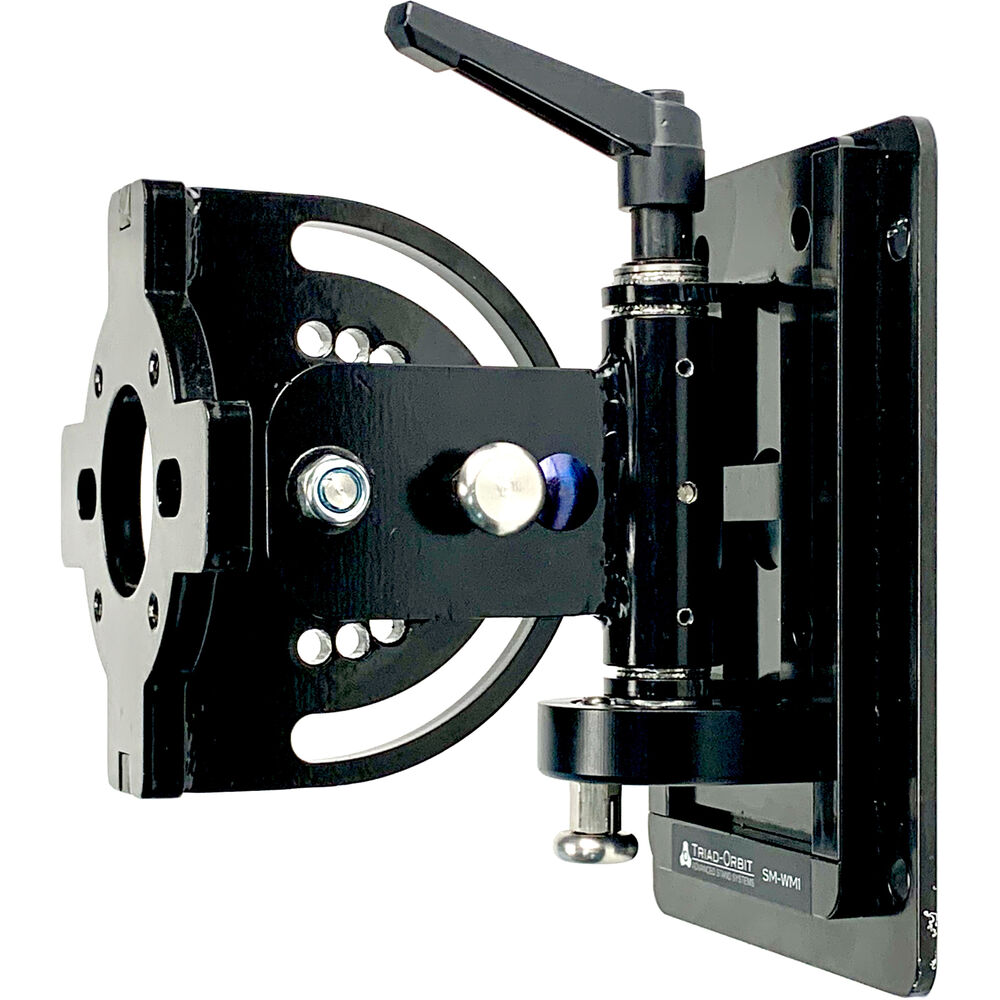

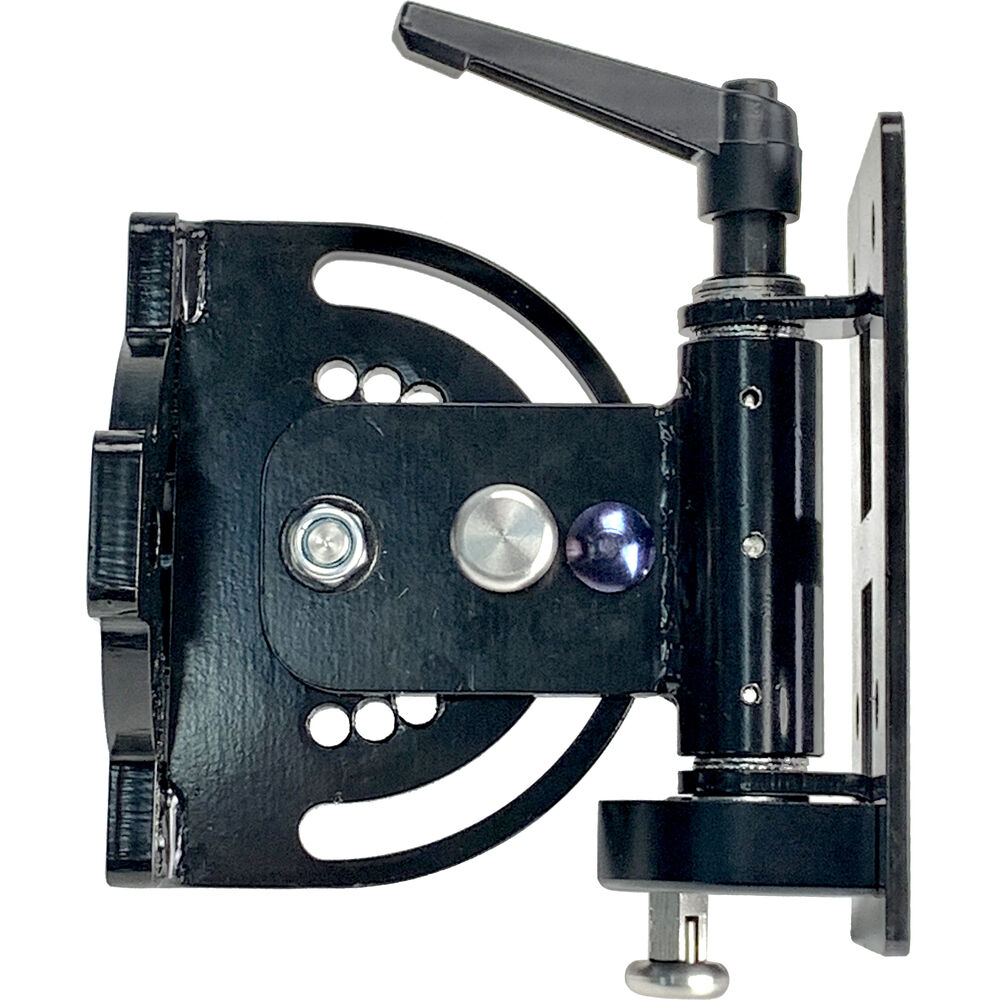

The Triad-Orbit SM-SW1 is the main pan and tilt swivel designed for Triad-Orbit's SM-1 Dolby Atmos speaker wall-mounting system. It can connect directly to speakers with a 50 to 80mm dual hole pattern or accept the versatile array of Triad-Orbit's speaker mounting plates. The SM-SW1 features 180° of tilt—90° forward and 90° back—adjustable in 15° increments. The locking spring pin and tension knobs keep the SM-SW1 securely held in the desired position.

The Triad-Orbit SM-WM1 is a slide-in plate for wall- or ceiling-mount Dolby Atmos speaker setups using Triad-Orbit's SM-SW1 swivel or SM-PM1 pipe mounting plate, either of which easily slides into the SM-WM1 and secures with hex screws. The SM-WM1 can be screwed into a wall or ceiling and greatly simplifies installation of speaker systems.

The Triad-Orbit SM-7iP is a speaker mounting plate designed for attaching a JBL 7 Series passive install monitor such as the 705i or 708i to a Triad-Orbit SM-SW1 swivel (available separately) in Dolby Atmos speaker setups. It features four 50mm holes, four 80mm slots, support for vertical or horizontal monitor orientation, and easy installation—attach it to the SM-SW1, then slide the assembly into an SM-WM1 wall/ceiling mount (available separately).
