Description

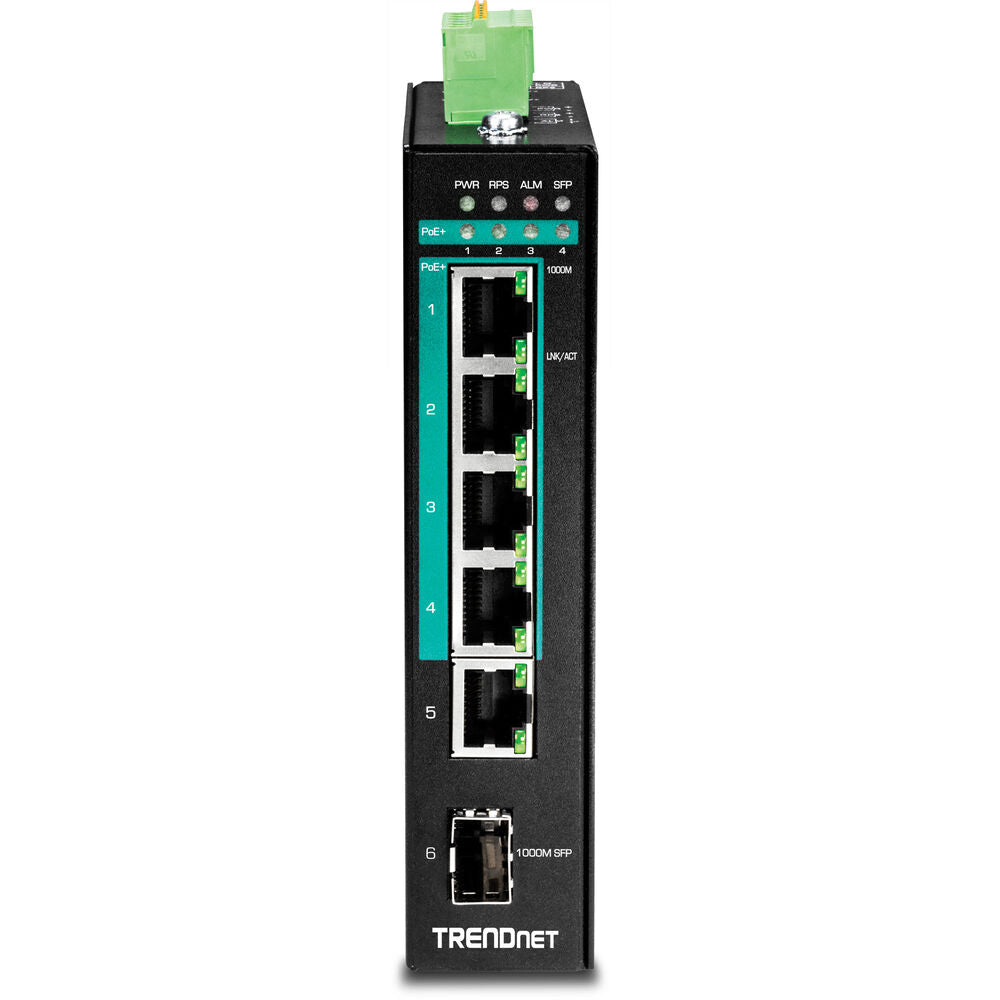

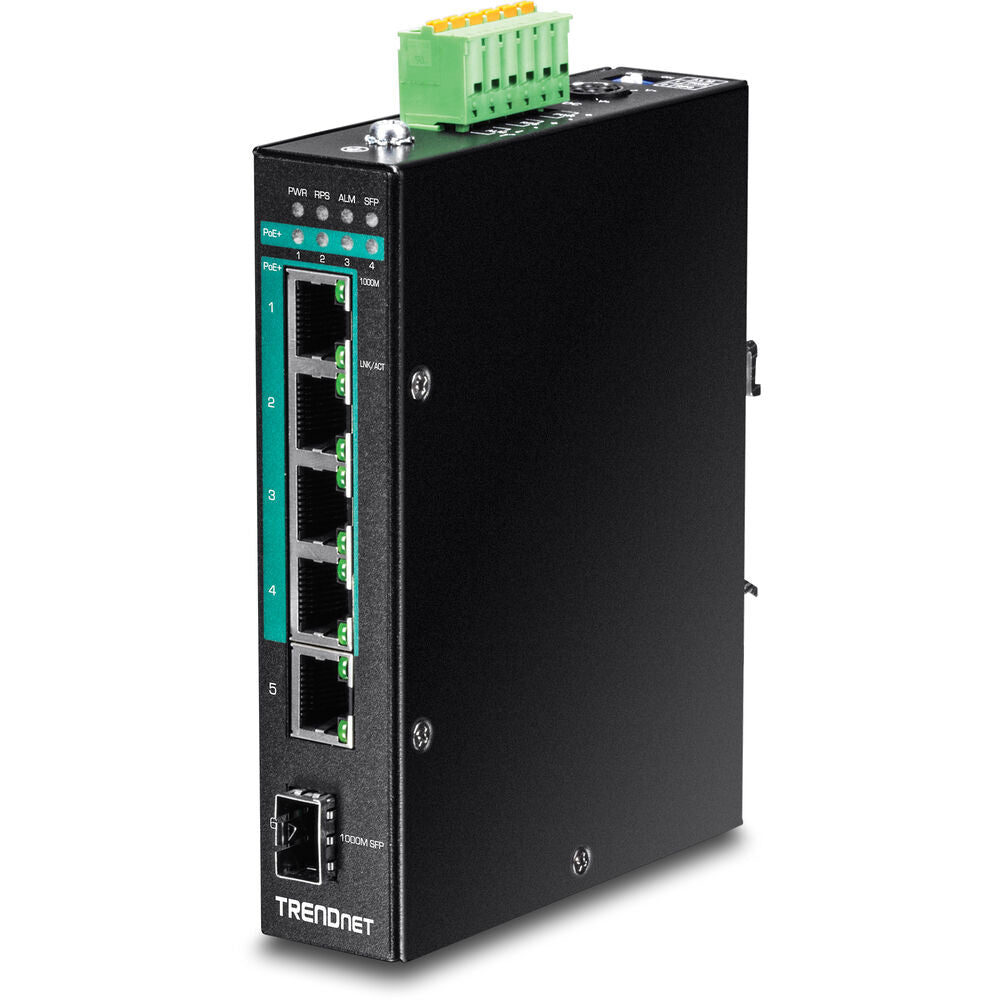

Operate powered network devices such as security cameras and access points in harsh environments with the TI-PG541i 5-Port Gigabit PoE+ Compliant Managed Industrial DIN-Rail Switch from TRENDnet. Housed inside an IP40-rated enclosure, this Layer 2 web-managed switch includes five Gigabit-speed RJ45 Ethernet ports, four of which provide up to 30W PoE+ with a 120W budget.

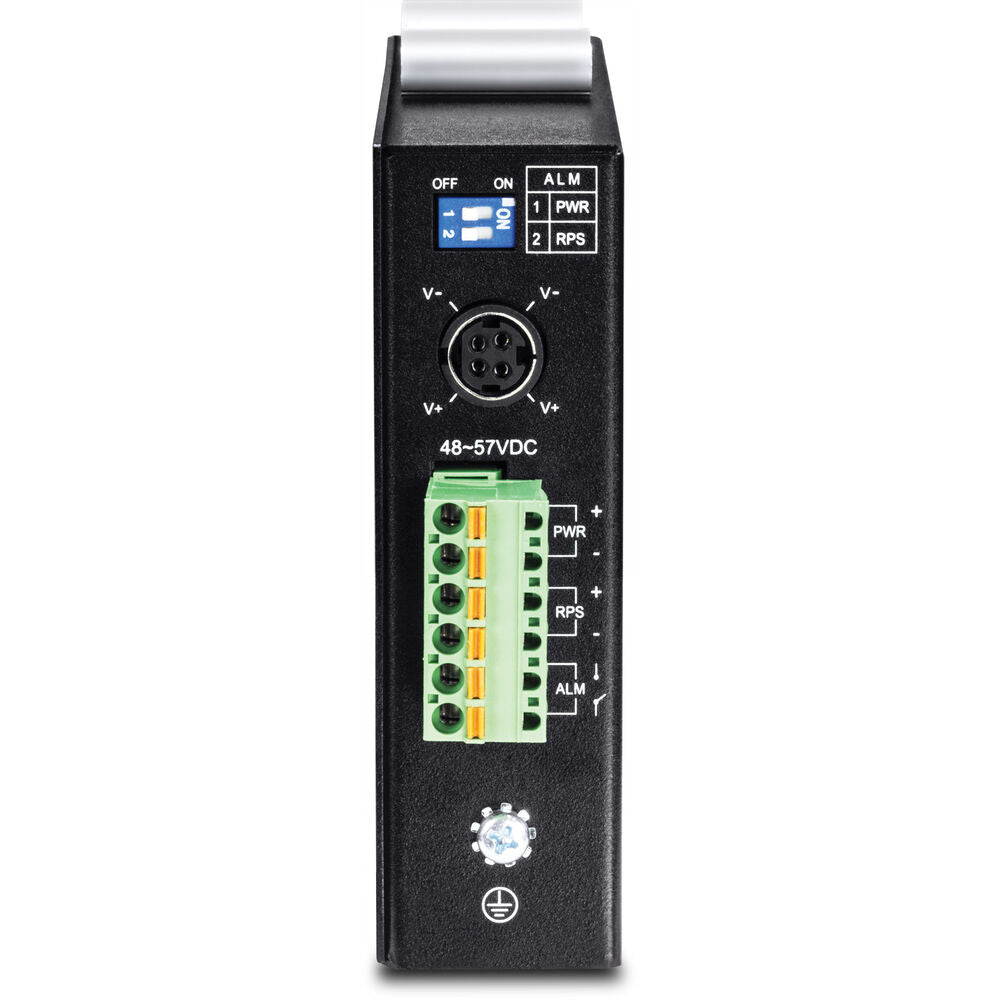

An SFP port is also available for up to 1 Gb/s fiber uplinks. With a 12 Gb/s switching capacity and 8.93 Mpps forwarding rate, this switch provides smooth data transfers. You can mount the TI-PG541i onto a DIN-rail and connect its removable 6-pin terminal block to a power source.
| Networking I/O | 6 Total Connections Supporting up to Gigabit Ethernet |
| Stackable | No |
| Switching Bandwidth | 12 Gb/s |
| PoE Power Budget | 120 W |
| Networking I/O | 4x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at) 1x RJ45 Gigabit Ethernet 1x SFP Gigabit Ethernet |
| Stackable | No |
| Layer Services Supported | Layer 2 |
| Supported Protocols | Auto-MDIX/MDI IGMP Snooping |
| Jumbo Frames Support | 10,000 Bytes |
| MAC Address Table Size | 8K |
| Security Features | DHCP Snooping RADIUS Authentication Storm Control |
| Forwarding Rate | 8.93 Mpps |
| Switching Bandwidth | 12 Gb/s |
| Memory | 128 MB |
| PoE Power Budget | 120 W |
| Power Draw | 130.00 W (Max) |
| Input Power | 18 to 57 VDC |
| Power Supply Type | External |
| Certifications | CE, FCC, IEC |
| Operating Conditions | -40 to 158°F / -40 to 70°C up to 95% Humidity |
| Cooling System | Passive |
| Mean Time Between Failures (MTBF) | 0.44 Million Hours |
| Material of Construction | Metal |
| Indicator Lights | No |
| Rack Mountable | Yes |
| Dimensions | 5.3 x 4.7 x 1.2" / 135 x 120 x 31 mm |
| Weight | 1.2 lb / 528 g |
| Package Weight | 1.78 lb |
| Box Dimensions (LxWxH) | 9.8 x 7.6 x 2.5" |
