Description

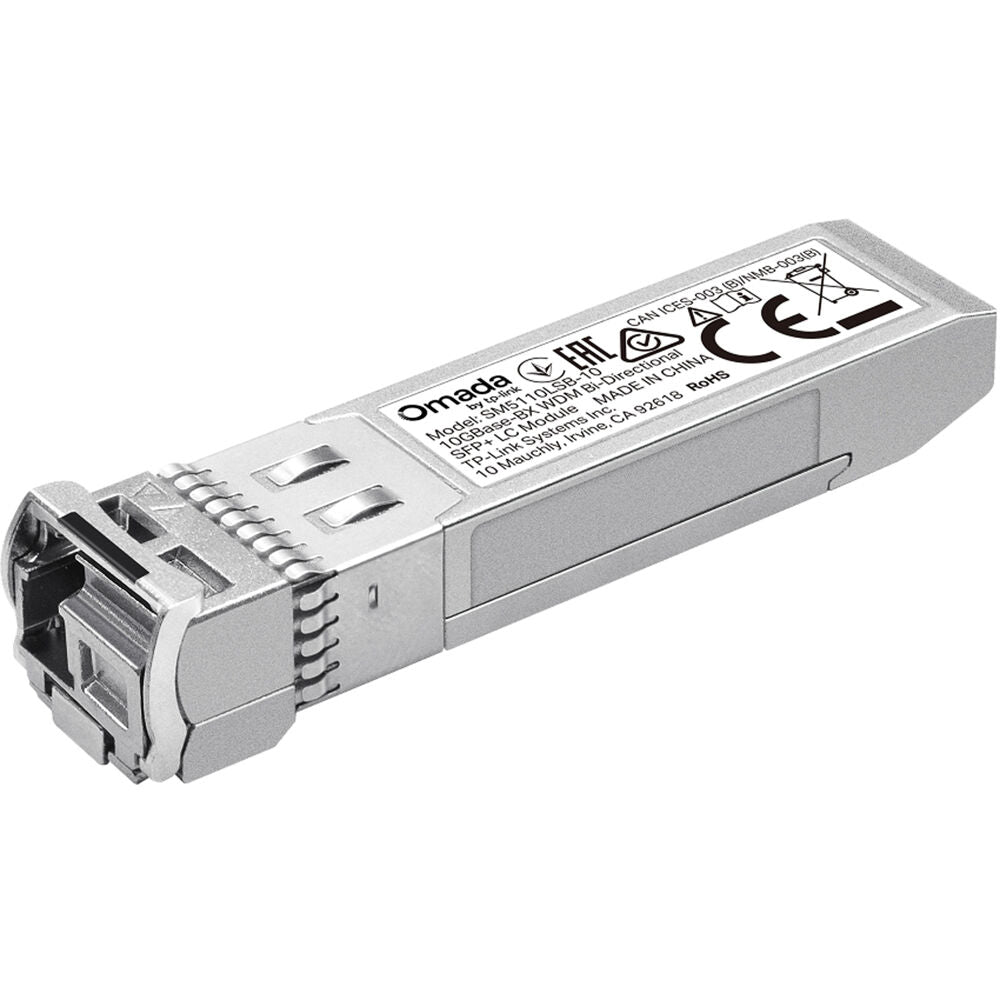

Enjoy reliable data transfers with your installations with the Omada SM5110LSB-10 10GBase-BX SFP+ LC Transceiver Module from TP-Link. With support for the 10GBase-BX standard and bi-directional data transmissions, this SFP+ transceiver works with 9/125µm single-mode fiber cables with LC connectors to transfer up to 10 Gb/s across distances of up to 6.2 miles.
The SM5110LSB-10 supports full duplex with 1270nm TX and 1330nm RX wavelengths. It is also hot-pluggable and supports Digital Diagnostic Monitoring (DDM).
| Form Factor | SFP+ |
| I/O | 1x LC |
| Maximum Data Rate | 10 Gb/s |
| Mode | Single-Mode |
| Form Factor | SFP+ |
| Ethernet Standards | IEEE 802.3ae |
| I/O | 1x LC |
| Networking Technology | 10GBASE-BX |
| Wavelength | 1270 / 1330 nm |
| Protocol | No |
| Maximum Networking Distance | 6.2 Miles / 10 km |
| Maximum Data Rate | 10 Gb/s |
| Mode | Single-Mode |
| Operating Mode | Full Duplex |
| Input Power | 3.3 VDC |
| Operating Conditions | 32 to 158°F / 0 to 70°C at 10 to 90% Humidity |
| Storage Conditions | -40 to 185°F / -40 to 85°C at 5 to 90% Humidity |
| Certifications | CE, FCC, RoHS |
| Dimensions | 2.2 x 0.6 x 0.5" / 57 x 14 x 12 mm |
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 4.9 x 3.2 x 1.6" |
