Description

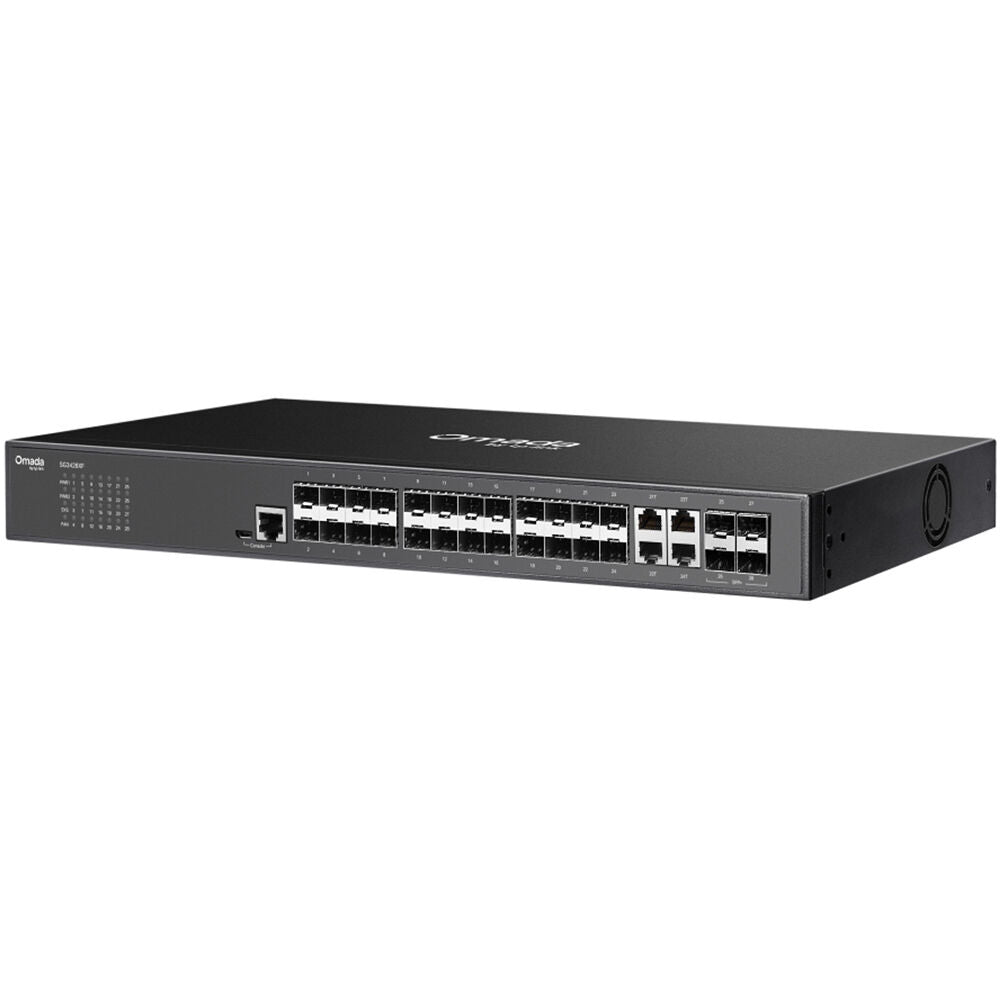

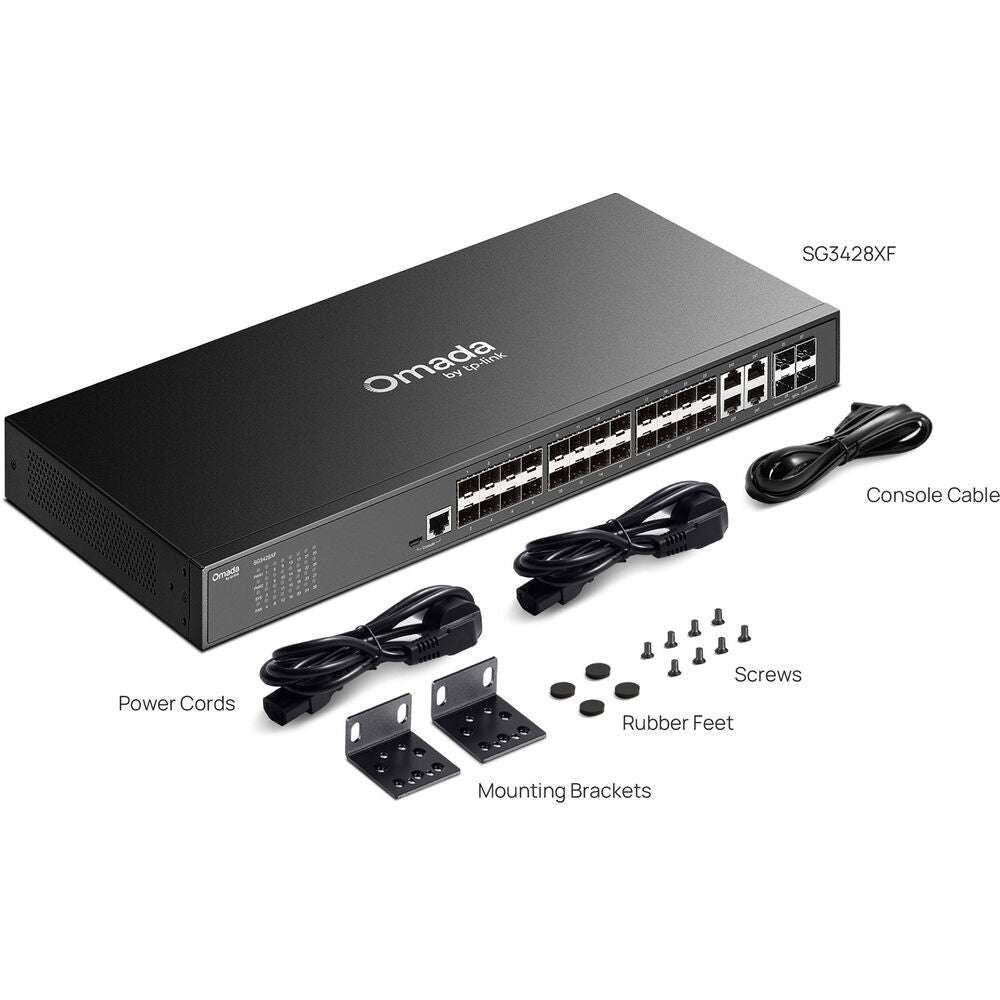

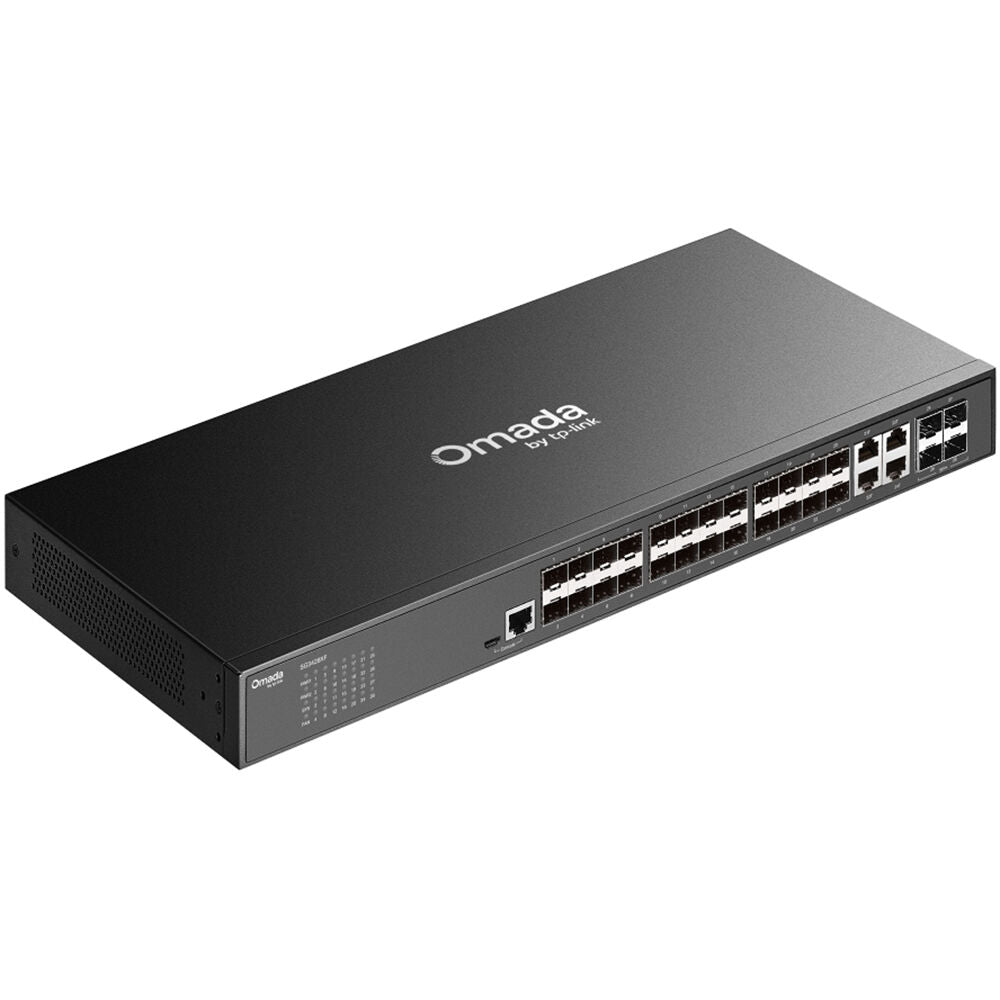

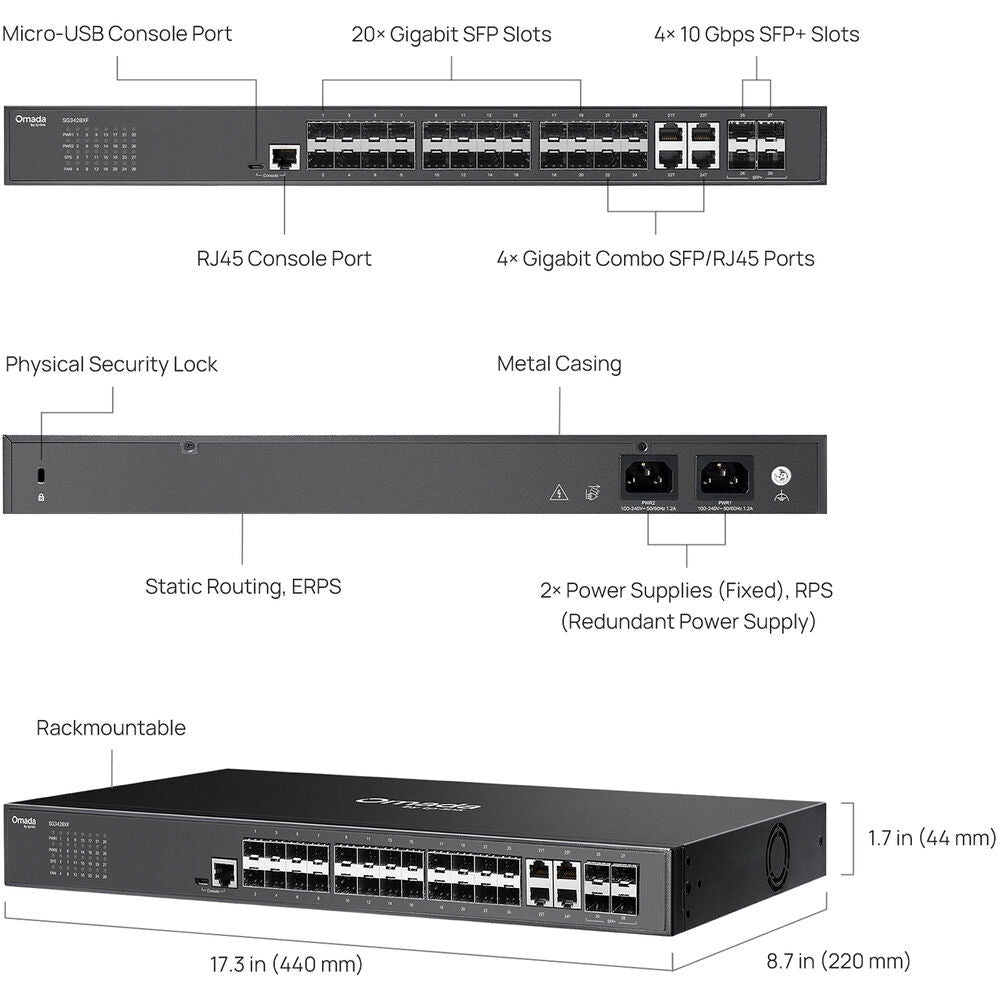

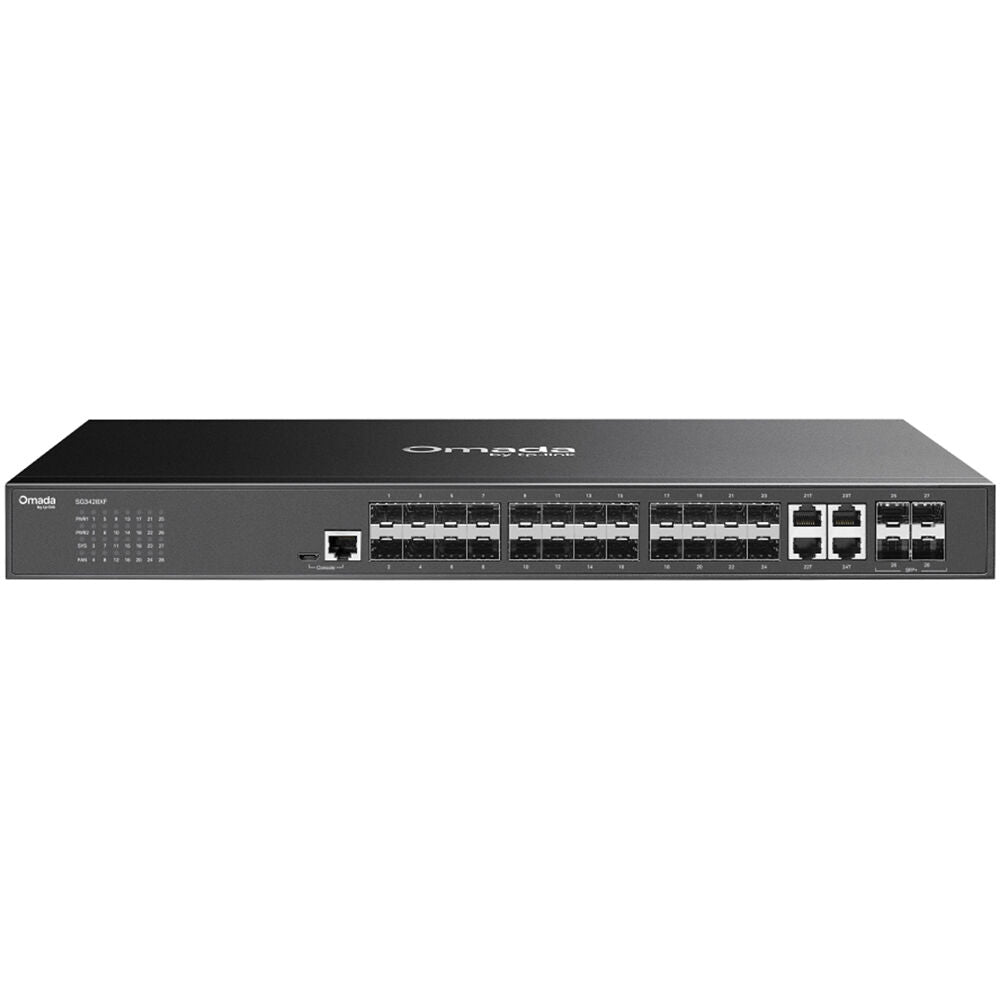

Designed for your network's aggregation layer between the gateway and switch, the TP-Link Omada Aggregation SG3428XF 24-Port SFP 1G / 10G Managed Network Switch supports high-bandwidth fiber links with 20 Gigabit-speed SFP slots and four 10G SFP+ slots. There are also four RJ45 / SFP combo ports for 1 Gb/s copper or fiber uplinks.
This fully managed rack mountable switch delivers smooth data transfers with a 128 Gb/s switching capacity and 95.23 Mpps forwarding rate. A cooling fan and durable metal chassis help to maintain optimal performance. A 1+1 redundant power supply helps to ensure continuous operation. In addition to supporting standalone web-based management, Omada SDN platform integration allows you to use the Omada app for centralized, cloud-based access.
| Networking I/O | 28 Total Connections Supporting up to 10 GbE |
| Stackable | No |
| Switching Bandwidth | 128 Gb/s |
| Networking I/O | 20x SFP Gigabit Ethernet 4x SFP+ 10 GbE 4x RJ45/SFP Combo Gigabit Ethernet |
| Other I/O | 1x RJ45 RS-232 (Console) 1x Micro-USB |
| Stackable | No |
| Layer Services Supported | Layer 2 |
| Supported Protocols | Auto-MDIX/MDI IPv4 IPv6 |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 16K |
| Security Features | DHCP Snooping DoS Attack Prevention RADIUS Authentication Storm Control |
| Forwarding Rate | 95.23 Mpps |
| Switching Bandwidth | 128 Gb/s |
| Packet Buffer | 12 Mb |
| Power Draw | 35.7 W (Max) |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |

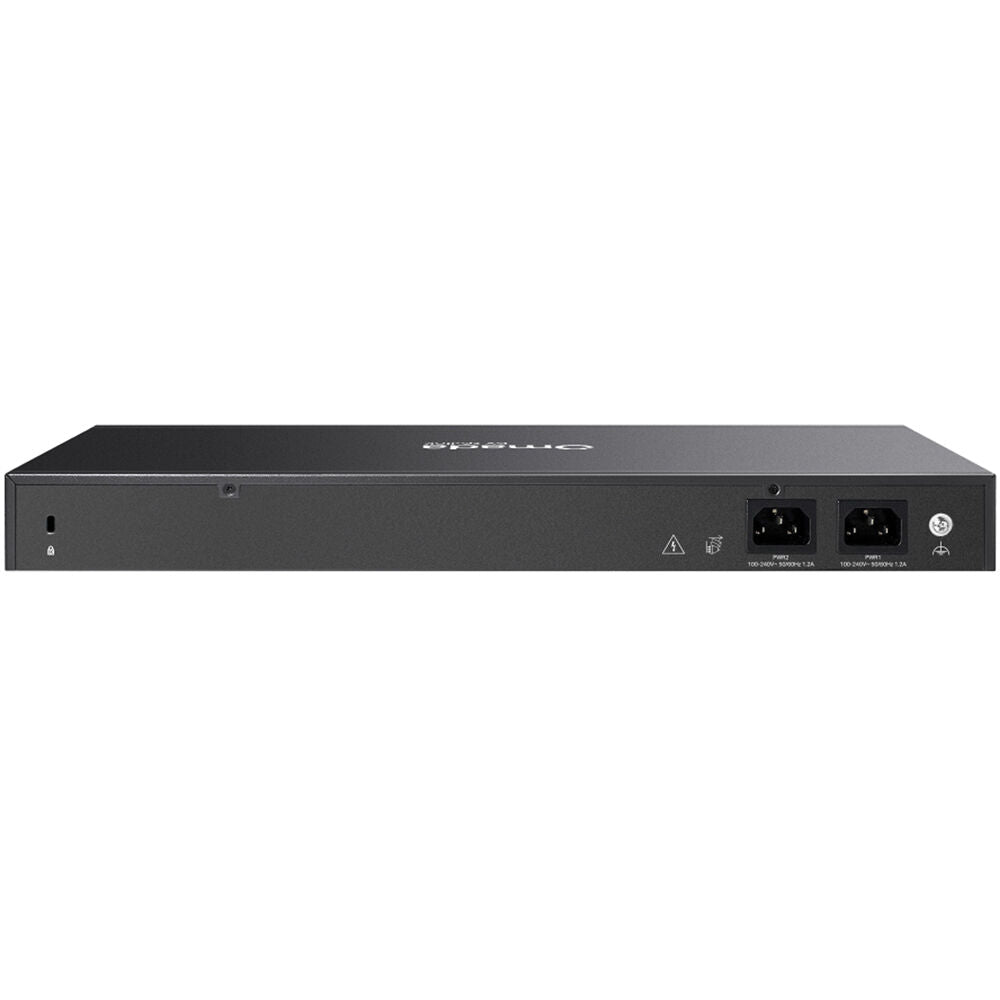

| Power Supply Type | Redundant |
| Certifications | CE, FCC, RoHS |
| Operating Conditions | 23 to 113°F / -5 to 45°C at 10 to 90% Humidity |
| Storage Conditions | -40 to 158°F / -40 to 70°C at 5 to 90% Humidity |
| Cooling System | Fan |
| Material of Construction | Metal |
| Indicator Lights | Yes |
| Rack Mountable | Yes |
| Dimensions | 17.3 x 8.7 x 1.7" / 440 x 220 x 44 mm |
| Package Weight | 8.87 lb |
| Box Dimensions (LxWxH) | 21 x 13.2 x 3.9" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
