Description

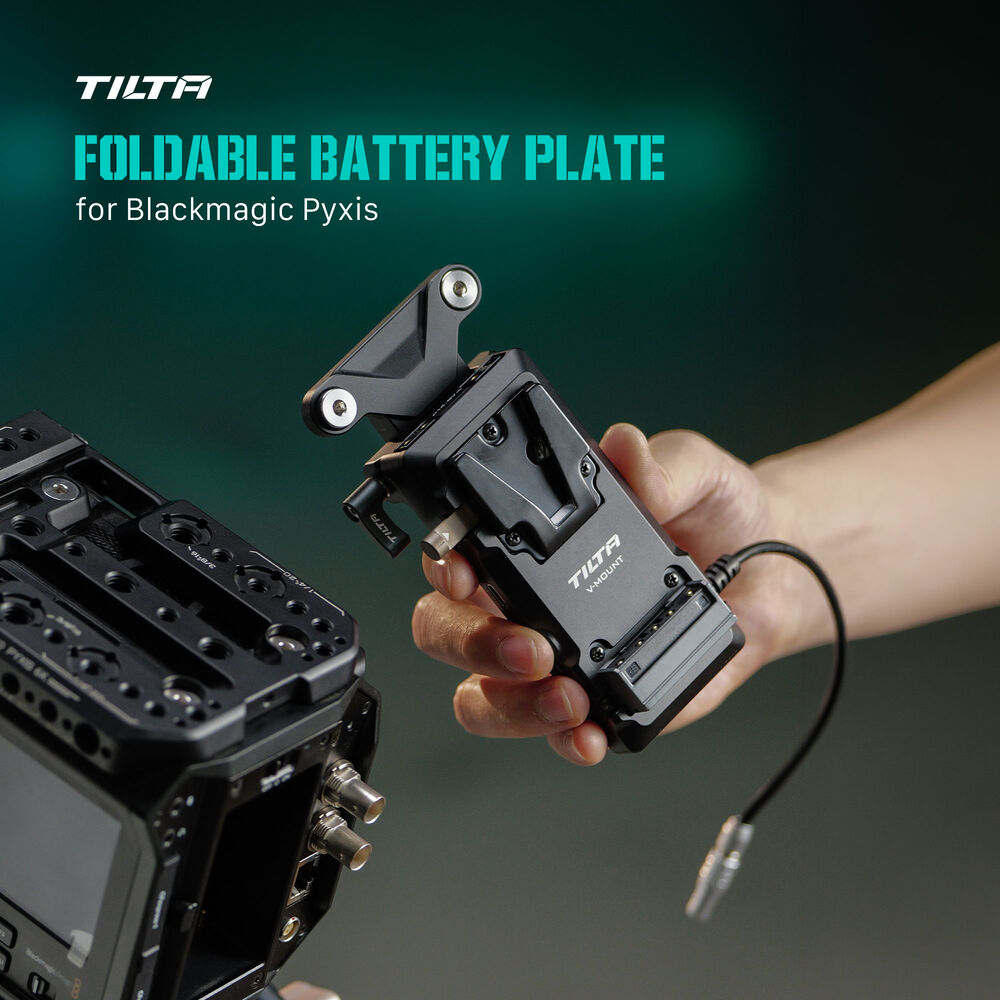

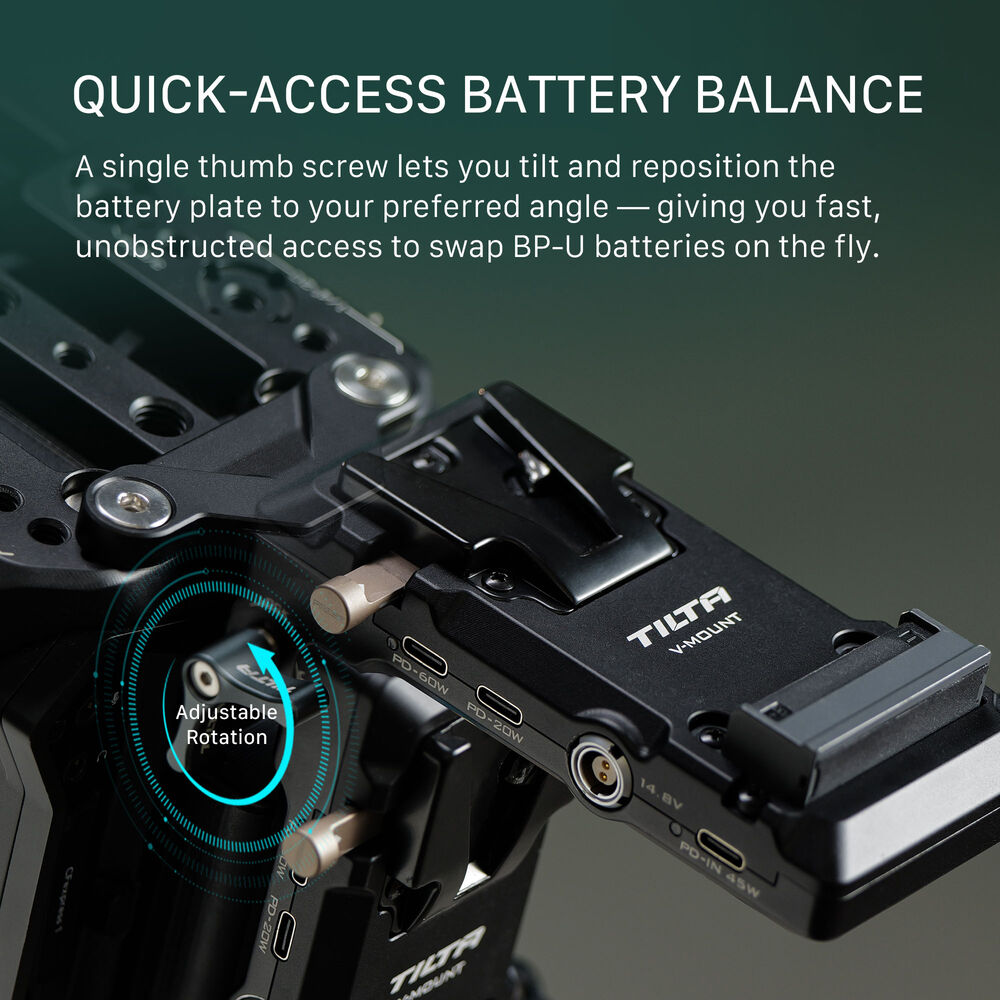

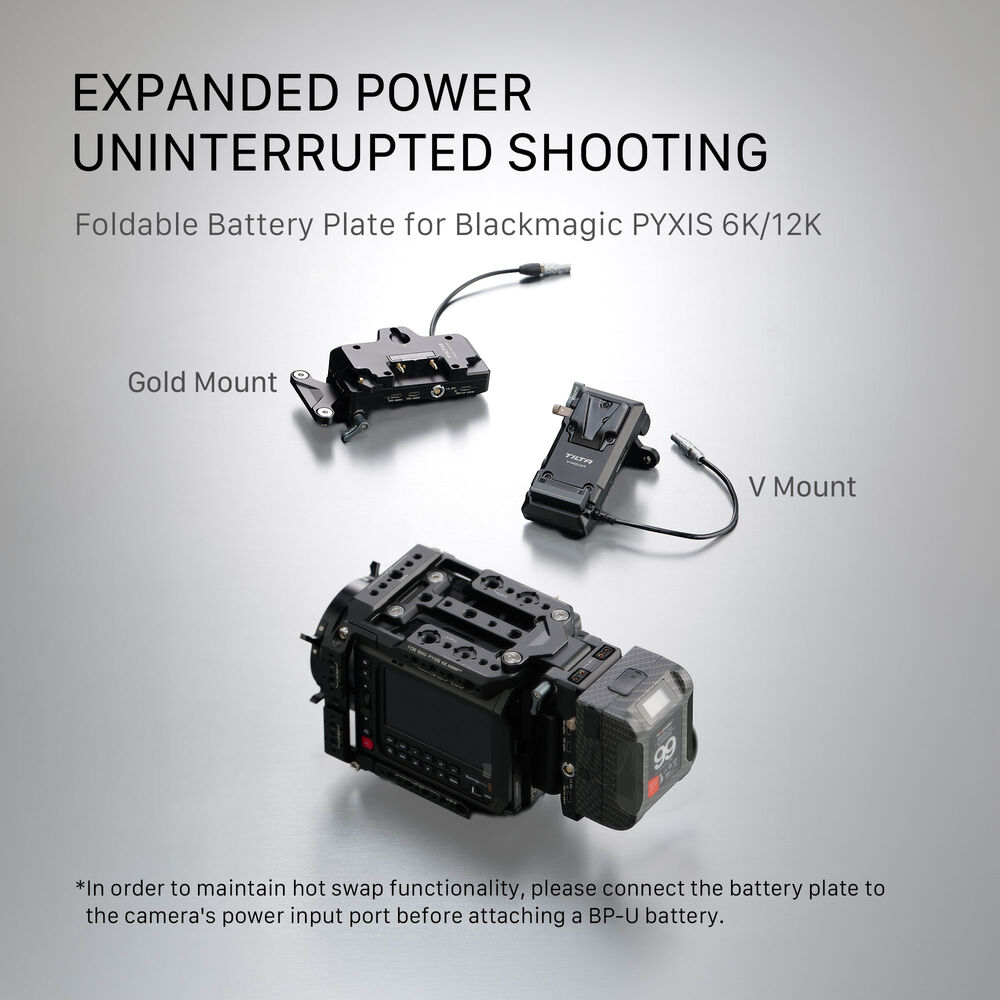

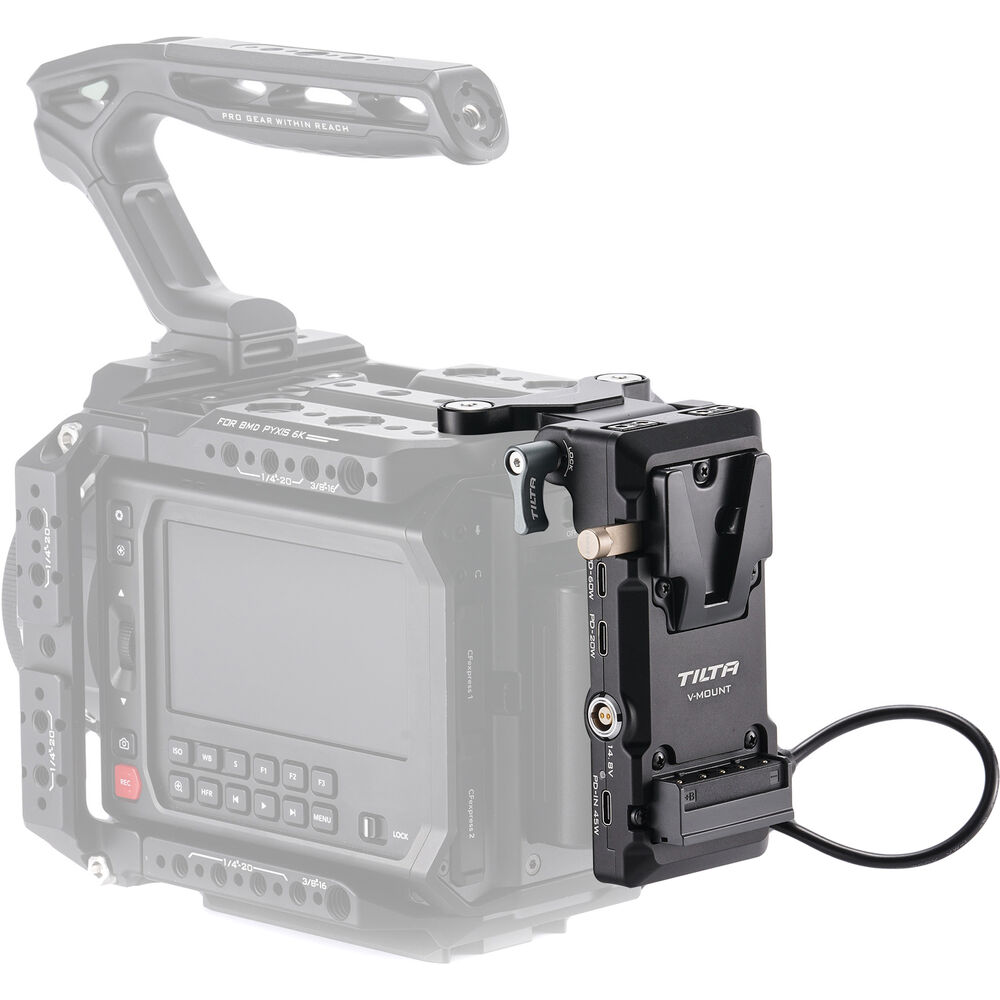

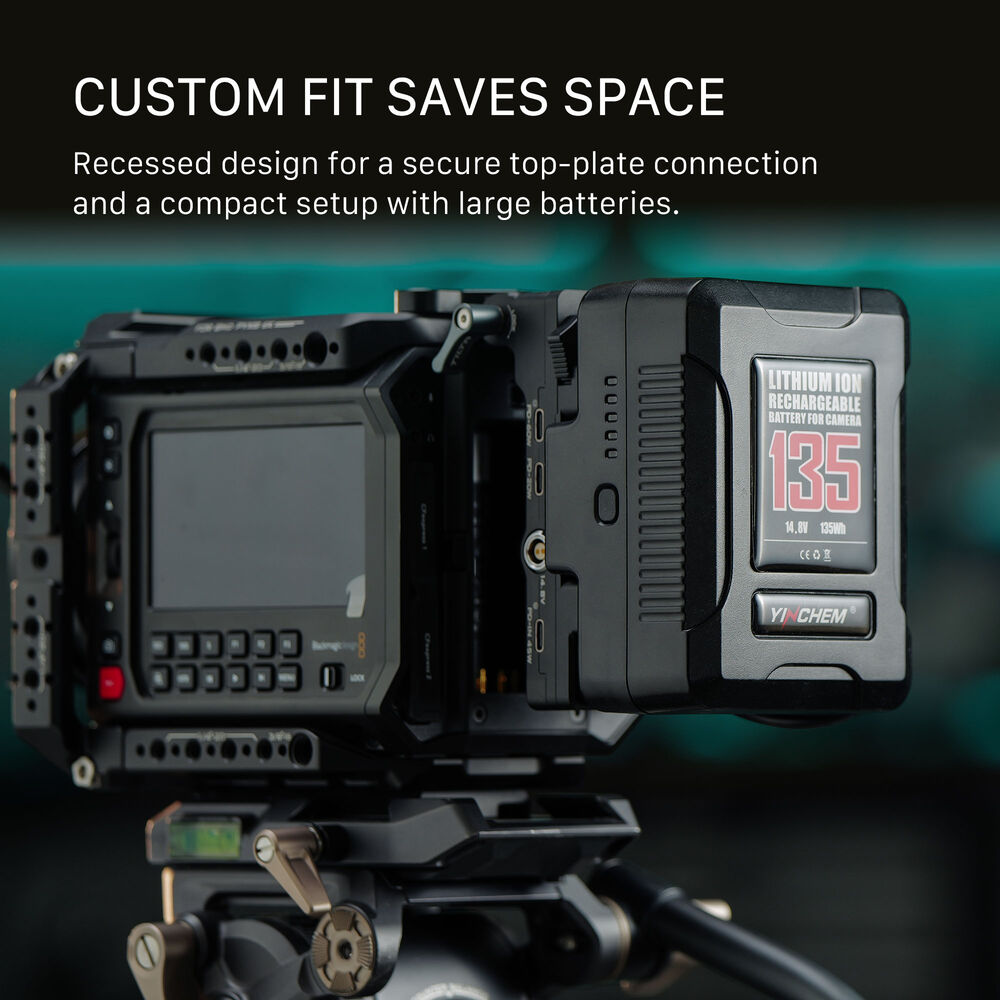

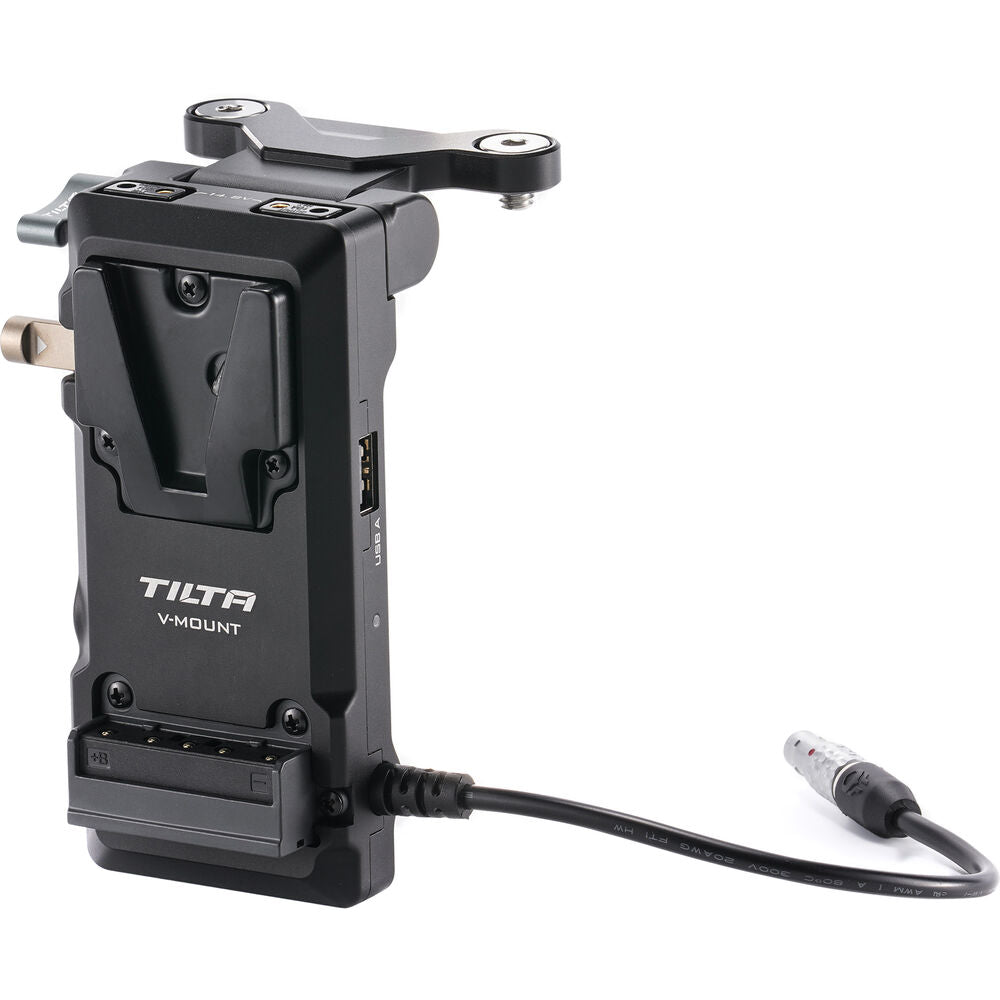

Power your Blackmagic Design PYXIS 6K or PYXIS 12K cinema camera and power-hungry accessories using a V-mount battery with the Foldable Battery Plate from Tilta. Designed to mount via 1/4"-20 screws onto the separately available PYXIS 6K or 12K top plate on the back of the camera, this battery plate powers your camera and multiple accessories using a high-capacity V-mount battery. It folds up and down to make room for the camera's on-board battery for redundant power.

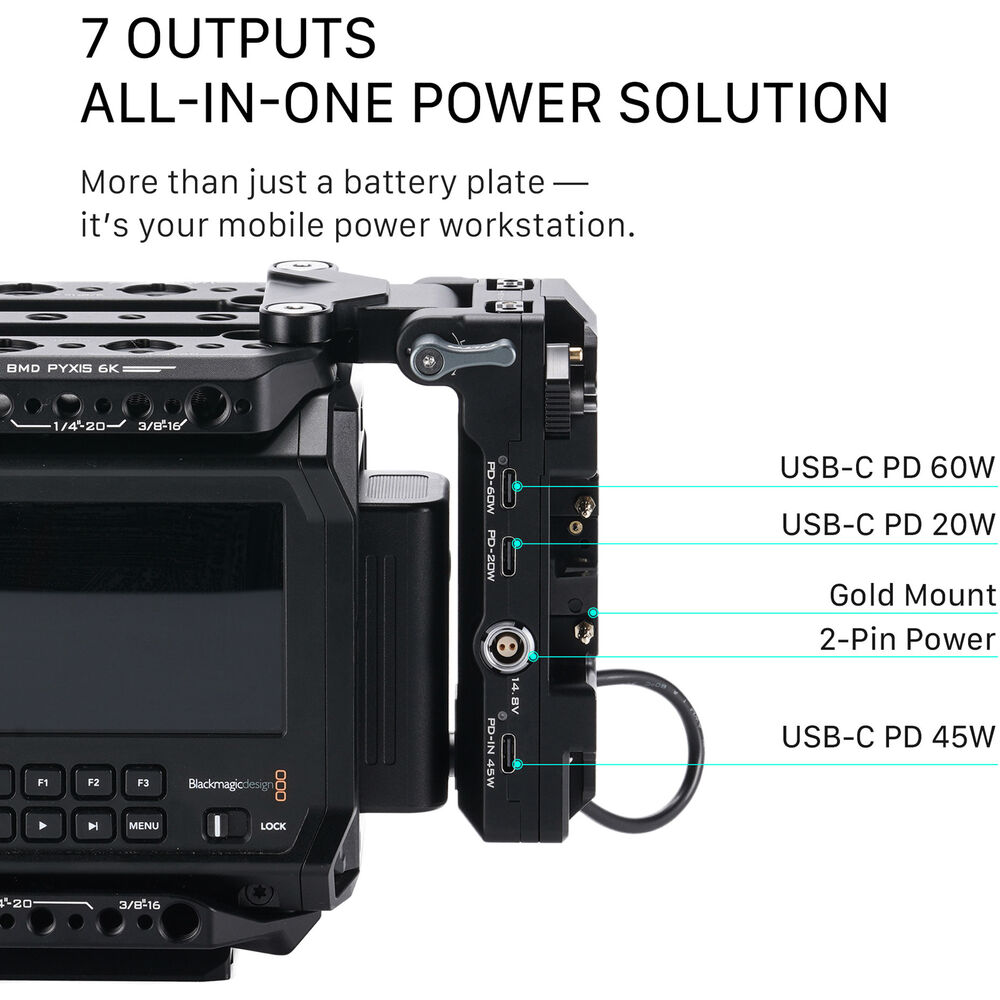

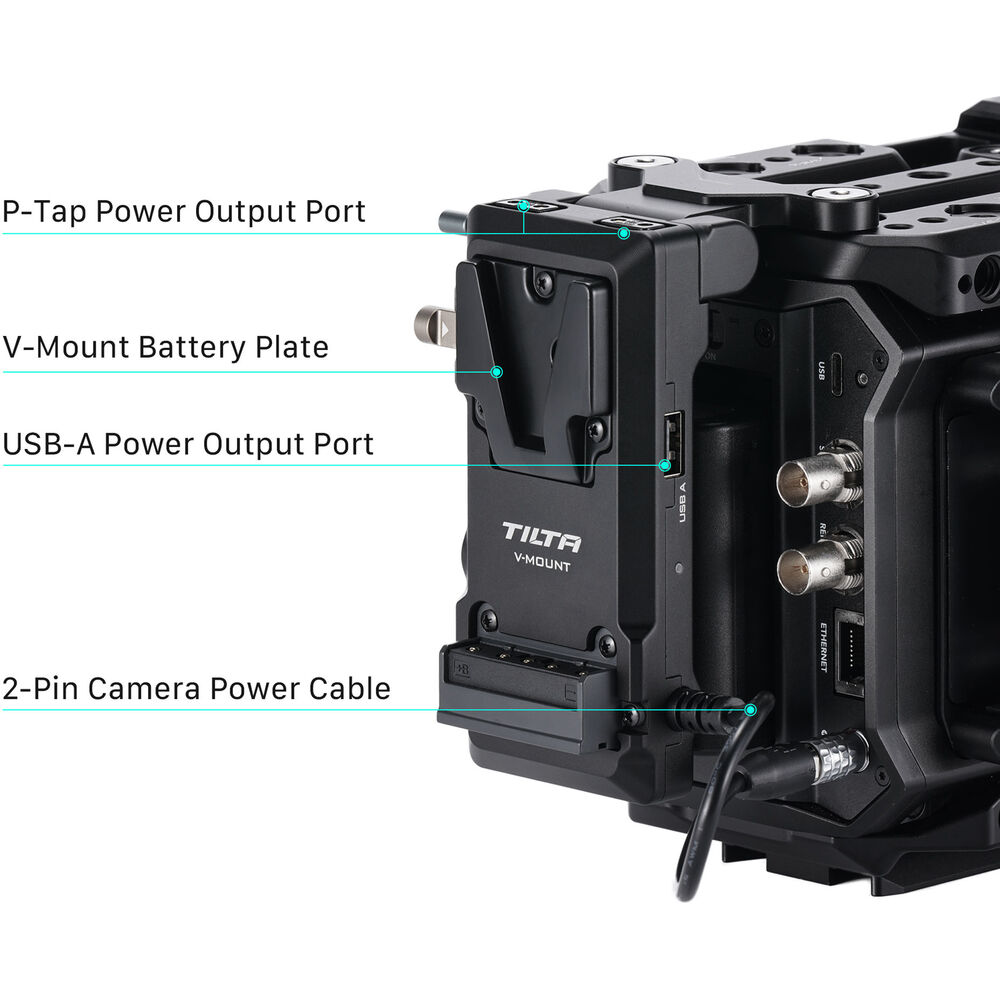

The plate plugs into the camera's 2-pin power input using the integrated cable. It features two 14.8V D-Tap outputs, a 14.8V 2-pin LEMO-style output, a 20W USB-C PD output, a 60W USB-C PD output, and a 5V USB-A output for powering a variety of accessories. A 45W USB-C PD input provides battery charging and the ability to hot swap your battery using an external power source and a separately available cable.
| Compatibility | Blackmagic PYXIS 6K / PYXIS 12K |
| Plate Front / Battery Mount | V-Mount |
| Plate Rear Mount | 1/4"-20 Male |
| Number of Battery Bays | 1 (Allows Hot-Swap When Connected to DC Input) |
| Accessory Mounting | No |

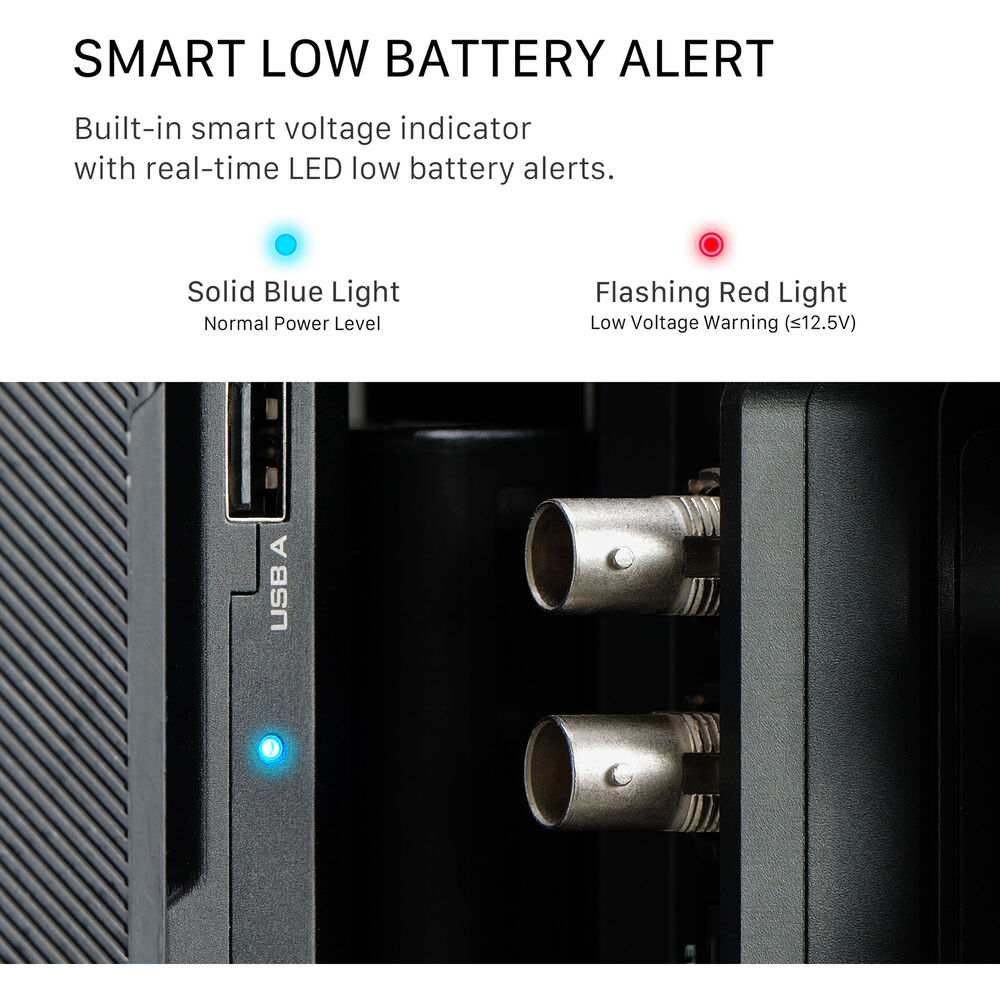

| Indicator | LED |
| Inputs/Outputs | 2x D-Tap/P-Tap (14.8 VDC) Output 1x LEMO 2-Pin (14.8 VDC) Output 2x USB-C Output 1x USB-A (5 VDC) Output 1x USB-C Input |
| Plate Material | Aluminum, Stainless Steel |
| Dimensions | 9 x 6.7 x 4.3" / 22.9 x 17 x 10.9 cm |
| Weight | 1.3 lb / 589.7 g |
| Package Weight | 0.855 lb |
| Box Dimensions (LxWxH) | 5.8 x 5.8 x 2.9" |
