Description

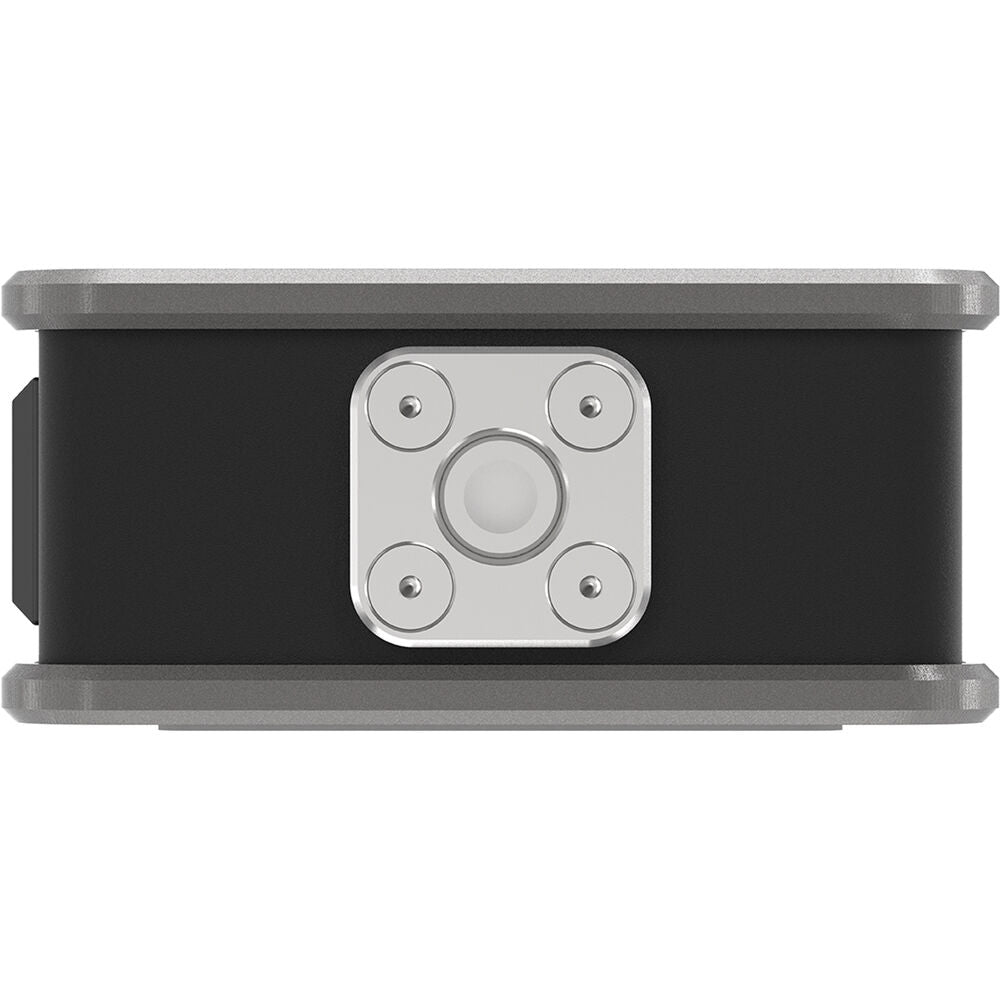

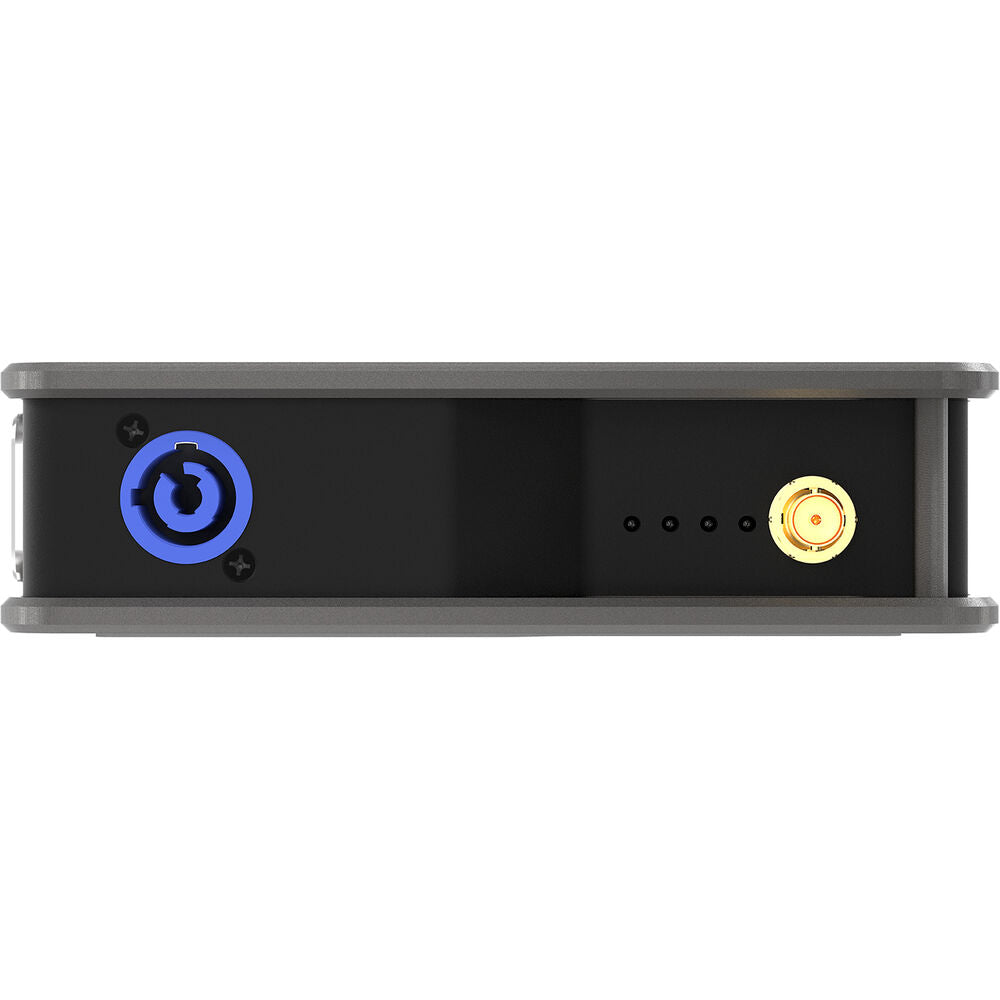

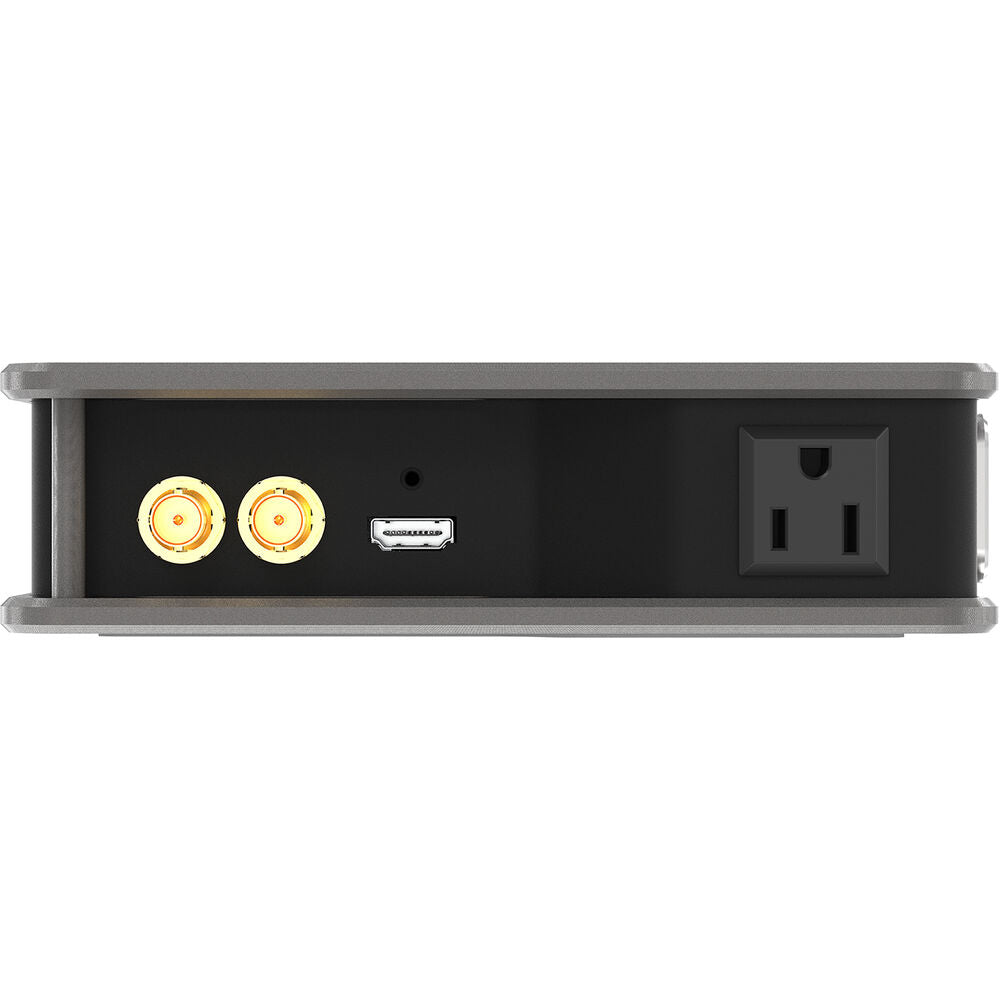

The xVision Series 12G-SDI to HDMI Converter from Theatrixx Technologies converts any incoming 12G/6G/3G/HD/SD-SDI signal to HDMI 2.0 at resolutions up to DCI 4K60 via a single, locking HDMI output port. The unit is equipped with two BNC outputs that provide reclocked and amplified SDI loop-through for extended signal delivery using optional SDI cables. Designed for flexible mounting on a wide range of production rigs, the unit features a magnetic stacking system and a non-skid rubber pad for reliable usage in tabletop applications. It employs simple and straightforward plug-and-play operation and integrates a powerCON connector for worry-free power connectivity.
| Video I/O | Input 1x BNC (12G-SDI) Output 1x HDMI 2.0 2x BNC (12G-SDI) |
| Video Resolution | SDI Input 4096 x 2160 at 50/59.94/60 fps 3840 x 2160 at 50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i at 50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1280 x 720 at 50/59.94/60 fps 720 x 576 at 25 fps 720 x 480p at 23.98/29.97 fps |
| Audio Format | Unspecified Digital Signal Input: 48 kHz / 24-Bit |
| Broadcast System Compatibility | NTSC, PAL |
| Wireless | No |
| Video I/O | Input 1x BNC (12G-SDI) Output 1x HDMI 2.0 2x BNC (12G-SDI) |
| Expansion Slots | No |
| Video Resolution | SDI Input 4096 x 2160 at 50/59.94/60 fps 3840 x 2160 at 50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i at 50/59.94/60 fps 1920 x 1080PsF at 23.98/24/25/29.97/30 fps 1280 x 720 at 50/59.94/60 fps 720 x 576 at 25 fps 720 x 480p at 23.98/29.97 fps |
| Audio Format | Unspecified Digital Signal Input: 48 kHz / 24-Bit |
| Embedded Audio | HDMI/SDI |
| Video Standard Compliance | SMPTE: 259M/292M/425M-A/425M-B |
| Broadcast System Compatibility | NTSC, PAL |
| Wireless | No |
| Power I/O | 1x powerCON Input 1x NEMA 5-15R Output |
| Power Consumption | 15 W Power Supply: 100 to 120 VAC |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
| Certifications | FCC |
| Dimensions | 7.1 x 4.2 x 2" / 180 x 107 x 50 mm |
| Weight | 2.2 lb / 1 kg |
| Package Weight | 3.395 lb |
| Box Dimensions (LxWxH) | 9.2 x 6.3 x 6.1" |
