Description

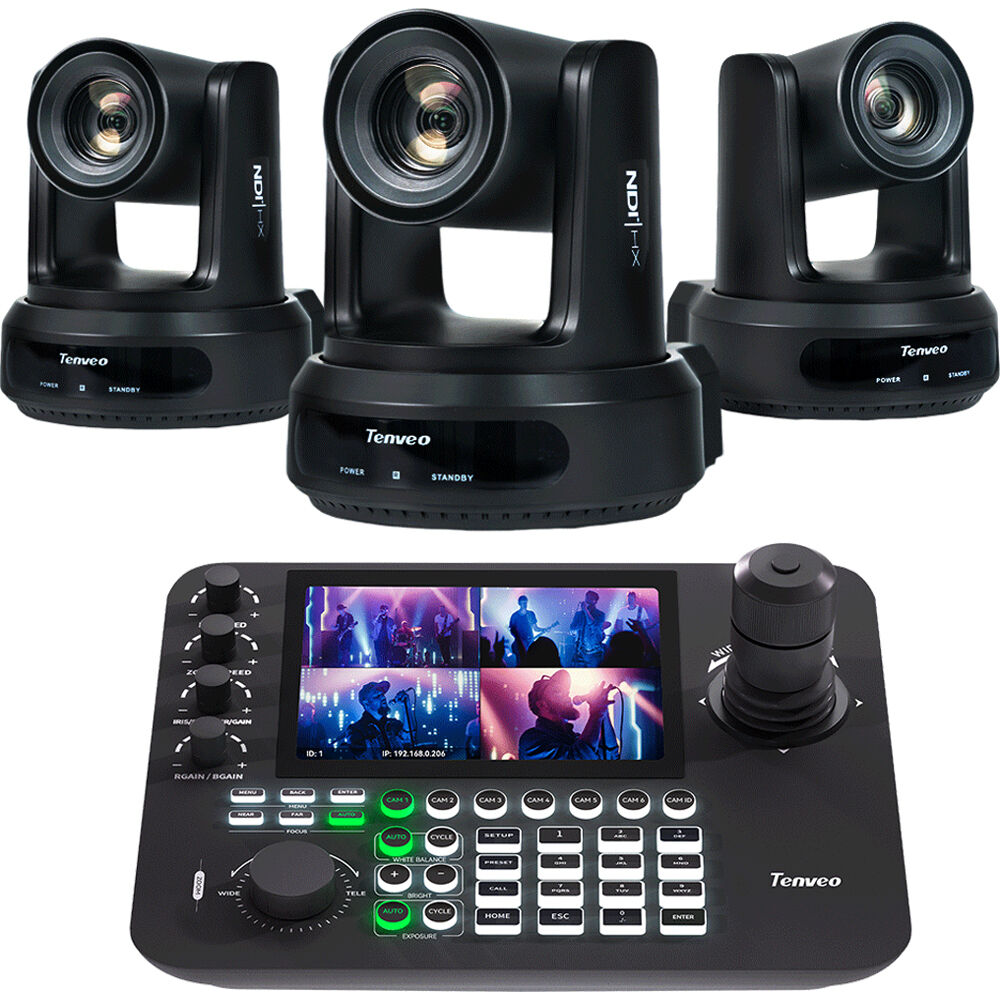

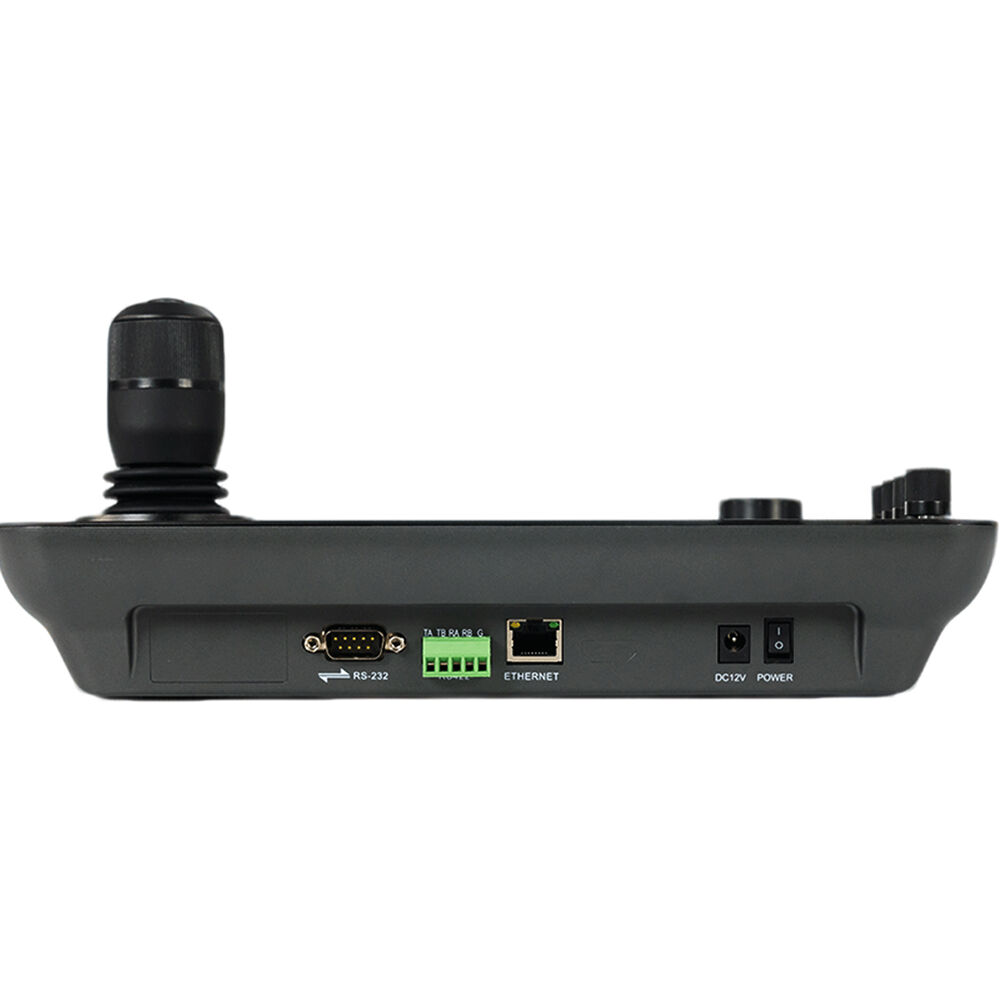

The All-in-One 1080p SDI/HDMI/IP/NDI PTZ 3-Camera Kit with Joystick Camera Controller from Tenveo includes three NV MAX 620AN 1080p PTZ cameras and a KB300 PRO keyboard camera controller.
Each camera supports up to 1080p60 video output via HDMI, 3G-SDI, and USB 3.0, and it has a LAN port for IP streaming, and NDI streaming is also available. The included controller features a 7" display that can view up to four sources simultaneously, and it can control up to 254 cameras via IP, NDI, VISCA, Pelco-D, and Pelco-P control protocols.
| Image Sensor | 1/2.8"-Type |
| Effective Sensor Resolution | 2.08 Megapixel |
| Max Optical Zoom | 20x |
| Max Digital Zoom | 16x |
| Max Video Output | via HDMI / RJ45 / SDI/BNC / USB 1080p up to 60.00 fps |
| Max Recording Modes | No |
| Broadcast Output | NTSC |
| Supported Protocols | Camera Control IP/IR/NDI/ONVIF/Pelco-D/Pelco-P/RS-232/VISCA |
| IP Streaming | HTTP/NDI/ONVIF/RTMP/RTMPS/RTSP/SRT 1920 x 1080 |
| Wireless | No |
| PoE Support | Yes: PoE 802.3af |
| Mounting | 1x Proprietary for Ceiling/Tripod/Wall |
| Image Sensor | 1/2.8"-Type CMOS |
| Sensor Resolution | 2.08 Megapixel |
| Focus Control | Autofocus |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: Auto, Manual |
| Focal Length | 4.42 to 88.5mm |
| Max Optical Zoom | 20x |
| Max Digital Zoom | 16x |
| Field of View | Diagonal: 72.88 to 3.95° |
| Maximum Aperture | f/1.8 to 2.8 |
| Video Output | via HDMI / RJ45 / SDI/BNC / USB 1920 x 1080p up to 60.00 fps |
| Embedded Audio | HDMI/IP/NDI/SDI/USB |
| Internal Recording | No |
| Broadcast Output | NTSC |
| Supported Protocols | Camera Control IP/IR/NDI/ONVIF/Pelco-D/Pelco-P/RS-232/VISCA |
| IP Streaming | HTTP/NDI/ONVIF/RTMP/RTMPS/RTSP/SRT 1920 x 1080 |
| Presets | 255 via RS-232 10 via IR |
| Pan/Tilt/Roll | Pan: 350° (-175 to 175°) at 0.1 to 100°/s Tilt: 180° (-90 to 90°) at 0.1 to 80°/s |
| Wireless | No |
| Video I/O | 1x HDMI Output 1x BNC (3G-SDI) Output 1x USB-A 3.0 / 3.1/3.2 Gen 1 Output 1x RJ45 (NDI) Input/Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Line Input |
| Built-In Microphone | No |
| PoE Support | Yes: PoE 802.3af |
| Mounting | 1x Proprietary for Ceiling/Tripod/Wall |
| Package Weight | 28.045 lb |
| Box Dimensions (LxWxH) | 23.1 x 18 x 13.2" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 380813.3 |
| 3-5 | ₹ 376927.45 |
| 5-10 | ₹ 369155.75 |
| 10+ | ₹ 361384.05 |
Bulk discount will be automatically applied during checkout based on quantity.
