Description

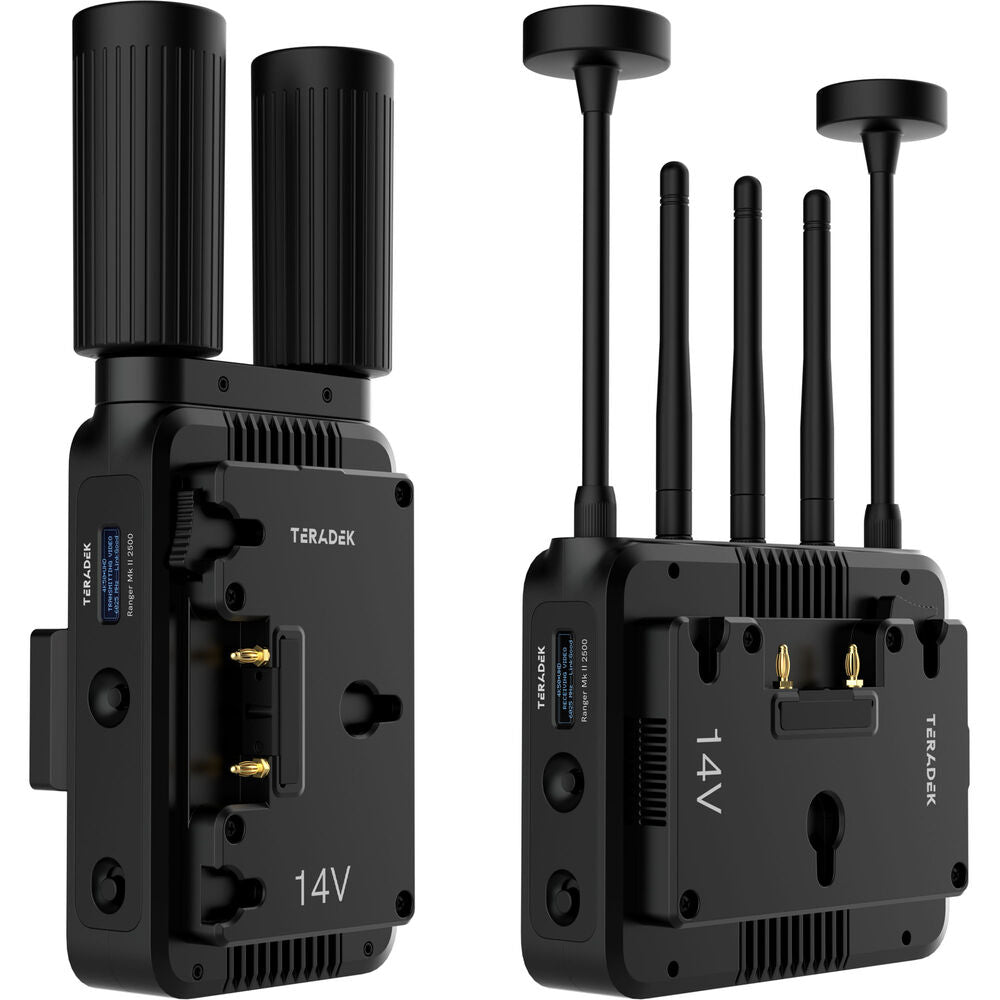

Add a full wireless transmission kit to your rig to transmit lossless 4K video up to 2500' with the Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter/Receiver Kit from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this transmitter/receiver set can input up to 4K60 video over HDMI or 12G-SDI and transmit up to 2500' away to the receiver, which can output to HDMI or 12G-SDI.
The set supports transmission of up to 4K60 video to up to six receivers and features built-in AES-256 encryption protects your video from prying eyes. You can set up the set using a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration. Each unit is powered using a 2-pin DC input and the receiver can be powered using the included Gold mount battery plate.
Read more below about the items in this kit.

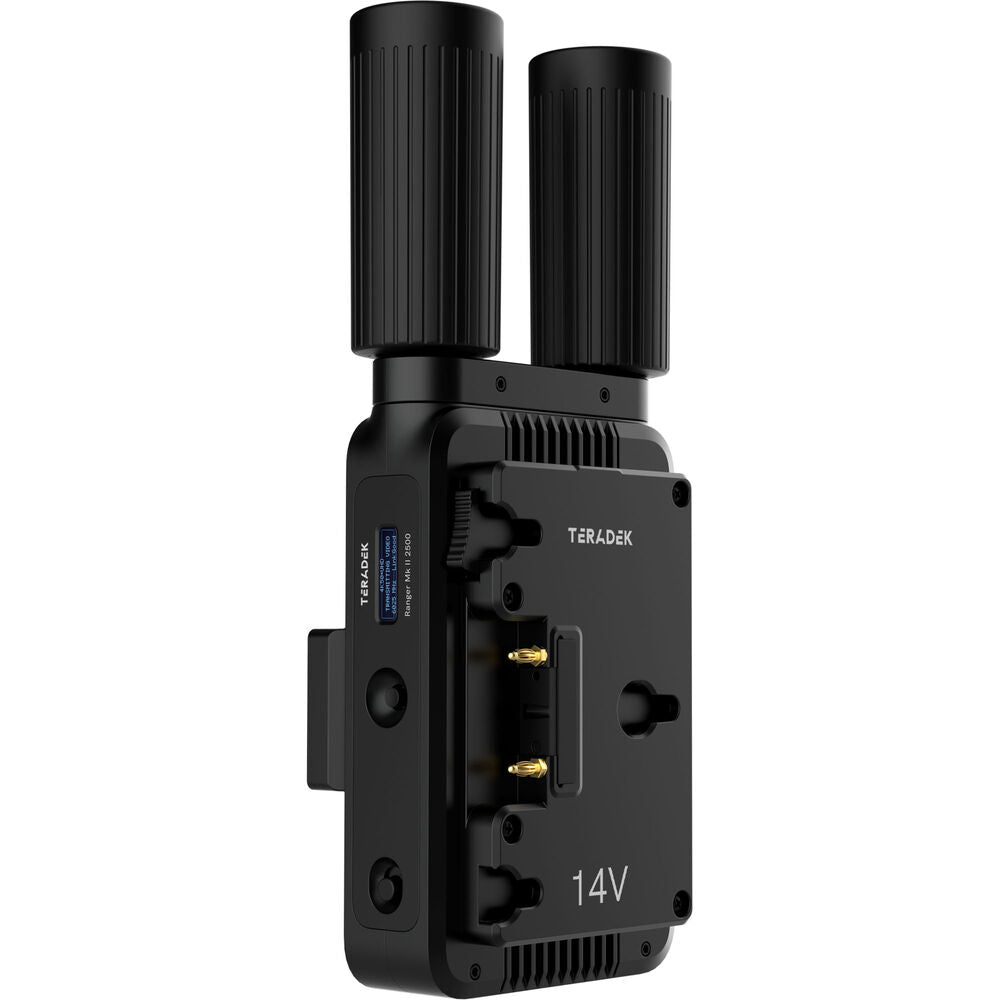

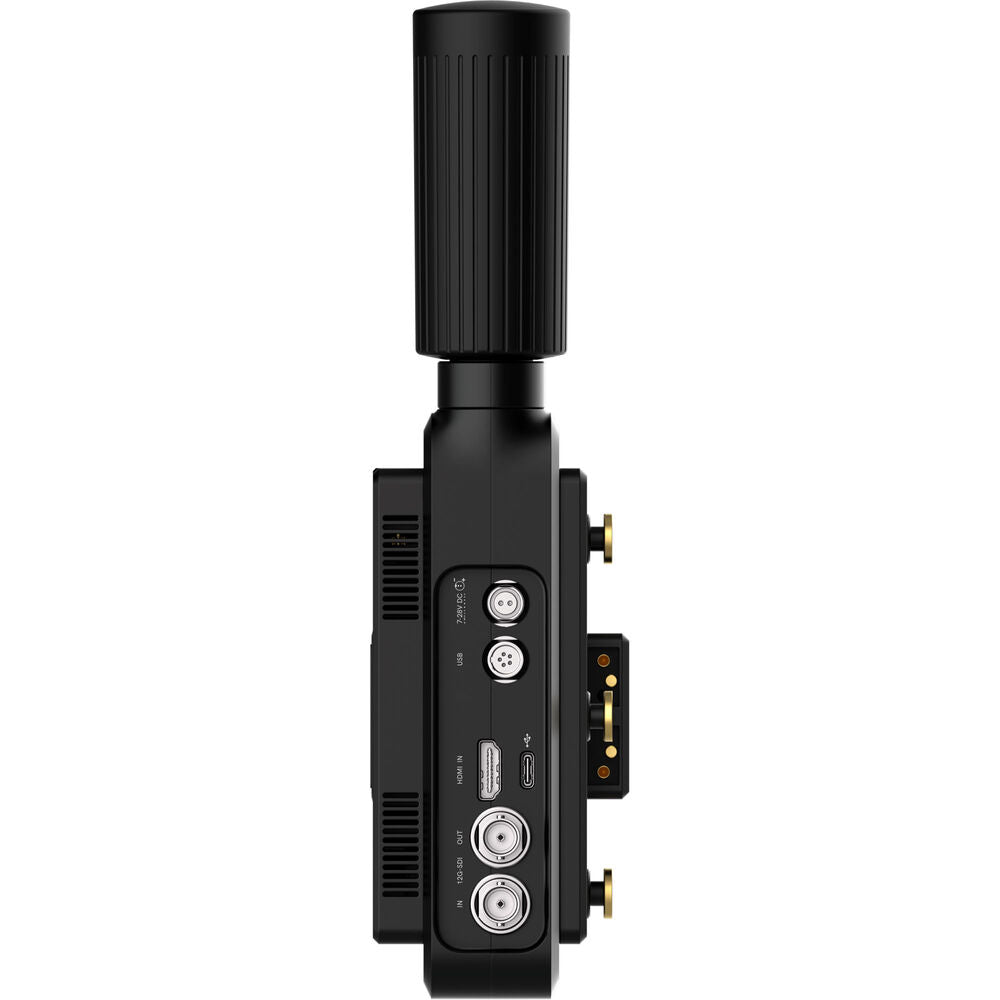

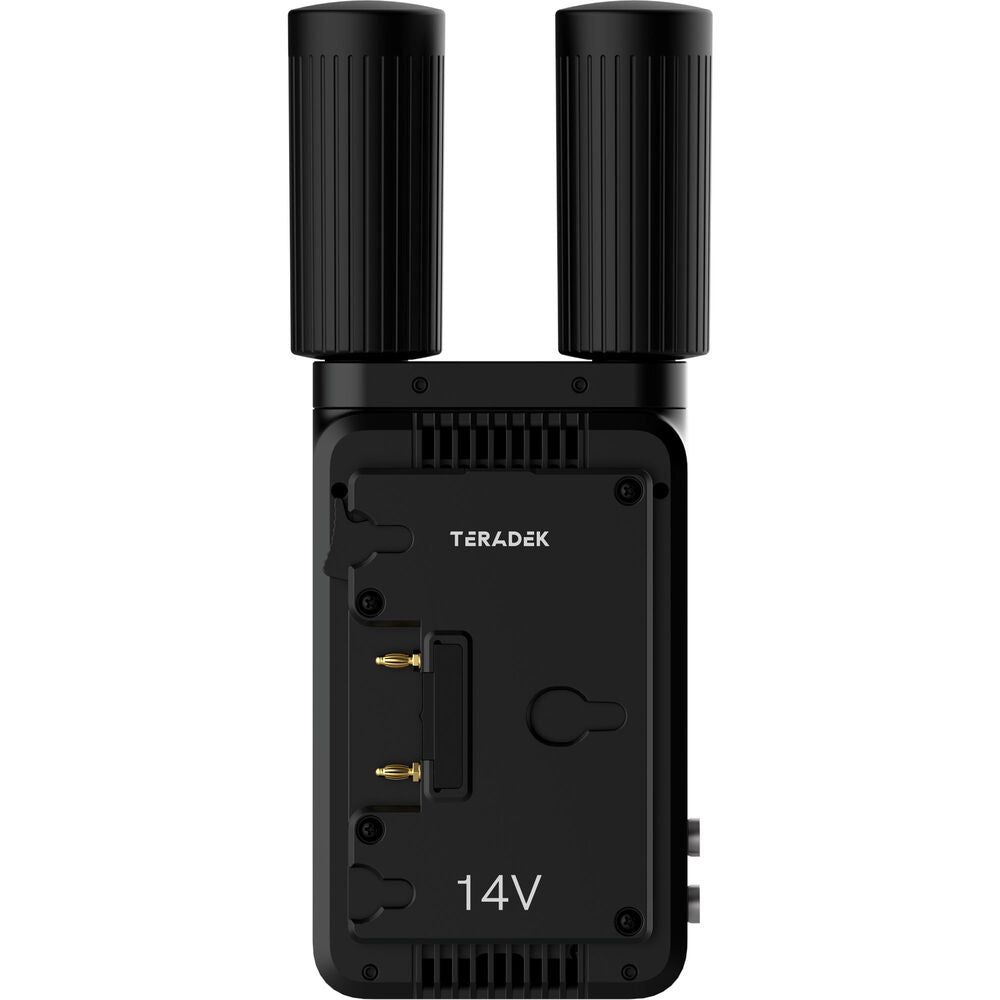

Transmit lossless HD video up to 2500' with the Ranger MK II 2500 12G-SDI/HDMI Wireless Transmitter from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this transmitter can input up to 4K60 video over HDMI or 12G-SDI with 10-bit HDR support and transmit up to 4K60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum. The transmitter unit provides a powerful signal that can travel up to 2500' line of sight. It also features an SDI loop output for local monitoring, and one horizontal and one vertical N-type antenna.
The transmitter supports transmission of up to 4K60 video to up to six receivers and features built-in AES-256 encryption protects your video from prying eyes. It can transmit visually lossless video to any Ranger series receiver with zero delay. The transmitter supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
The unit is powered using a 2-pin DC input or the included Gold mount battery plate, and there are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

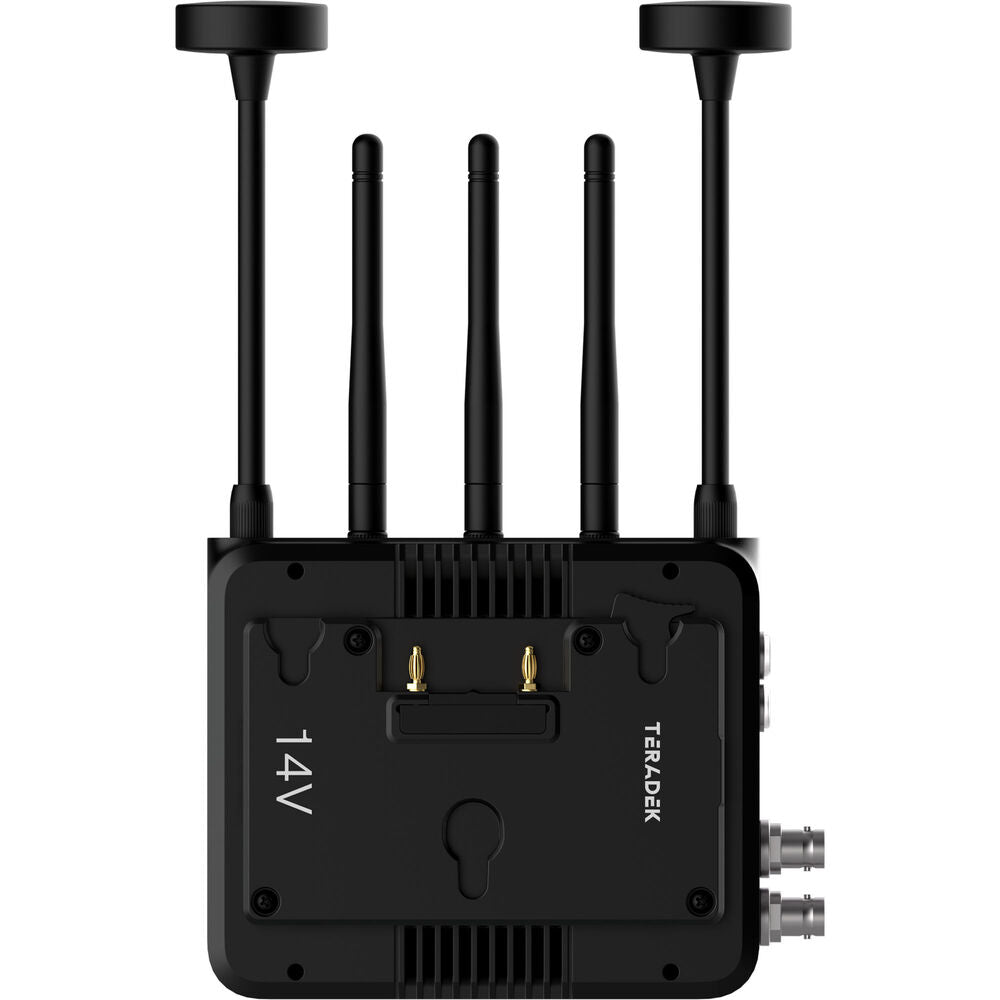

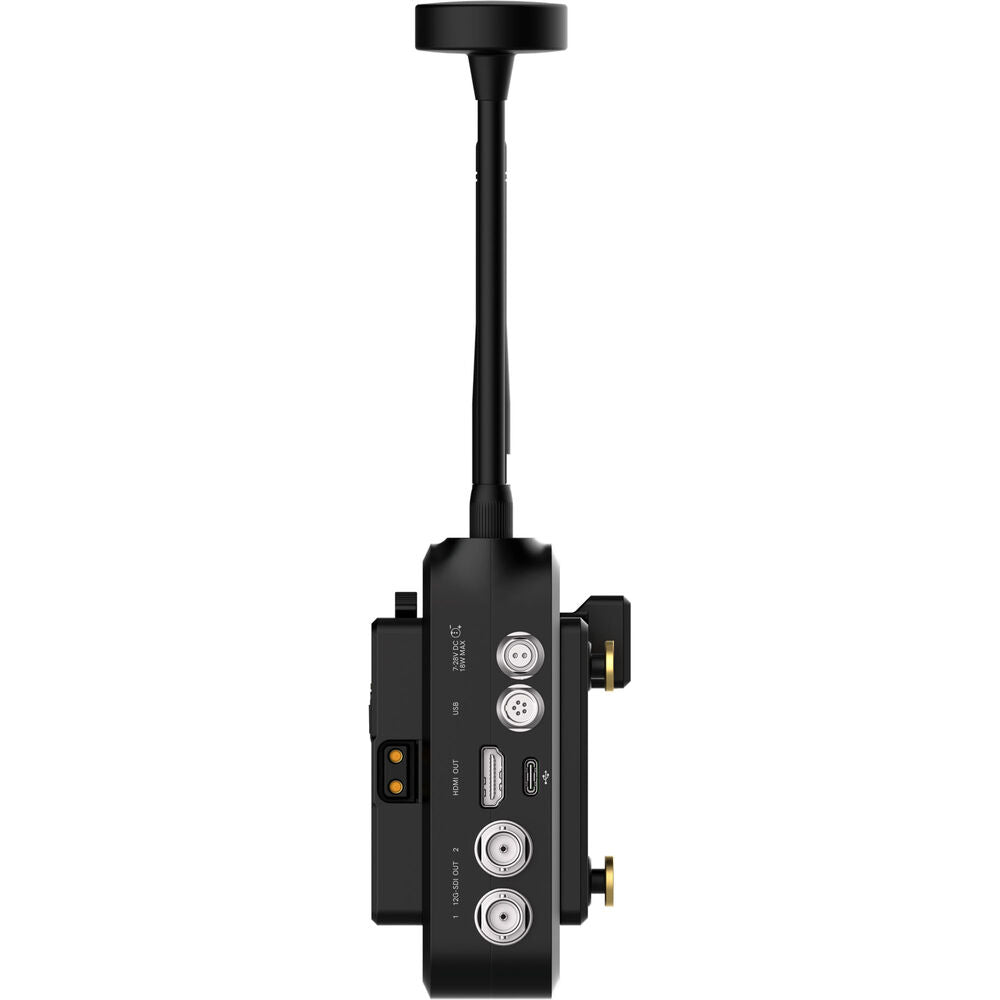

Transmit lossless 4K video up to 2500' with the Ranger MK II 2500 12G-SDI/HDMI Wireless Receiver from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this receiver can receive up to 4K60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum, and it can output up to 4K60 video over HDMI or 12G-SDI with 10-bit HDR support. The receiver unit supports a powerful signal that can travel up to 2500' line of sight. It also features five external antennas.
When pairing with a Ranger transmitter, this unit can receive up to 4K60 video alongside up to five other receivers, and it features built-in AES-256 encryption protects your video from prying eyes. It can receive visually lossless video from any Ranger series receiver with zero delay. The receiver supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
The unit is powered using a 2-pin DC input or via the included Gold mount battery plate, and there are 1/4"-20 and 3/8"-16 mounting threads to mount onto a variety of cameras, cages, or rigs.
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Wireless | Bluetooth 5.0 |
| Latency | < 1 ms |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 SDI (10-Bit 4:2:2 YCC) UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Battery | 1x Gold Mount on Fixed Plate |
| Power Consumption | 12 W |
| Antenna I/O | 2x RP-SMA Female |
| Video I/O | 1x HDMI 2.0 Input 1x BNC (12G-SDI) Input 1x BNC (12G-SDI) Loop Output |
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Audio I/O | No |
| Power I/O | 1x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1x USB-C (Firmware) Input |
| Encryption | Yes: 256-Bit AES |
| Wireless | Bluetooth 5.0 |
| Wireless Range | 2500' / 762 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | US: 5.92 to 6.42 GHz US: 4.85 to 5.15 GHz US: 5.35 to 5.47 GHz US: 5.85 to 5.92 GHz Non-DFS Frequencies US: 5.15 to 5.25 GHz US: 5.72 to 5.85 GHz DFS Frequencies US: 5.25 to 5.35 GHz US: 5.47 to 5.72 GHz |
| Latency | < 1 ms |
| RF Power | 23 dBm |
| Wi-Fi | No |
| Bluetooth | Bluetooth 5.0 LE |
| Mobile App Compatible | Yes: Android & iOS Functionality: Adjust Settings, Remote Control, Setup, View Live Feed |
| Cellular Support | No |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 50 480i: 59.94 SDI (10-Bit 4:2:2 YCC) UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| Input Power | 6 to 28 VDC |
| Battery | 1x Gold Mount on Fixed Plate |
| Power Consumption | 12 W |
| Tripod/Accessory Mounting | 1x 1/4"-20 Female |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | 5.9 x 3.6 x 1.2" / 149 x 91 x 30 mm |
| Weight | 19.19 oz / 544.00 g |
