Description
Ensure a strong wireless signal in complex RF environments with the RF-X Redundant Wireless Video Switcher from Teradek. This half-rack 1 RU unit provides intelligent switching between multiple wireless Bolt 4K/Bolt 6 and/or Ranger RX units to ensure the strongest signal is being output for broadcast. The unit inputs up to six wireless units via 12G-SDI, evaluates their signals with zero delay, and outputs the strongest signal via the 12G-SDI output.

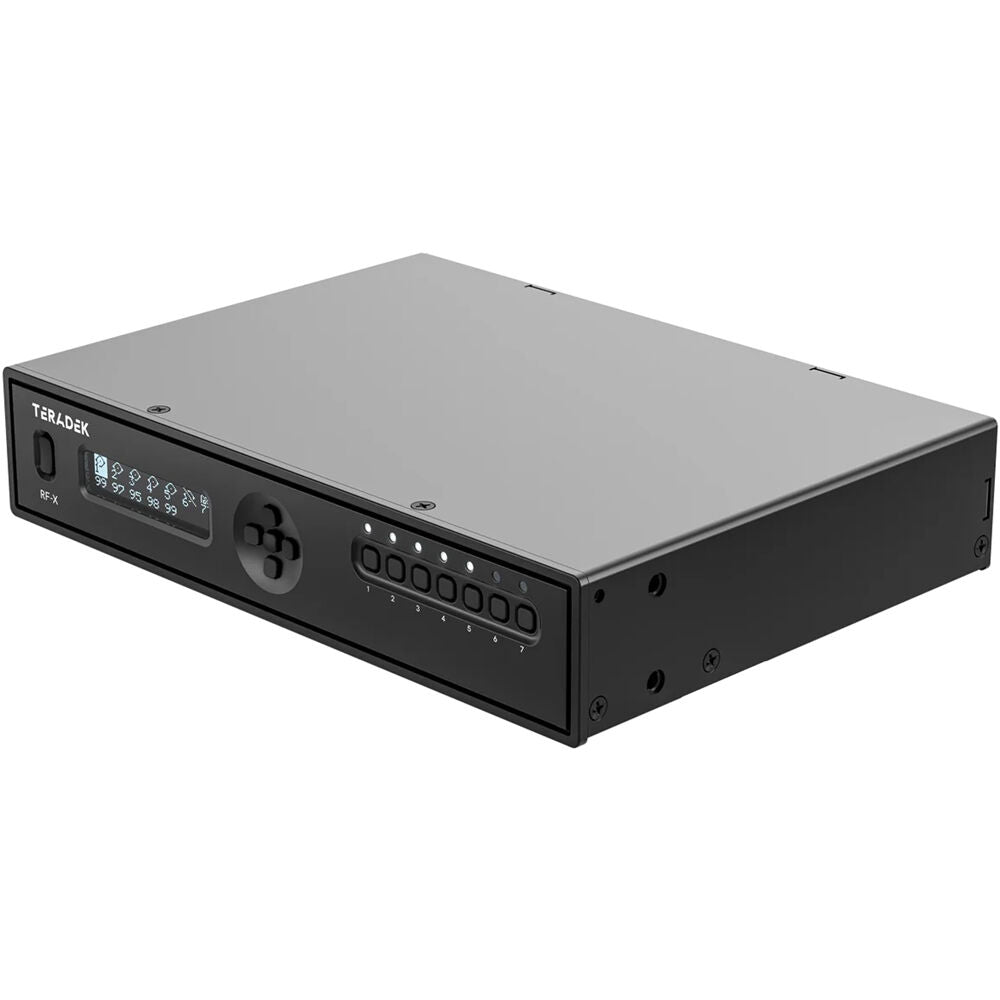

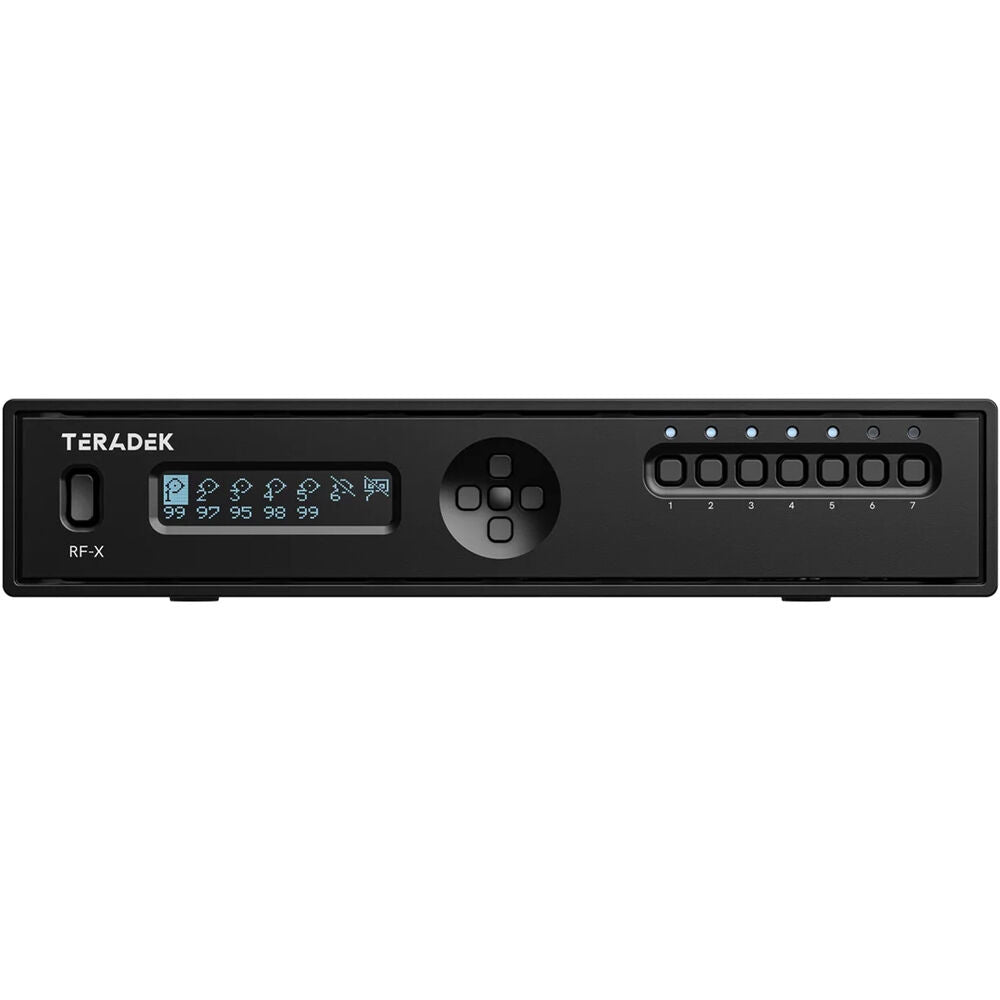

The unit features a front OLED panel to show connectivity and configuration info. An additional 12G-SDI multiview output lets you preview all the signals on an external display. This unit is helpful when capturing signals for live events, tracking shots, complex live locations, street scenes, and in any environment where RF signals might interfere with your video transmission.
| Compatibility | Teradek Ranger RX Series / Bolt 4K Series / Bolt 6 Series |
| Video Format | 4K: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1080psf: 30, 29.97, 25, 24, 23.98 1080i: 60, 59.94, 50 720p: 60, 59.94, 50 |
| Color | YCbCr 4:2:2, 10-Bit |
| Delay | TX to RX: <0.001 Second |
| Compatible Operating Systems | Bolt Manager App: macOS, Windows |
| Panel Type | OLED |
| Size | Not Specified by Manufacturer |
| Touchscreen | No |
| USB I/O | 1 x USB-C Female Input |

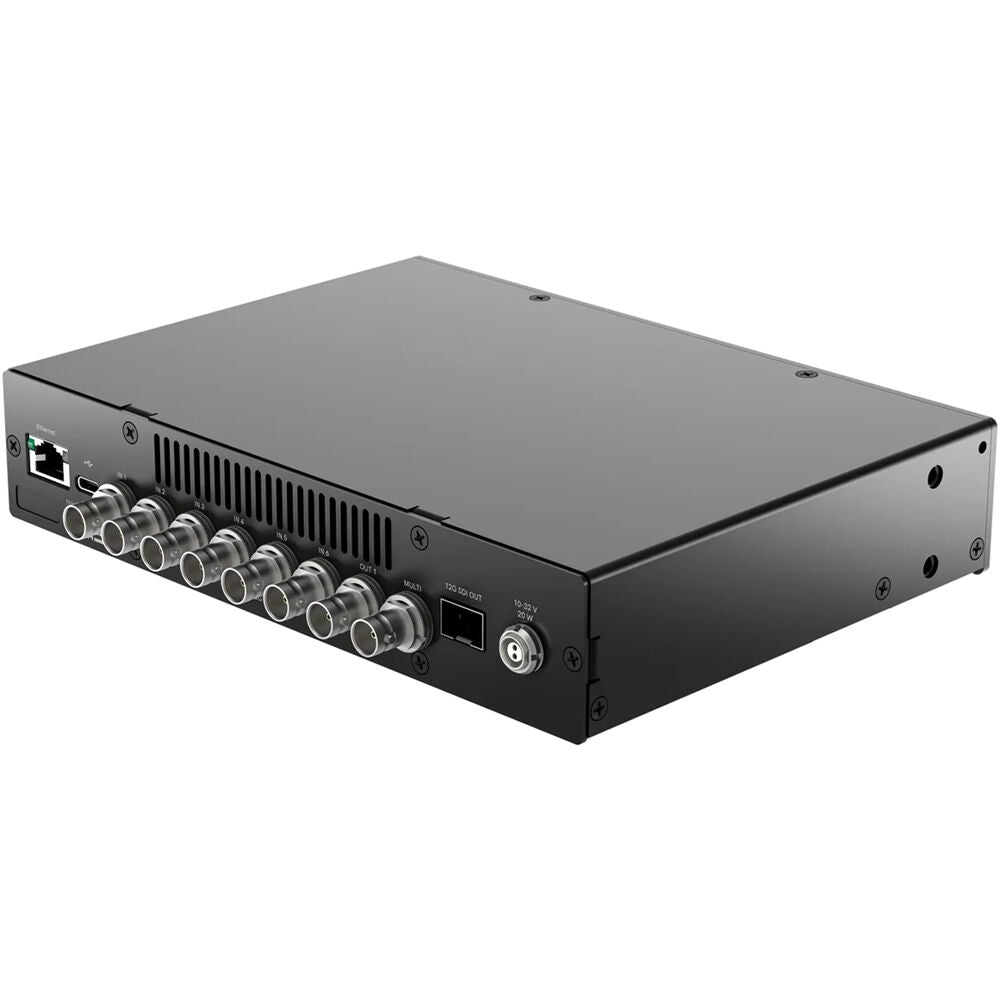

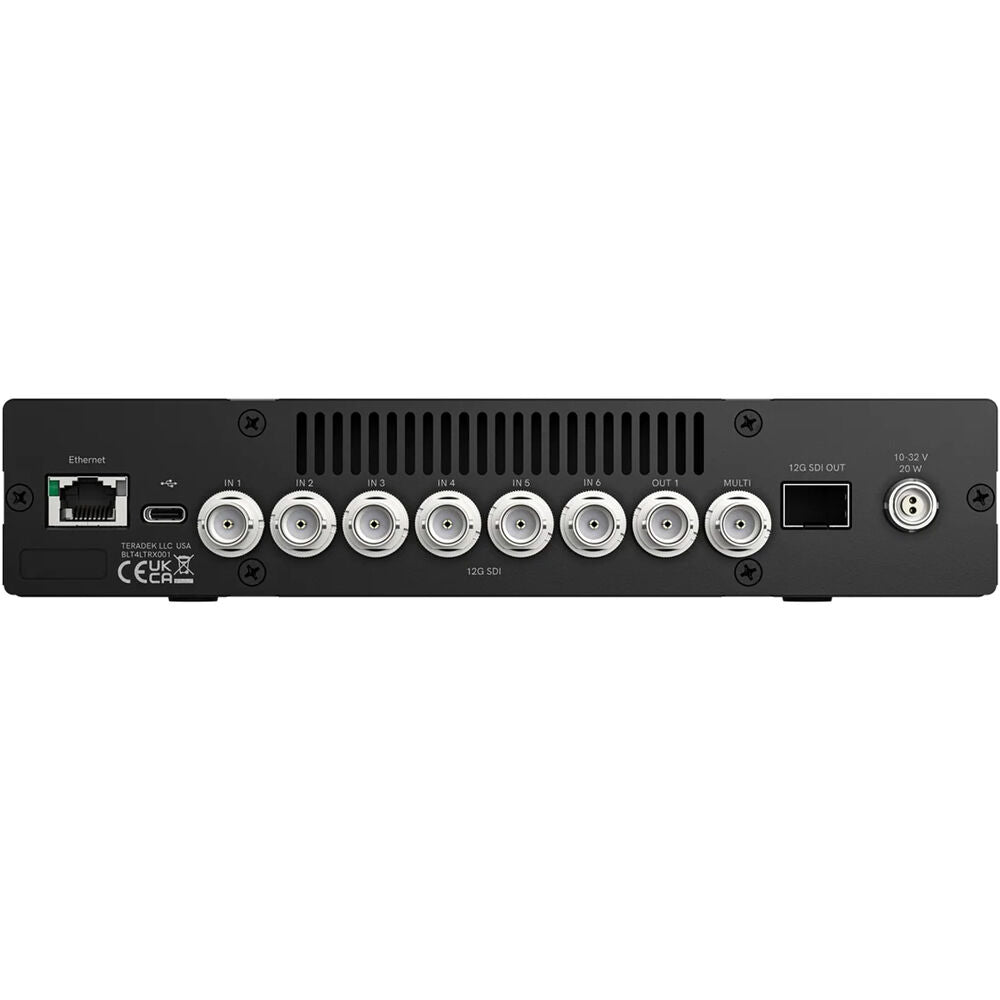

| Video I/O | 6x BNC (12G-SDI) Input 1x BNC (12G-SDI) Output 1x BNC (12G-SDI) Monitor Output ( Configurable Multiview ) |
| Other I/O | 1 x RJ45 Gigabit Ethernet (Management) 1 x SFP Slot, 12G-SDI Fiber (Empty) |
| Wireless | Bluetooth |
| Mobile App Compatible | Yes: Android & iOS App Name: Bolt App |
| Power Source | Plug-In Power |
| DC Input Power | 10 to 32 VDC |
| Power Consumption | 18 W |
| Color | Black |
| Material of Construction | Aluminum |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Dimensions | 8.7 x 6.9 x 1.7" / 221 x 175 x 44 mm |
| Weight | 1.9 lb / 855 g |
| Package Weight | 3.615 lb |
| Box Dimensions (LxWxH) | 12.2 x 8.1 x 4.9" |
