Description

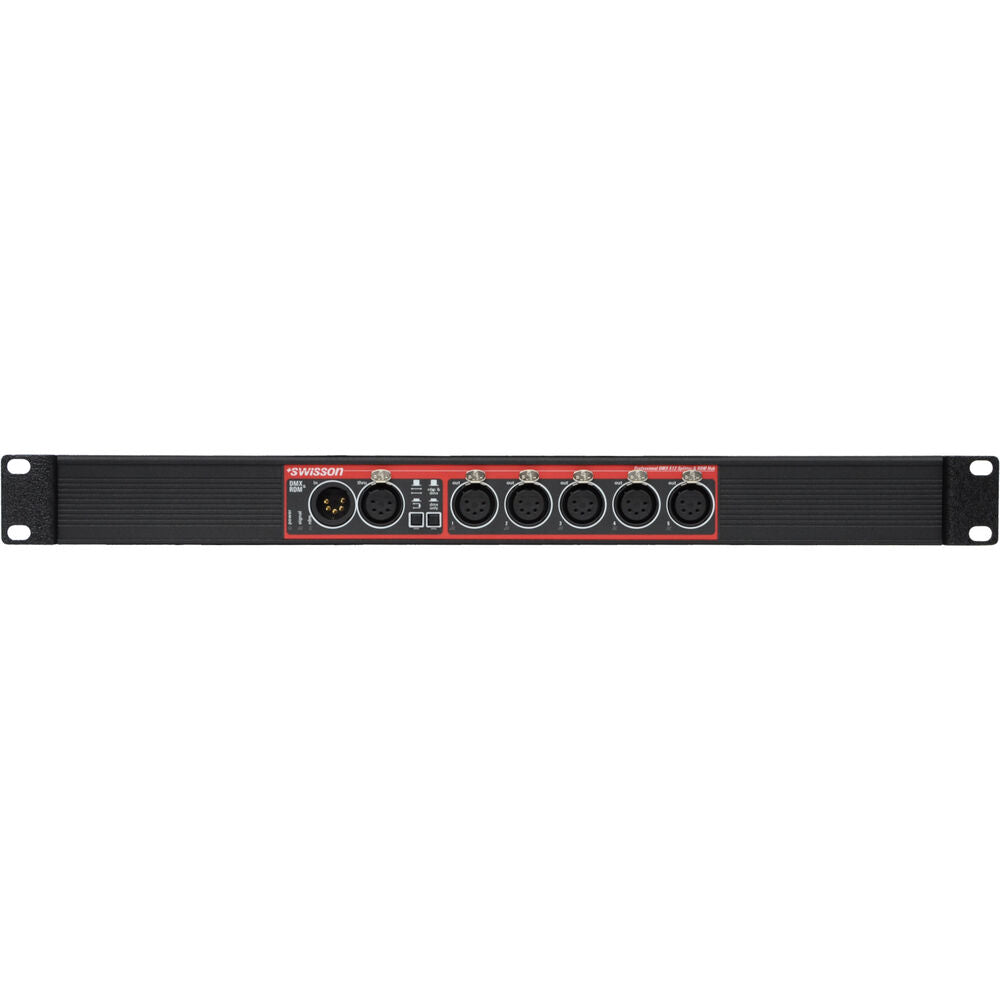

Designed for professional use in events or installations, this XLR 5-pin 5-output XSR DMX/RDM Splitter & Booster Rack Style from SWISSON is a reliable DMX splitter that boosts, regenerates, and distributes DMX and RDM signals. The XSR has a power supply that ensures safe operation under harsh mains conditions thanks to individual optically isolated ports with overvoltage protection. A DMX only mode filters all non-DMX data to ensure signal clarity without RDM or other protocols. The XSR is visible to RDM controllers to facilitate installation with troubleshooting capability. This is the 4W single rack mount version.
| Inputs/Outputs | 1x XLR 5-Pin (DMX) Male Input 1x XLR 5-Pin (DMX) Female Throughput 5x XLR 5-Pin (DMX) Female Output |
| Channels | 512 |
| Power Source | AC Power |
| Protocol | DMX512, RDM |
| Inputs/Outputs | 1x XLR 5-Pin (DMX) Male Input 1x XLR 5-Pin (DMX) Female Throughput 5x XLR 5-Pin (DMX) Female Output |
| Channels | 512 |
| Dimming | No |
| Cooling System | Passive |
| Power Source | AC Power |
| Power Consumption | 4 W |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Protocol | DMX512, RDM |
| Operating Conditions | 0 to 131°F / -18 to 55°C |
| Certifications | ANSI E1.11, ANSI E1.20 |
| Environmental Resistance | No |
| Rack Mount | Yes |
| Dimensions | 19.0 x 4.4 x 1.8" / 48.3 x 11.2 x 4.6 cm |
| Weight | 3.9 lb / 1.8 kg |
| Package Weight | 4.595 lb |
| Box Dimensions (LxWxH) | 21 x 14.1 x 7.4" |
