Description

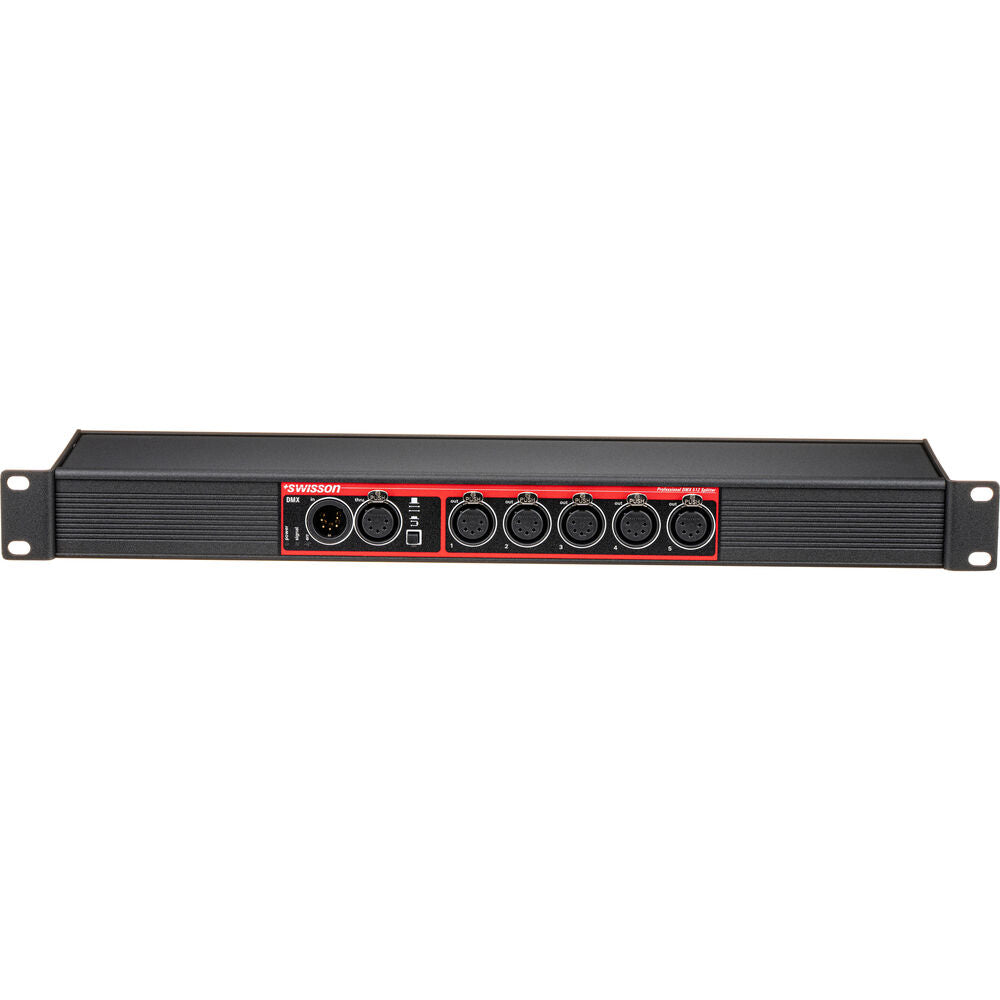

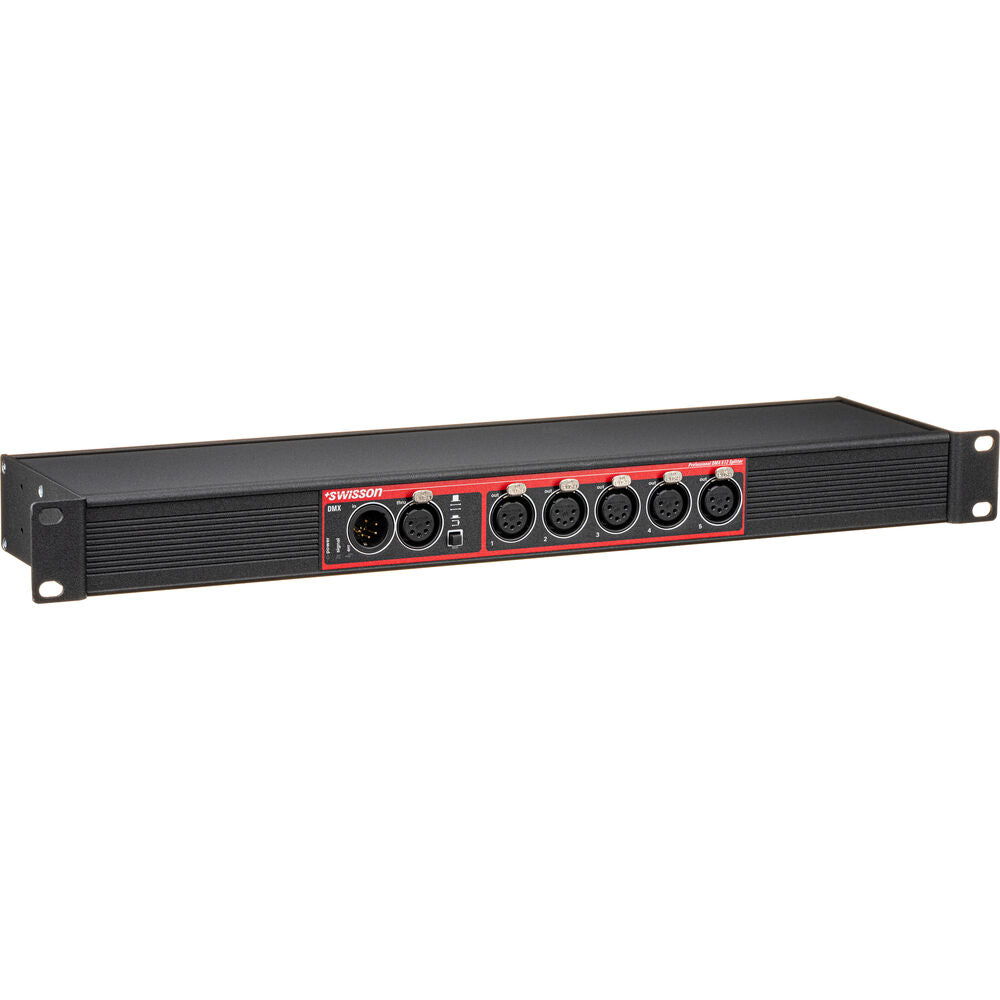

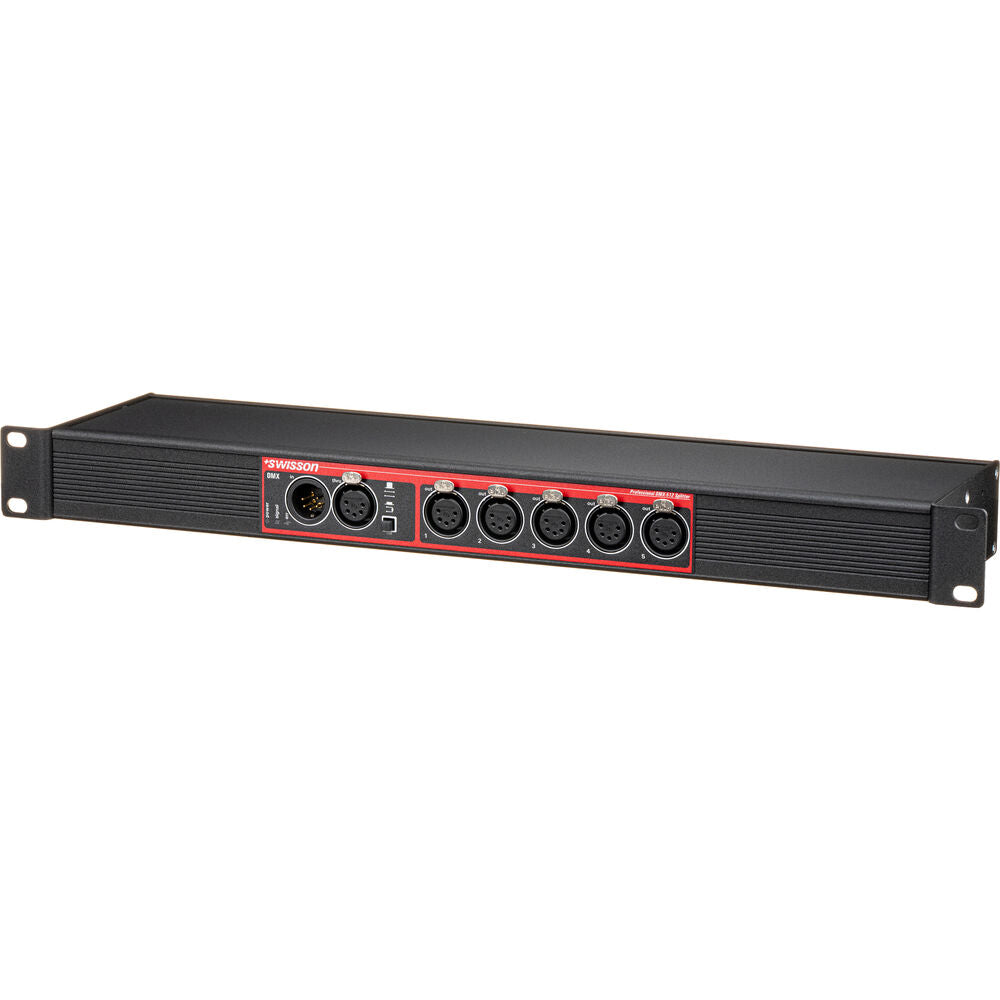

Designed for professional use in events or DMX512 installations, this XLR 5-pin 5-output XSP DMX Splitter & Booster Rack Style from SWISSON is a reliable DMX splitter that boosts, regenerates, and distributes DMX signals. The DMX signal is regenerated and boosted while the DMX protocol timing is not modified (the XSP splits and boost only DMX signals). The XSP splitter also reduces reflection issues and allows splitting the DMX signal across multiple lines. It offers protocol monitoring to indicate the presence of DMX signals or errors. The XSP has a power supply that ensures safe operation under harsh mains conditions thanks to individual optically isolated ports with over voltage protection. This is the 4W single rackmount version for 19" rack systems. The XSP model only works within DMX environments.
| Inputs/Outputs | 1x XLR 5-Pin (DMX) Male Input 1x XLR 5-Pin (DMX) Female Throughput 5x XLR 5-Pin (DMX) Female Output |
| Channels | 512 |
| Power Source | AC Power |
| Protocol | DMX512 |
| Inputs/Outputs | 1x XLR 5-Pin (DMX) Male Input 1x XLR 5-Pin (DMX) Female Throughput 5x XLR 5-Pin (DMX) Female Output |
| Channels | 512 |
| Dimming | No |
| Cooling System | Passive |
| Power Source | AC Power |
| Power Consumption | 4 W |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Protocol | DMX512 |
| Operating Conditions | 0 to 131°F / -18 to 55°C |
| Certifications | ANSI E1.11, EN60950-1, EN55103-1, EN55103-2, UL508 |
| Environmental Resistance | No |
| Rack Mount | Yes |
| Dimensions | 19.0 x 4.4 x 1.8" / 48.3 x 11.2 x 4.6 cm |
| Weight | 3.3 lb / 1.5 kg |
| Package Weight | 4.65 lb |
| Box Dimensions (LxWxH) | 20.9 x 14.2 x 7.6" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
