Description

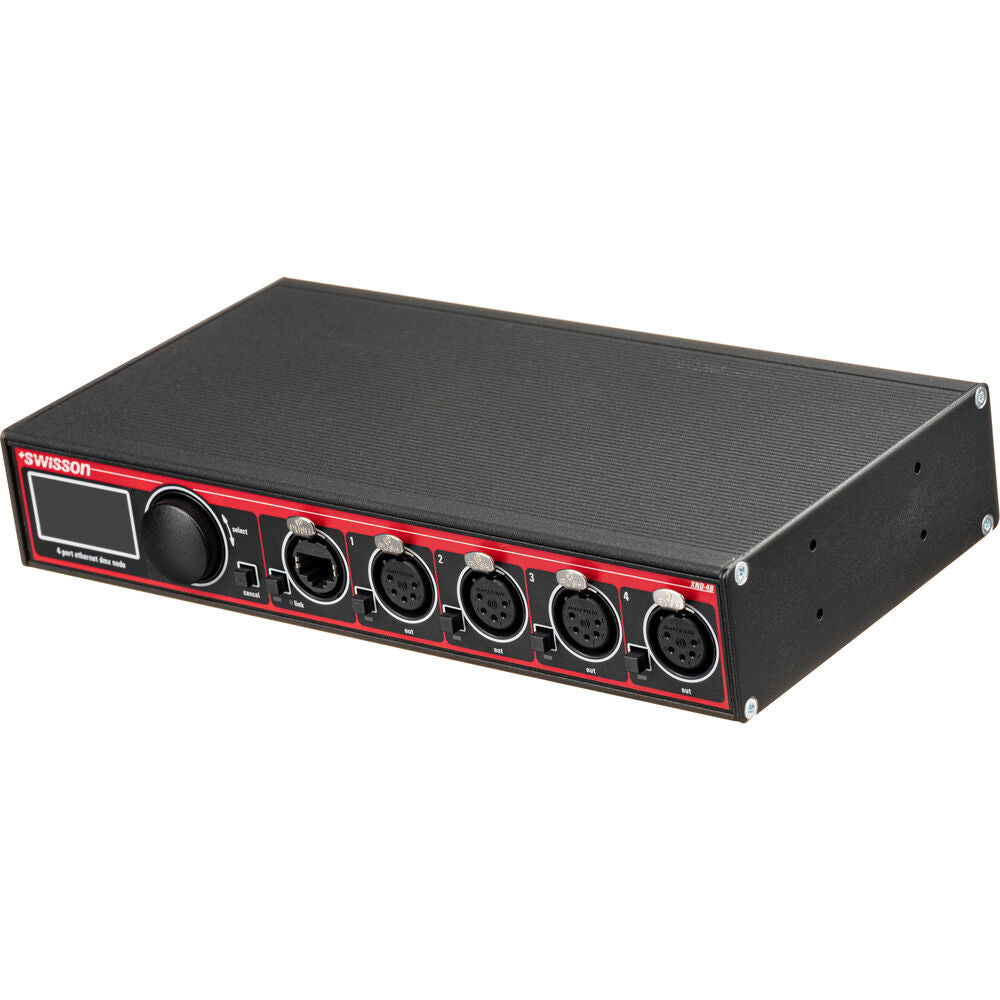

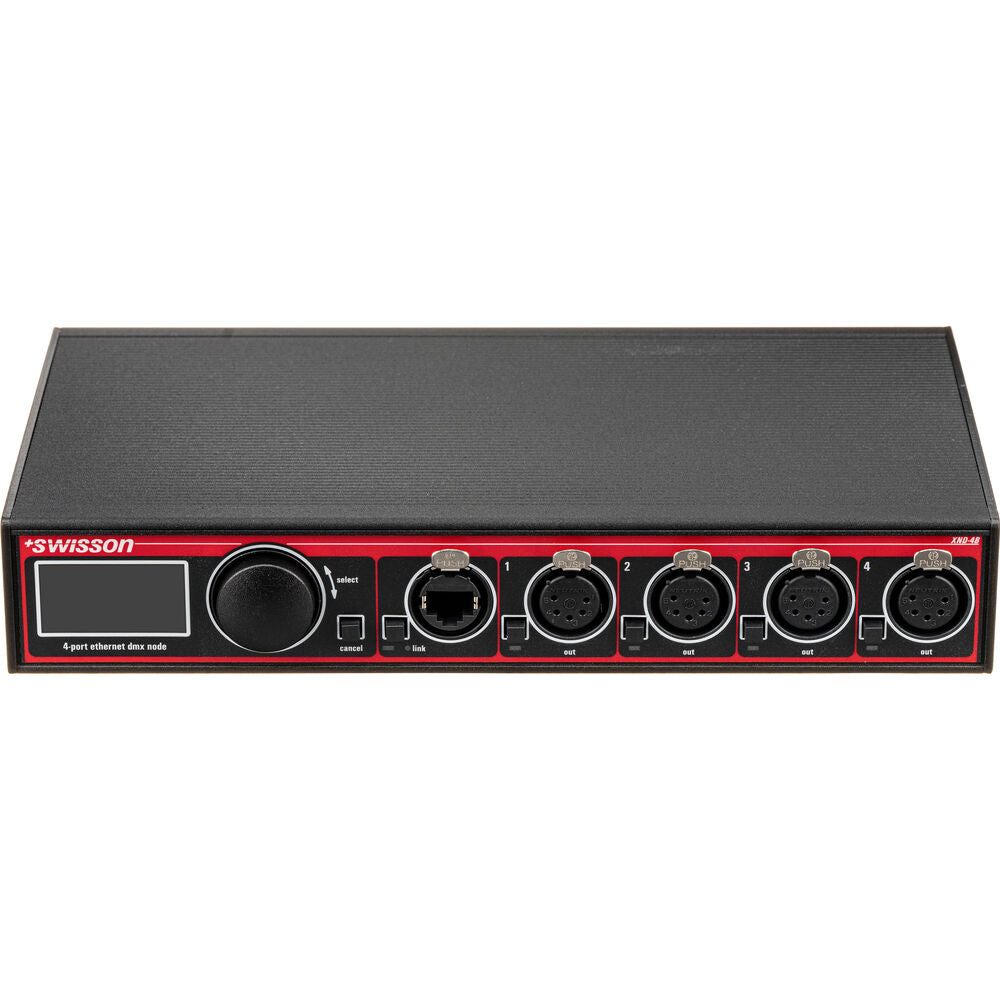

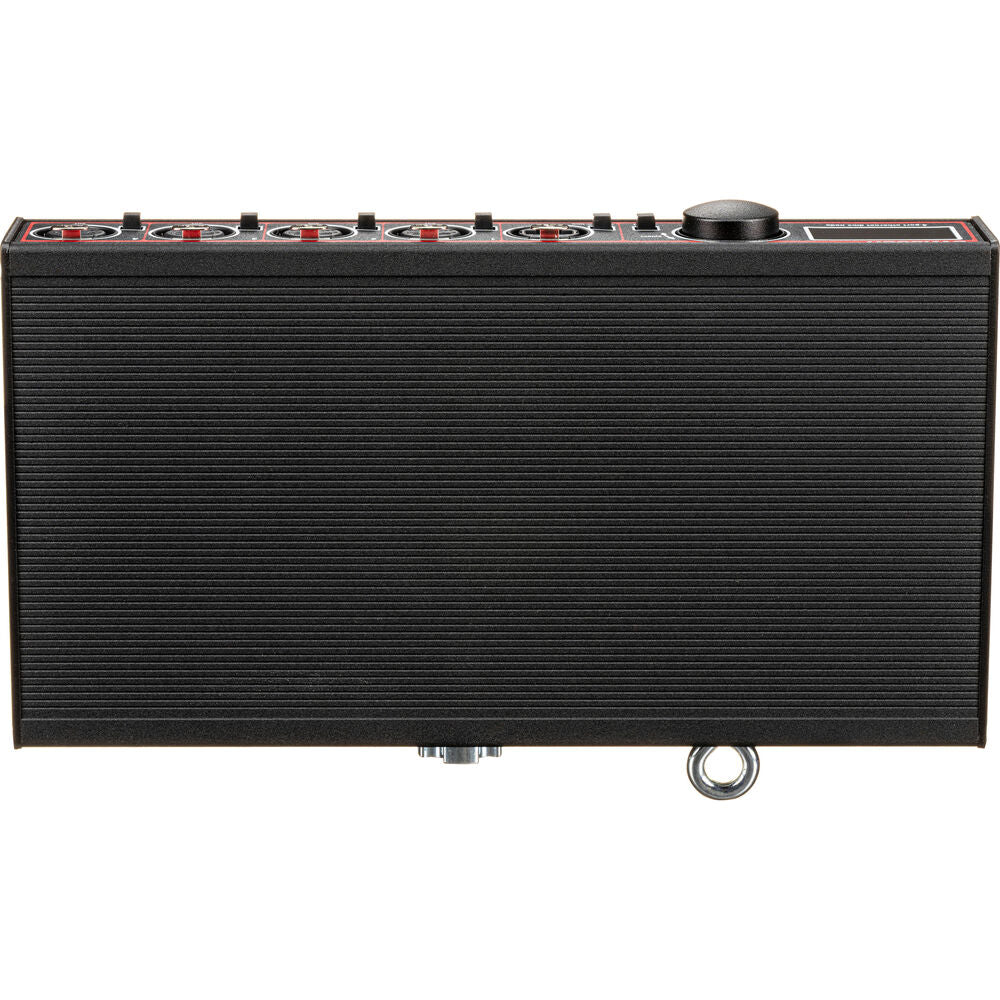

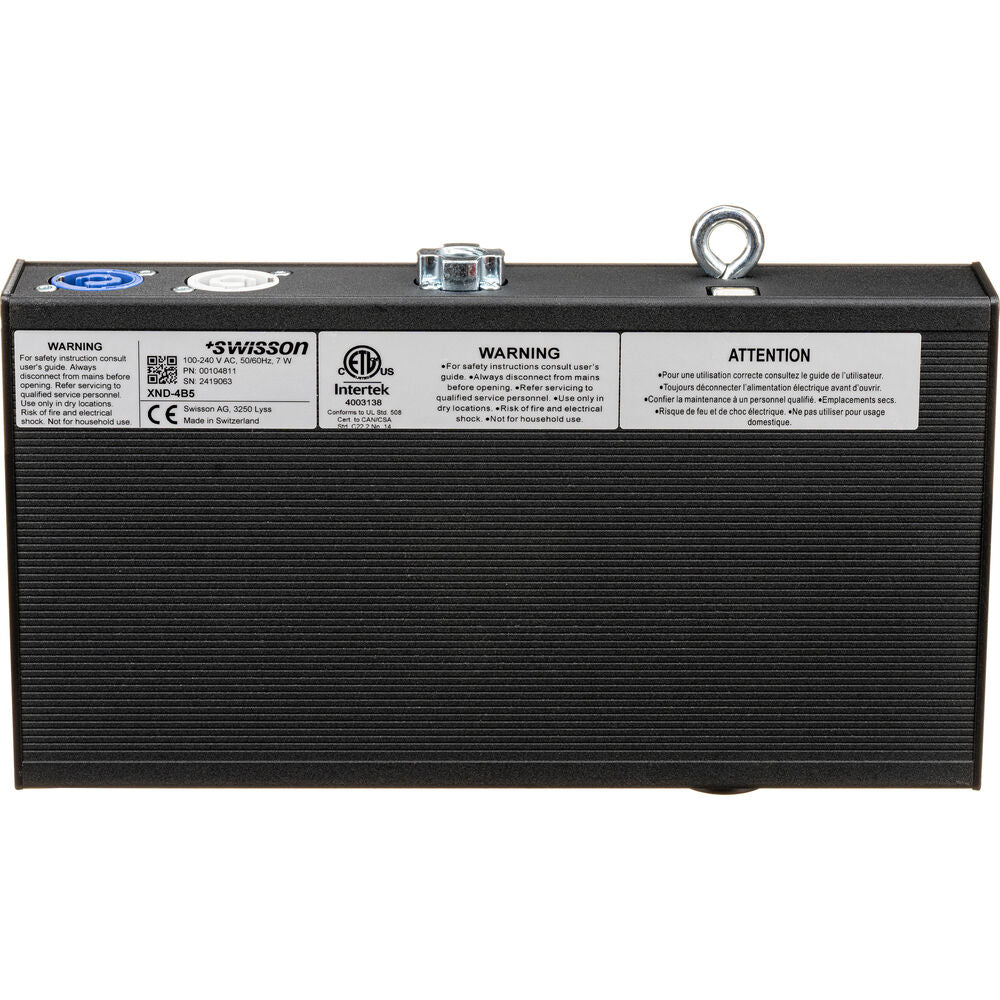

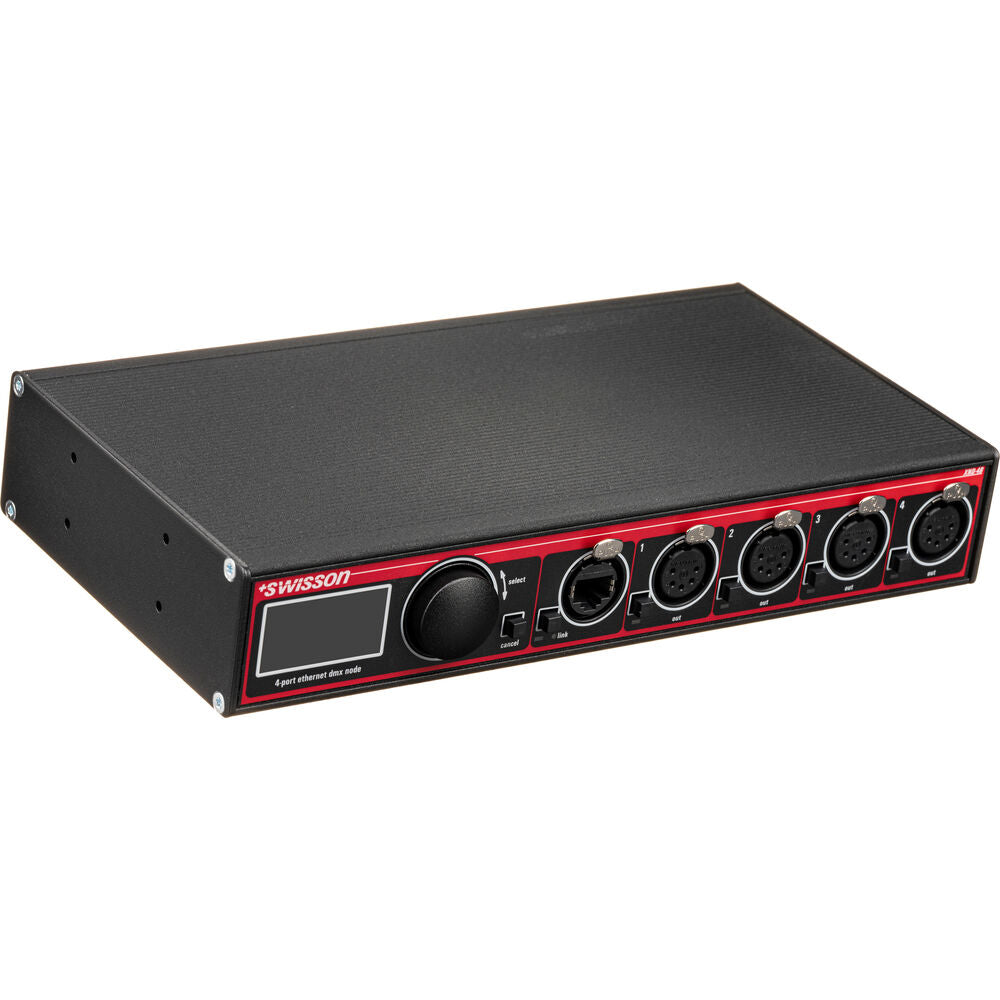

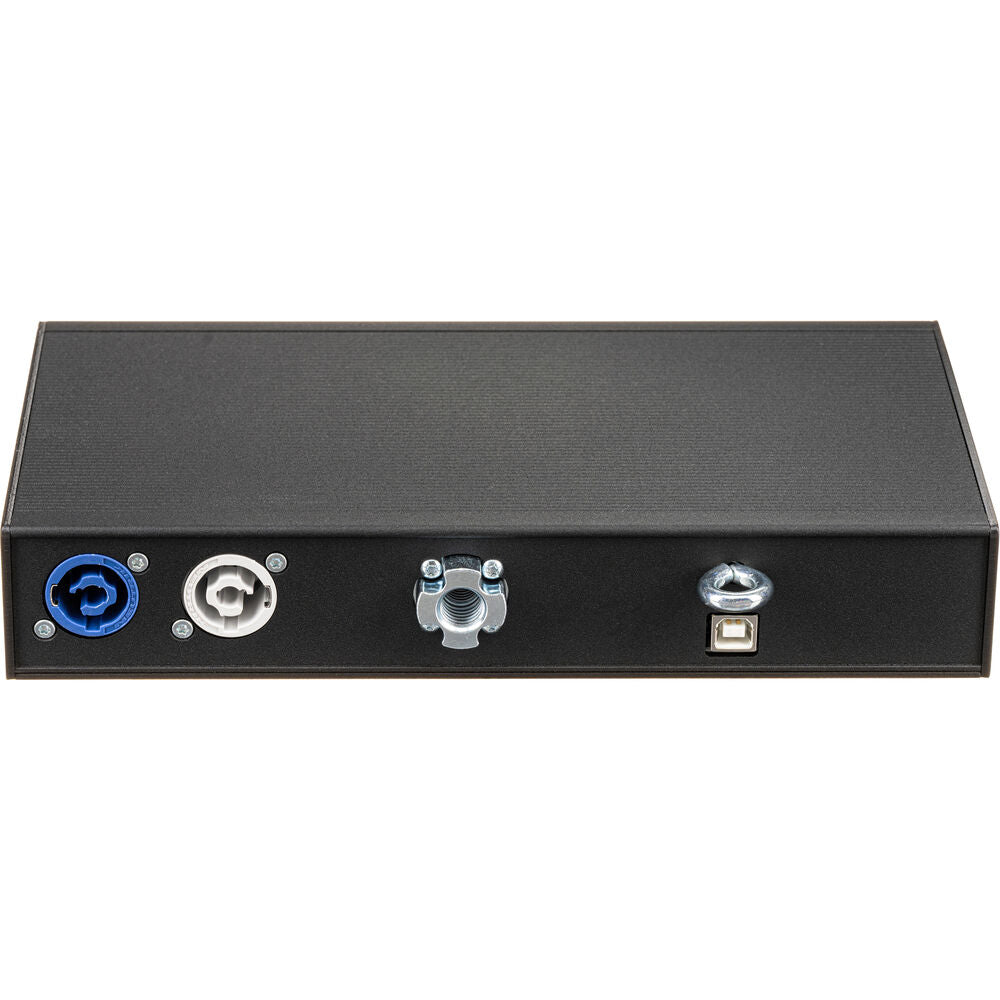

Improve the networking capabilities of your installation with this XLR 5-pin, 4-port XND Ethernet DMX Node from SWISSON. This XND is an easy-to-operate, box-design Art-Net and sACN to DMX converter that supports up to four DMX universes. Its four individually optically isolated DMX ports can be configured as input or output. It allows users to transmit universes over one single optional network cable. In addition, the XND automatically merges DMX data if two controllers send data to the same universe. This is the 7W model with a box style housing, M10 mounting compatibility, powerCON connectors, and 100-240 VAC power input.
| Inputs/Outputs | 1x RJ45 (Network) Female Input/Output 4x XLR 5-Pin (DMX) Female Input/Output 1x powerCON Power Input 1x powerCON Power Output 1x USB-B Female Input |
| Channels | 2048 (DMX) |
| Power Source | AC Power |
| Protocol | ArtNet, DMX512, sACN |
| Inputs/Outputs | 1x RJ45 (Network) Female Input/Output 4x XLR 5-Pin (DMX) Female Input/Output 1x powerCON Power Input 1x powerCON Power Output 1x USB-B Female Input |
| Channels | 2048 (DMX) |
| Dimming | No |
| Cooling System | Passive |
| Power Source | AC Power |
| Power Consumption | 7 W |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Protocol | ArtNet, DMX512, sACN |
| Operating Conditions | -22 to 122°F / -30 to 50°C |
| Certifications | ANSI E1.11, ANSI E1.20, EIA-485 |
| Environmental Resistance | No |
| Dimensions | 9.9 x 5.2 x 1.8" / 25.1 x 13.2 x 4.6 cm |
| Weight | 2.43 lb / 1.1 kg |
| Package Weight | 2.645 lb |
| Box Dimensions (LxWxH) | 11.7 x 6.85 x 2.55" |
