Description

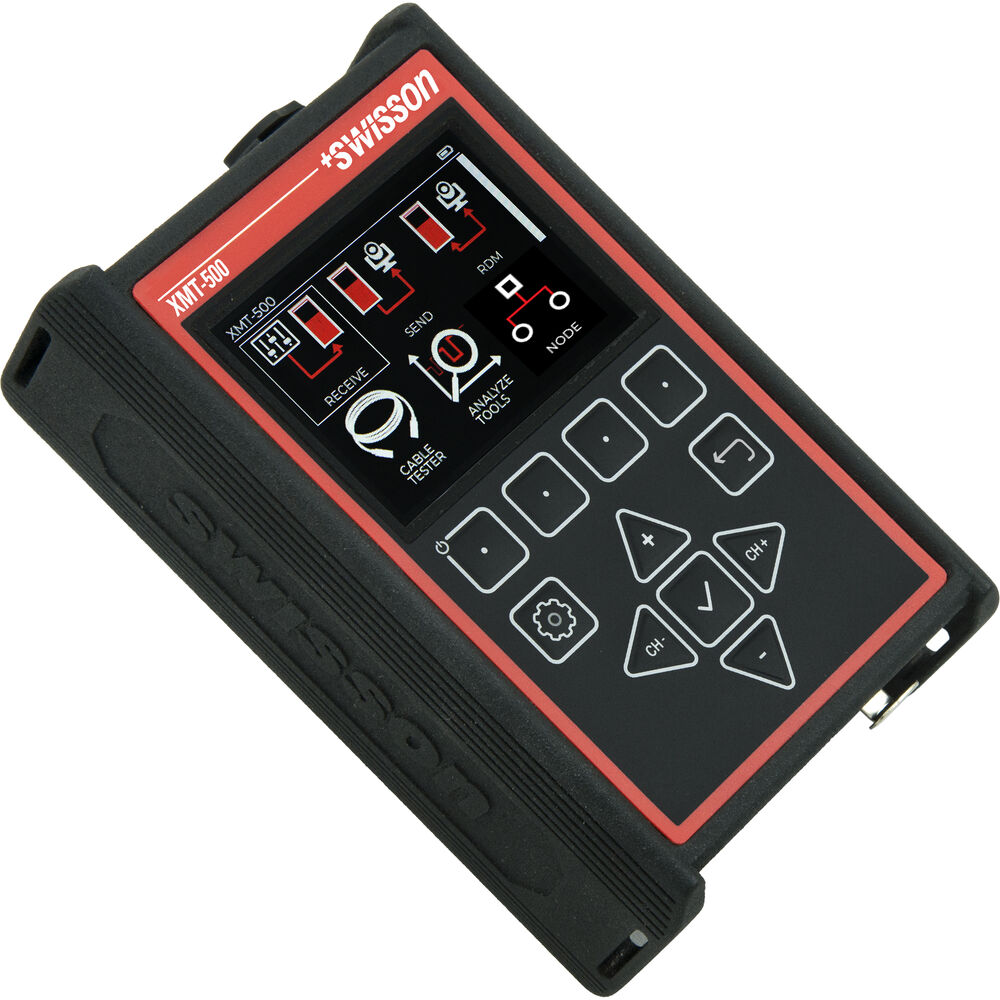

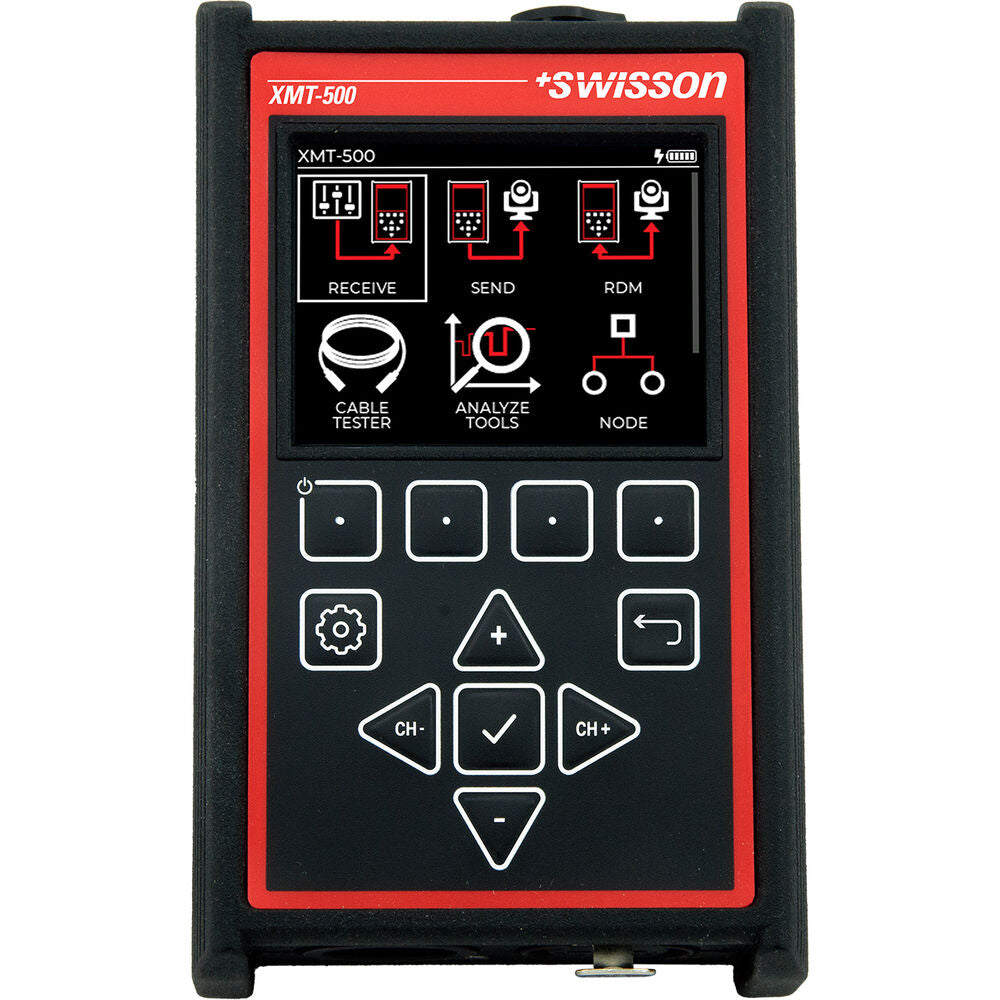

Supporting bidirectional Art-Net and sACN data exchange, the XMT-500 DMX, RDM & Ethernet Diagnostic Tool Basic Kit from SWISSON is an all-in-one tool for lighting professionals in demanding environments that require both traditional cabling and Ethernet-based protocols. Part of SWISSON's testing family, the advanced XMT-500 allows versatile network integration and expands its capabilities into the network with a rugged etherCON connection. It also delivers detailed timing analysis for DMX and RDM signals for maximum stability. Other features are the XMT-500's ability to test loose XLR DMX cables and an internal USB-C battery. This version includes a basic pouch.
| Inputs/Outputs | 1x XLR 5-Pin (DMX) Female Input 1x XLR 5-Pin (DMX) Male Output 1x USB-C Power Female Input 1x RJ45 (Network) Female |
| Power Source | Built-In Rechargeable Battery |
| Protocol | ArtNet, DMX512, RDM, sACN |
| Inputs/Outputs | 1x XLR 5-Pin (DMX) Female Input 1x XLR 5-Pin (DMX) Male Output 1x USB-C Power Female Input 1x RJ45 (Network) Female |
| Dimming | No |
| Cooling System | Passive |
| Power Source | Built-In Rechargeable Battery |
| Power Consumption | 7.5 W |
| Input Power | 5 VDC |
| Battery Chemistry | Lithium-Ion |
| Battery Capacity | 3200 mAh |
| Protocol | ArtNet, DMX512, RDM, sACN |
| Operating Conditions | -4 to 122°F / -20 to 50°C |
| Certifications | ANSI E1.11, ANSI E1.20, EIA-485 |
| Environmental Resistance | No |
| Dimensions | 4.8 x 3.0 x 1.7" / 12.2 x 7.6 x 4.3 cm |
| Weight | 1 lb / 453.6 g |
| Package Weight | 1.77 lb |
| Box Dimensions (LxWxH) | 7.5 x 7.4 x 3.5" |
