Description

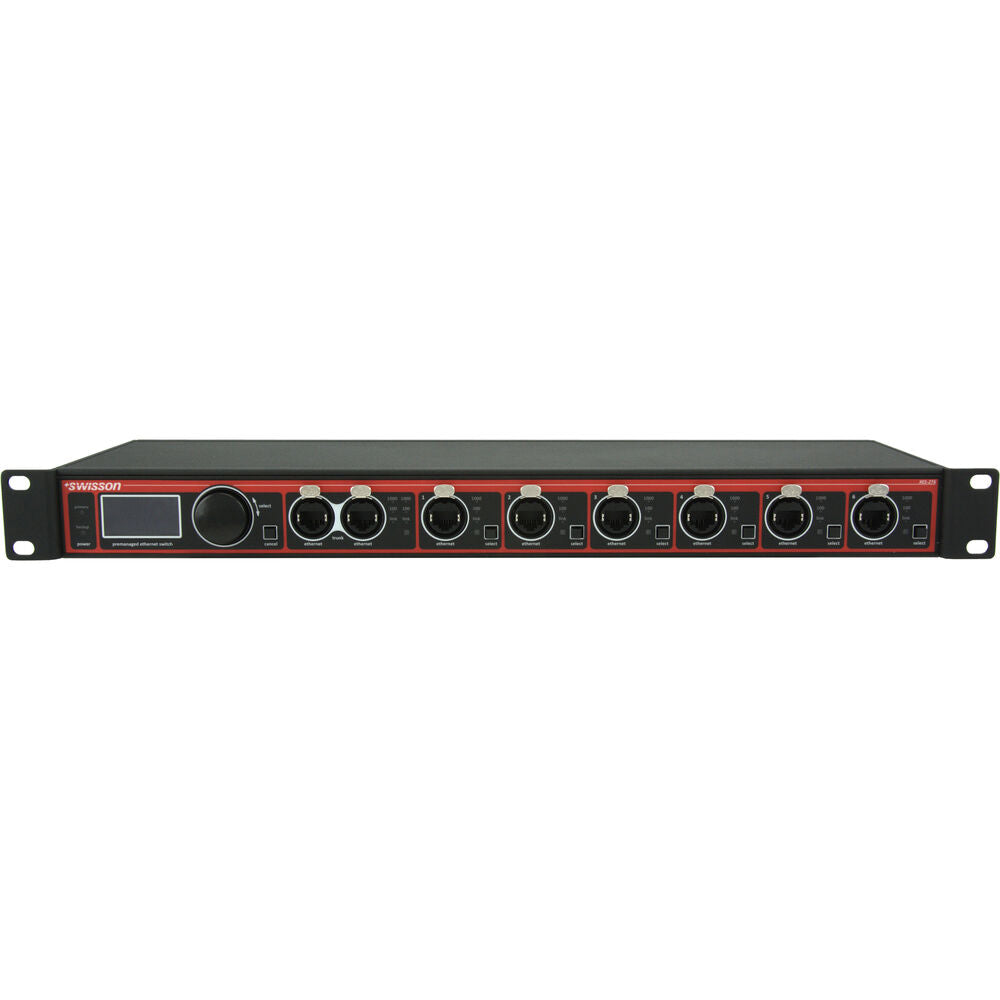

Ideal for theaters, schools, festivals, and other mid-range productions, the SWISSON XES-2T6 6+2-Port Gigabit Switch allows you to organize and control your light, sound, and video installations with ease. Optimized for Art-Net, SACN, and Dante, this Layer 2 switch includes eight Gigabit-speed RJ45 Neutrik etherCON ports, two of which are aggregated trunk ports that link to a second XES-2T6 switch. The remaining six may be used with local devices such as mixers and lighting controllers.
A monochrome OLED display, an encoder knob, and push buttons for each of the six configurable ports let you set up and configure this switch in short time. The XES-2T6 features a Dante capacity of up to 128 channels per direction at 48 kHz. It also supports an Art-Net and sACN capacity of over 1000 simultaneous universes. Dual Neutrik powerCON power supplies provide failover redundancy when connected to separate mains while the two powerCON outputs allow for looping through the PSU mains.
| Networking I/O | 8 Total Connections Supporting up to Gigabit Ethernet |
| Stackable | No |
| Networking I/O | 6x RJ45 Neutrik etherCON Gigabit Ethernet LAN 2x RJ45 Neutrik etherCON Gigabit Ethernet |
| Stackable | No |
| Layer Services Supported | Layer 2 |
| Supported Protocols | Auto-MDIX/MDI |
| Power Draw | 10.00 W |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | Redundant |
| Operating Conditions | -22 to 122°F / -30 to 50°C |
| Cooling System | Passive |
| Indicator Lights | Yes |
| Rack Mountable | Yes 1 U |
| Dimensions | 19 x 5.4 x 1.8" / 482.6 x 136 x 44.5 mm |
| Weight | 3.7 lb / 1.7 kg |
| Package Weight | 4.8 lb |
| Box Dimensions (LxWxH) | 20.1 x 6.5 x 6.4" |
