Description

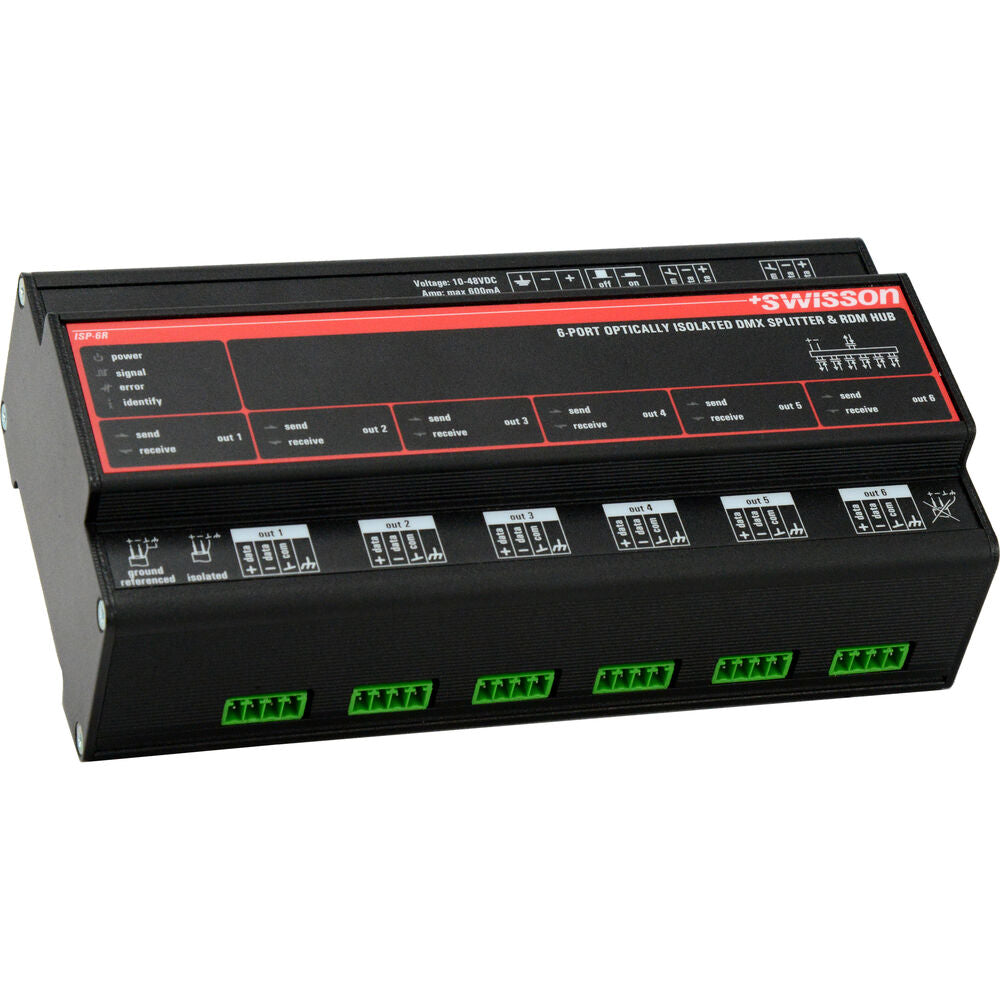

Designed as a DMX splitter and RDM hub for DIN rail installation, this terminal 6-output ISP DIN Rail DMX/RDM Splitter & Booster from SWISSON is a reliable DMX splitter with RDM support that works as a DMX splitter, booster, and repeater. It boosts an incoming DMX signal to six output ports to go beyond the 32-device limit of standard DMX and build star topologies—connecting multiple fixtures to a single universe. The ISP also acts as a repeater device for transporting DMX signals across larger distances, while clearing signal disturbances. With individually optically isolated ports, the ISP splitter prevents harmful voltages for equipment protection. The ISP DIN Rail version works within DMX and RDM environments. This is the 6W model with pluggable screw terminals and a DIN rail-mountable design, powered by an external power supply unit (not included).
| Inputs/Outputs | 1x Terminal Power Input 1x Terminal (DMX) Throughput 6x Terminal (DMX) Output 1x Terminal Power Input |
| Channels | 512 |
| Power Source | AC Adapter |
| Protocol | DMX512, RDM |
| Inputs/Outputs | 1x Terminal Power Input 1x Terminal (DMX) Throughput 6x Terminal (DMX) Output 1x Terminal Power Input |
| Channels | 512 |
| Dimming | No |
| Cooling System | Passive |
| Power Source | AC Adapter |
| Power Consumption | 6 W |
| Input Power | 10 to 48 VDC |
| Protocol | DMX512, RDM |
| Operating Conditions | -22 to 131°F / -30 to 55°C |
| Certifications | ANSI E1.11, ANSI E1.20 |
| Environmental Resistance | No |
| Dimensions | 6.8 x 3.5 x 2.2" / 17.3 x 8.9 x 5.6 cm |
| Weight | 1.25 lb / 0.57 kg |
| Package Weight | 1.785 lb |
| Box Dimensions (LxWxH) | 12.2 x 10.3 x 7.7" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
