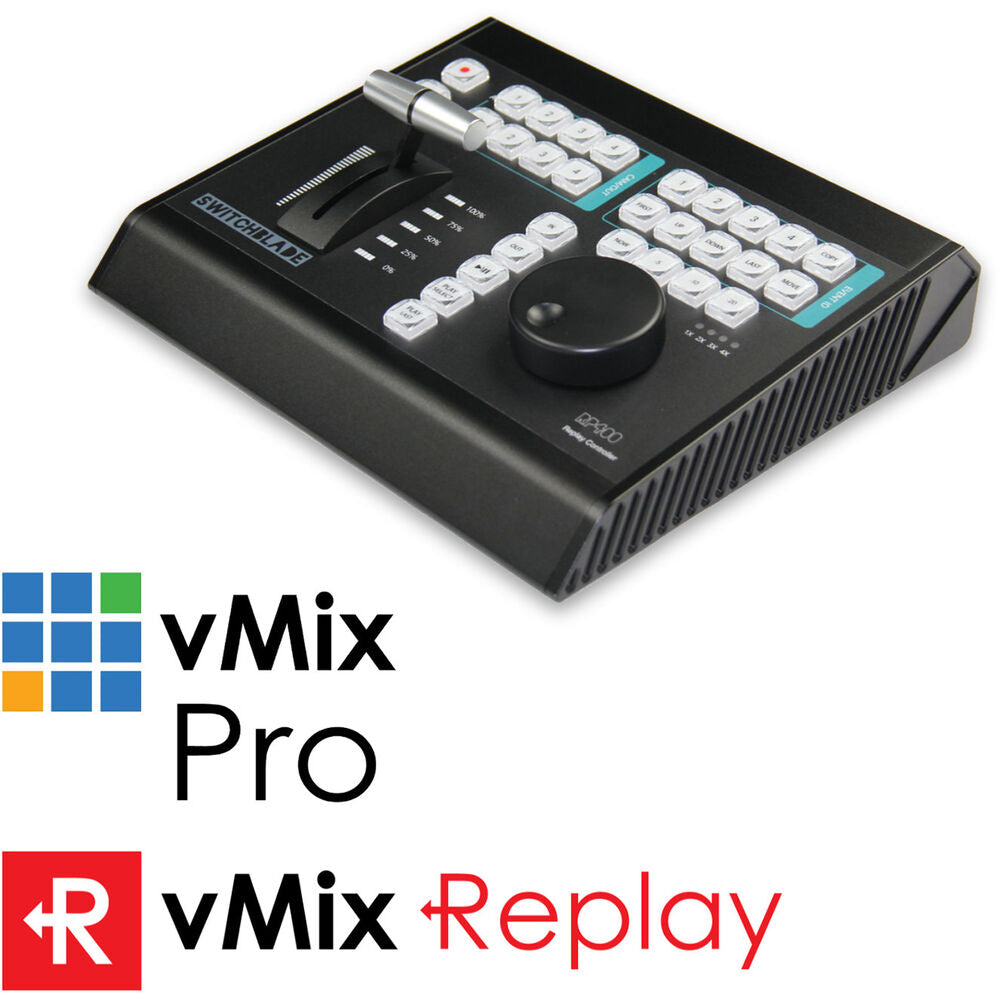

Switchblade Systems RP400 4-Channel vMix Replay Controller with vMix Pro Software

The RP400 4-Channel vMix Replay Controller with vMix Pro Software from Switchblade Systems equips you with both a control interface and the necessary PC software to facilitate video replays in your broadcast production. The RP400 is a 4-channel replay and slow-motion control unit to physically control your livestream and navigate your timeline. The vMix Pro software operates on PC operating systems and supports up to 1000 sources.

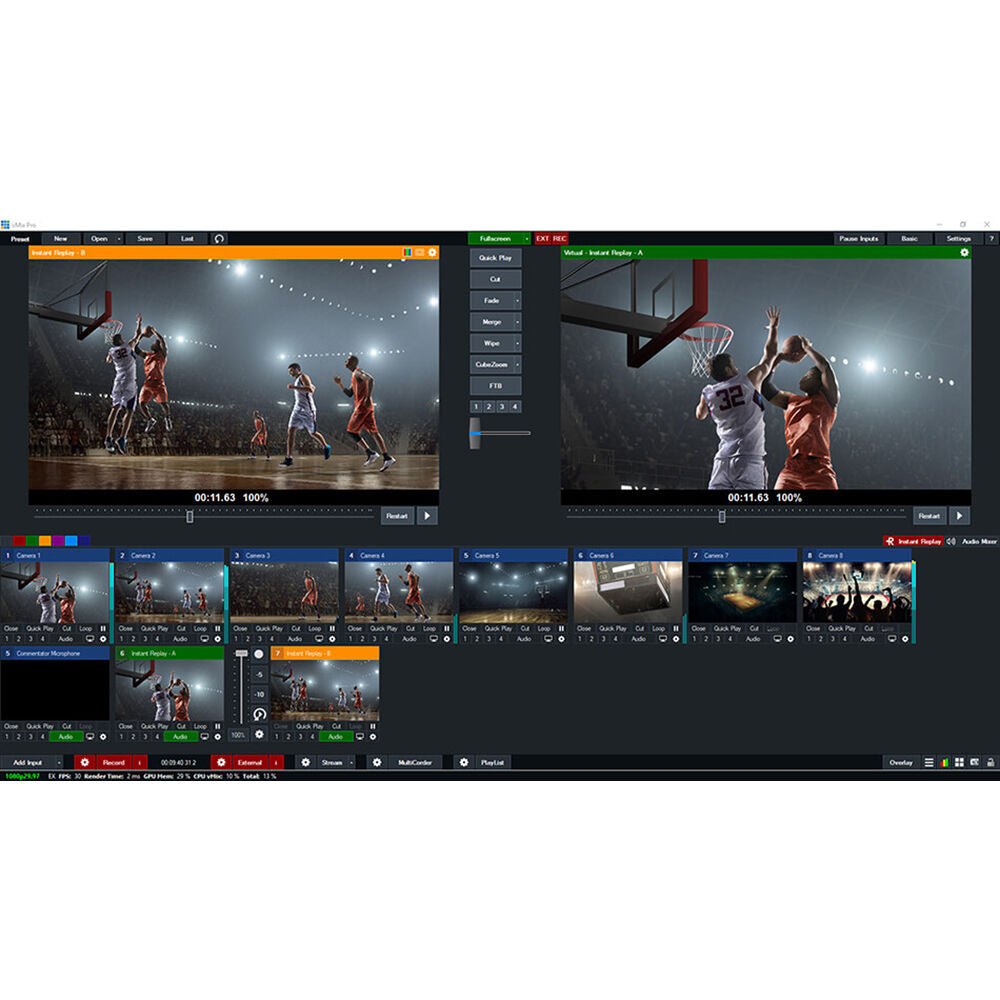

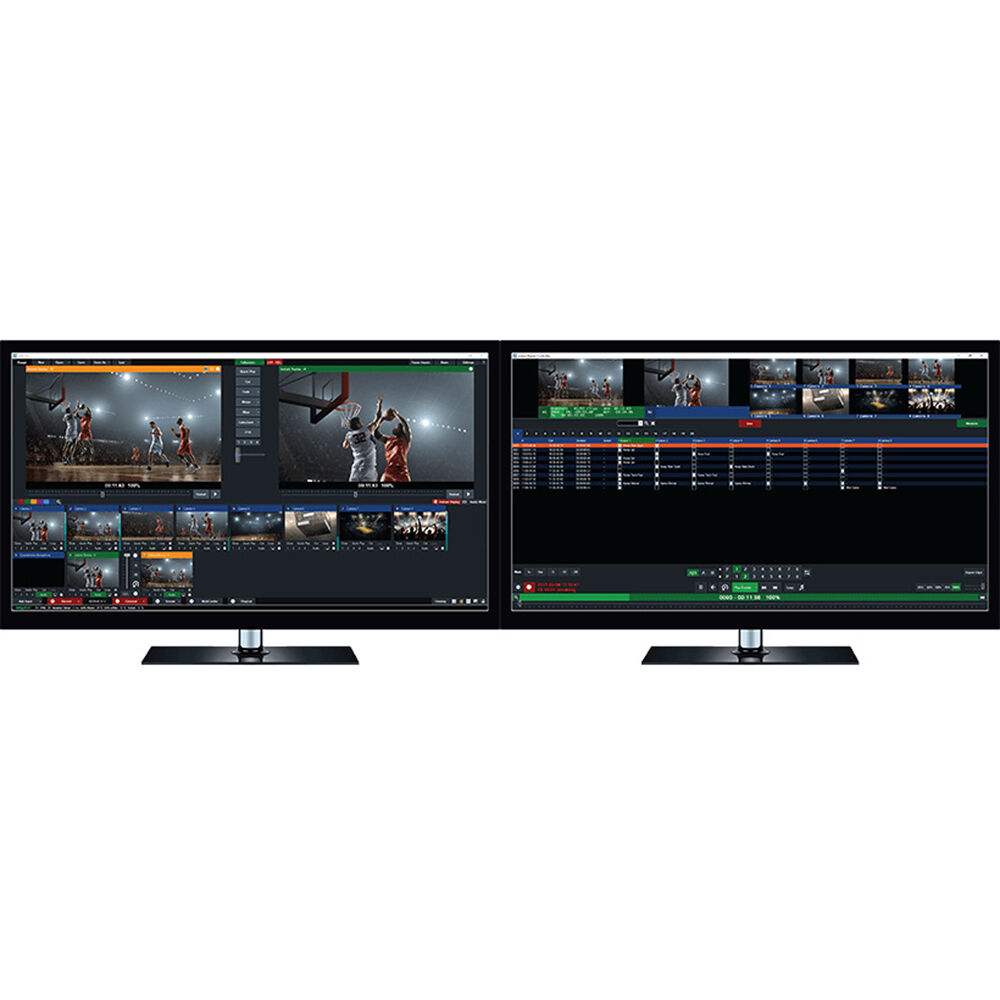

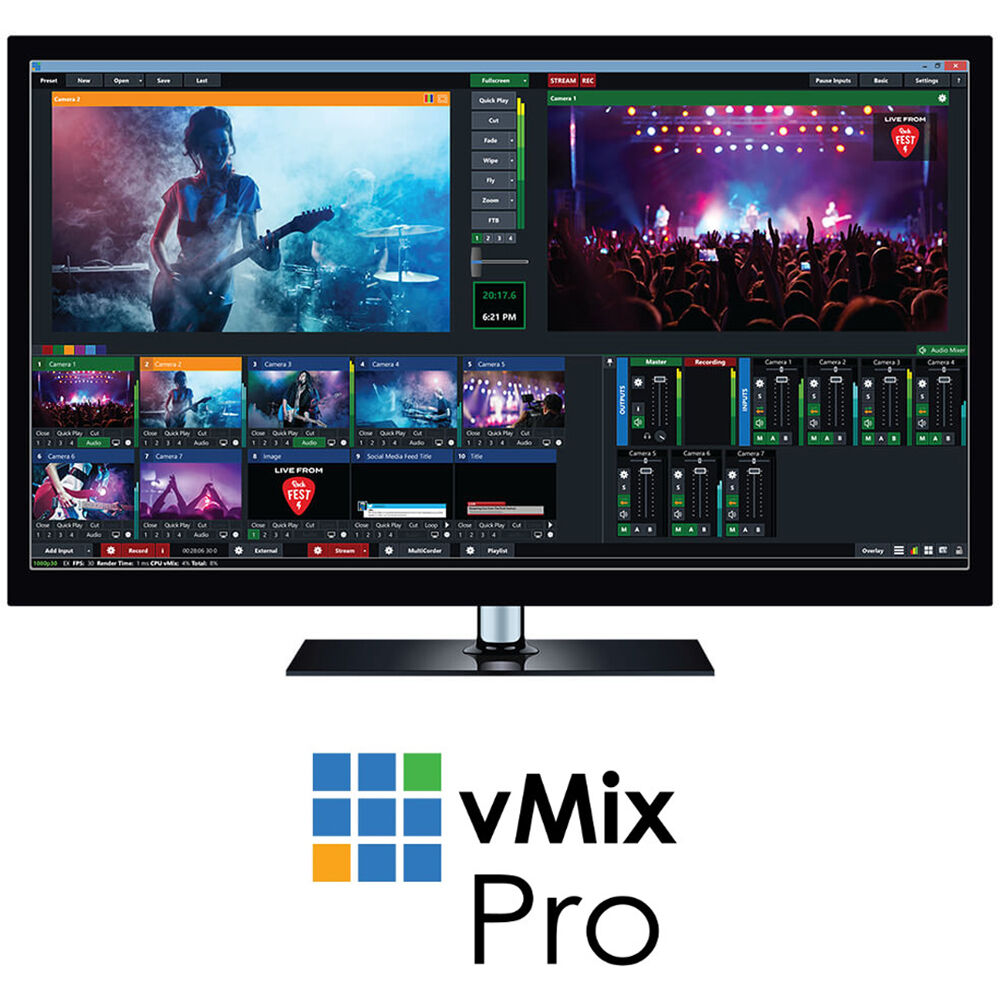

Simultaneously display, record, and live-stream your production, all with your PC, using vMix Live Production Software Pro. The Pro version of the vMix Live Production Software contains all the features available in the program and supports up to DCI and UHD 4K resolutions for sharp video imagery. Up to 1000 inputs are available and all inputs can be used for camera/NDI sources. The system is completely scalable, so you can use it for one-man shows or for a professional broadcast-grade situation.

Exclusive to the Pro version of the software is the ability to do instant replay on up to four cameras. Effectively, the camera feeds are recorded in the MPEG-2 format, and can be played back in real-time or with time manipulation. In addition, the Pro tier has other professional-level features such as support for 2 external outputs via interfaces and 2 full-screen outputs for direct graphics card output. Advanced scripting presets can be set up for speeding up your workflow, and PTZ controls can take control of studio cameras during your production.

Other powerful features of this software include video playback, audio mixing, chroma-keying, virtual sets, and more. See below for more features available with this software.

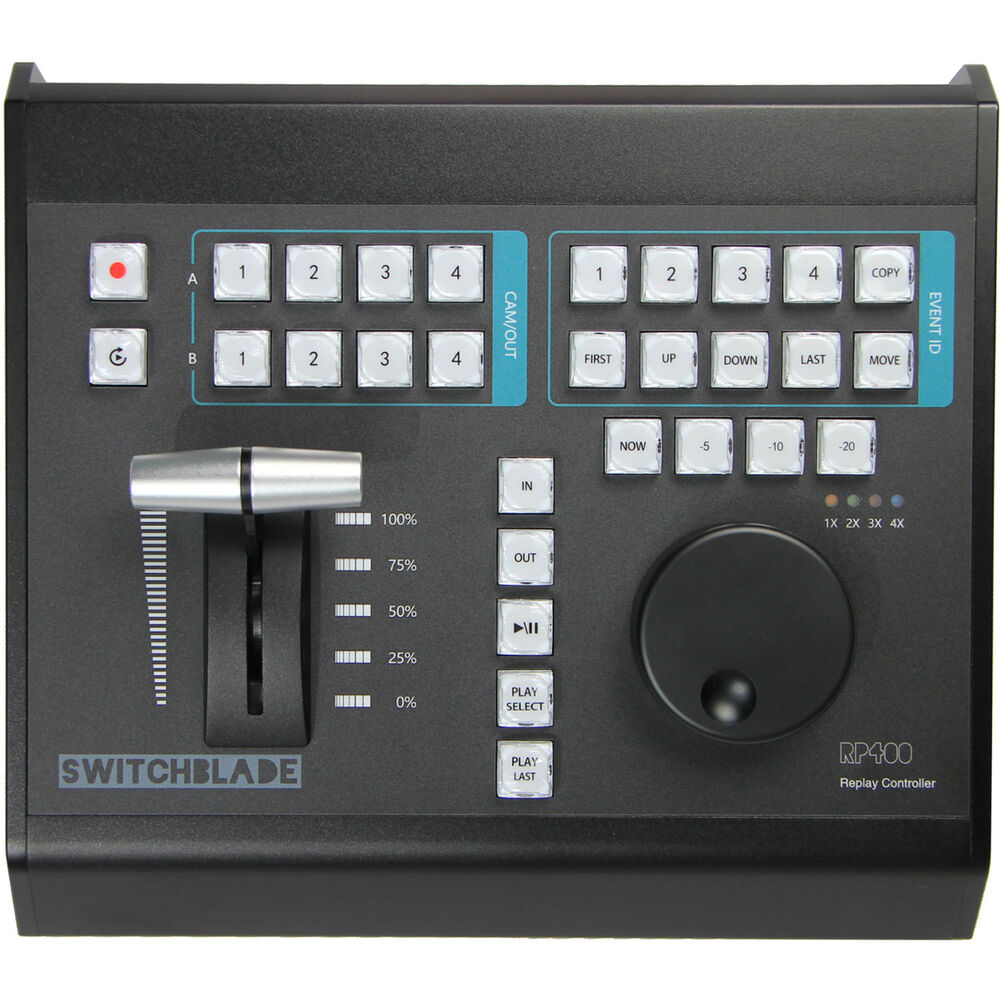

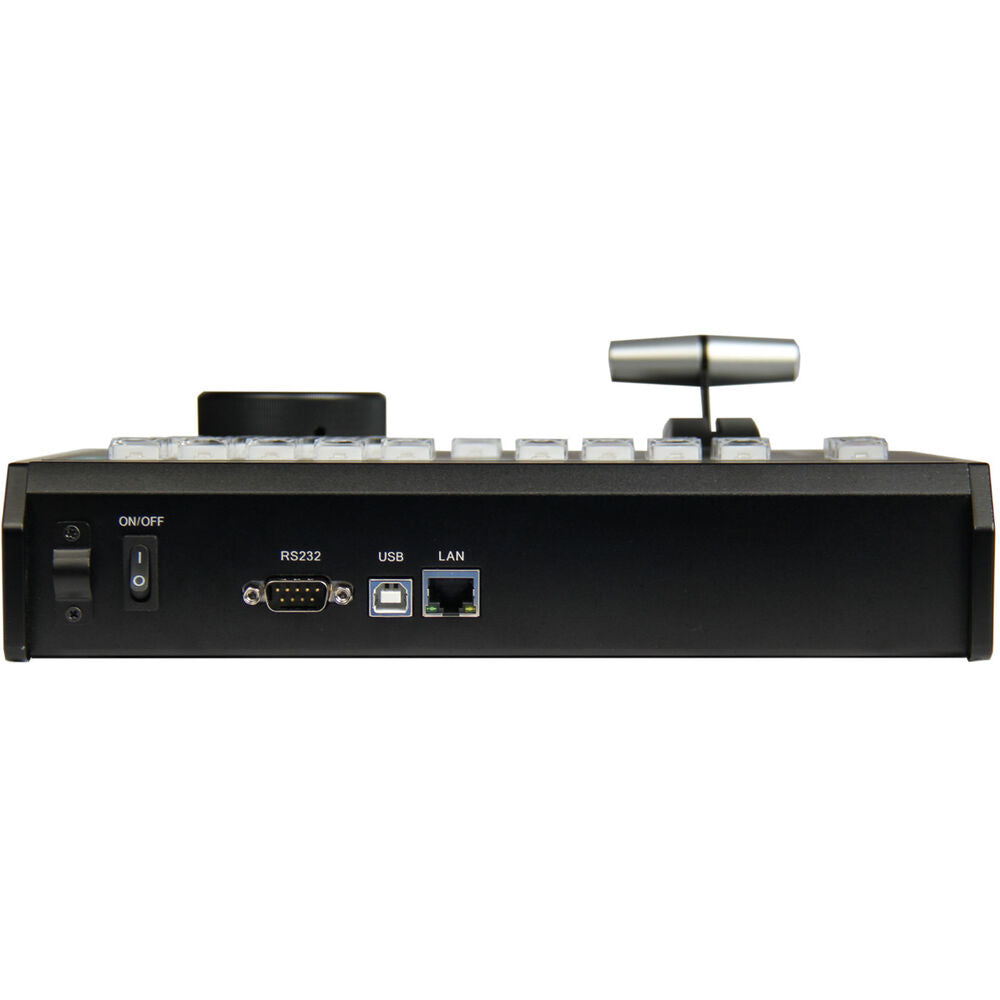

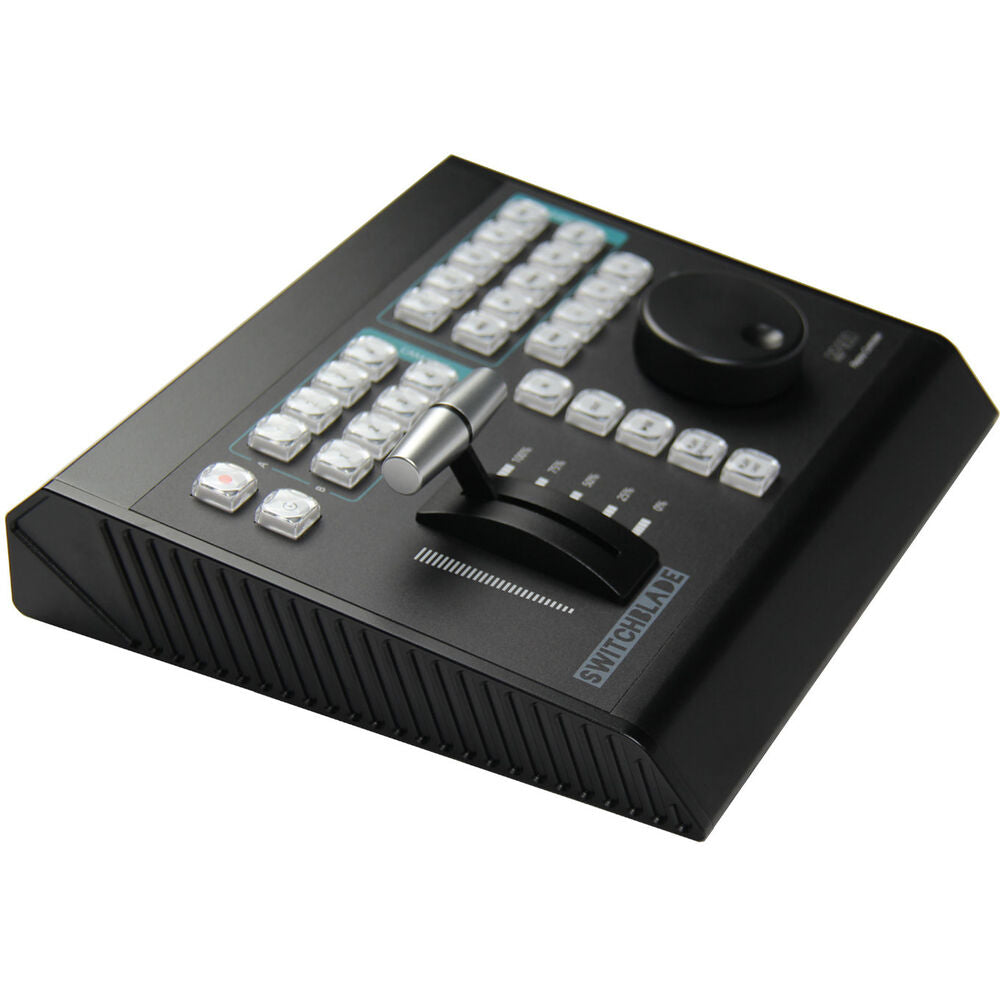

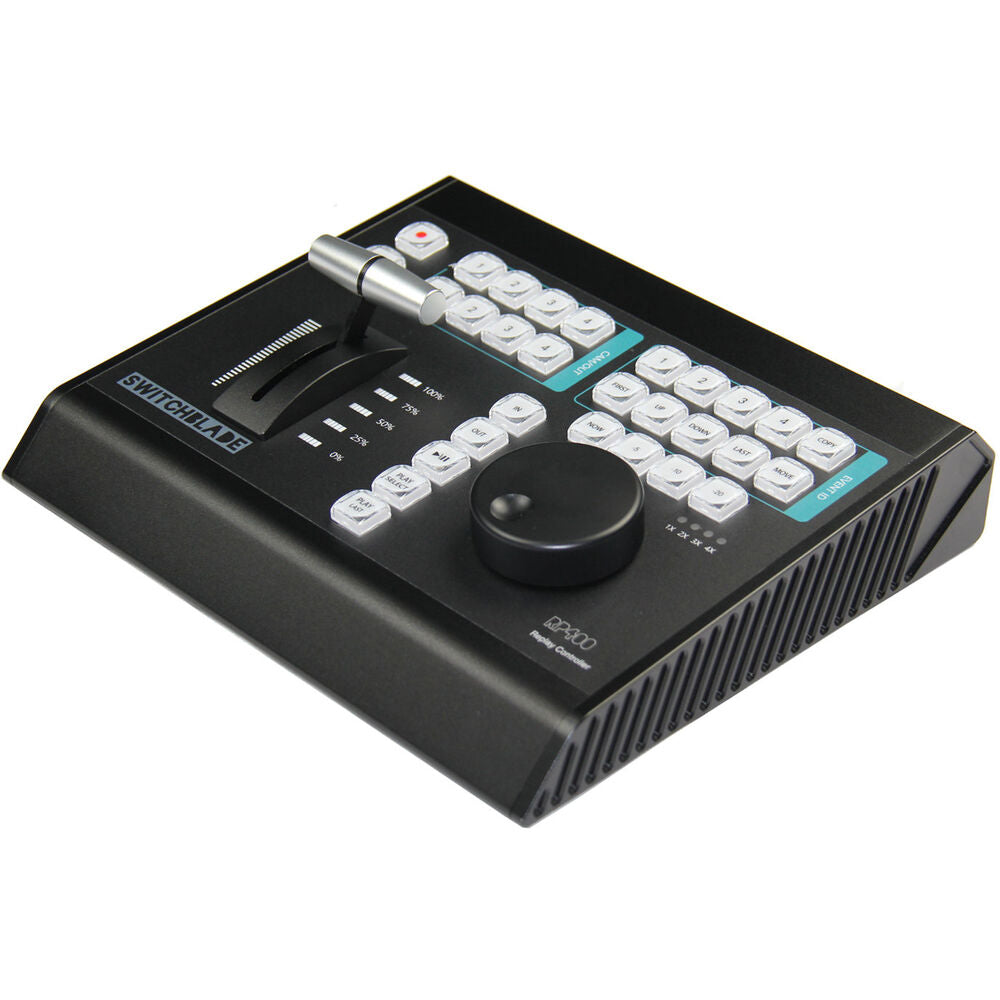

Designed for the vMix Replay software, the RP400 4-Channel vMix Replay Controller from Switchblade Systems works as a 4-channel replay and slow-motion control unit. The unit features a T-bar for live playback speed control, a jog wheel to navigate your timeline, and 29 LED backlit buttons with familiar control layout for replay operators. Easily clip in/out, play/pause, switch between cameras 1-4, and program four shortcut buttons using the control interface. Connect to a vMix host computer via USB-B, LAN, or RS-232 ports. The controller supports communication using those ports or MIDI protocols. Power the unit via USB-B port.
