Description

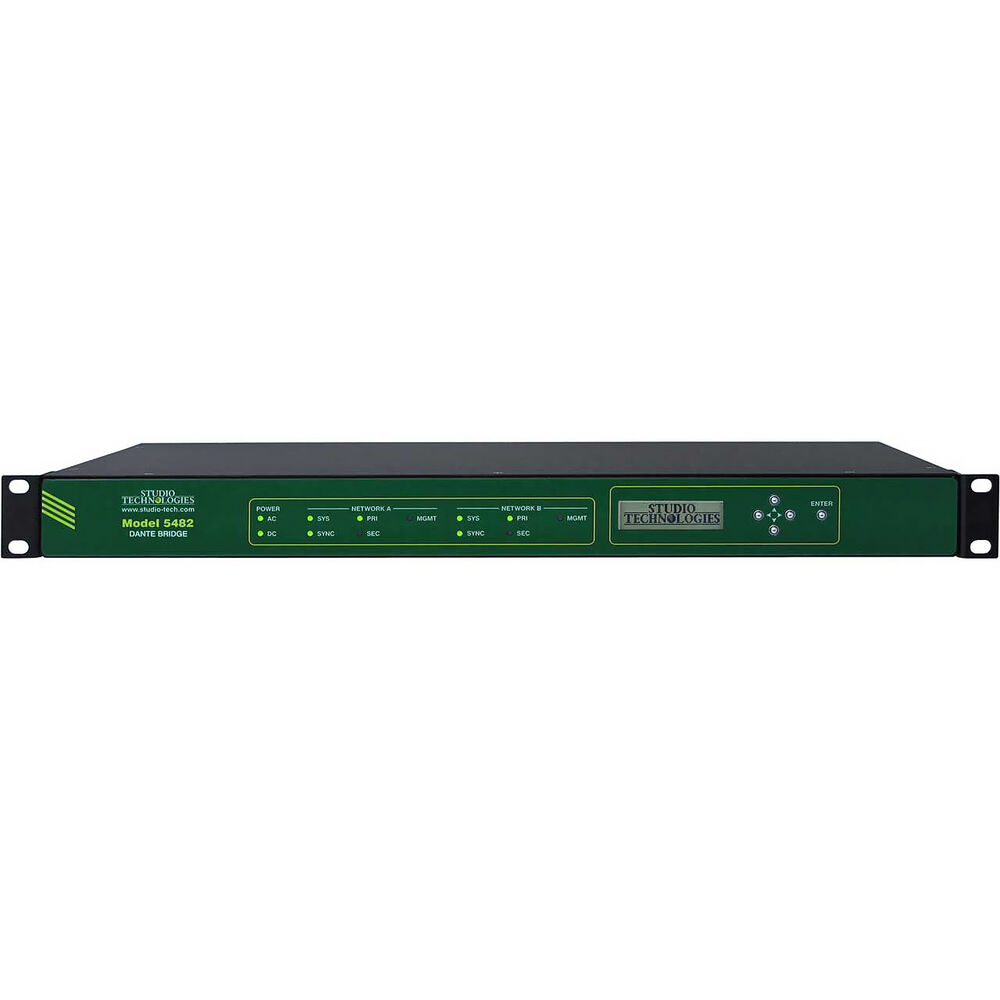

Interconnect Dante signals between two different LAN networks or Dante domains with the Studio Technologies Model 5482, a Dante audio bridge that provides 64 channels in and out at up to 24-bit / 96 kHz sampling. With AES67 and Dante Domain Manager support and integrated sample-rate conversion, the Model 5482 makes it easy to interconnect and match two Dante AoIP networks.
| Dynamic Range | 147 dBA (at 48 kHz) |
| THD + N | -140 dB (at 48 kHz) |
| Panel Type | LCD |
| Size | Not Specified by Manufacturer |
| Touchscreen | No |
| USB I/O | 2 x USB-A Female Input |

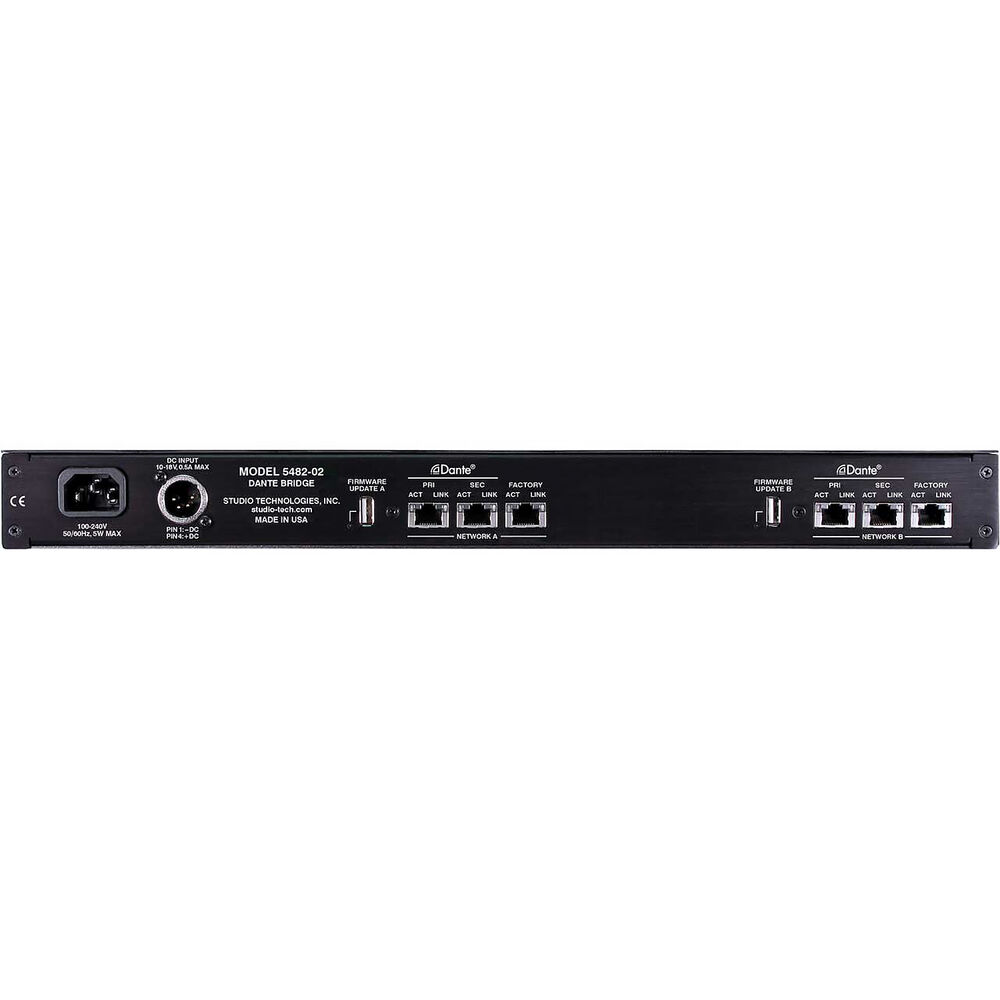

| Audio I/O | 2x RJ45 Coaxial Dante Input/Output (Primary, Network A and B) 2x RJ45 Coaxial Dante Input/Output (Secondary, Network A and B) |
| Power Source | AC Input, DC Input |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 10 to 18 VDC |
| Power Consumption | 8 W (Maximum) |
| Operating Current | 0.6 A (Maximum) |
| Mounting | Front: 4x Rack Screw |
| Color | Black |
| Material of Construction | Metal |
| Operating Conditions | 32 to 122°F / 0 to 50°C at 5 to 95% Humidity |
| Storage Conditions | -40 to 158°F / -40 to 70°C at 5 to 95% Humidity |
| Dimensions | 19 x 8 x 1.72" / 48.3 x 20.3 x 4.37 cm |
| Weight | 3.2 lb / 1.5 kg |
| Package Weight | 4.59 lb |
| Box Dimensions (LxWxH) | 22.6 x 11.9 x 4.8" |
