Description

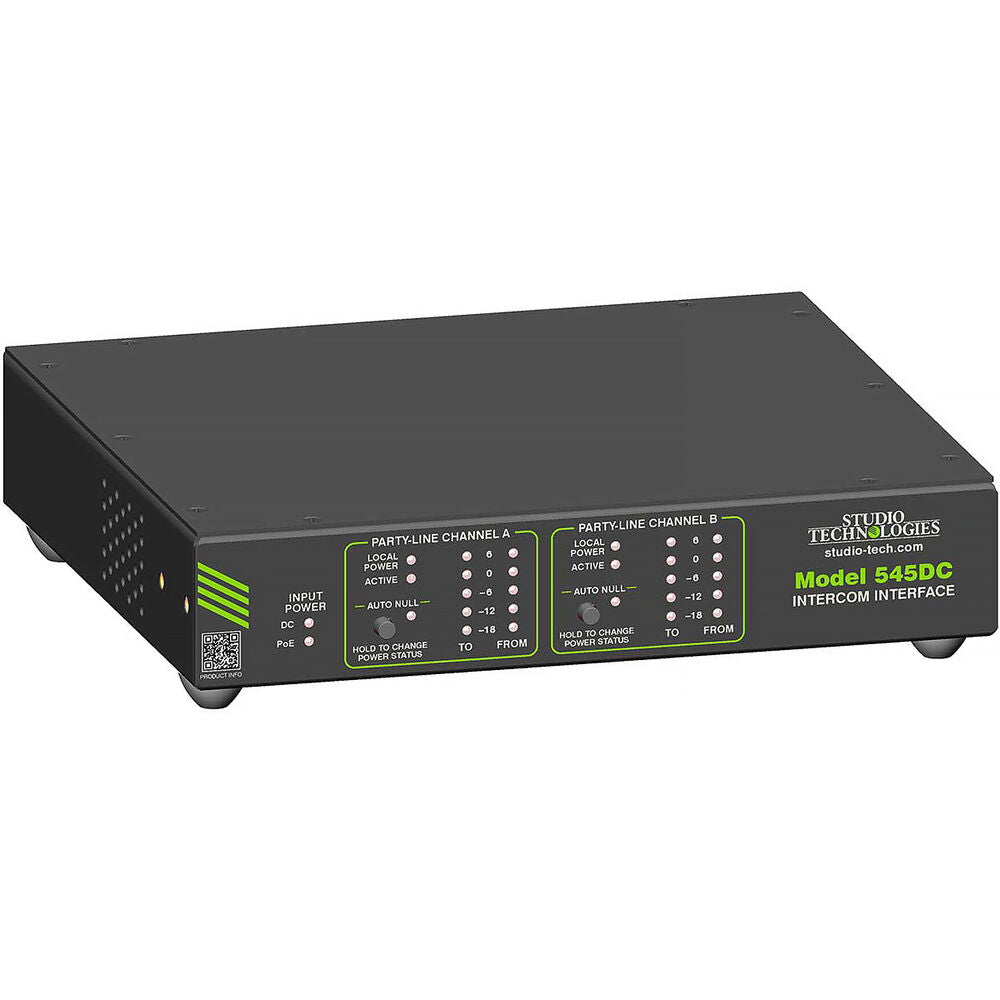

The Studio Technologies Model 545DC allows for two single-channel analog party-line (PL) intercom circuits and devices to be incorporated into Dante audio-over-Ethernet applications. Commonly used in theater, entertainment, and education applications, Model 545DC now allows single-channel analog PL to work with a wide range of products including Clear-Com. Just one Ethernet connection can provide power and multichannel audio integration. For added flexibility, a separate external power source of 12 volts DC can power the unit.
The front panel uses LEDs to provide status indications of the Ethernet and Dante connections. And for further configuration capabilities of audio parameters, the STcontrolller application can be used to monitor real-time operations.
| Power Source | Power-Over-Ethernet (PoE): Class 3 (Mid Power) per IEEE 802.3af External: 10 to 18 Volts DC, 1.0 A Max at 12 Volts DC |
| Network Audio Technology | Type: Dante Audio-over-Ethernet
AES67-2018 Support: Yes, Selectable On/Off Dante Domain Manager (DDM) Support: Yes Bit Depth: Up to 24 Sample Rate: 48 kHz Dante Transmitter (Output) Channels: 2 Dante Receiver (Input) Channels: 2 Dante Audio Flows: 4; 2 Transmitter, 2 Receiver Analog to Digital Equivalence: A -10 dBu Analog Signal on a Party-Line Interface Channel Results in a Dante Digital Output Level of -20 dBFS and Vice-Versa |
| Network Interface | Type: 100BASE-TX, Fast Ethernet per IEEE 802.3u (10BASE-T and 1000BASE-T (GigE) Not Supported) Power-over-Ethernet (PoE): Per IEEE 802.3af Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s Not Supported) |
| Audio | Frequency Response (PL to Dante): -0.3 dB at 100 Hz (-4.8 dB at 20 Hz), -2 dB at 8 kHz (-2.6 dB at 10 kHz) Frequency Response (Dante to PL): -3.3 dB at 100 Hz (-19 dB at 20 Hz), -3.9 dB at 8 kHz (-5.8 dB at 10 kHz) Distortion (THD+N): <0.15%, Measured at 1 kHz, Dante Input to PL Interface Pin 2 (0.01% pin 3) Signal-to-Noise Ratio: >65 dB, A-Weighted, Measured at 1 kHz, Dante Input to PL Interface Pin 2 (73 dB, PL Interface Pin 3) |
| Meters | Function: Displays Level of Audio Input and Output Channels Type: Five-Segment LED, Modified VU Ballistics |
| Connectors | Party-Line (PL) Intercom: Two, 3-Pin Male XLR Ethernet: Neutrik etherCON RJ45 Jack External DC: 4-Pin Male XLR (Pin 1 Negative, Pin 4 Positive) USB: Type a Receptacle (Used Only for Updating Application Firmware) |
| Configuration | Requires Studio Technologies' STcontroller Software Application |
| Software Update | USB Flash Drive Used for Updating Application Firmware; Dante Updater Application Used for Updating Dante Interface Firmware |
| Environmental | Operating Temperature: 0 to 50°C / 32 to 122°F Storage Temperature: -40 to 70°C / -40 to 158°F Humidity: 0 to 95%, Noncondensing |
| Dimensions | 8.70 x 8.30 x 1.72" / 22.1 x 21.1 x 4.4 cm |
| Weight | 1.7 lb / 0.77 kg |
| DC Power Supply | Studio Technologies' PS-DC-02 (100-240 V, 50/60 Hz, Input; 12 Volts DC, 1.5 A, output), Sold Separately |
| Package Weight | 2.475 lb |
| Box Dimensions (LxWxH) | 14.9 x 12.5 x 5.4" |
