Description
For a high-performance and flexible solution to create party-line circuits, the Model 5422A 32-Channel Dante Intercom Audio Engine from Studio Technologies offers a wide range of applications. While directly compatible with the Studio Technologies range of intercom belt packs, the Model 5422A can be used in other general audio and broadcast-related mixing and interfacing applications. Only a single Gigabit Ethernet connection is required to access the 32-channel audio engine.
The audio engine can be configured to provide up to four virtual intercom circuits, while advanced features like auto mix, summing, and pass-thru functions make for a quick and efficient setup. For added flexibility, this audio engine supports Dante and AES67 audio protocols, as well as the Dante Domain Manager. Power is handled either by power-over-Ethernet (PoE) or AC power via a standard IEC cable. The included STcontoller application is where all the primary functions can be adjusted, such as gain, routing, and more.

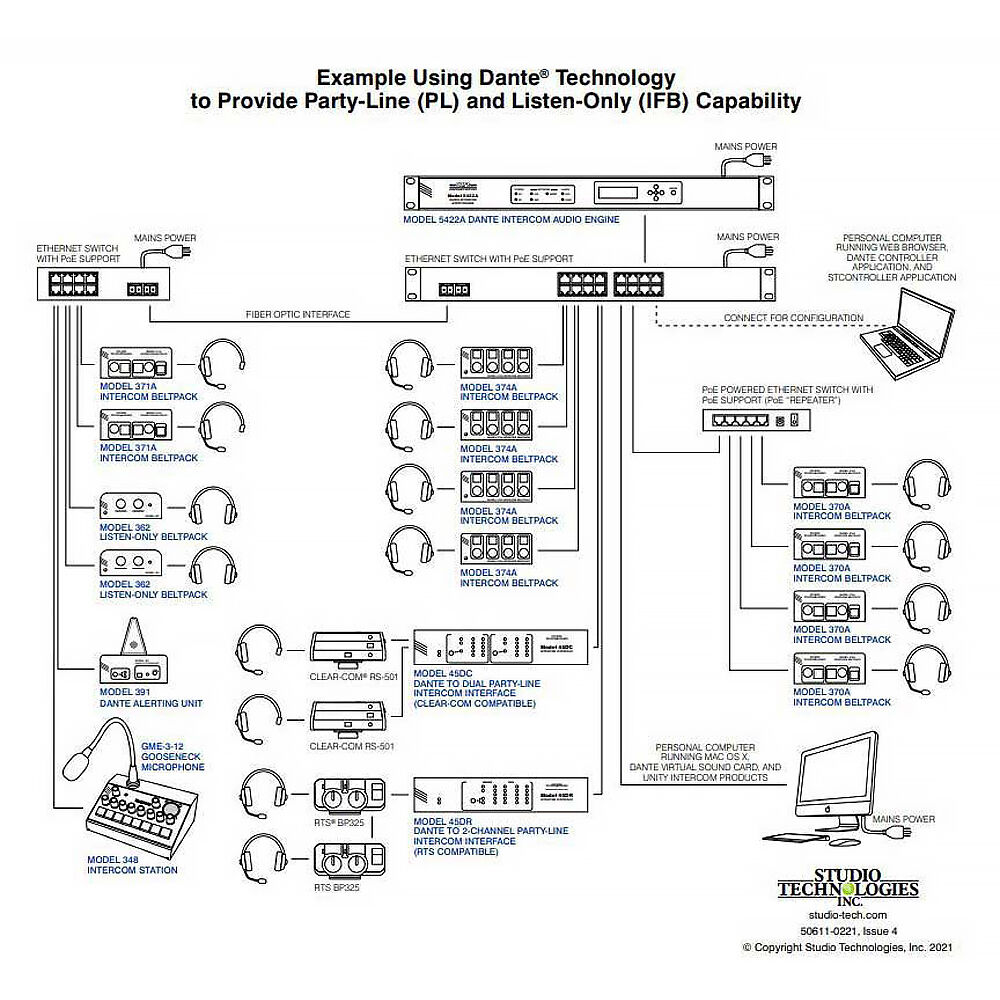

| Applications | Designed to Create Multiple Party-Line (PL) Circuits in Dante Audio-Over-IP Environments. Also Provides Functions for Use in Remote Integration (REMI) and At-Home Production Applications. This Includes Summing (Mixing) of Audio Channels, IFB (Talent Cueing) Creation, and Audio Switching Functions for General-Purpose Applications. Special Dante Pass-Thru Mode Allows Flow-Limited and Non-AES67-Compliant Dante Devices to Participate in More-Advanced Applications. Auto Mix Capability Can Be Selected for Use in Party-Line and Summing Operating Modes. |
| Audio Engine | Group Size: The Following Group Sizes Can Be Selected for Each 32-Channel Audio Engine: 32 (One Group) 24, 8 (Two Groups) 20, 8, 4 (Three Groups) 16, 16 (Two Groups) 16, 12, 4 (Three Groups) 16, 8, 8 (Three Groups) 16, 8, 4, 4 (Four Groups) 16, 4, 4, 4, 4 (Five Groups) 12, 12, 8 (Three Groups) 12, 12, 4, 4 (Four Groups) 8, 8, 8, 8 (Four Groups) 8, 8, 8, 4, 4 (Five Groups) 8, 8, 4, 4, 4, 4 (Six Groups) 4, 4, 4, 4, 4, 4, 4, 4 (Eight Groups) Group Modes: Party-Line w/Auto Mix, Party-Line, Summing Bus with Auto Mix, Summing Bus, Pass-Thru, IFB (1 Int-In), IFB (3 Int-In), Audio Switching (1-In / 2-Out), and Audio Switching (2-In / 1-Out), Selectable by Individual Group Receiver (Input) and Transmitter (Output) Channel Level Adjustment: ±20 dB, Selectable in 1 dB Steps |

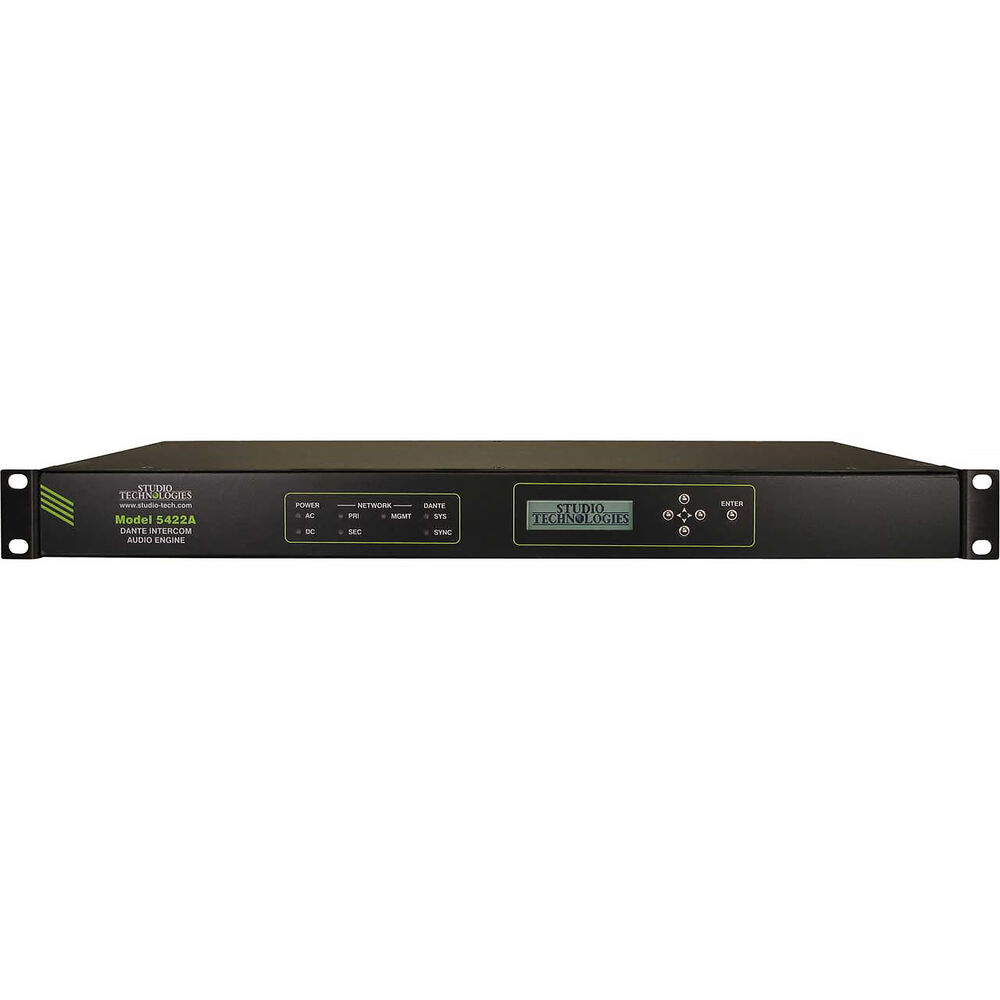

| Control Panel | Front-Panel Indicators, a Graphics Display, and Pushbutton Switches Provide Direct Access to Key Operating Parameters. |
| Audio Performance | Internal Digital Audio Processing: 32 bit, Fixed Input-to-Output Audio Processing Latency: <100 uSec Auto Mix: Sophisticated FPGA-Based Algorithm Provides Enhanced Audio Intelligibility for Party-Line (PL) and Summing Bus Applications |
| Network Audio Technology | Type: Dante Audio-Over-IP AES67-2018 Support: Yes Dante Domain Manager (DDM) Support: Yes Ethernet Interface Configuration: Switched, Redundant, Switched+Mgmt, or Redundant+Mgmt, Selectable Clock Source: Network or Internal (Can Serve as Basic Leader Clock) Bit Depth: Up to 32 Encoding: PCM 16, PCM 24, or PCM 32 Sample Rate: 48 kHz Number of Dante Receiver (Input) Channels: 32 Number of Dante Transmitter (Output) Channels: 32 Number of Dante Flows: 32 Transmitter, 32 Receiver Internal Digital Audio Processing: 32-Bit, Fixed Input-to-Output Audio Processing Latency: <100 Microseconds |
| Network Interface | Primary, Secondary, and Management Type: 1000BASE-T, Gigabit (GbE) Twisted-Pair Ethernet per IEEE 802.3ab (100 Mb/s Supported But Not Recommended for Optimal Performance; 10 Mb/S Not Supported) Auto MDI/MDI-X Support: Yes Connection (NIC) Status LEDs: One Link and One Activity for Each Ethernet Interface |
| Power Source | AC Mains: 100 to 240 V, 50/60 Hz, 5 Watts Maximum DC: 10 to 18 V, 0.5 A Maximum |
| Software Supported | Status of Select Parameters Can Be Monitored Using Studio Technologies' STcontroller Software Application |

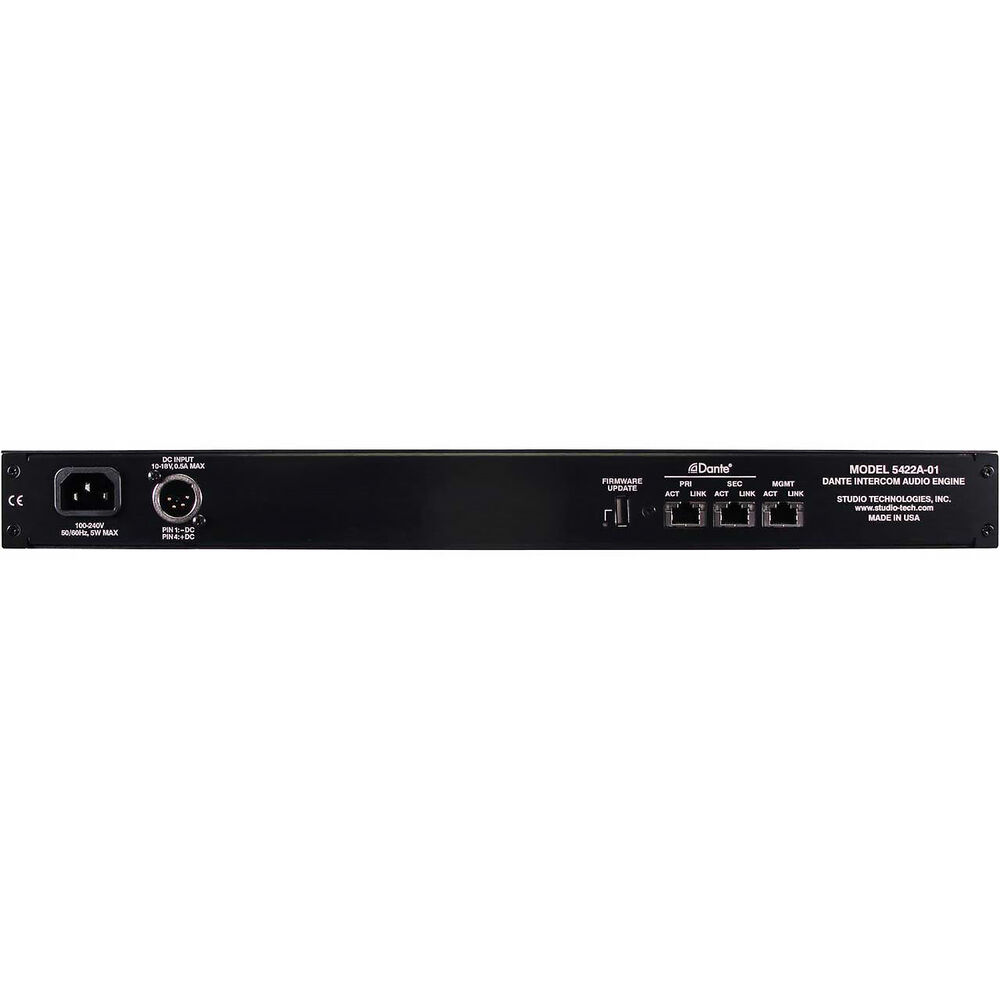

| Connectors | Ethernet: 3, RJ45 Jack USB-A Receptacle (Used Only for Updating Firmware) DC Input: 4-Pin Male XLR (Pin 1 Negative, Pin 4 Positive) AC Mains Input: 3-Blade, IEC 320 C14-Compatible (Mates With C13) |
| Software Update | USB Flash Drive Supports Updating of Main and FPGA Firmware (Embedded Software), Dante Interface Updated via Ethernet Interface |
| Environmental | Operating Temperature: 0° to 50° C (32° to 122° F) Storage Temperature: -40° to 70° C (-40° to 158° F) Humidity: 5 to 95%, Noncondensing |
| Dimensions | 19 x 7.9 x 1.72" / 48.3 x 20.1 x 4.4 cm |
| Weight | 2.8 lb / 1.3 kg |
| Package Weight | 4.37 lb |
| Box Dimensions (LxWxH) | 22.5 x 11.9 x 4.5" |
