Description

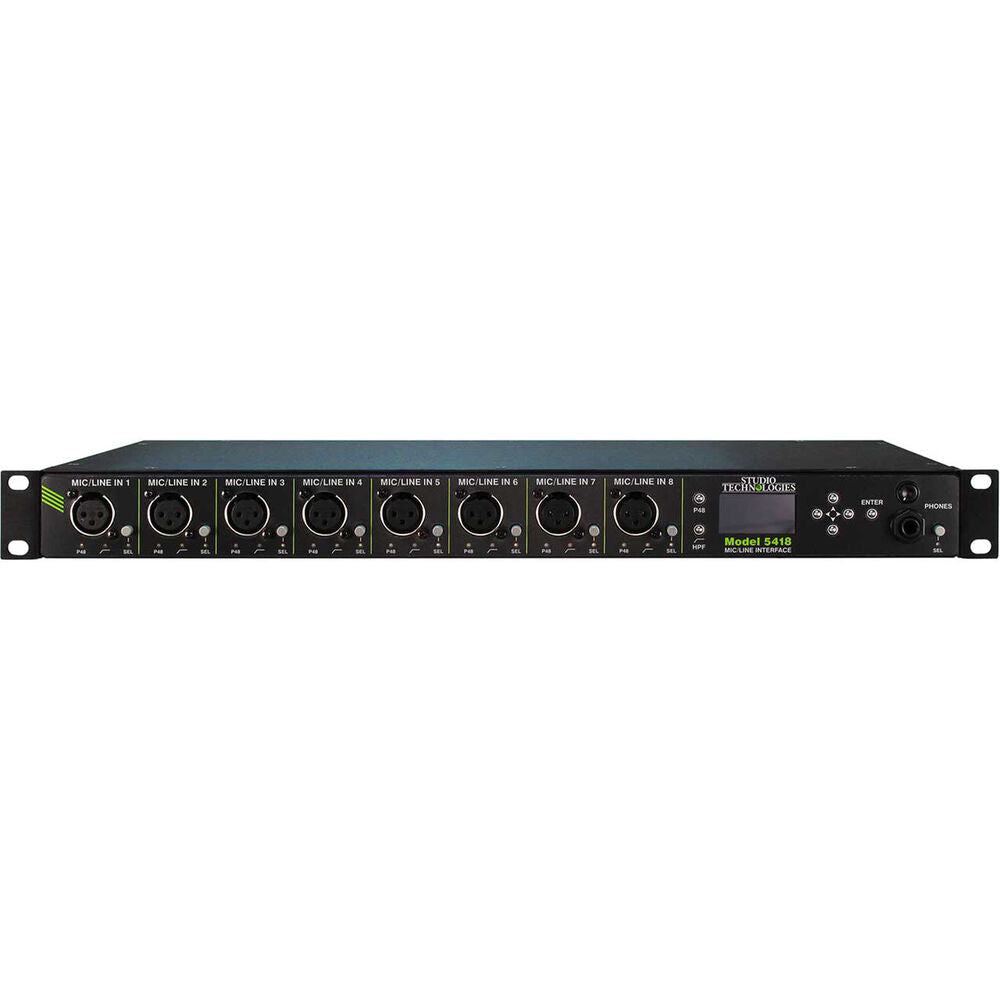

Providing a simple yet high-performance interfacing solution for broadcast and recording studios, the Studio Technologies Model 5418 is a robust analog to Dante interface that offers eight XLR 3-pin front-panel mic/line inputs, eight analog line outputs via DB-25, and three gigabit RJ45 Dante ports. Ideal for converting from analog to Dante or back, this unit provides wide interoperability.

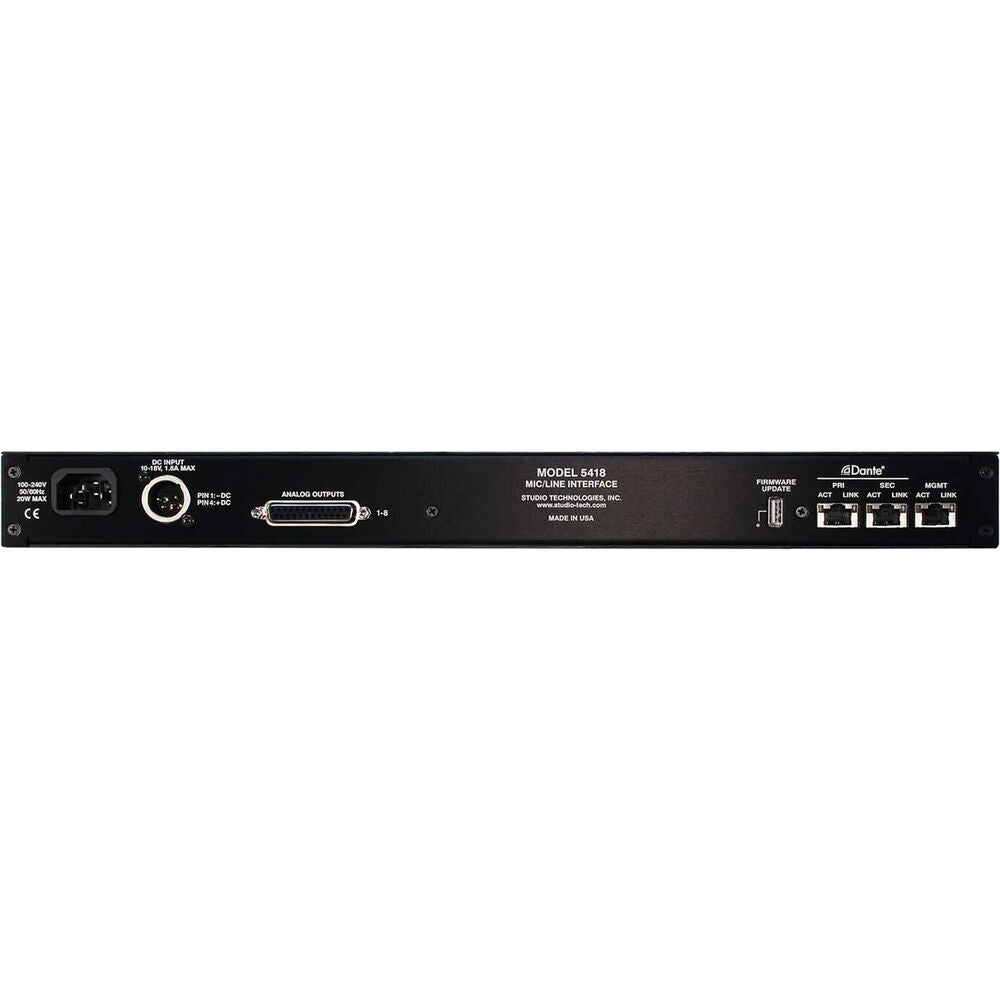

The Dante ports include primary and secondary ports, and a third port dedicated to management and monitoring. A 1/4" TRS headphone output is available on the front panel. You can select P48 phantom power on each input, enabling support for virtually all types of microphones. The M5418 also provides a switchable 75 Hz high-pass filter per input channel. Metering and performance monitoring are easy with the clear onboard OLED screen. Along with Dante, the unit supports AES67 standards, and can be simply controlled and managed via the STcontroller and Dante Domain Manager software. With both AC and DC power inputs, you can enjoy the safety of redundant power sources, a vital feature for ensuring smooth operation during broadcasts, even when a power interruption occurs.
| Sampling Rate | Up to 24-Bit / 96 kHz |
| Panel Type | OLED |
| Size | Not Specified by Manufacturer |
| Touchscreen | No |
| USB I/O | 1 x USB-A Female Input |
| Audio I/O | 8x XLR 3-Pin Line/Mic Input 1x DB-25 Line Output (8 Channels) 1x 1/4" TRS Headphone Output 3x RJ45 Coaxial Dante Input/Output |
| Power Source | AC Input, DC Input |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 10 to 18 VDC at 1.5 to 1.6 A |
| Power Consumption | 20 W (Maximum) |
| Mounting | 3x Standard Rack Screw |
| Color | Black |
| Material of Construction | Metal |
| Operating Conditions | 32 to 122°F / 0 to 50°C at 5 to 95% Humidity |
| Storage Conditions | -40 to 158°F / -40 to 70°C at 5 to 95% Humidity |
| Dimensions | 19 x 7.8 x 1.72" / 48.3 x 19.8 x 4.37 cm (1 RU) |
| Weight | 3.5 lb / 1.6 kg |
| Package Weight | 4.93 lb |
| Box Dimensions (LxWxH) | 22.9 x 12.8 x 4.5" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
