Description

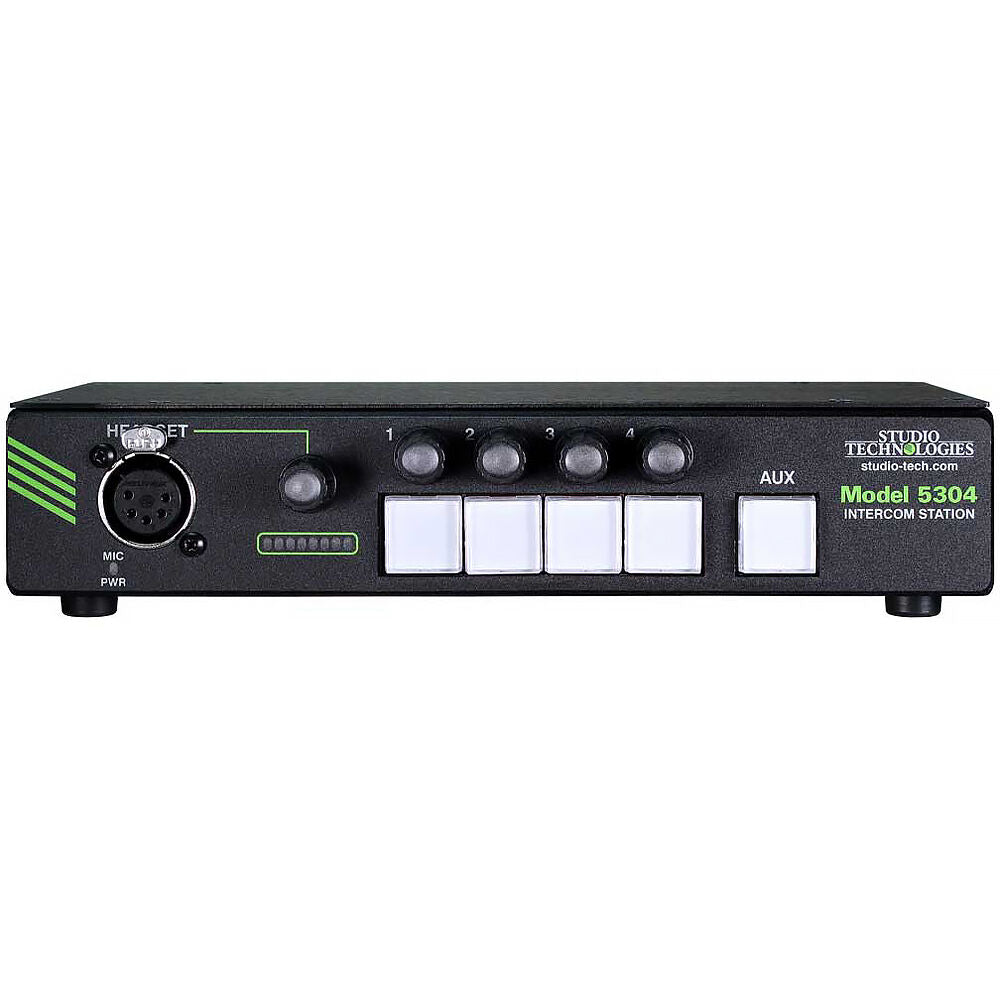

Intended for broadcast, live events, theater, and more, the Model 5304 Dante Intercom Station from Studio Technologies offers four independent talk and listen channels via Dante audio-over-Ethernet protocol. Each of the four channels can be a part of a virtual party-line intercom system, while also featuring both a call and receive function that is fully assignable thanks to the auxiliary button. And for remote control use, a 3.5mm jack can connect to two external switches that activate selected talk channels.
With Dante being the primary audio protocol, the Model 5304 also supports AES67 and Dante Domain Manager for use with compatible hardware. An onboard 5-pin female XLR connection accommodates both dynamic and electret headset microphones, and power is provided via Power-over-Ethernet.
| Power Source | Power-over-Ethernet (PoE): Class 2 (Low Power, ≤6.49 Watts) per IEEE; 802.3af |
| Network Audio Technology | Type: Dante Audio-over-Ethernet AES67-2018 Support: Yes, Selectable On/Off Dante Domain Manager (DDM) Support: Yes Bit Depth: Up to 24 Sample Rate: 48 kHz Pull-Up/-Down Support: No Dante Transmitter (Output) Channels: 4 Dante Receiver (Input) Channels: 4 Dante Audio Flows: 4; 2 Transmitter, 2 Receiver Transmitter (Output) and Receiver (Input) Nominal Level: -20 dBFS |
| Audio Channels | Four Talk, Four Listen |
| Network Interface | Type: 100BASE-TX, Fast Ethernet per IEEE 802.3u (10BASE-T and 1000BASE-T (GigE) Not Supported) Power-over-Ethernet (PoE): Per IEEE 802.3af Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s Not Supported) |
| Microphone Input | Compatibility: Analog Dynamic or Electret Microphones Type: Unbalanced Electret Microphone Power: 3.3 Volts DC via 2-Kilohm Series Resistance, Selectable On/Off Gain: 24, 30, 36, 42, or 48 dB, Selectable Frequency Response: 42 Hz to 18 kHz, -3 dB, Nominal Distortion (THD+N): <0.03%, 1 kHz, 24 dB Gain Noise Floor: -94 dBFS (A-Weighted) |
| Compressor | Threshold: 1.5 dB Above Nominal Level (-18.5 dBFS)
Slope: 2:1 |
| Headphone Output | Type: 2-Channel Compatibility: Intended for Connection to Stereo (Dual-Channel) or Monaural (Single-Channel) Headsets with Nominal Impedance of 50 Ohms or More Maximum Output Voltage: 2.9 Vrms, 1 kHz, with 150-Ohm Load Frequency Response: 7 Hz to 9.8 kHz, -3 dB Distortion (THD+N): <0.02% Dynamic Range: >100 dB |
| Send | Signaling Method: 20 kHz, Within Selected Dante Transmitter (Output) Audio Channels Send Level: -20 dBFS |
| Receiver | Sources: Dante Receiver (Input) Channels 1 to 4 Signaling Method: 20 kHz ±800 Hz, Nominal, Within Audio Channels Receive Level: -27 dBFS Minimum Detect Time: 10 ms, Minimum |
| Remote Input | Inputs: 2 Function: Configurable, Can Mimic the Action of Any of the Five Button Functions Type: Active Low, 1 mA Maximum, Inputs Pulled Up to 3.3 Volts DC via 3.4 Kilohm Resistors |

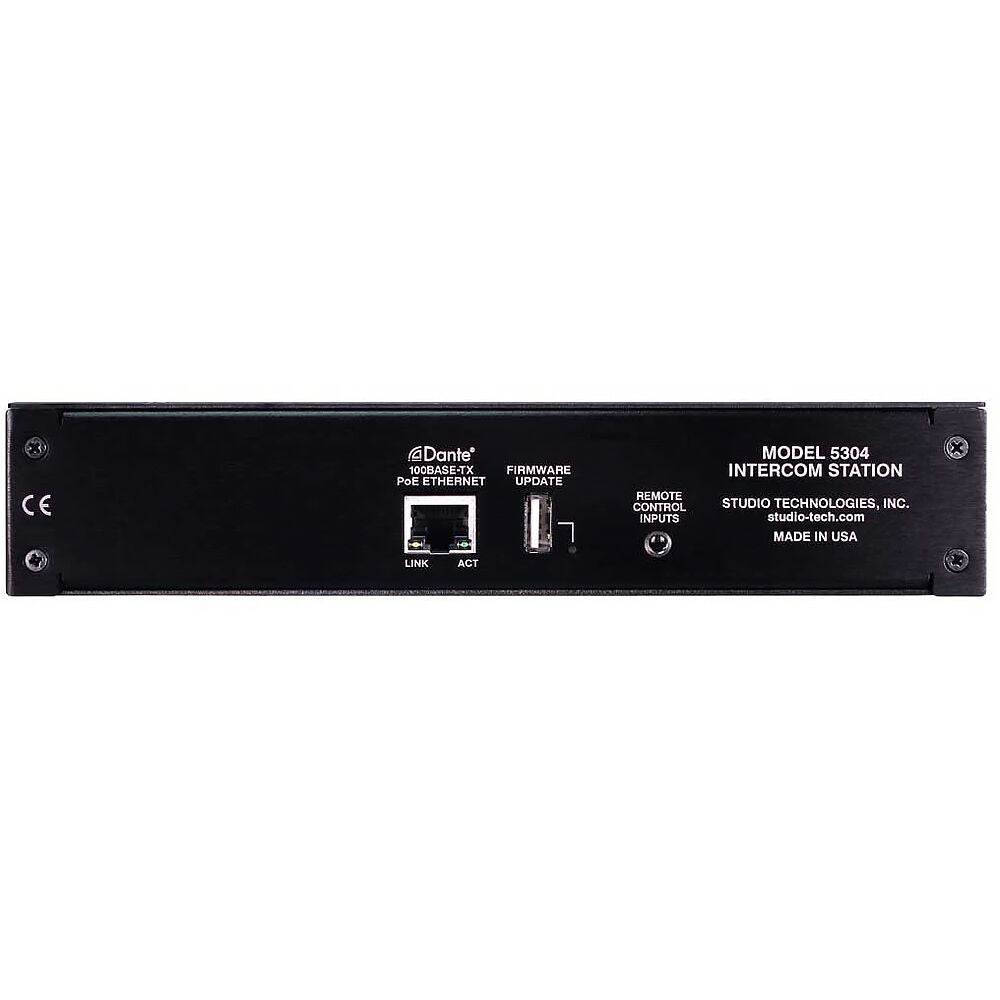

| Connectors | Headset: 5-Pin Female XLR Ethernet: RJ45 Jack Remote Control Inputs: 3-Conductor (TRS) 3.5 mm Jack USB-A Receptacle (Used Only for Updating Application Firmware) |
| Configuration | Requires Studio Technologies' STcontroller Software Application |
| Software Update | USB Flash Drive Used for Updating Application Firmware; Dante Updater Application for Updating Dante Interface Firmware |
| Environmental | Operating Temperature: 32 to 122° F / 0 to 50° C Storage Temperature: -40 to 158° F / -40 to 70° C Humidity: 5 to 95%, Noncondensing Altitude: Not Characterized |
| Dimensions | 8.70 x 4.45 x 1.72" / 22.1 x 11.3 x 4.4 cm |
| Weight | 0.95 lb / 420 g |
| Package Weight | 1.35 lb |
| Box Dimensions (LxWxH) | 13 x 6.7 x 5.1" |
