Description

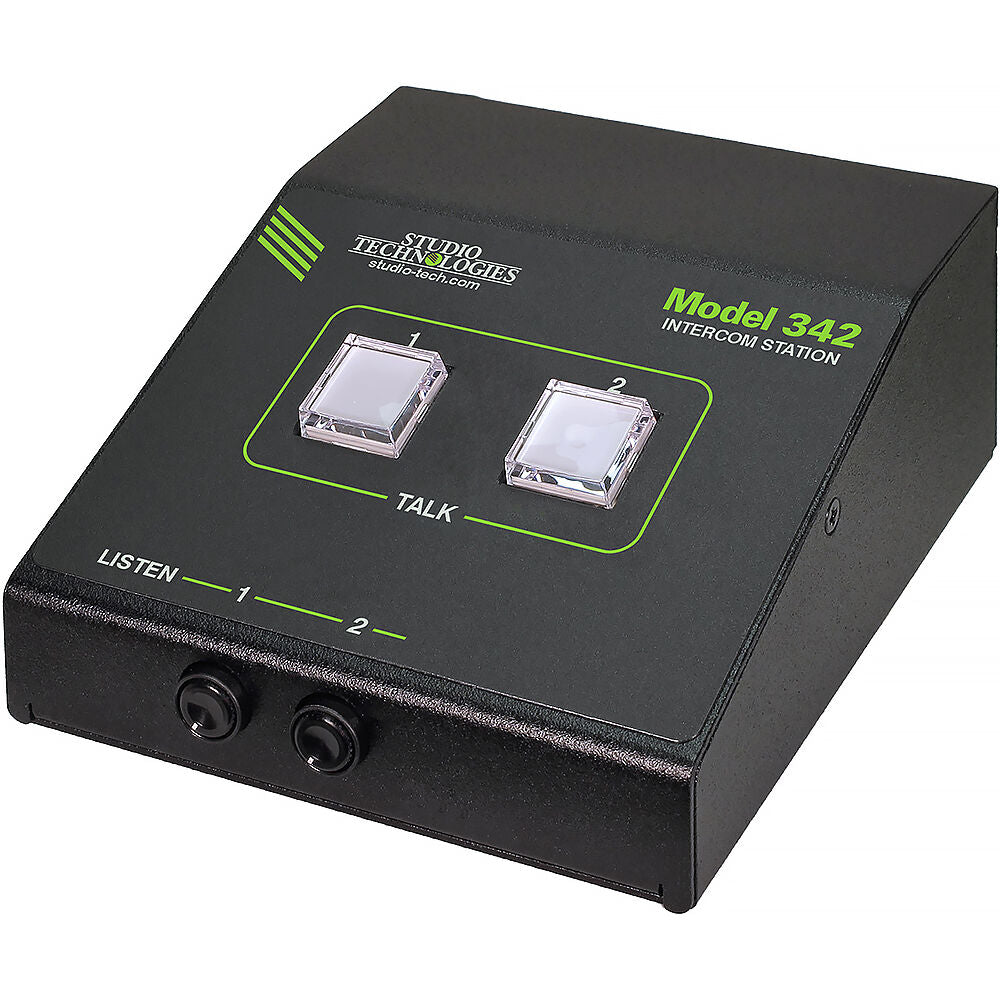

Add a range of advanced capabilities, along with the performance and flexibility that Dante audio-over-Ethernet provides with the Studio Technologies Model 342 Intercom Station, a compact, desktop device that supports two channels of talk and listen. Over a standard IP network, multiple Model 342 Intercom Station units and other compatible Studio Technologies' products can be used to create party-line intercom applications with help from an external Dante-enabled audio matrix such as the optional Studio Technologies' Model 5421 or Model 5422A Dante Intercom Audio Engines. Alternatively, Model 342 units can be used "point-to-point" or interfaced with Dante-compatible matrix intercom systems.
Only a single Power over Ethernet (PoE) connection is required for operation. Key user features can be easily configured using the STcontroller software application. Configurable parameters include electret microphone power, microphone preamplifier gain, talk button operation, status LED action and intensity, sidetone operation, and headphone channel assignment. Hardware features include dual-channel (stereo) headphone output, dual headset connectors, integrated sidetone, call signal receive display, and remote mic kill ("talk off"). The range of capabilities, along with the excellent audio quality supported by the digital audio path, offer a unique and powerful user experience.
| Network and AoIP | Type: Dante Audio-over-Ethernet AES67-2013 Support: Yes, Selectable On/Off Dante Domain Manager (DDM) Support: Yes Bit Depth: Up to 24 Sample Rate: 48 kHz Pull-Up/Down Support: No Dante Transmitter (Output) Channels: 2 Dante Receiver (Input) Channels: 2 Dante Audio Flows: 4; 2 Transmitter, 2 Receiver |
| Network Interface | Type: 100BASE-TX, Fast Ethernet per IEEE 802.3u (10BASE-T and 1000BASE-T (GbE) Not Supported) Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s GbE Ethernet Not Supported) |
| Headset Compatibility | Headset A: Single- or Dual-Ear Broadcast-Style with Dynamic or Electret (Low-Voltage DC-Powered) Microphone: Pin 1 Mic Common; Pin 2 Mic; Pin 3 Phones Common; Pin 4 Phones Left; Pin 5 Phones Right Headset B: CTIA/AHJ Configuration (Typically Uses Electret Powered Mic): Tip Phones Left; Ring 1 Phones Right; Ring 2 Common; Sleeve Mic |
| Audio Channel | 1 Talk, 2 Listen |
| Microphone Input | Compatibility: Dynamic or Electret (Low-Voltage DC-Powered) Microphones Type: Unbalanced Electret Microphone Power: 3.3 Volts DC via 2 Kilohms Resistor, Selectable On/Off Impedance: 1 Kilohms, Nominal, Microphone Power Off; 690 Ohms, Nominal, Microphone Power On Gain: 24, 30, 36, 42, or 48 dB, Selectable, Ref. -60 dBu Input to Dante Output (-20 dBFS Nominal) Frequency Response: 40 Hz to 20 kHz, -3 dB Distortion (THD+N): <0.02% (at Minimum Gain) Dynamic Range: 91 dB of Dynamic Range |
| Compressor | Application: Applies to Dante Transmitter (Output) Channel and Sidetone Audio Threshold: 1 dB Above Nominal Level (-19 dBFS) Slope: 2:1 Status LED: Lights When Compressor Active |
| Headphone Output | Type: 2-Channel
Compatibility: Intended for Connection to Stereo (Dual-Channel) or Monaural (Single-Channel) Headsets with Nominal Impedance of 50 Ohms or Greater Maximum Output Voltage: 2.8 Vrms, 1 kHz, 150 Ohm Load Frequency Response: 20 Hz to 10 kHz, -3 dB Distortion (THD+N): <0.002% Dynamic Range: >100 dB |
| Call Functions | Implementation: Monitors Both Dante Receiver (Input) Channels for Presence of Call Signals Signaling Method: 20 kHz, ±800 Hz, within Audio Channels Call Receive Level: -27 dBFS Minimum |

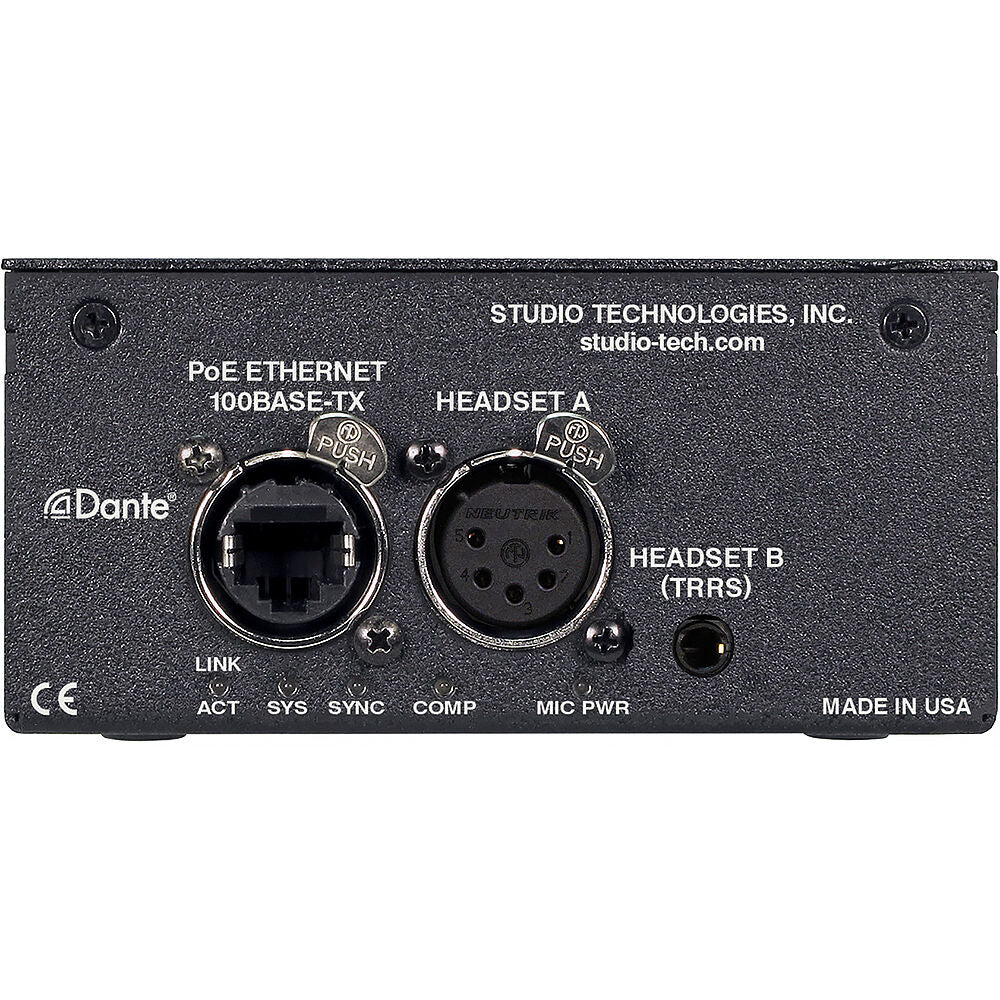

| Connectors | Headset A: 5-Pin Female XLR Headset B: 4-Conductor (TRRS) 3.5 mm Jack, per Japanese Standard JEITA/EIAJ RC-5325A Ethernet: Neutrik NE8FBH etherCON RJ45 Jack USB: Type-A Receptacle (Located Inside Model 342's Enclosure and Used Only for Application Firmware Updates) |
| Configuration | Uses Studio Technologies' STcontroller Personal Computer Application |
| Environmental | Operating Temperature: 32 to 122°F / 0 to 50°C Storage Temperature: -40 to 158°F / -40 to 70°C Humidity: 5 to 95%, Non-Condensing Altitude: Not Characterized |
| Dimensions (W x H x D) | 4.3 x 2.1 x 5.1" / 10.9 x 5.3 x 13.0 cm |
| Weight | 1.1 lb / 0.5 kg |
| Package Weight | 1.55 lb |
| Box Dimensions (LxWxH) | 8.9 x 7.9 x 3.9" |
