Description

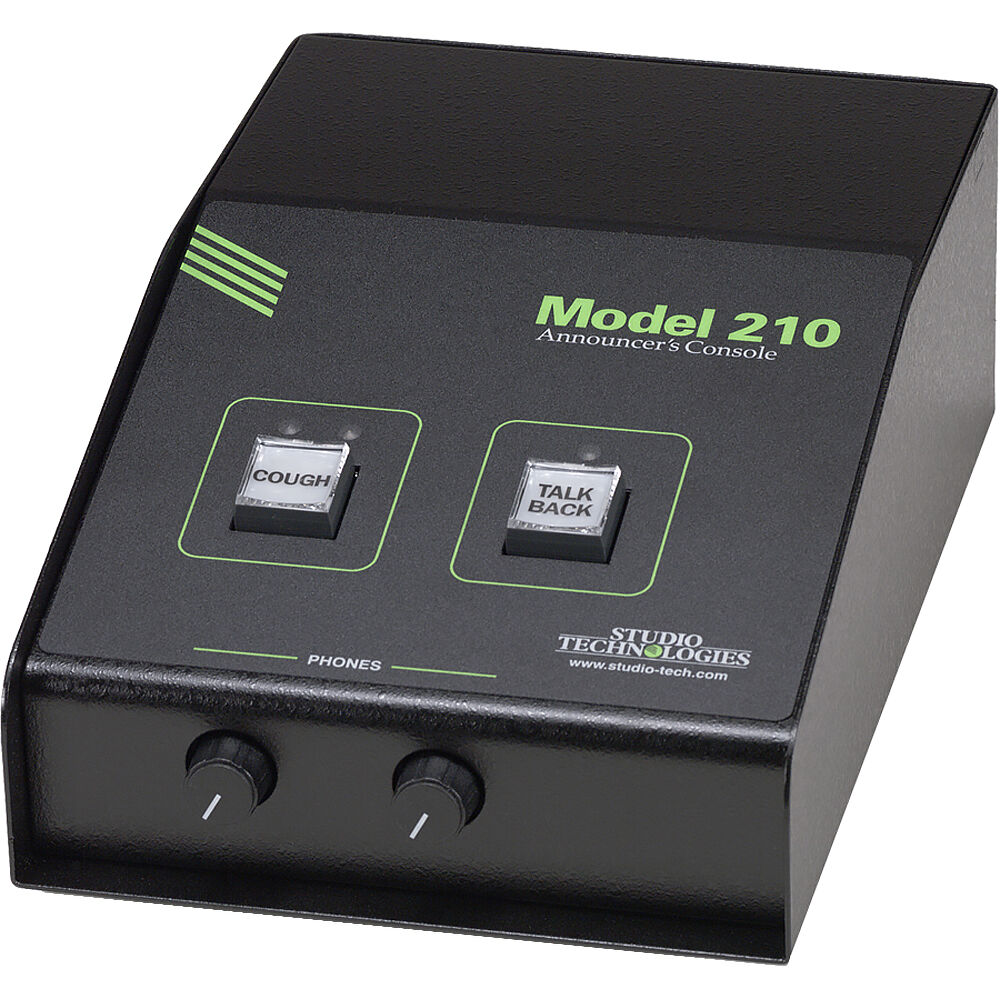

The Studio Technologies Model 210 is an announcer's console ideal for use as an audio control hub for commentators, production personnel, and more. Designed for flexible compatibility with all broadcast and production audio environments, this device offers a quality, low-noise mic preamp with selectable gain and 48V phantom power to support most microphones.

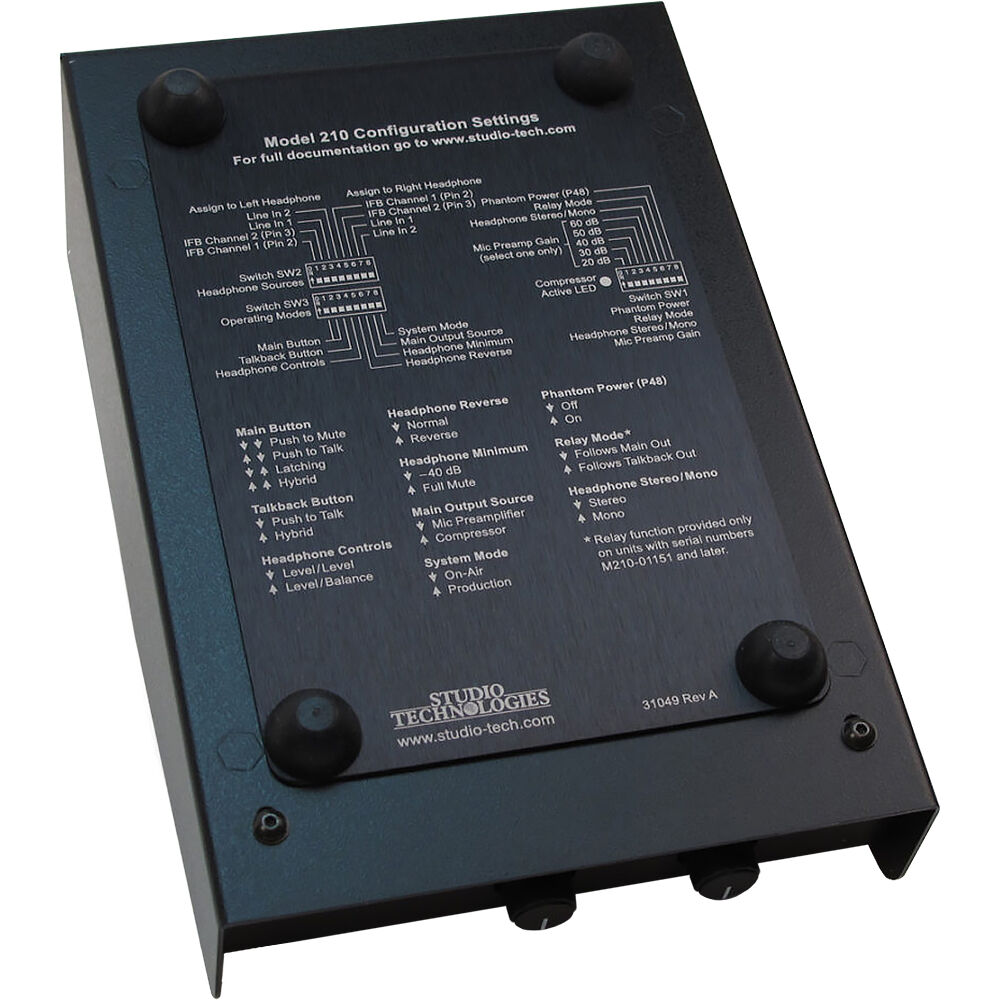

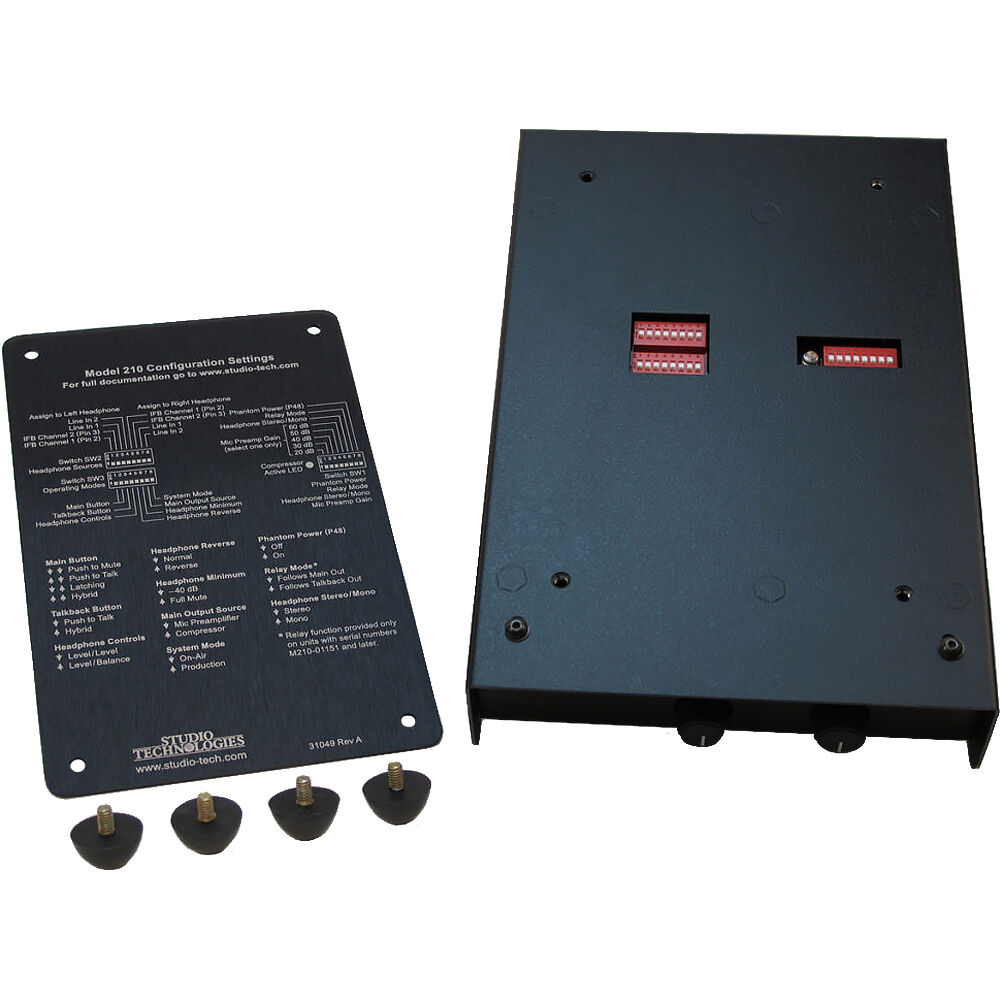

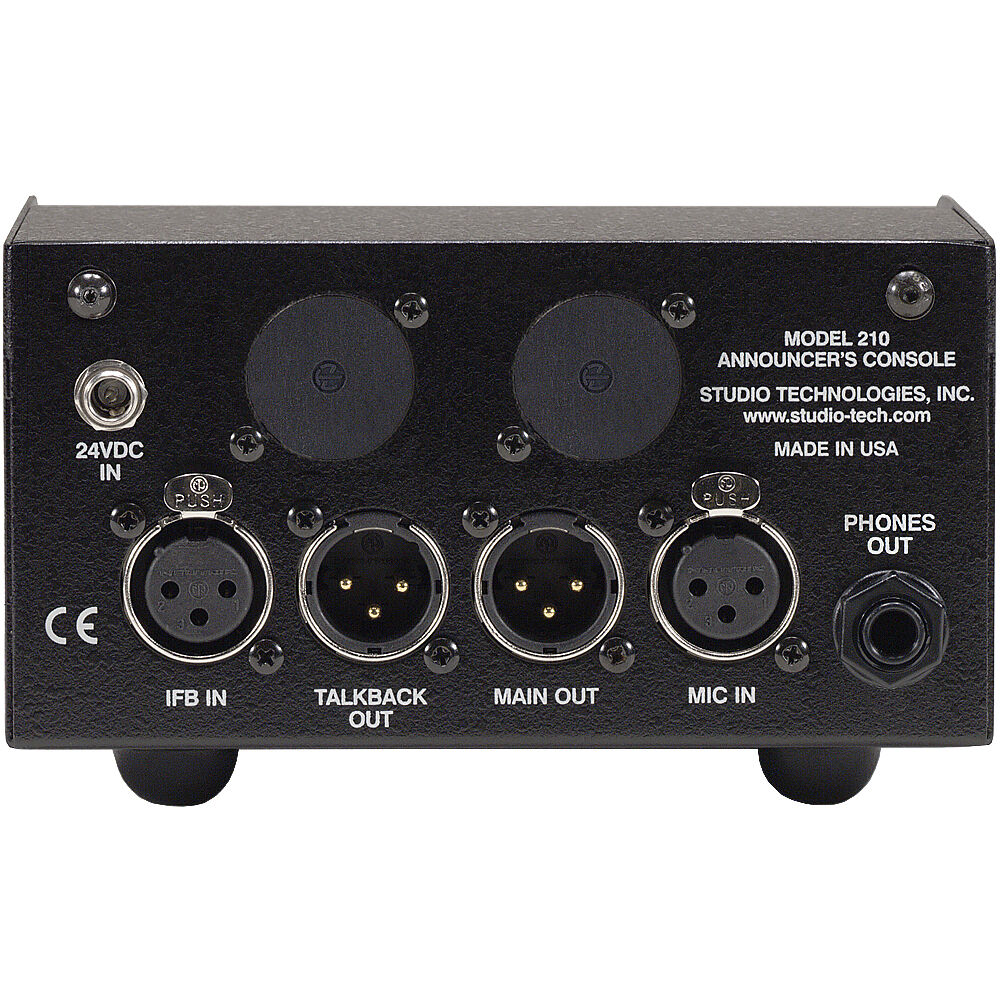

The Model 210 features industry-standard XLR 3-pin connections for the mic input, IFB input, talkback output, and line-level, transformer-balanced main output. A 1/4" headphone monitoring output is provided with two headphone cue controls on the front. Simple yet exacting click-free controls let you engage in various functions, including talkback and various mute modes. Several parameters can be controlled via convenient DIP switches. Power input can be provided by either the IFB input or a dedicated 24 VDC power supply. The Model 210 includes a power supply.
| Frequency Response | 10 Hz to 20 kHz (±0.2 dB) |
| THD + N | 0.008% |
| Signal-to-Noise Ratio | 86 dB |
| Gain Control | 20 to 60 dB (10 dB Steps) |
| Maximum Output Level | Main: +20 dB Talkback: +11 dBu Headphones: 13 Vpp |
| Audio I/O | 1x XLR 3-Pin Mic Input 1x XLR 3-Pin Input (IFB In) 1x XLR 3-Pin Line Output 1x XLR 3-Pin Mic Output (Talkback Out) 1x 1/4" TRS Headphone Output |
| Power Source | DC Input |
| DC Input Power | 24 VDC |
| Operating Current | 70 mA 105 mA (Maximum) |
| Color | Black |
| Material of Construction | Metal |
| Dimensions | 8.5 x 5.6 x 3.3" / 21.6 x 14.2 x 8.4 cm |
| Weight | 3.4 lb / 1.5 kg |
| Package Weight | 4.88 lb |
| Box Dimensions (LxWxH) | 13.1 x 10.4 x 7.5" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
