Description

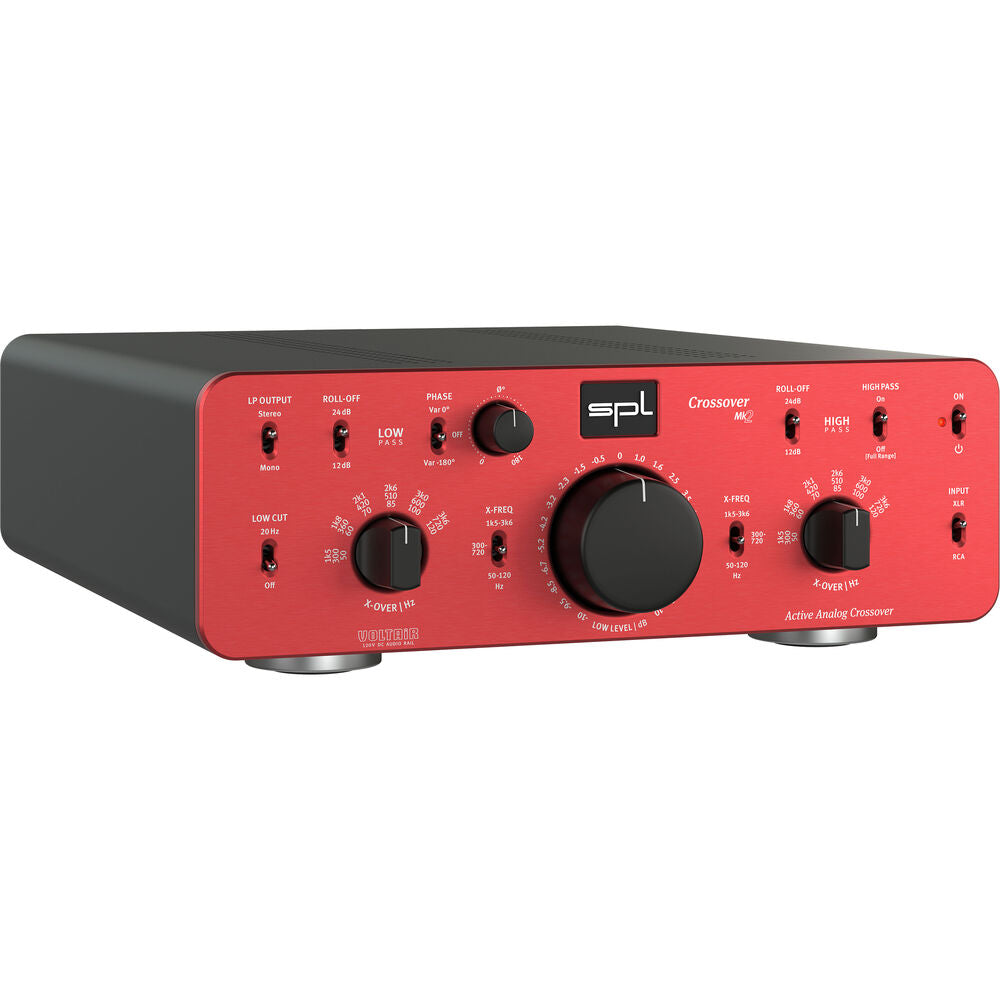

Styled in red, the SPL Crossover Mk2 is an active, analog 2-way crossover to coordinate your main speakers with your subwoofer, doing so without any DSP or analog-to-digital technology at all. The unit splits your signal, diverting midrange and high-range audio to your main monitors, and leaving the lows to route to the subs.

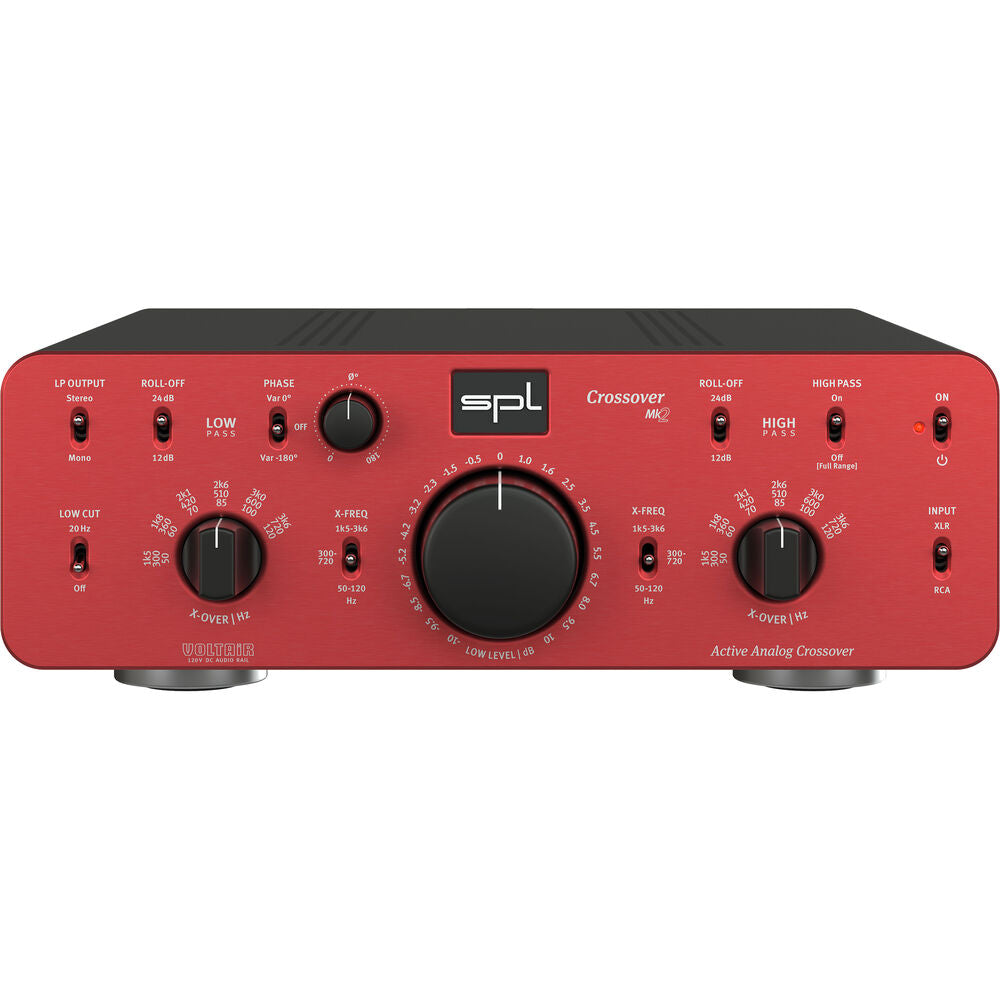

The design utilizes SPL's 120V rail technology to ensure high headroom and crystal-clear performance, and makes use of switches and pots to select among crossover frequencies, phase positions, low-level, and more. It's designed to work in both 2.1 and 2.2 setups, so if you utilize stereo subwoofers, this device will be suitable for your uses.

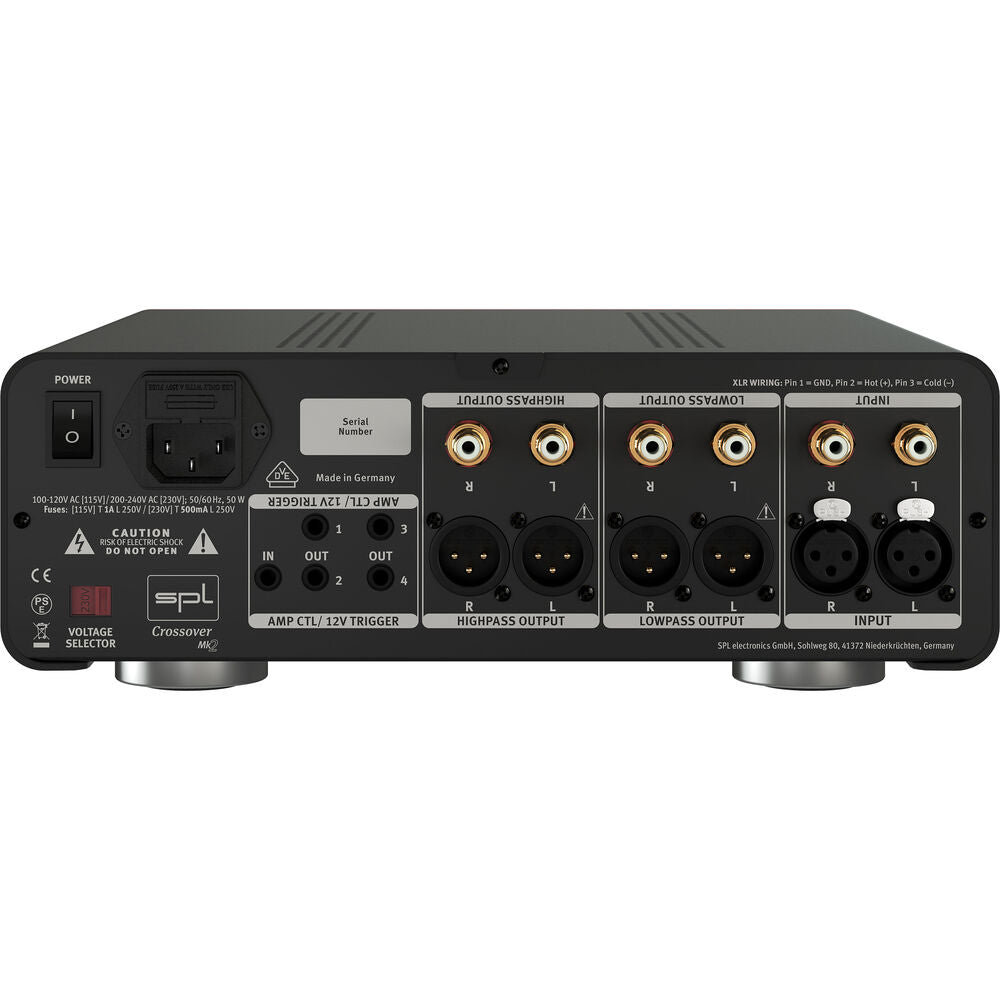

| Audio I/O | 2x XLR 3-Pin Line Input 1x 2RCA Coaxial Line Input 2x XLR 3-Pin Line Output (Highpass) 2x 2RCA Coaxial Line Output (Highpass) 2x XLR 3-Pin Line Output (Lowpass) 2x 2RCA Coaxial Line Output (Lowpass) |
| Control | Amp Control In: 1 x 3.5 mm TS, 12 V Out: 4 x 3.5 mm TS, 12 V |
| Analog Inputs/Outputs | Maximum Input And Output Level: 32.5 dB Input Impedance (RCA): 20 Kilowatts Input Impedance (XLR): 20 Kilowatts Output Impedance: 75 Ohms Common-Mode Rejection Ratio (XLR): -82 dBu Frequency Range (-3 dBu): 10 Hz to 100 kHz Crosstalk (1 kHz): -70 dB Thd+n (0 dBu, 1 kHz, High-Pass Output): 0.0008% Thd+n (0 dBu, 30 Hz, Low-Pass Output): 0.0009% Noise (A-Weighted, High-Pass Output): -106 dBu Noise (A-Weighted, Low-Pass Output): -105 dBu Dynamic Range (High-Pass Output): 138 dB Dynamic Range (Low-Pass Output): 137 dB |
| Power Source | AC Input |
| AC Input Power | Changing Voltage Requires Manual Switching 115 VAC, 60 Hz 230 VAC, 50 Hz |
| Power Consumption | 50 VA (Maximum) |
| Power Supply | Internal Linear Power Supply with Shielded Toroidal Transformer Operating Voltage for Analog Audio: ±60 V Operating Voltage for Relays and LEDs: +12 V |
| Color | Red |
| Dimensions | 11.81 x 11 x 4" / 30 x 27.9 x 10.2 cm |
| Weight | 10.14 lb / 4.6 kg |
| Package Weight | 13.115 lb |
| Box Dimensions (LxWxH) | 21 x 14.8 x 7.2" |
