Description
Designed for broadcast, live production, and professional AV environments, the Sonifex AVN-AESIO8-DNT provides a cost-effective and dependable solution for transporting low-latency audio between AES3 and Dante network domains. The unit incorporates dual RJ45 1Gb/s Ethernet ports that accepts both power and data to the Dante network. These primary and secondary ports can be configured in redundant mode and switched mode for full network redundancy or daisy-chaining capabilities.

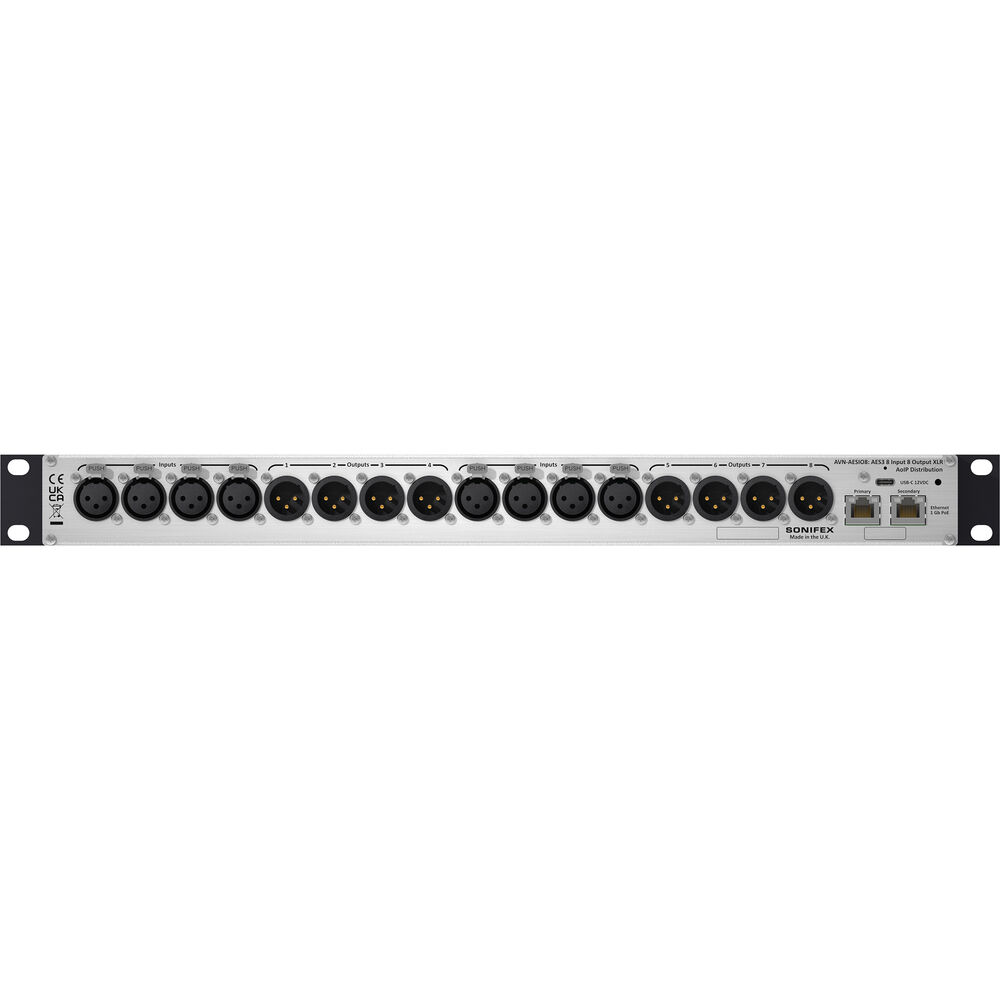

Configuration and routing are managed via Dante Controller, offering a familiar and intuitive workflow for AV professionals and system integrators. The platform is designed for straightforward deployment, with minimal setup required beyond network configuration and level alignment. All AES3 audio connections are provided via high-quality Neutrik XLR connectors and offer secure, dependable connectivity for professional audio applications. Each input can accept sample rates from 32 to 192 kHz, which will be converted to the Dante system sample rate.
| Form Factor | Rackmount |
| Converter Type | Format Converter |
| Number of Channels | 16 (at 192 kHz) |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | No Mic Inputs |
| Analog Audio I/O | No |
| Digital Audio I/O | XLR 3-Pin AES3 Input XLR 3-Pin AES3 Output |
| Form Factor | Rackmount |
| Converter Type | Format Converter |
| Number of Channels | 16 (at 192 kHz) |
| Conversion Formats | Dante |
| Display | LED |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | No Mic Inputs |
| Analog Audio I/O | No |
| Phantom Power | No |
| Digital Audio I/O | 8x XLR 3-Pin AES3 Input 8x XLR 3-Pin AES3 Output |
| Host Connection / USB | No |
| USB (Non-Host) | 1x USB-C (Power Input) |
| Sync I/O | No |
| Network I/O | 2x RJ45 Dante |
| MIDI I/O | No |
| Expansion Slots | No |
| Wireless | No |
| Sample Rates | Up to 192 kHz |
| Sample Rate Conversion | No |
| Bit Depths | 24-Bit |
| Digital Audio Decoding | PCM |
| Sync Sources | Dante |
| Clocking | Dante: |
| OS Compatibility | No |
| Mobile Device Compatibility | No |
| Power Requirements | PoE or USB Power Adapter (Not Included) |
| DC Input Power | 12 VDC |
| Rackmount Size | 1 U |
| Dimensions | 18.9 x 4.3 x 1.7" / 48 x 11 x 4.3 cm |
| Weight | 2.2 lb / 1.0 kg |
| Package Weight | 3.135 lb |
| Box Dimensions (LxWxH) | 23.4 x 9 x 2.8" |
