SmallRig 4183B Camera Cage Kit with V-Lock Battery Plate and Top Handle for Sony FX30/FX3

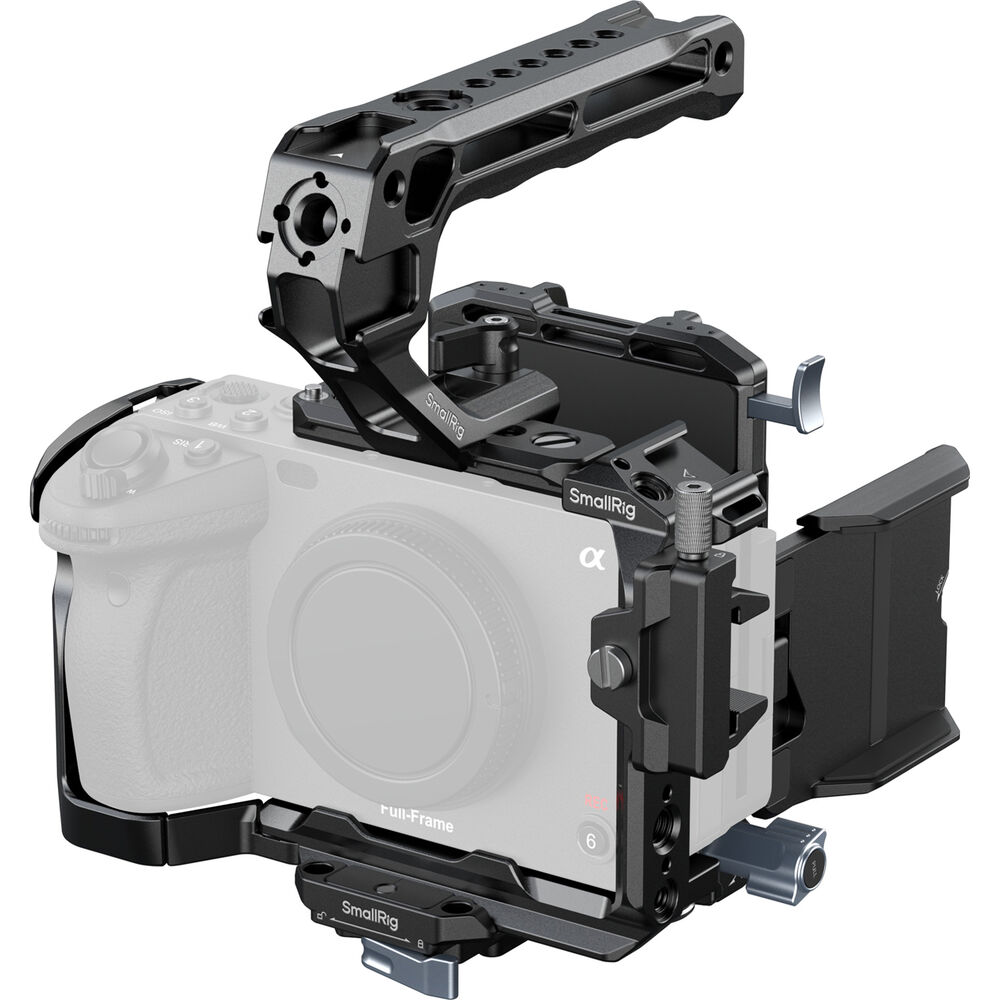

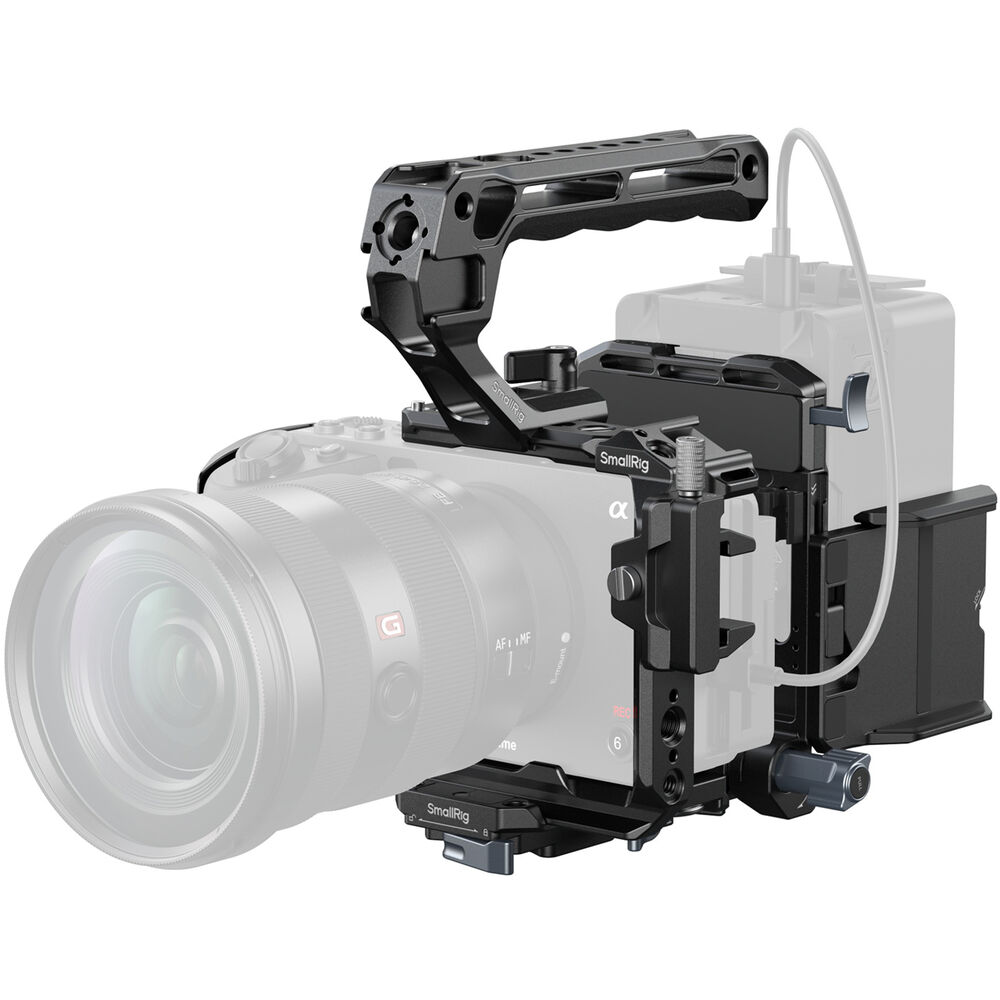

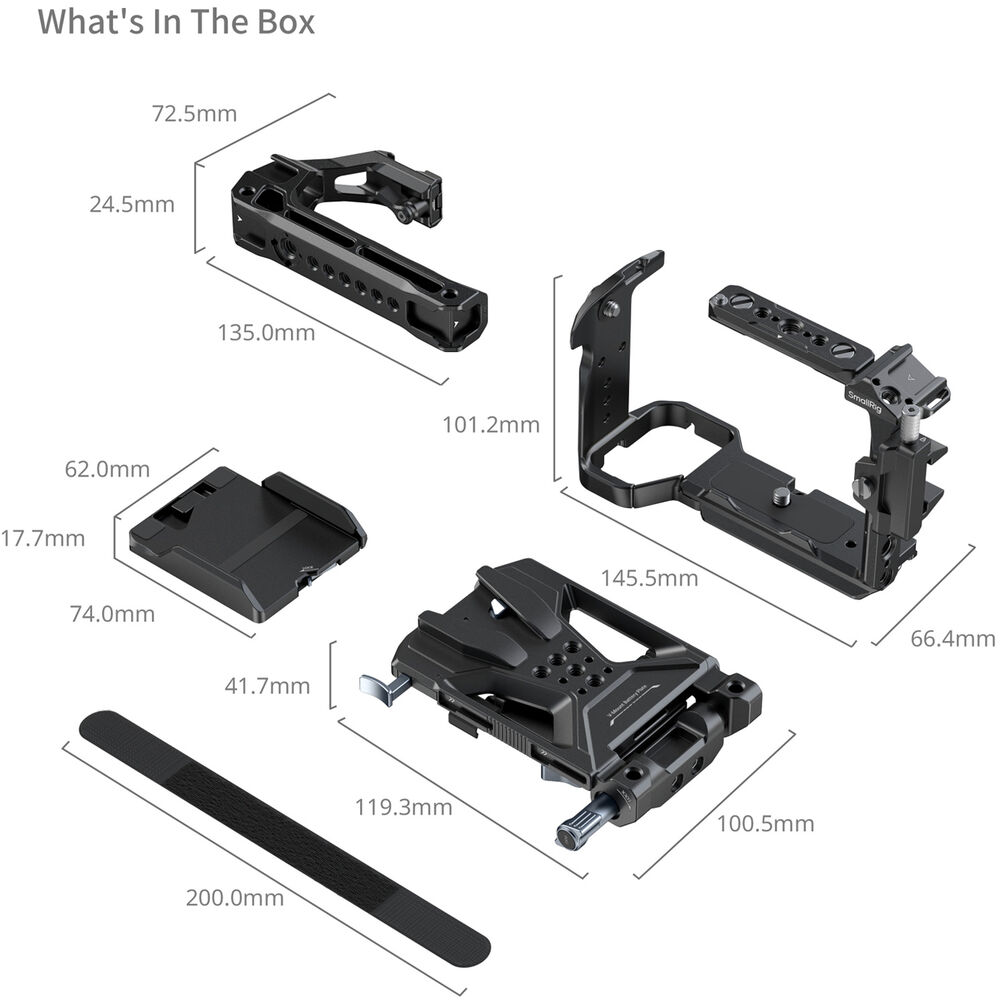

Upgrade the rig configuration and battery mounting capabilities of a Sony FX30 or FX3 using this 4183B Camera Cage Kit from SmallRig. The kit features a 4183B full camera cage, a quick release battery plate with one V-mount battery bay, a top handle with multiple anti-twist mounts and cold shoes, and a modular LCD screen protector.

Protect and mount a variety of accessories onto your Sony FX3 or FX30 camera with this lightweight 4183B Camera Cage from SmallRig. This formfitting aluminum cage maintains access to the camera's controls and features a variety of mounting options. The 4183B version of the cage features an HDMI cable clamp constructed of PC and fiber for a lighter form factor. The camera mounts onto the cage using 1/4"-20 screws on the bottom and the side to prevent twisting, and rubber padding on the base protects the camera.

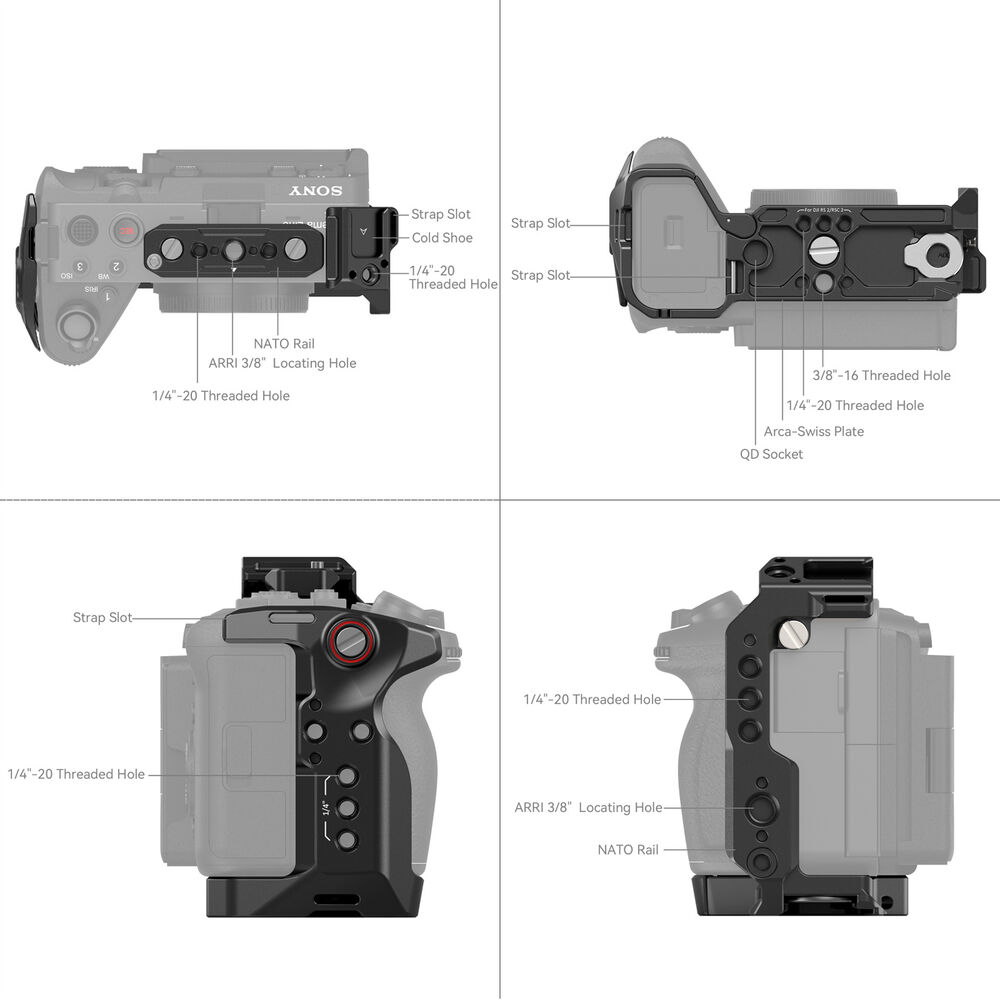

In addition to a shoe mount, a removable NATO rail, and multiple 1/4"-20 and 3/8"-16 accessory threads, the cage features ARRI-style accessory mounts for preventing accessories from twisting when mounted on the cage. The cage also features an integrated Arca-style base that allows you to use standard Arca-style tripod heads and gimbal mounts. There are strap slots on either side of the cage to add a camera strap. A built-in screwdriver on the bottom allows you to secure the camera screws.

The included NATO rail must be removed for use with the original Sony XLR handle.

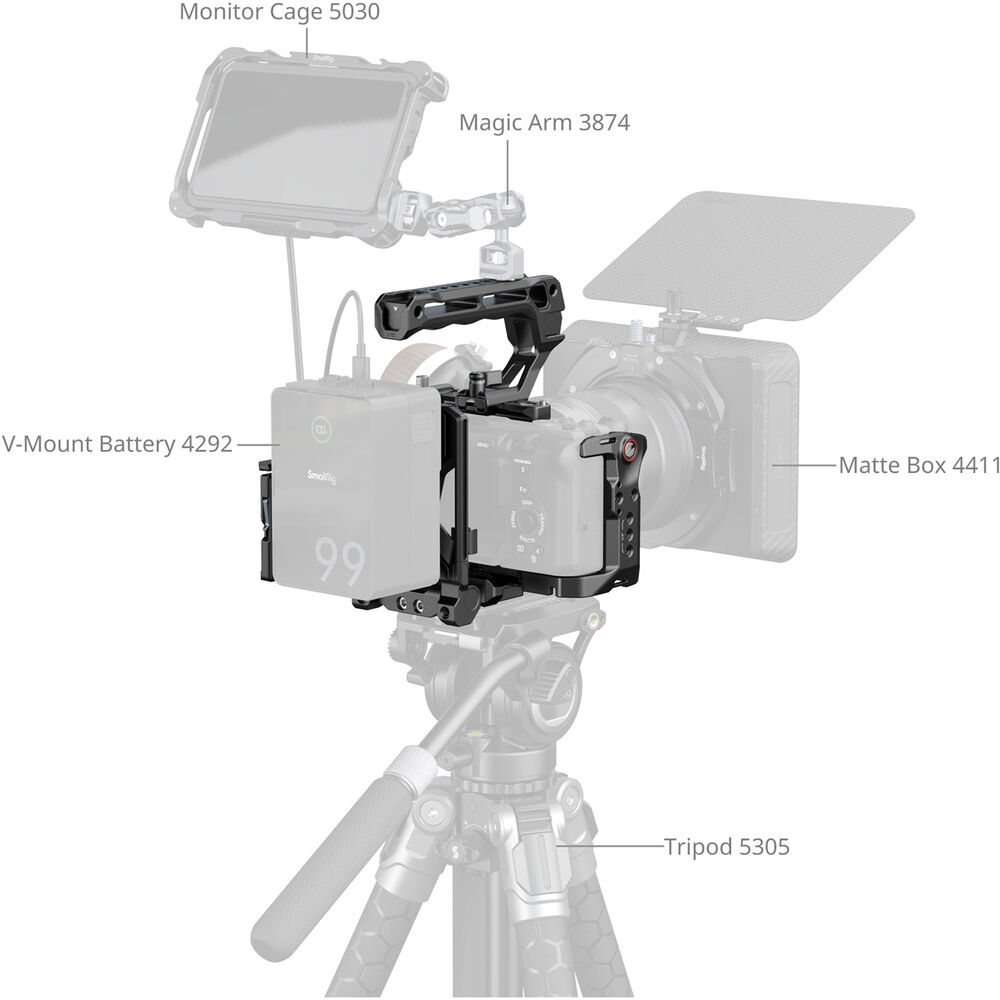

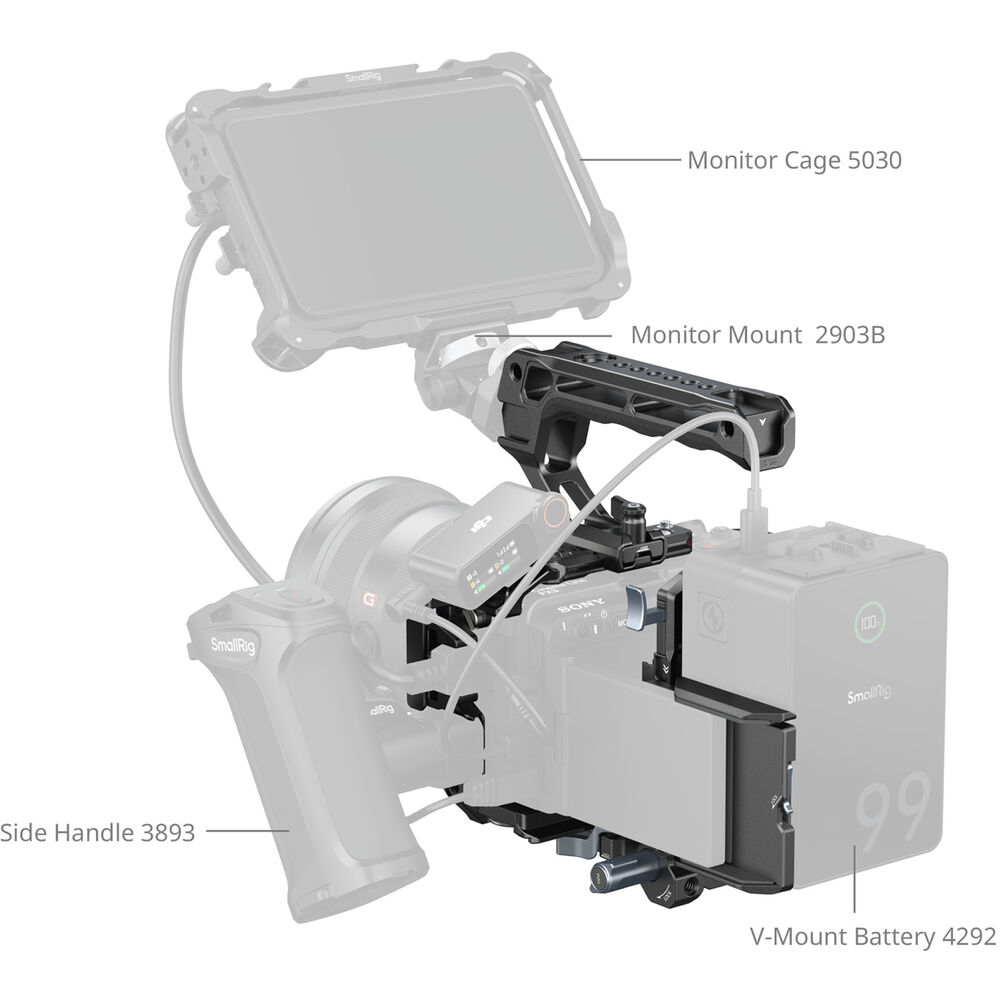

Add a compact, lightweight, and modular V-mount battery plate to your rig SmallRig's Compact V-Mount Battery Mounting System and attach it to your tripod-mounted or handheld rig. Included with the system is a V-mount battery plate, an Arca-type quick release plate, and an adjustable V-lock plate to expand your power and mounting options. The V-mount system can support up to 11 lb.

In addition, multiple 1/4"-20 threads allow you to integrate additional accessories like cable clamps, articulating arms, or other battery plates. You can easily mount or detach the entire system thanks to the Arca-type quick release plate, and the baseplate itself can be adjusted 1.44" to fit most mirrorless and DSLR cameras. You can also rotate the battery plate 90° to create more room for your camera's articulating display and to accommodate your specific rig.

The cheese-style NATO Top Handle Lite from SmallRig mounts easily onto a standard NATO rail and can slide side to side to help balance your camera rig, facilitate low-angle shots, and provide multiple accessory mounts. This handle incorporates five shoe mounts on the front, back, and sides, as well as multiple 1/4"-20, 3/8"-16, and ARRI-style anti-twist threads.

The top handle is made from aluminum and stainless steel, and it can support camera rig loads up to 22 lb despite weighing only 4.4 oz. It features an anti-slip, anti-freeze silicone-lined grip to ensure a solid hold.
