| ₹ 99999999.0 includes GST and import duties. | |
| B2B customers can avail ₹ 15249999.85 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
| Effect Types | Graphic, Transition, Chroma Key, Alpha Key, and Luma Key |
| Audio Mixing | 8-Channel Mixing |
| Switching Type | Software |
| Processing Resolution | DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 |
| Audio Processing | 192 kHz / 24-Bit 48 kHz / 16-Bit |
| Number of Video Input Sources | 7 |

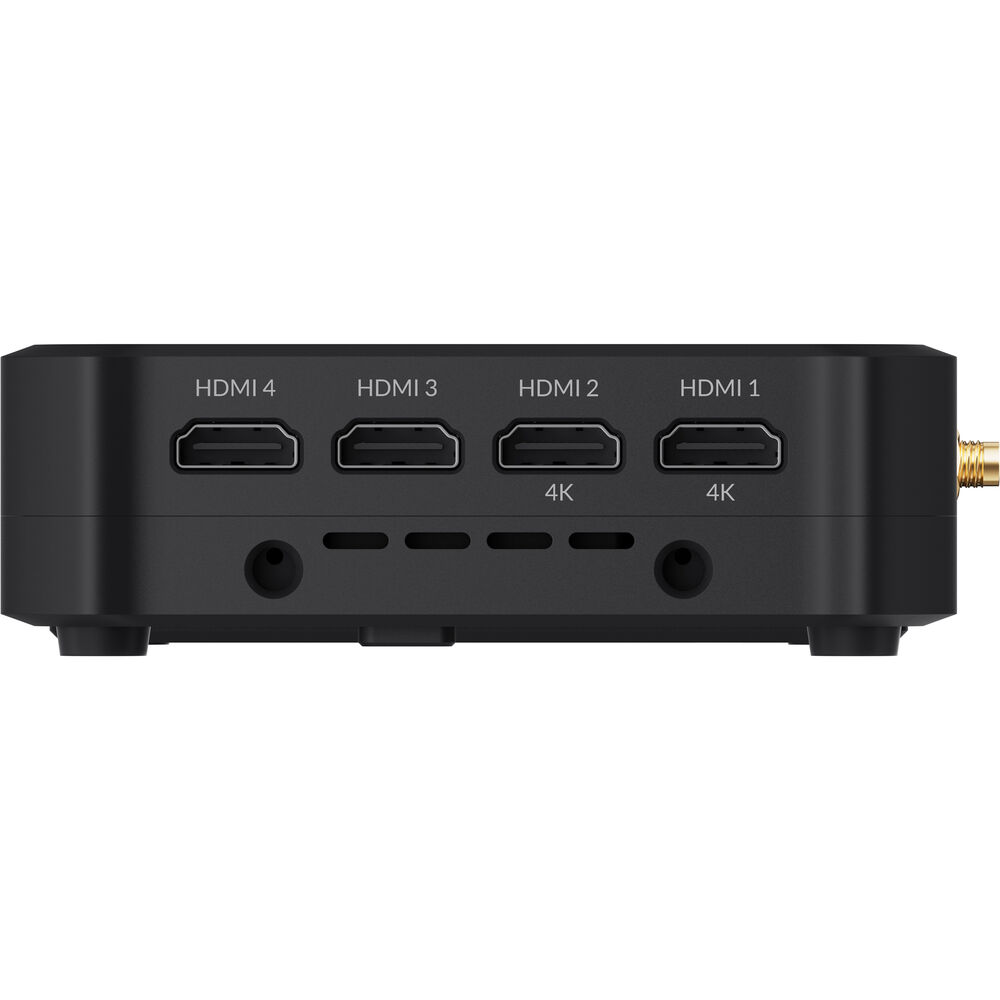

| Video Inputs | 4x HDMI Female 2x USB-C (3.0) Female 1x USB-A (3.0) Female |
| Input Video Format | HDMI (4:4:4 RGB and YCC) DCI 4K at 23.98/24/25/29.97/30/50/60 fps |
| Audio Inputs | 2x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Input Audio Format | Analog |
| Embedded Audio Input | HDMI: 8-Channel USB-C: 8-Channel USB-A: 8-Channel Wireless: 2-Channel |
| Video Output Channels | 3 |

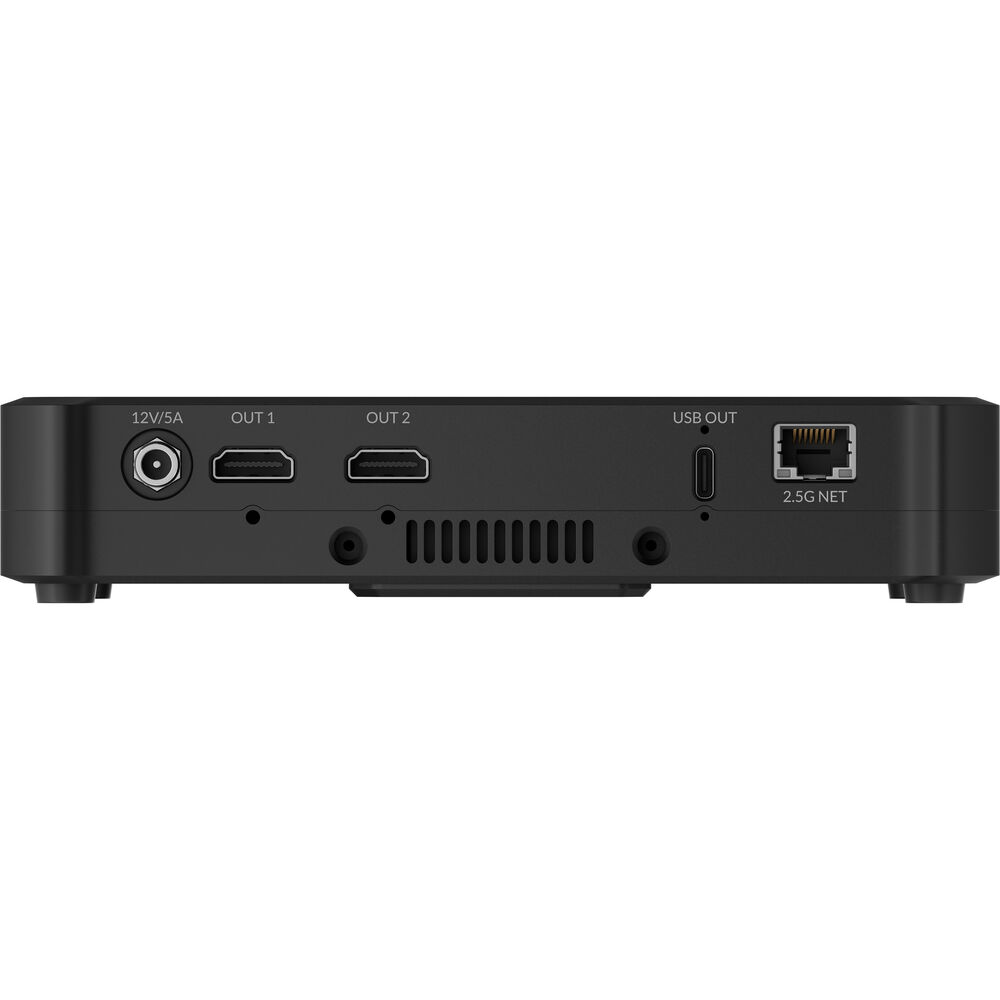

| Video Outputs | 2x HDMI Female (Program) 1x USB-C (USB Video) Female (Program) |
| Output Video Format | HDMI / RJ45 / USB-C UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 720p at 23.98/24/25/29.97/30/50/59.94/60 fps 576p at 23.98/24/25/29.97/30/50/59.94/60 fps 640 x 360 at 23.98/24/25/29.97/30/50/59.94/60 fps |
| Audio Outputs | 1x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Output Audio Format | Analog USB Audio |
| Embedded Audio Output | HDMI: 2-Channel RJ45: 2-Channel USB-C: 2-Channel USB-A: 2-Channel Wireless: 2-Channel |
| Multiview Output | 4-Way Multiview via HDMI |
| Monitor Output | 2x HDMI |
| Inputs/Outputs | 1x RJ45 (NDI | 8-Channel) Female (Switchable) |
| IP Video | H.264/H.265: 3840 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding 1280 x 720 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding 2560 x 1440 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding 640 x 480 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding 640 x 360 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding |
| IP Audio | AAC: 64 to 128 Kb/s Encoding |
| Transport Protocols | NDI/HX3, RTMP, RTMPS, and SRT |
| Simultaneous Streams | 3 Streams |
| Compatible Services | Facebook Live, Twitch, and YouTube Live |
| Recording Media | 1x SD (Unspecified Type) |
| Internal Storage | 128 GB |
| Recording Modes | 3840 x 2160p (MP4) |

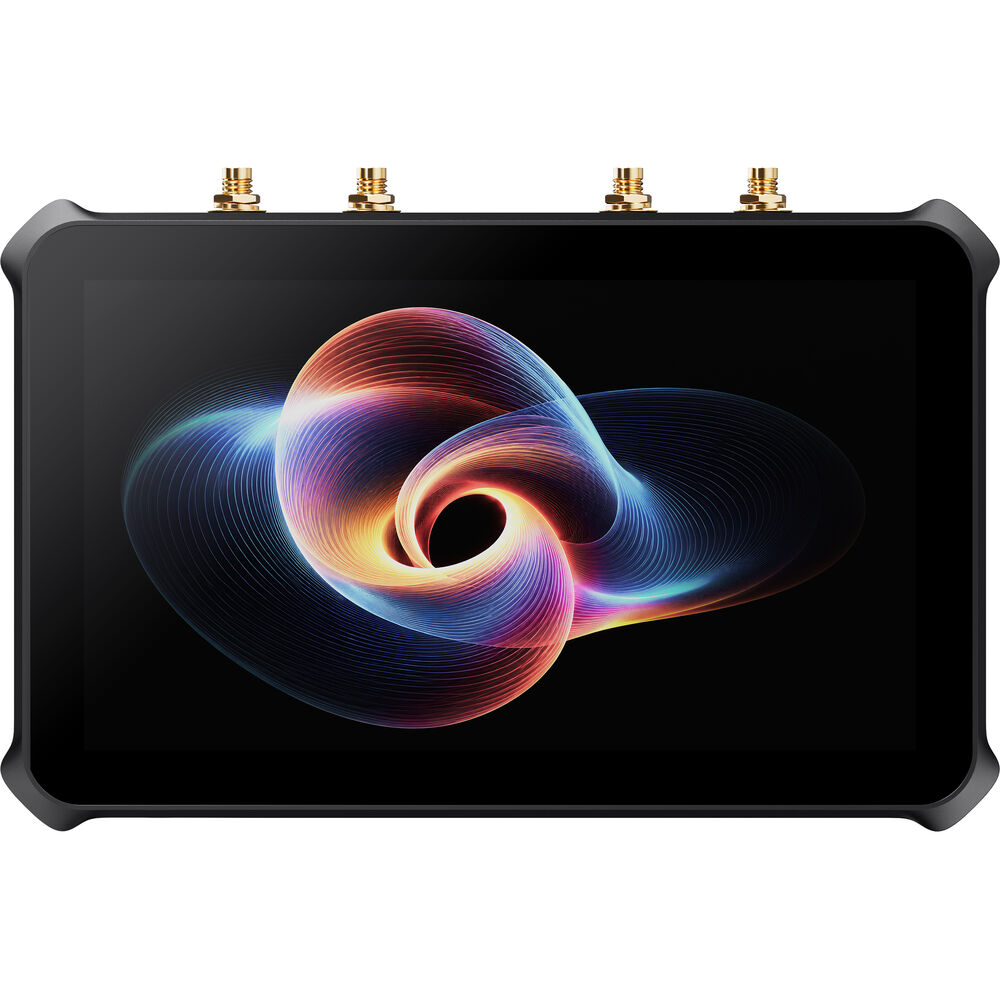

| Display Size | 7" |
| Screen Resolution | 1920 x 1080 |

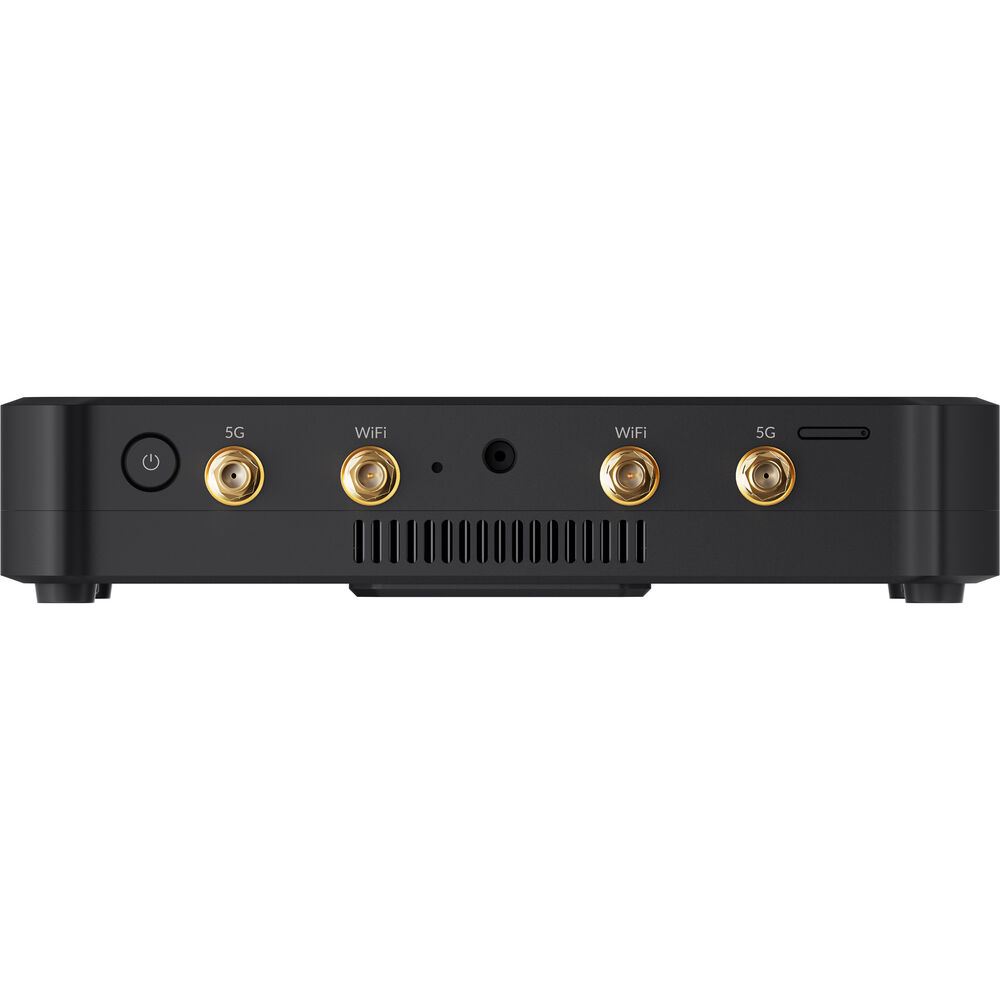

| Wireless | Wi-Fi 6 (802.11ax) / 5G / Bluetooth 5.3 |
| Power I/O | 1x Barrel (12 VDC at 5 A) Input |
| Power Consumption | Device: 14 W Device: 29 W |
| Operating Conditions | 14 to 122°F / -10 to 50°C at 5 to 90% Humidity |
| Storage Conditions | -4 to 158°F / -20 to 70°C at 5 to 90% Humidity |
| Dimensions | 7.3 x 4.6 x 1.3" / 185.2 x 117.2 x 32.8 mm |
| Weight | 30.7 oz / 869.1 g |
| Package Weight | 6.27 lb |
| Box Dimensions (LxWxH) | 13.8 x 8.7 x 6.7" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 97999999.02 |
| 3-5 | ₹ 96999999.03 |
| 5-10 | ₹ 94999999.05 |
| 10+ | ₹ 92999999.07 |
Bulk discount will be automatically applied during checkout based on quantity.
