Description

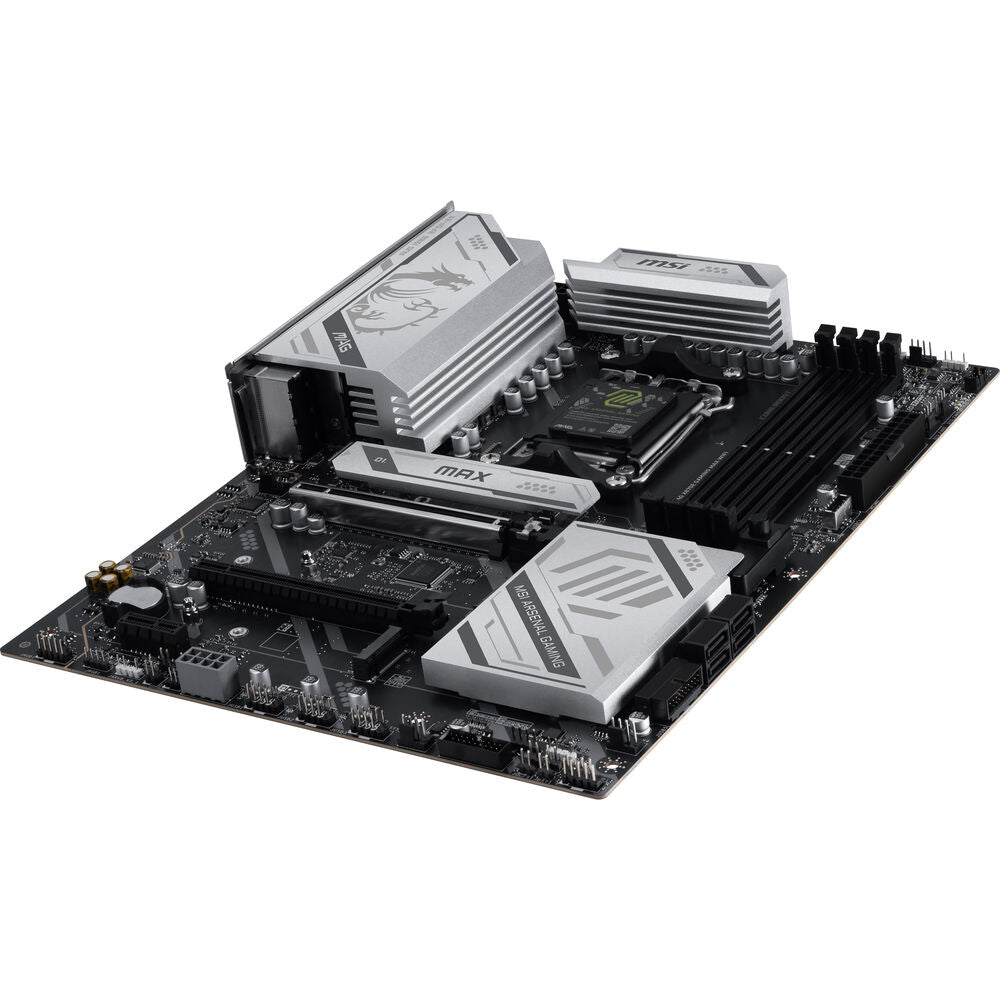

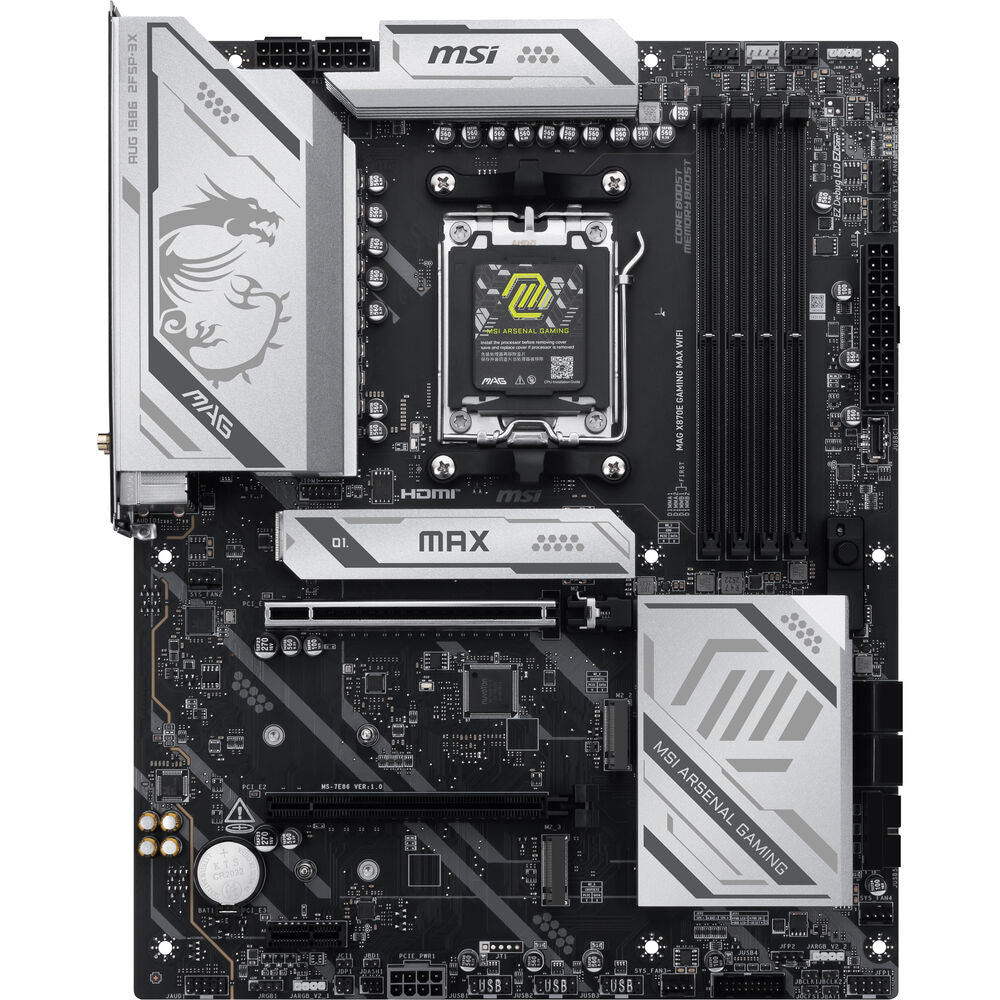

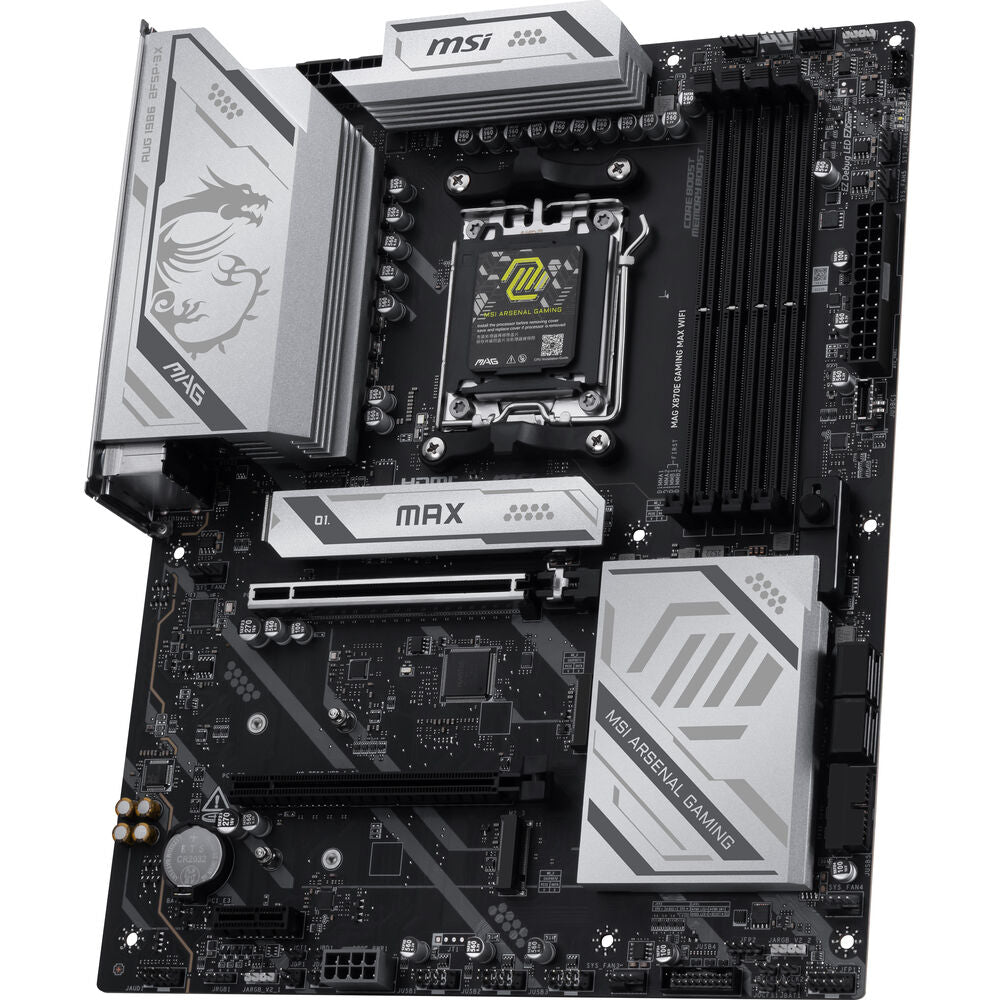

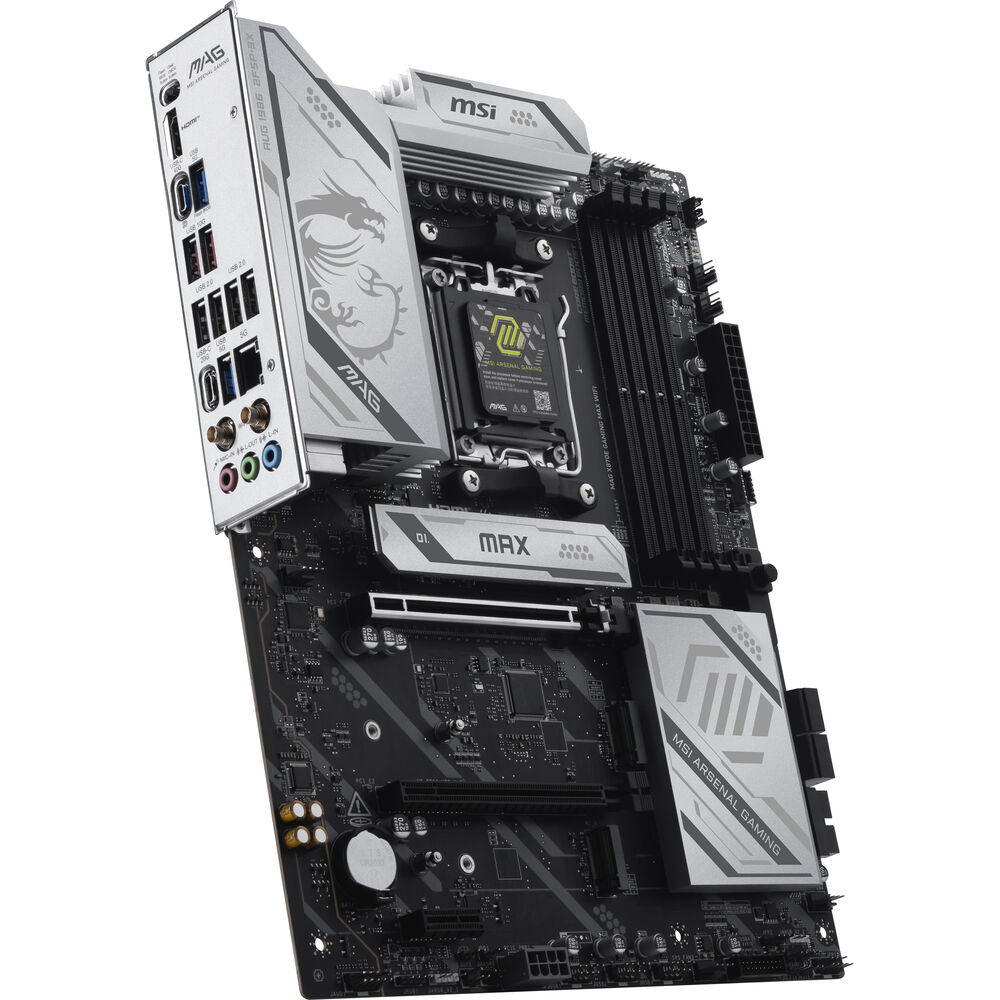

Take your gaming and content-creation experiences to a new level by including the MSI MAG X870E GAMING MAX WIFI AM5 ATX Gaming Motherboard in your computer build. Supporting AMD 9000, 8000, and 7000 series processors with the AM5 socket, gamers and enthusiasts can outfit this motherboard to smoothly handle demanding applications and video editing workloads.
Designed to help simplify builds, MSI's EZ technology makes it easy to install one M.2 PCIe 5.0 and two PCIe 4.0 SSDs to store your games library, applications, and important files. There are also four SATA III connectors available. The four DDR5 DIMM slots support up to 256GB, reaching up to 8200 MT/s overclocked speeds. With one PCIe 5.0 x16 slot, one PCIe 4.0 x16 (x4 mode) slot, and a PCIe 3.0 x1 slot, you can install powerful graphics cards and other compatible expansions.

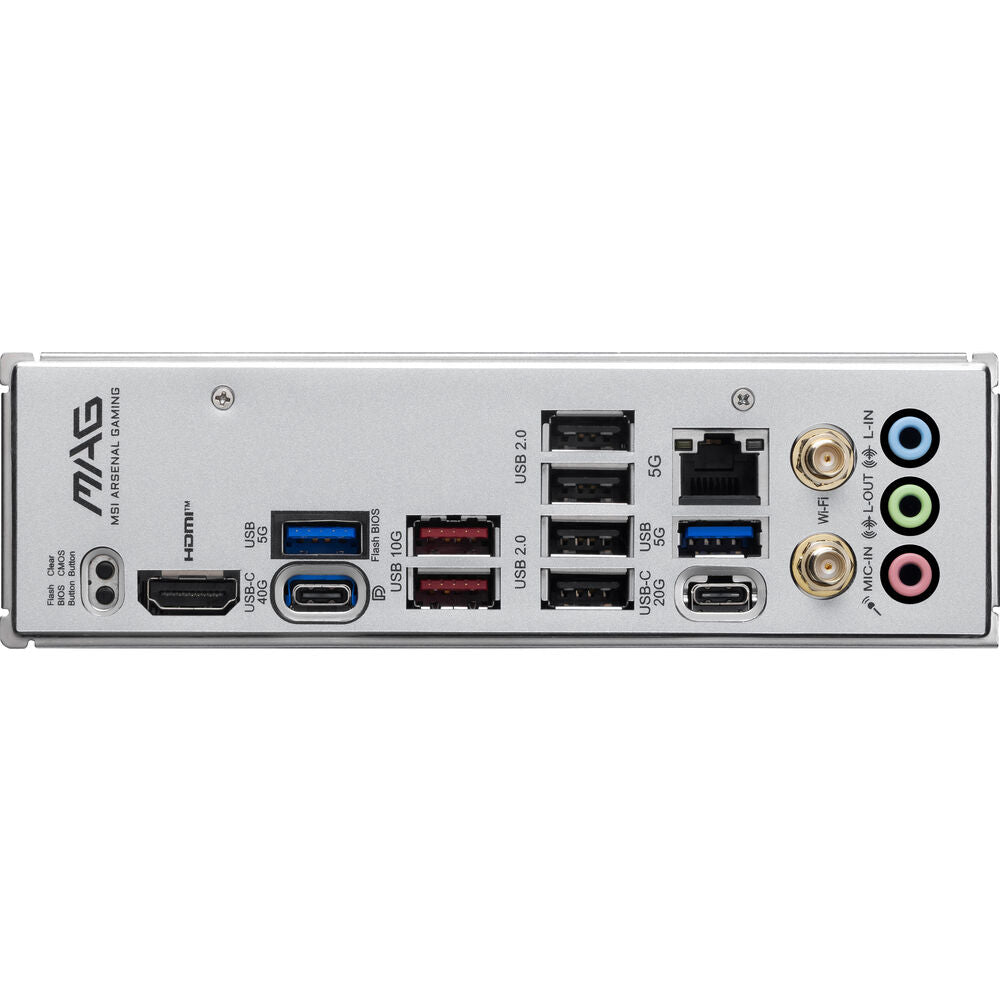

The rear panel features a 40 Gb/s USB4 port alongside a USB-C port that can transfer up to 20 Gb/s with compatible devices. They are accompanied by two USB-A 3.2 Gen 2 ports that work with up to 10 Gb/s devices. There are also two 5 Gb/s USB-A 3.2 Gen 1 ports and four USB 2.0 ports. An internal header allows you to connect a front panel 10 Gb/s USB-C port. Built-in Wi-Fi 7 (802.11be) support and a 5 Gb/s Ethernet port provide you with connections to compatible network devices for smooth 8K video streaming and low-latency online games. Windows 11 64-bit is required to take advantage of all the motherboard's features.
| Chipset | AMD X870E |
| CPU Socket | AM5 |
| Memory Slots | 4x 288-Pin |
| Memory Type Support | DDR5, 8200 MT/s Maximum Supported Speed |
| M.2 Slots | 22110 / 2280 |
| Expansion Slots | 1x PCIe 5.0 x16 1x PCIe 4.0 x16 (x4 mode) 1x PCIe 4.0 x1 |
| Wi-Fi | Wi-Fi 7 (802.11be) |
| Form Factor | ATX |
| Chipset | AMD X870E |
| CPU Socket | AM5 |
| USB I/O | 1x USB-C (USB4) 1x USB-C (USB 3.2 Gen 2x2) 2x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0) |
| Thunderbolt I/O | No |
| Display I/O | 1x HDMI Output |
| Audio I/O | 3x 1/8" / 3.5 mm |
| Ethernet / Controller | 1x 5GbE |
| Wi-Fi Antenna | 2x Connector |
| Buttons | BIOS Flashback, Clear CMOS |
| Memory Slots | 4x 288-Pin |
| Memory Type Support | DDR5, 8200 MT/s Maximum Supported Speed |
| Maximum Capacity | 256 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
| SATA | 4x SATA III |
| M.2 Slots | 1x M.2 (M Key) 2280/2260 (PCIe 5.0 x4) 1x M.2 (M Key) 22110/2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2280/2260 (PCIe 4.0 x4) |
| Optane Memory Support | No |
| RAID Support | RAID 0, 1, 5, 10 |
| Expansion Slots | 1x PCIe 5.0 x16 1x PCIe 4.0 x16 (x4 mode) 1x PCIe 4.0 x1 |
| USB | 2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 3x USB 2.0 Header (Supports 6 USB-A Port) 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) |
| Air Cooling | 1x 4-Pin CPU 6x 4-Pin System |
| Liquid Cooling | 1x 4-Pin Pump |
| Power Connectors | 1x 24-Pin Mainboard 2x 12V-2X6 (12VHPWR) 1x 8-Pin PCIe |
| Security | Chassis Intrusion, TPM Module |
| LED Header | 9x RGB |
| ROM | 512 Mb |
| Audio Codec | Realtek (7.1-Channel) |
| DAC | No |
| Wi-Fi | Wi-Fi 7 (802.11be): Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support |
| Bluetooth | Bluetooth 5.4 |
| OS Compatibility | Windows |
| Form Factor | ATX |
| Dimensions | 9.6 x 12" / 244 x 305 mm |
| Package Weight | 4.385 lb |
| Box Dimensions (LxWxH) | 13.6 x 10.7 x 2.7" |
