Description

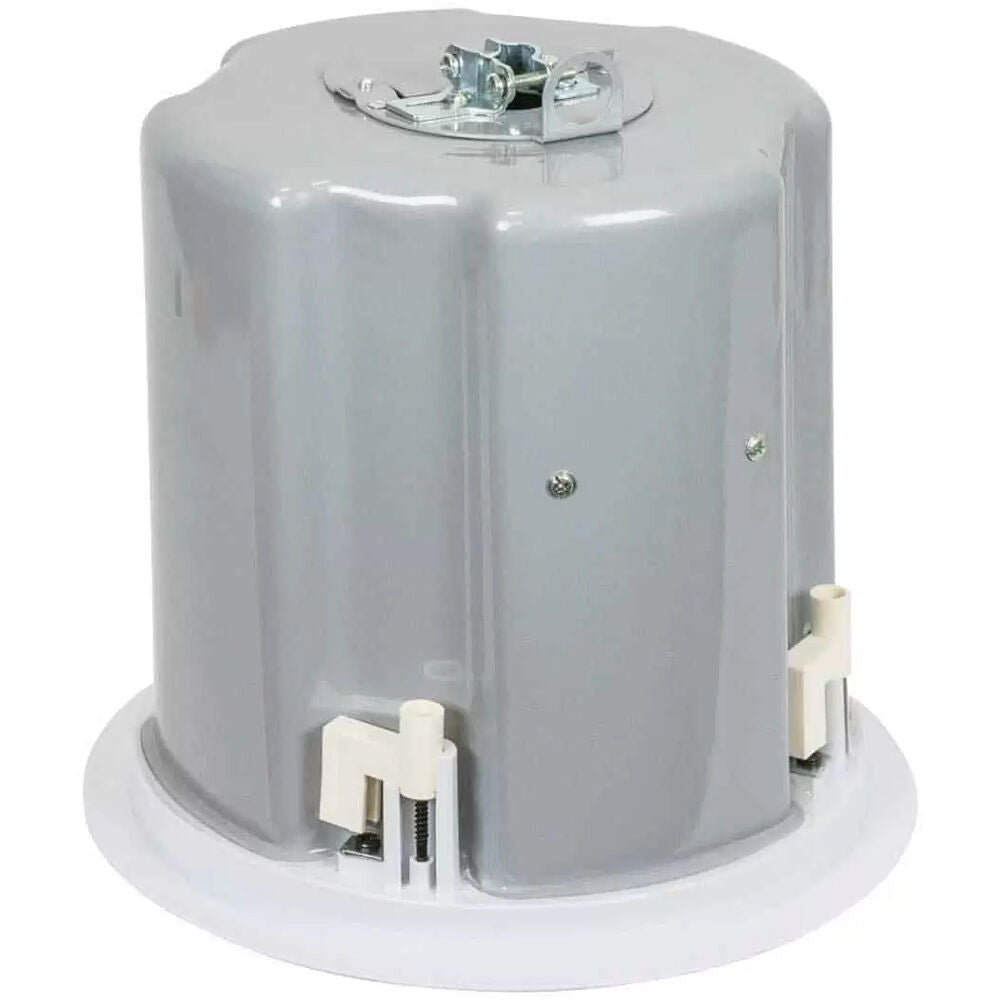

Ideal for audio installations in commercial spaces and educational institutions, the Lowell Manufacturing ES-62T is a recessed, ceiling-mounted loudspeaker with a 6.5" coaxial driver sporting one woofer cone and one tweeter cone for clear speech and full-frequency music. With 120° conical dispersion, this speaker can cover a wide area.
The loudspeaker features a 32W multitap transformer with 100, 70, and 25V taps, as well as a 4-ohm bypass for direct drive operation. The enclosure is constructed from durable 20-gauge steel and includes a fine-mesh steel press-fit grille with scrim and pull tool. The loudspeaker offers several convenient mounting aids, including support rails and a C-ring for reinforcing edges of drywall and distributing weight to avoid sagging tiles, dog ears, a paper cutout template, and a paint guard. The loudspeaker utilizes removable 4-pin block connectors for audio input.
| Active/Passive | Passive |
| Number of Included Speakers | 1 |
| Speaker Configuration | Full-Range |
| Power Handling | 50 W RMS |
| Constant Voltage / Transformer Taps | 100 V 32 / 16 / 8 / 4.2 W or 4 Ohms Bypass 70 V 32 / 16 / 7 / 4 / 2 W or 4 Ohms Bypass 25 V 4.4 / 2.2 / 1.1 / 0.55 / 0.28 W or 4 Ohms Bypass |
| Impedance | 4 Ohms |
| Full-Range Driver | 6.5" / 16.5 cm Polypropylene-Coated PEI Cone |
| Color | White |
| Active/Passive | Passive |
| Number of Included Speakers | 1 |
| Speaker Configuration | Full-Range |
| Power Handling | 50 W RMS |
| Constant Voltage / Transformer Taps | 100 V 32 / 16 / 8 / 4.2 W or 4 Ohms Bypass 70 V 32 / 16 / 7 / 4 / 2 W or 4 Ohms Bypass 25 V 4.4 / 2.2 / 1.1 / 0.55 / 0.28 W or 4 Ohms Bypass |
| Impedance | 4 Ohms |
| Transformer Wattage | 32 W |
| Enclosure Type | Bass-Reflex |
| Full-Range Driver | 6.5" / 16.5 cm Polypropylene-Coated PEI Cone |
| Full-Range Voice Coil | 1" / 2.5 cm |
| Magnet | LF: 15.45 oz / 438.01 g HF: 0.64 oz / 18.14 g |
| Frequency Response | 64 Hz to 20 kHz ±6 dB |
| Maximum SPL | 105.6 dB |
| Sensitivity | 88.6 dB |
| Coverage Angle | 120° at 2 kHz (Conical) |
| Crossover | 3 kHz |
| Inputs/Outputs | Block 4-Pin Speaker Input (Removable) |
| Color | White |
| Mounting | Ceiling Tile |
| Cutout Depth | 9.5" / 24.1 cm |
| Cutout Size | 9.8" / 24.9 cm |
| Mount Surface Thickness | 0.1 to 1.4" / 0.3 to 3.6 cm |
| Construction Material | Steel |
| Dimensions | 9.8 x 9.5" / 24.9 x 24.1 cm |
| Weight | 7.5 lb / 3.4 kg (Each Speaker, with Grille) |
| Package Weight | 23.36 lb |
| Box Dimensions (LxWxH) | 27.2 x 14.6 x 12.4" |
