Description

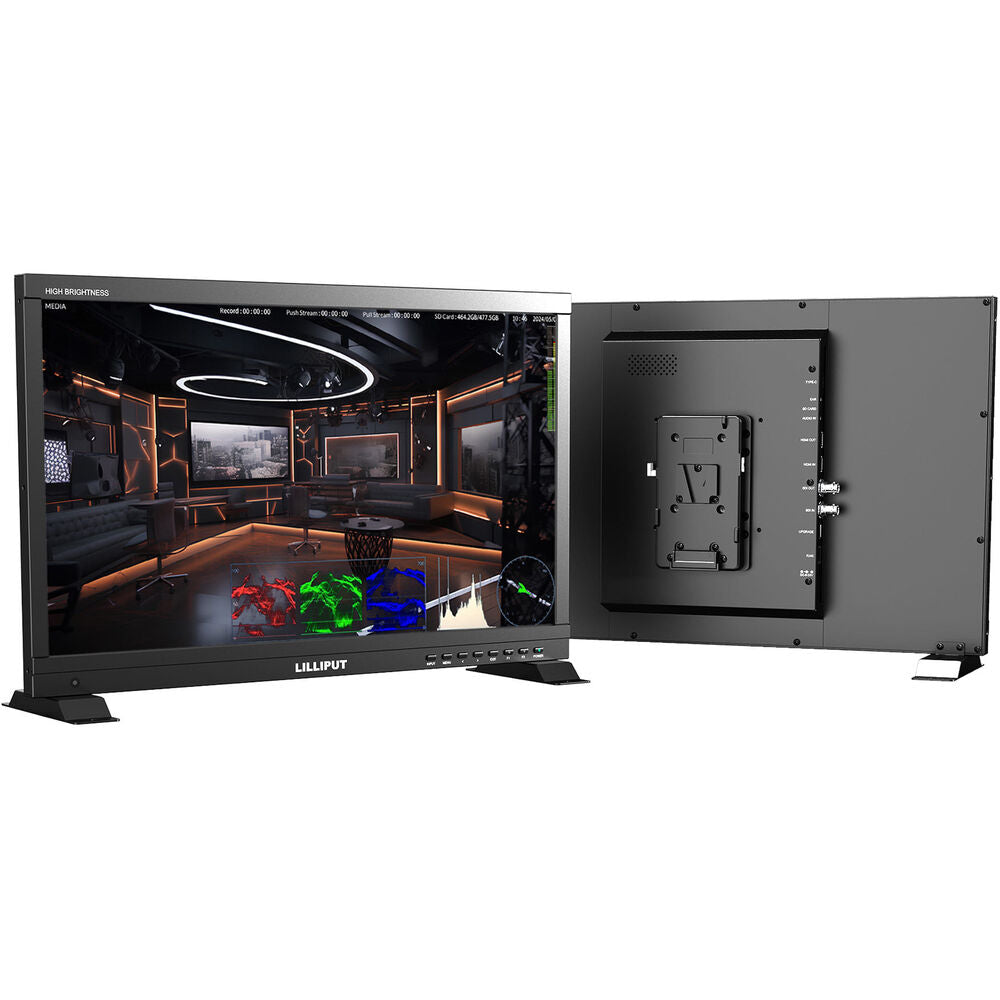

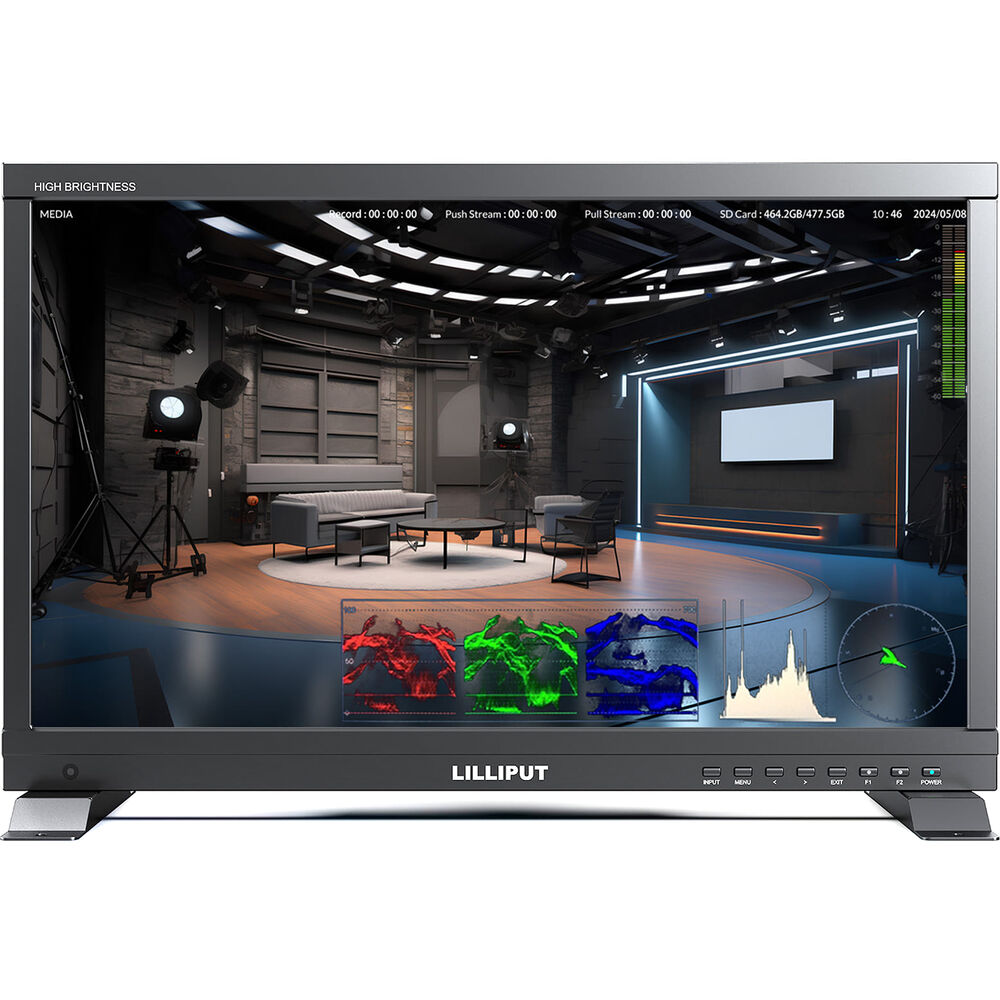

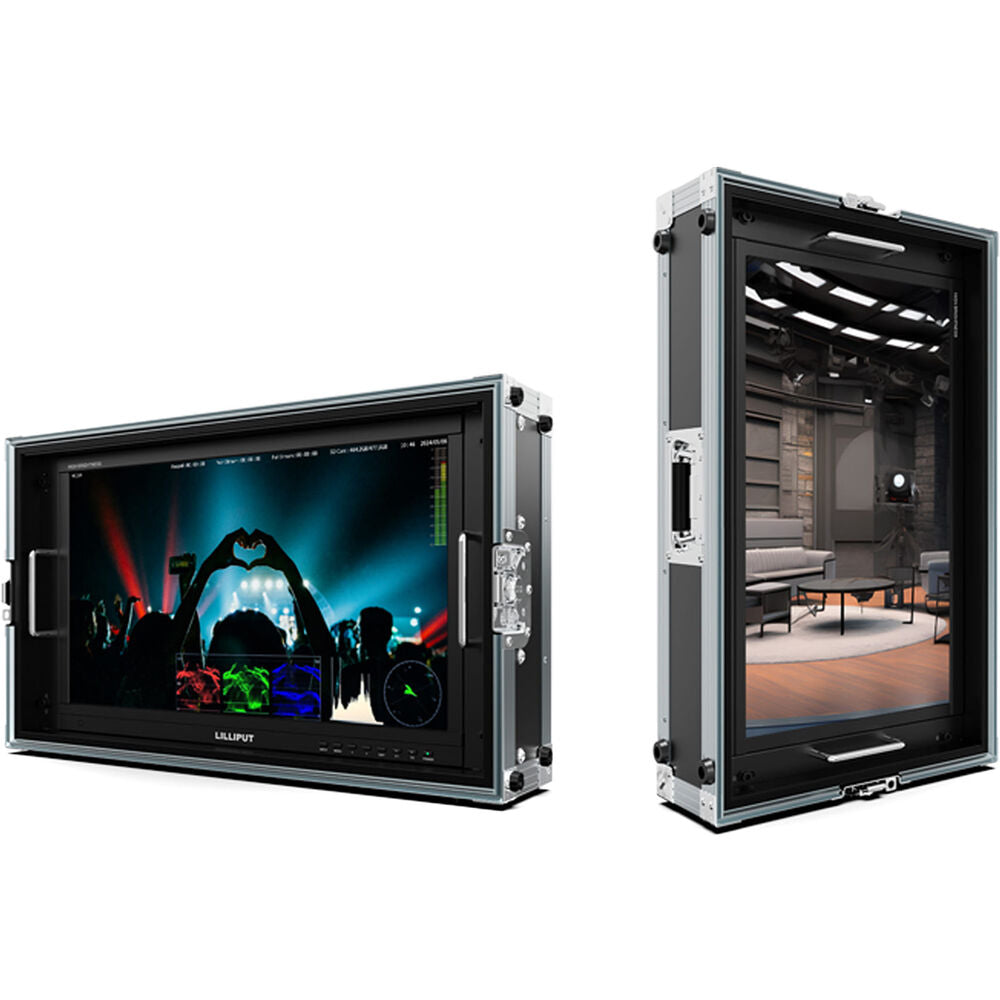

The PVM220S-E 21.5" Live Stream Recording Monitor with Carry Case from Lilliput is a professional monitor designed for live streaming and recording. Boasting 1000 cd/m² brightness and 1000:1 contrast, it offers a range of input options, including 3G-SDI and HDMI 2.0, ensuring compatibility with various devices for broadcast-quality monitoring. This monitor can record up to 1080p HDMI or SDI video signals directly to an SD card with a maximum capacity of 512GB. It is rich in advanced features like precise waveform and vector functions, 3D LUT and HDR support, and full-screen waveform and vectorscope functions, making it ideal for accurate color grading and picture analysis. The PVM220S-H can be powered with the included 15 VDC, 4A power adapter, and it comes with an integrated V-mount battery plate, a sun hood, and a carry case for storage and transport.
| Display Size | 21.5" / 54.6 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | No |
| HDR Support | Yes: Hybrid Log Gamma |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC [512 GB Maximum / Supports Recording] |
| Wireless | No |
| Video Format | HDMI UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 |
| Battery | 1x V-Mount on Fixed Plate |
| Power Consumption | 53 W |
| Panel Type | LCD |
| Display Size | 21.5" / 54.6 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | No |
| Maximum Brightness | 1000 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| HDR Support | Yes: Hybrid Log Gamma |
| Image Controls | Anamorphic De-Squeeze, Check Field, False Color, Focus Peaking, H/V Delay, Histogram, Overscan, Screen Markers, Vectorscope |

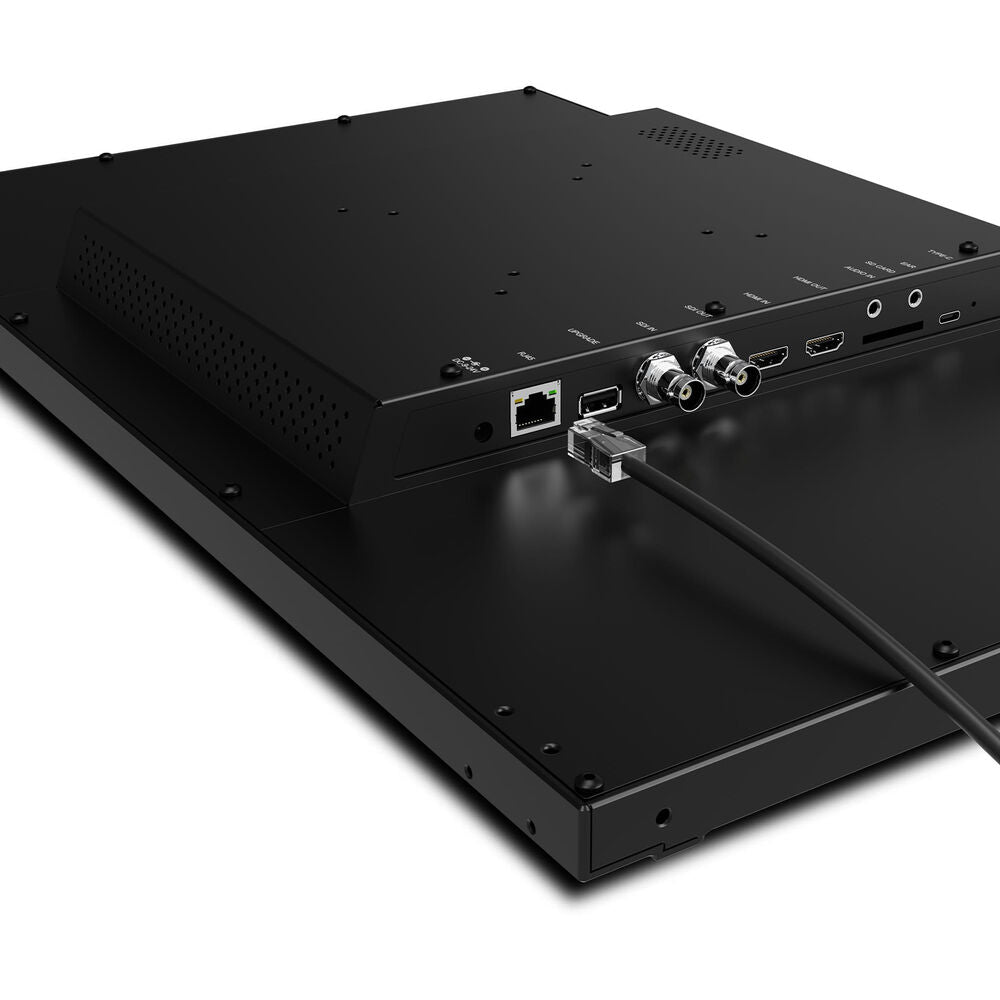

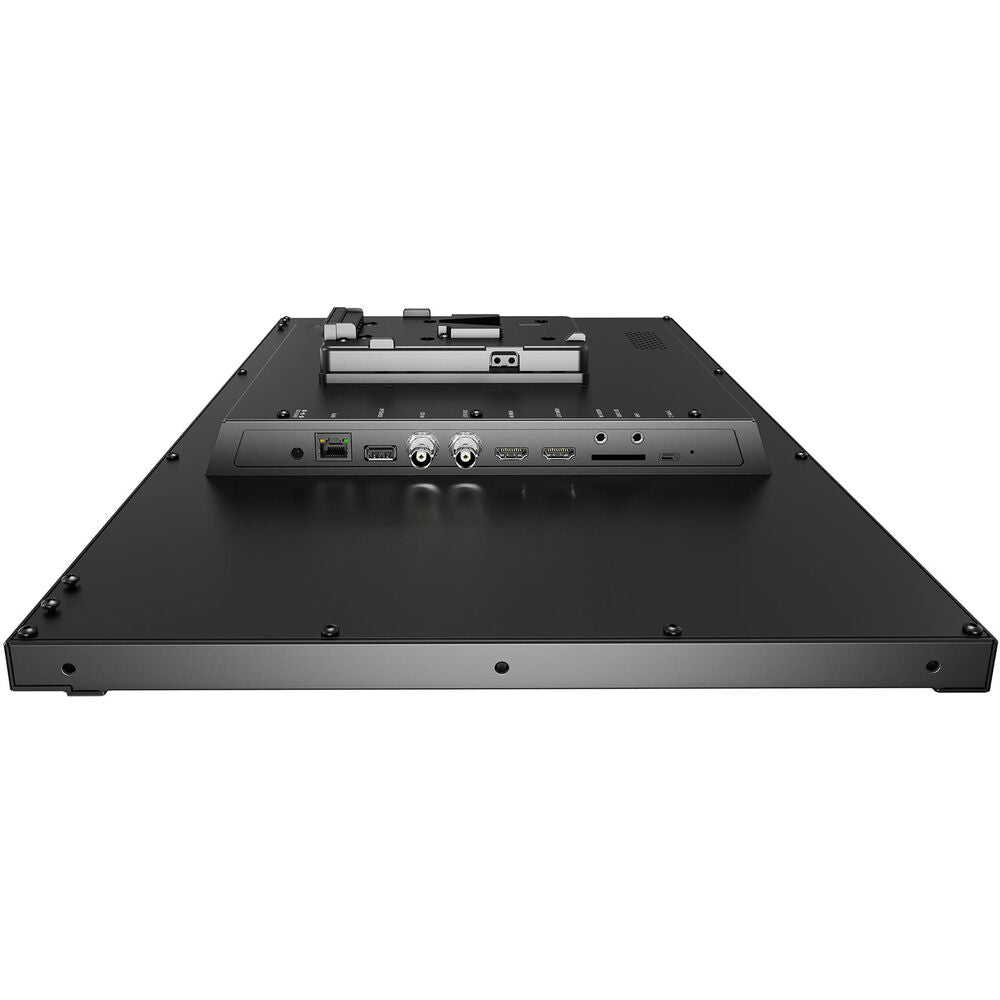

| Video I/O | 1x HDMI 2.0 Input 1x HDMI 2.0 Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Embedded Audio | HDMI: 8-Channel SDI: 2-Channel |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output 1x 1/8" / 3.5 mm Input |
| Built-In Speaker | Mono |
| Power I/O | 1x Barrel (24 VDC) Input |
| Other I/O | 1x USB-A (Firmware/LUT Upload) 1x USB-C (Firmware) 1x RJ45 (LAN) |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC [512 GB Maximum / Supports Recording] |
| Wireless | No |
| Mobile App Compatible | No |
| Video Format | HDMI UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 |
| Input Power | 9 to 24 VDC |
| Battery | 1x V-Mount on Fixed Plate |
| Power Consumption | 53 W |

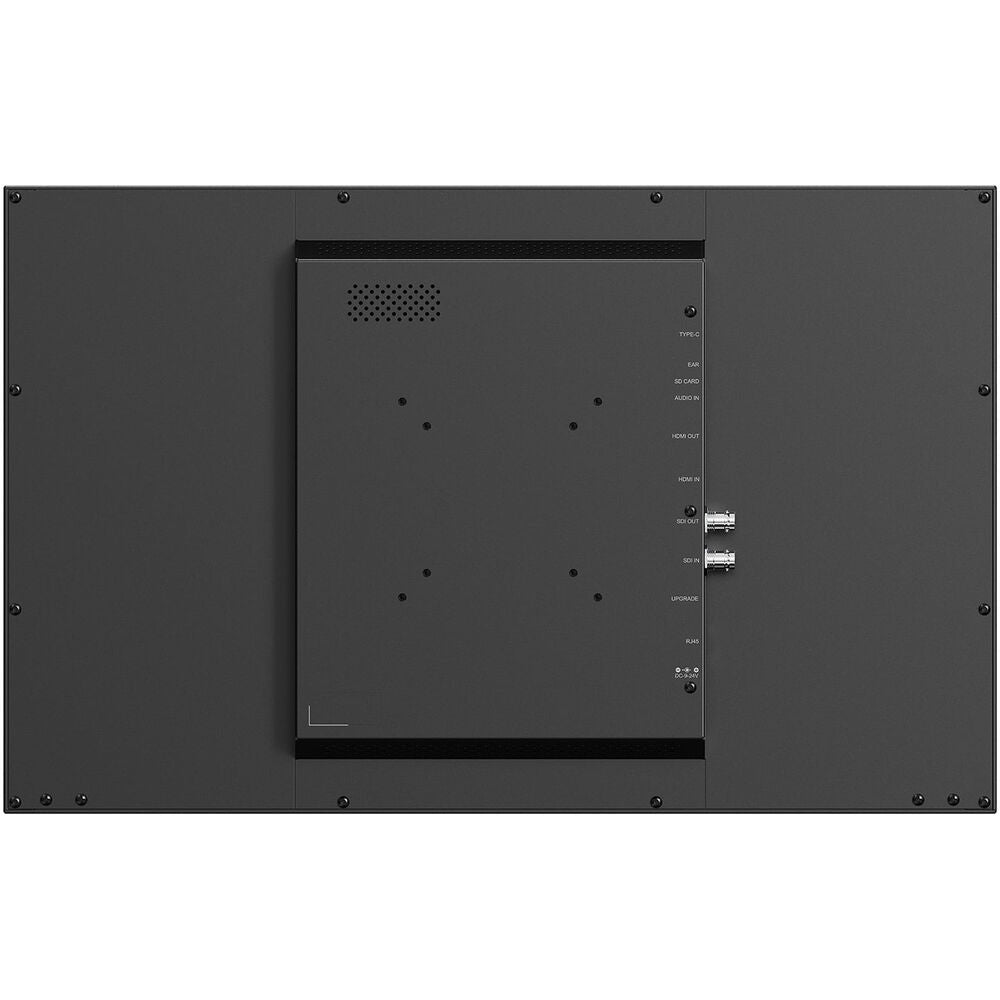

| VESA Mounting-Hole Pattern | 75 x 75 mm, 100 x 100 mm |
| Operating Conditions | 32 to 122°F / 0 to 50°C |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Dimensions | 20 x 12.6 x 1.9" / 508 x 321 x 47 mm |
| Weight | 10.47 lb / 4.75 kg |
| Package Weight | 31.99 lb |
| Box Dimensions (LxWxH) | 26.4 x 16.9 x 9.1" |
