Description

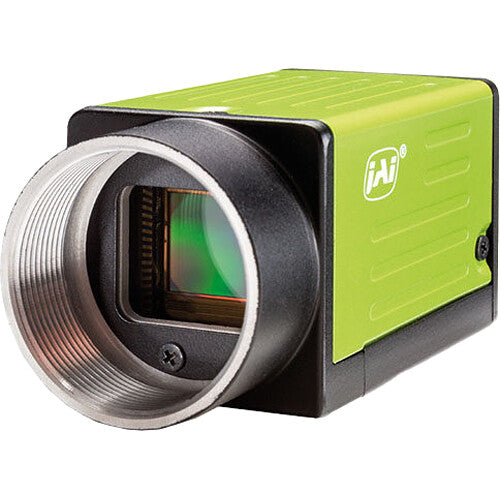

The Go Series 5MP Area Scan Compact Camera from JAI is a compact industrial area scan camera with a C-mount lens mount that boasts a Lince5 5MP 1" CMOS global shutter sensor that delivers a monochrome output at up to 107 fps at full resolution with an 8-, 10-, or 12-bit output and 5:4 aspect ratio. It employs 5.0 µm square pixels and features automatic level control, offering very low-noise image quality, which makes it ideal for a broad range of machine vision applications. The camera powers over its integrated 4-pin power connector and weighs only 1.7 oz.
| Effective Sensor Resolution | 5 Megapixel |
| Lens Mount | C |
| Supports Color Recording | No |
| Video Output | Proprietary Module 2560 x 2048 |
| Image Sensor | 12.8 x 10.2 mm (1"-Type) CMOS |
| Sensor Resolution | 5 Megapixel (2560 x 2048) |
| Lens Mount | C |
| Supports Color Recording | No |
| Video Output | Proprietary Module 2560 x 2048 |
| Shutter Type | Electronic Global Shutter |
| Signal-to-Noise Ratio | 55 dB |
| Compensation Mode | No |
| ISO/Gain Sensitivity | Gain: 0 to 24 dB |
| Digital I/O | 2x Proprietary Video Output |
| Power I/O | 1x Hirose 4-Pin (12 to 24VDC) |
| Internal Storage | No |
| Media/Memory Card Slot | No |
| Wireless | No |
| Remote Control | No |
| Mobile App Compatible | No |
| PoE Support | No |
| Voltage | 10.0 to 13.0 VDC |
| Power Consumption | 3.0 W |
| Operating Conditions | 41 to 113°F / 5 to 45°C at 20 to 80% Humidity |
| Certifications | CE, FCC, KC, RoHS, WEEE |
| Machine Vision Standard | Camera Link |
| Dimensions | 1.6 x 1.1 x 1.1" / 41.5 x 29 x 29 mm |
| Weight | 1.7 oz / 48 g |
| Package Weight | 0.18 lb |
| Box Dimensions (LxWxH) | 3.6 x 2.8 x 1.6" |
