Description

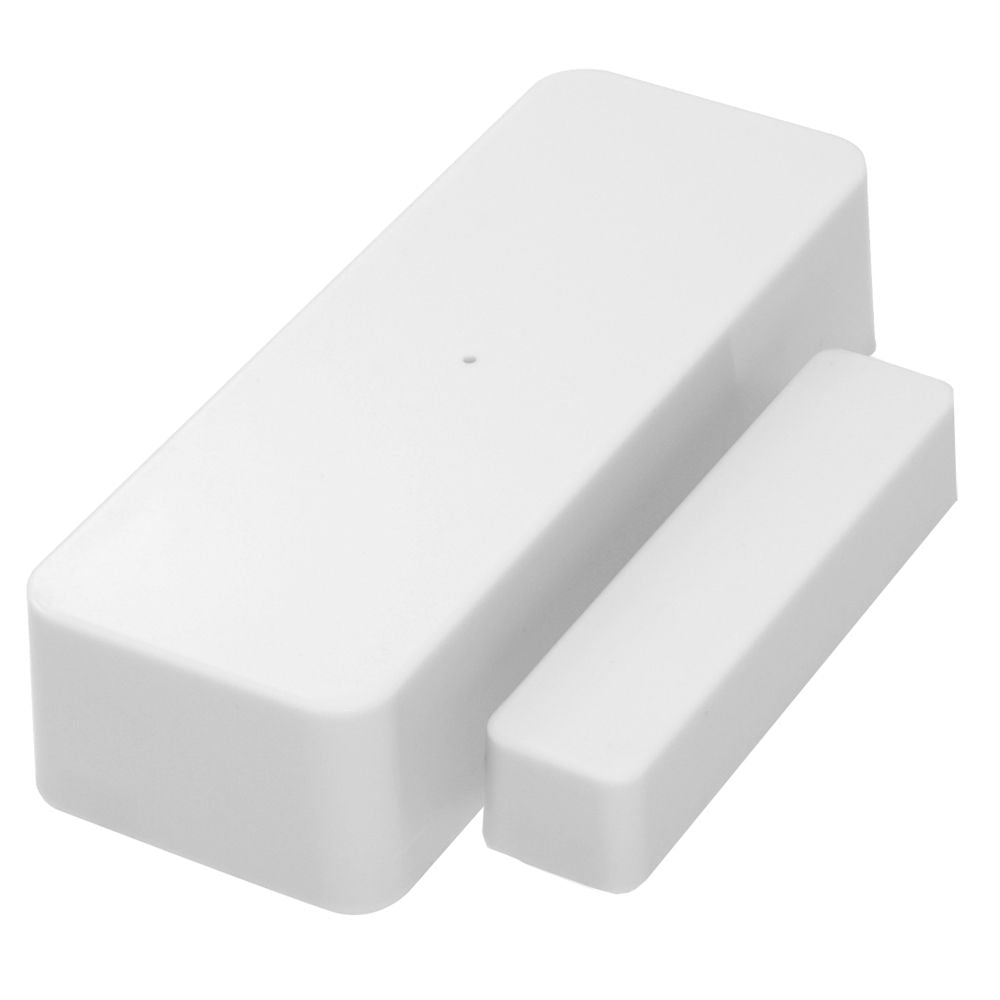

The INSTEON Wireless Open/Close Sensor is a magnetic contact sensor that wirelessly controls lights and appliances throughout your house via RF technology. The sensor can turn on lights, set the thermostat, or trigger a custom event in HouseLinc.
You can program any INSTEON device (available separately) to react when the magnetic contact is broken and re-established on the sensor. You can optionally connect an external contact closure sensor of any type (e.g., hidden contacts or doorbell button; not included).
The sensor works on a single AA battery (included). It stores all of its settings, such as links to other INSTEON devices, on a non-volatile memory, so they will not be lost when the battery is removed.
| LED Status Indicator | Green; blinks on activation |
| Operating Distance | 1/2" (12.7 mm) between magnet and main case |
| Modes | Sensing Modes: Jumper Installed: Open = Group 1 On, Closed = Group 1 Off Jumper Uninstalled: Open = Group 1 On (or off), Closed = Group 2 On (or Off) |
| Sensor Input | Aux, senses contact closure; ≥20 gauge wire |
| Memory | Non-volatile EEPROM for storing setup details |
| Address | 1 hard-coded out of 16,777,216 possible |
| Functions Supported | Controller only |
| Link | Maximum Links/Scenes: 30 |
| Configuration | Software based |
| RF Carrier Frequency | 915 MHz |
| RF Range | Up to 150' (50 m) open air (may vary due to local interference) |
| Power | 1 x AA alkaline battery (included) |
| Battery Life | 6 months (with 2 links @ 50 activations per day) |
| Buttons | Set button |
| Certification | FCC & Industry Canada |
| Operating Environment | Indoor |
| Operating Temperature Range | 32 to 104°F (0 to 40°C) |
| Operating Humidity Range | 0 to 85% relative humidity |
| Storage Temperature Range | -4 to 158°F (-20 to 70°C) |
| Dimensions | Main Case: 3.46 x 1.32 x 0.76" (8.80 x 3.40 x 1.90 cm) Magnet: 2.28 x 0.55 x 0.43" (5.80 x 1.40 x 1.10 cm) |
| Weight | 3.5 oz (99.0 g) |
| Package Weight | 0.6 lb |
| Box Dimensions (LxWxH) | 7.402 x 7.165 x 2.756" |
