Description

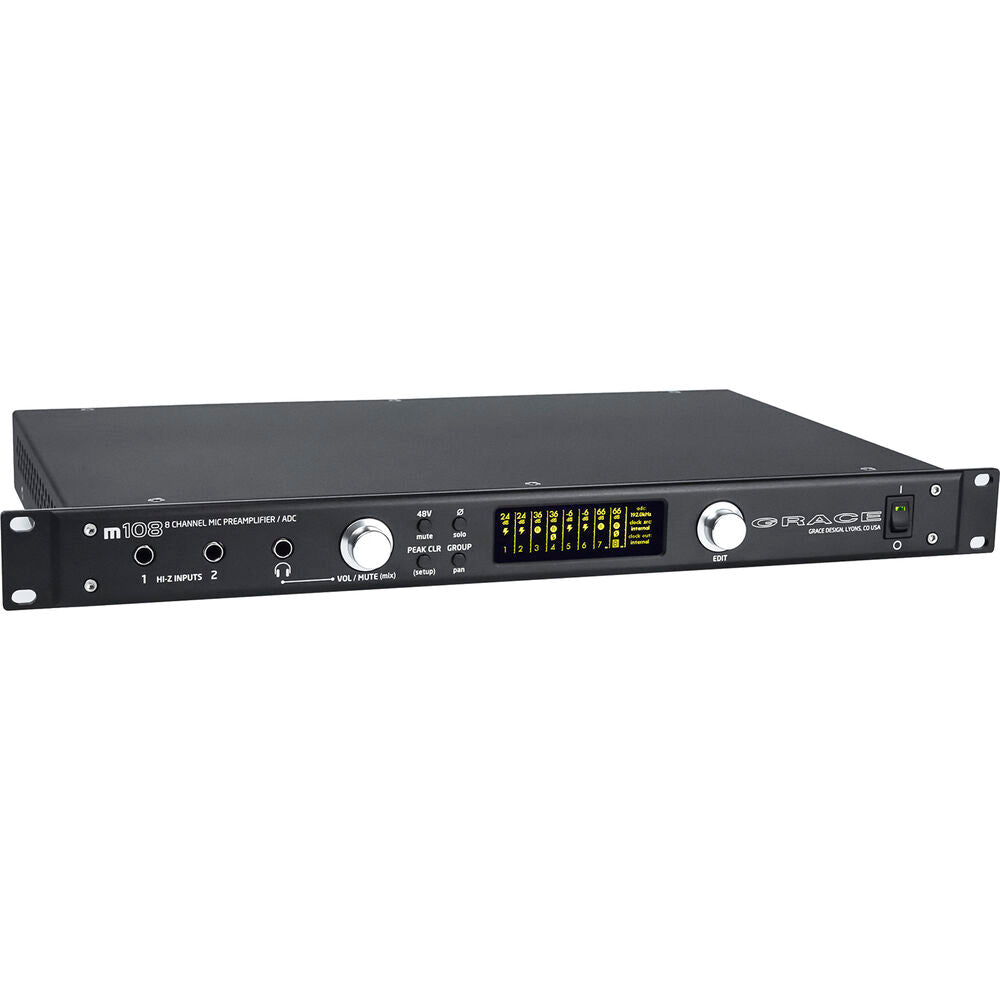

Sporting eight channels of transparent, musical, and transformerless mic preamplification, the Grace Design m108 is a versatile 1 RU mic preamp, audio interface, and A/D / D/A converter. Featuring eight XLR mic inputs, two Hi-Z instrument inputs, and copious digital and networking I/O, the m108 excels in the studio and on the stage.

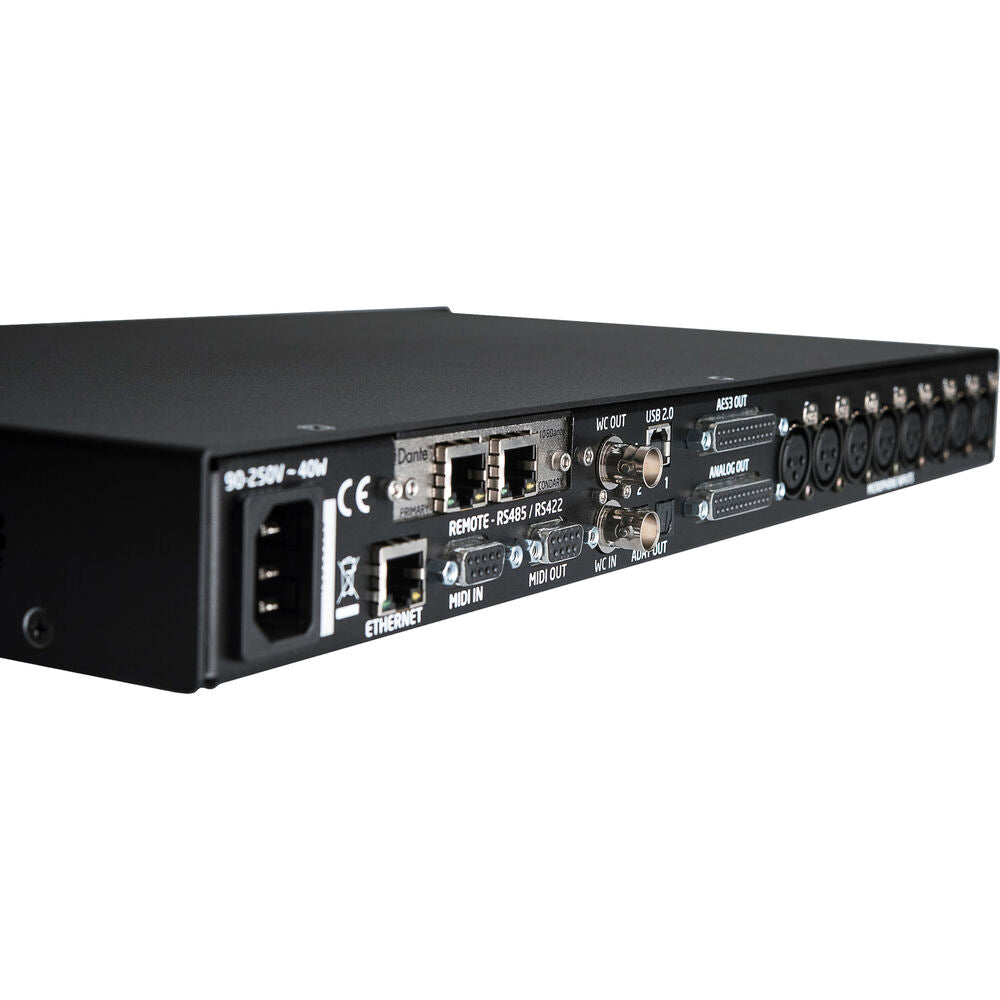

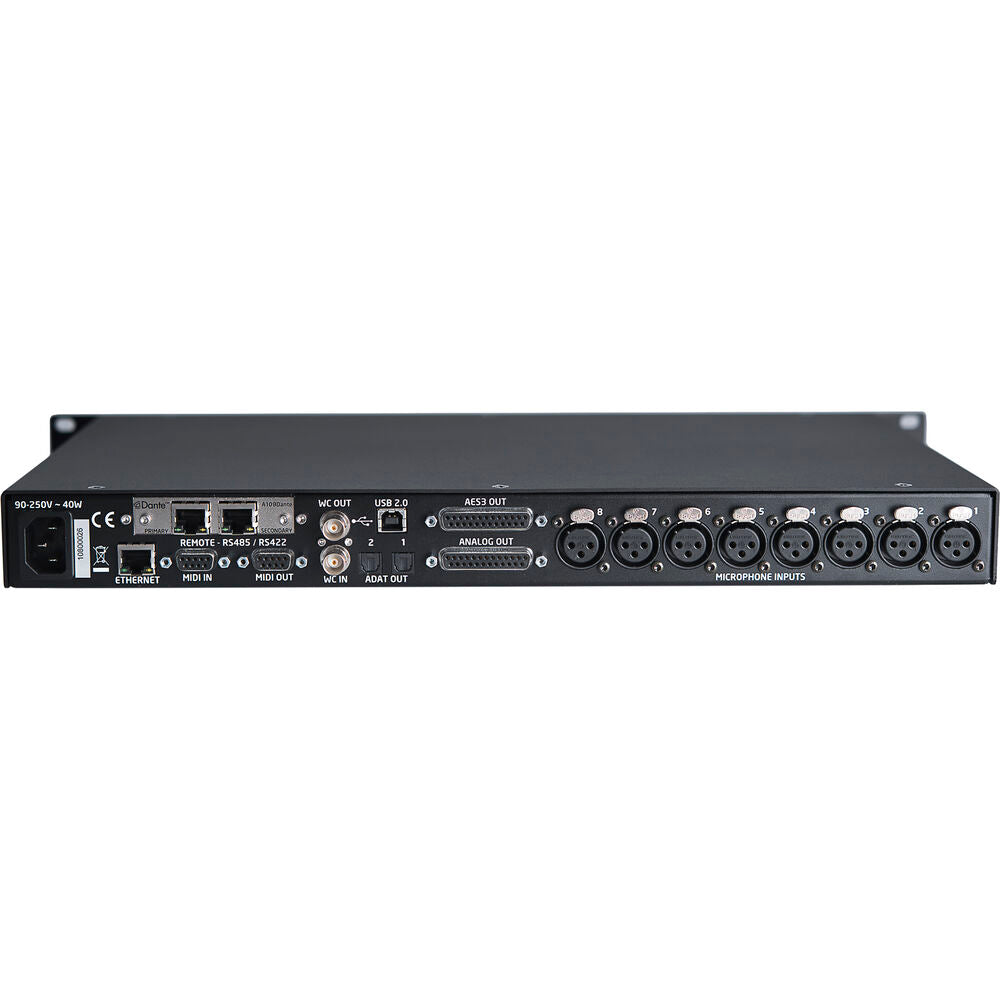

With simple push-button operation, you can easily navigate the internal control interface, mix, and control vital functions like phantom power, phase, channel grouping, and more. Along with a stereo headphone output and Hi-Z and mic inputs, you also get DB25 connectors for analog output and digital AES3 output, optical ADAT connections, BNC wordclock, USB-B, 9-pin MIDI, connections for remote and local control including serial RS 485/422 ports, Ethernet port with web server for network control using standard web browser, and an Expansion slot for an optional Audinate/Dante network audio card. This version of the m108 also includes a Dante interface card for digital audio networking.
| Panel Type | OLED |
| Size | Not Specified by Manufacturer |
| Touchscreen | No |
| USB I/O | 1 x USB-B 2.0 Female Input/Output |
| Audio I/O | 8x XLR 3-Pin Mic Input (With Phantom Power) 2x 1/4" TS Hi-Z/Instrument Input 1x TOSLINK Optical ADAT Input 1x BNC Coaxial Input (Word Clock In) 1x DB-9 MIDI Input 1x RJ45 Coaxial Input (Ethernet Control) 1x DB-25 AES3 Output (8 Channels) 1x DB-25 Line Output (8 Channels) 1x 1/4" TRS Headphone Output 1x TOSLINK Optical ADAT Output 1x BNC Coaxial Output (Word Clock Out) 1x DB-9 MIDI Output 2x RJ45 Dante Input/Output |
| Power Source | AC Input |
| AC Input Power | 90 to 250 VAC, 50 / 60 Hz |
| Power Consumption | 25 W |
| Mounting | Front: 4x Standard Rackmount Hole |
| Color | Black |
| Material of Construction | Metal |
| Operating Conditions | 50 to 104°F / 10 to 40°C |
| Storage Conditions | -40 to 158°F / -40 to 70°C |
| Dimensions | 19 x 16.75 x 10" / 48.3 x 42.55 x 25.4 cm (1 RU) |
| Weight | 5.2 lb / 2.4 kg |
| Package Weight | 10.8 lb |
| Box Dimensions (LxWxH) | 26.1 x 18.2 x 7.3" |
