Description

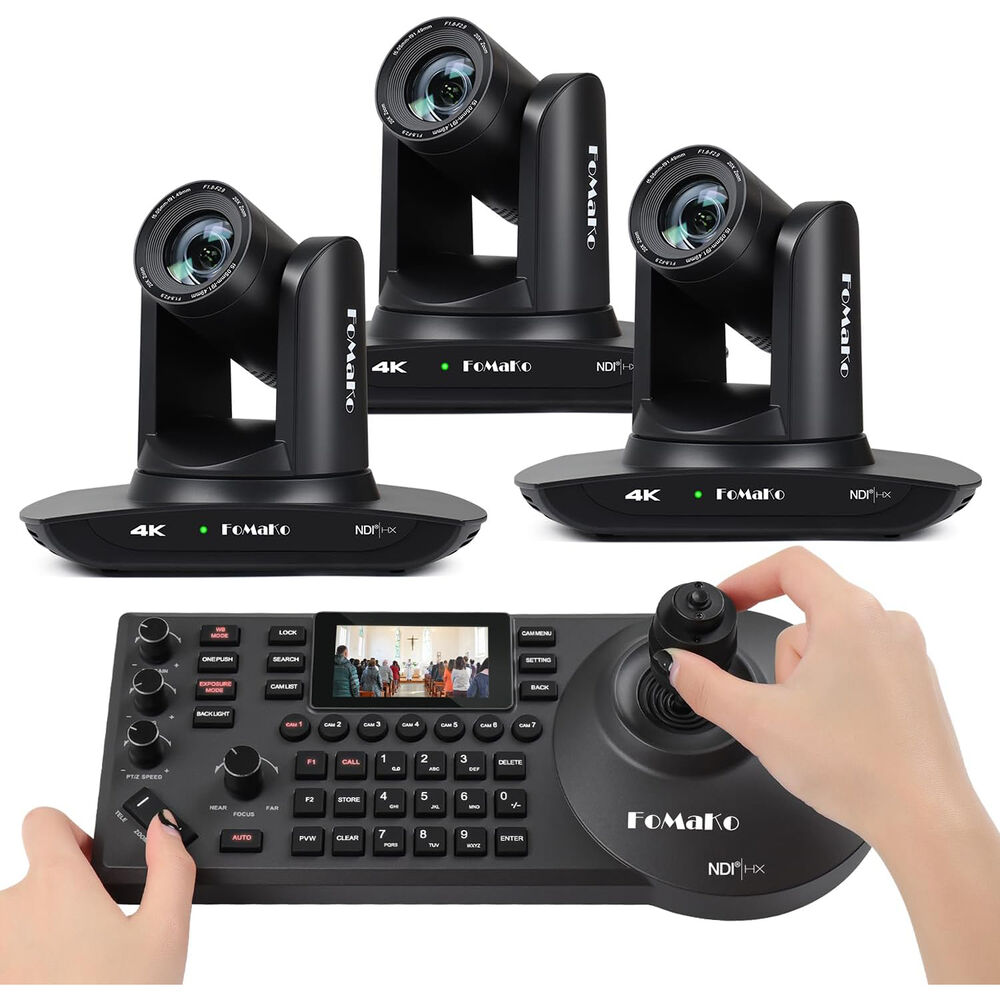

Set up a multi-camera production, conference room, or education environment with this BK20UH3 NDI PTZ 3-Camera Bundle with 20x Zoom + PTZ Controller from FoMaKo. The kit includes three K20UH 4K HDMI AI auto-tracking PTZ cameras with 20x optical zoom and a KC608 Pro PTZ camera controller to capture up to UHD 4K video and control the cameras via IP from a single location.

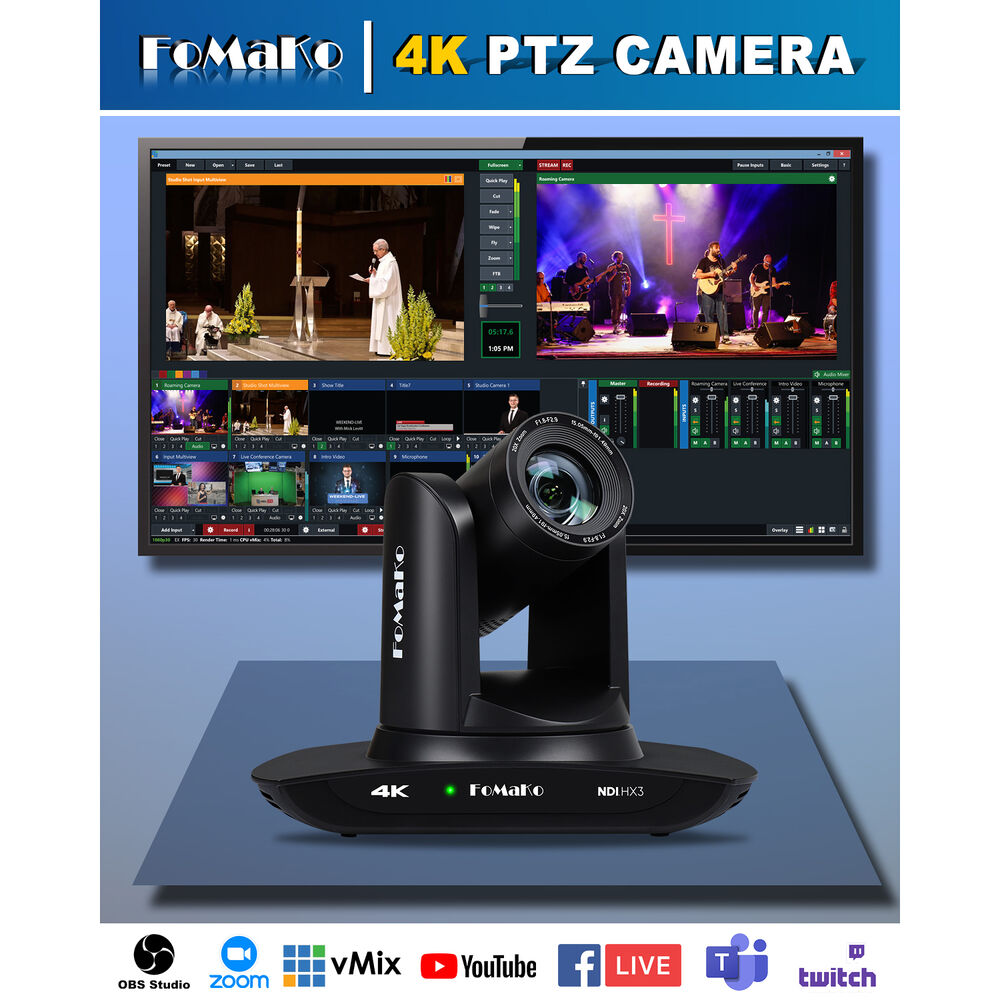

Add advanced AI automatic tracking to your live production with the K20UH 4K HDMI AI Auto-Tracking PTZ Camera from FoMaKo. This versatile PTZ camera supports resolutions up to UHD 4K30 and is ideal for use in houses of worship, teaching, conferences, broadcast, and other live events. It features a 20x optical and 15x digital zoom, HDMI, LAN, and USB 3.0 connectivity. The camera may be powered via the included power adapter and offers RS-232 control via the included serial cable..

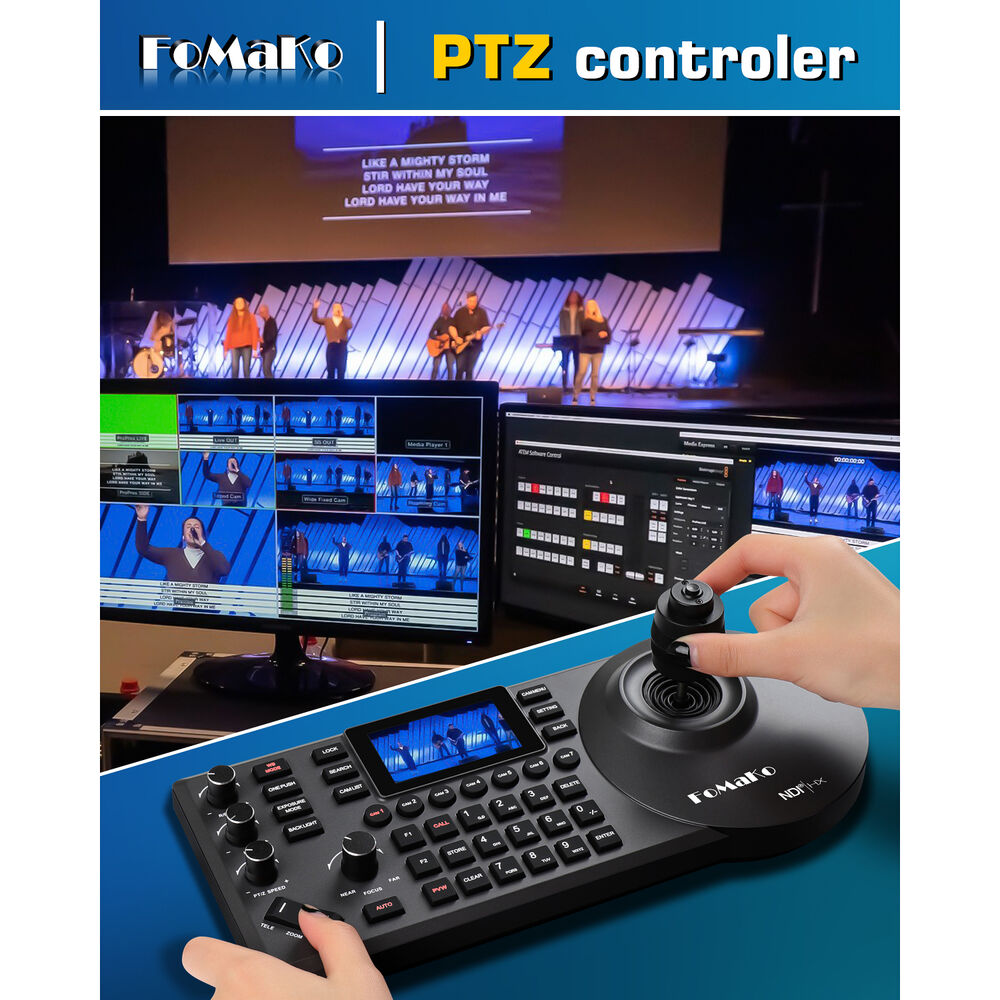

Easily control multiple PTZ cameras using the KC608 Pro PTZ Camera Controller with Joystick from FoMaKo. This compact controller features lives streaming, a 4D joystick, zoom rocker, 3" LCD screen with RTSP video preview, and customizable buttons. Control methods include VISCA, VISCA over IP, PELCO D/P, RS-422, and RS-485.
| Image Sensor | 1/2.8"-Type |
| Effective Sensor Resolution | 5 Megapixel |
| Shutter Speed | 1/10000 to 1/25 Second |
| Max Optical Zoom | 20x |
| Max Digital Zoom | 15x |
| Max Video Output | via HDMI Up to UHD 4K up to 30.00 fps via USB Up to UHD 4K up to 30.00 fps |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Camera Control Pelco-D/Pelco-P/RS-422/RS-485/VISCA |
| Wireless | No |
| Image Sensor | 1/2.8"-Type CMOS |
| Horizontal Resolution (TV Lines) | 2160 TV Lines |
| Effective Sensor Resolution | 5 Megapixel |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/25 Second |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux at f/1.8 Aperture |
| Flip / Mirror Support | Image Flip |
| White Balance | Presets: Auto, Manual, One Push |
| Focal Length | 5.1 to 94.5mm |
| Max Optical Zoom | 20x |
| Max Digital Zoom | 15x |
| Field of View | 60 to 3.5° |
| Maximum Aperture | f/1.8 to 2.9 |
| Video Output | via HDMI 3840 x 2160p up to 30.00 fps 1920 x 1080p at 29.97/30.00/50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps via USB 3840 x 2160p up to 30.00 fps 2560 x 1440 at 30.00 fps 1920 x 1080p at 30.00 fps 1600 x 896 at 30.00 fps 1280 x 720 at 30.00 fps 800 x 600 at 30.00 fps 1024 x 576 at 30.00 fps 960 x 540 at 30.00 fps 720 x 480 at 30.00 fps 640 x 480 at 30.00 fps 800 x 448 at 30.00 fps 640 x 360 at 30.00 fps 480 x 270p at 30.00 fps 320 x 240 at 30.00 fps 320 x 180p at 30.00 fps |
| Embedded Audio | HDMI/LAN (RJ45)/USB |
| Audio Recording | Yes |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Camera Control Pelco-D/Pelco-P/RS-422/RS-485/VISCA |
| Presets | 255 via RS-422, RS-485, VISCA, Pelco-P, Pelco-D 10 via IR |
| Wireless | No |

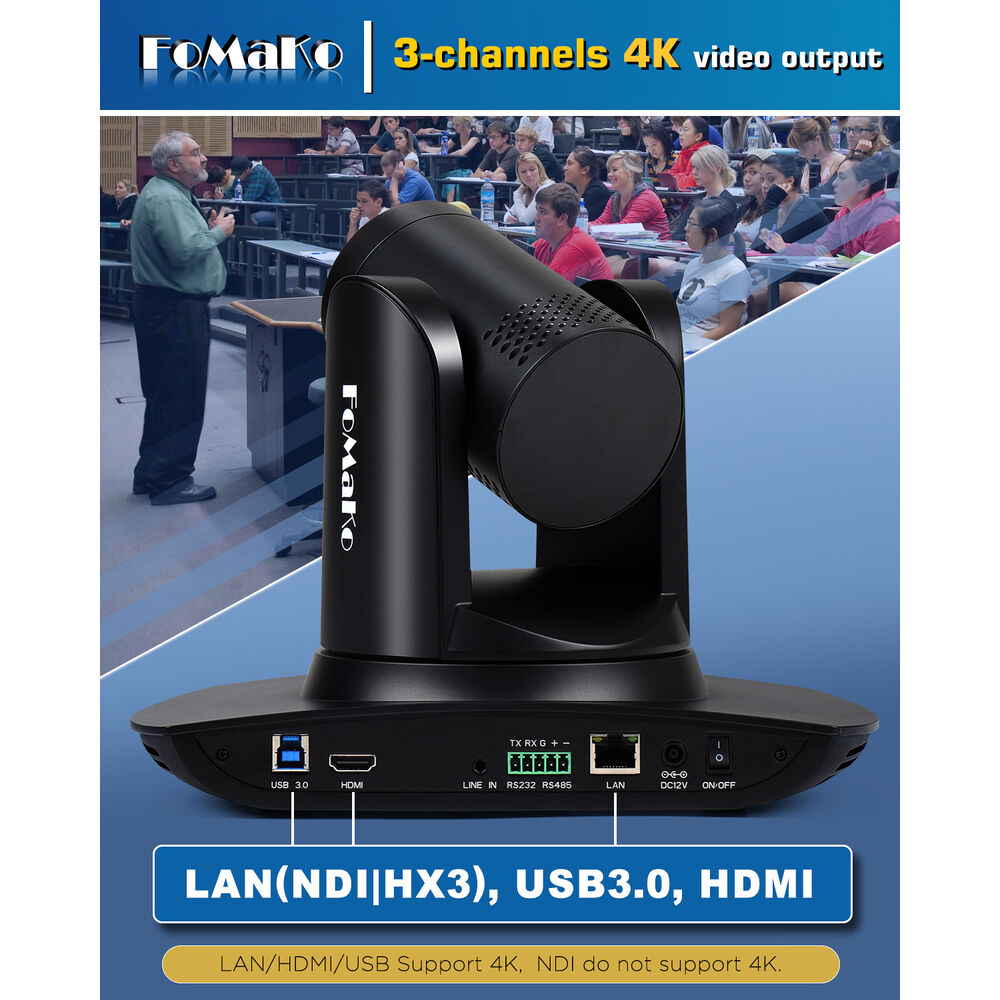

| Video I/O | 1x HDMI 2.0 Output 1x RJ45 LAN Input/Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Input/Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Input |
| Other I/O | 1x Block (RS-232, RS-485) |
| Built-In Microphone | Yes |
| Power I/O | 1x Barrel (12VDC at 2 A) Input |
| Power Consumption | Power Supply: 12 W |
| Operating Conditions | 14 to 122°F / -10 to 50°C at 20 to 80% Humidity |
| Storage Conditions | 14 to 158°F / -10 to 70°C at 20 to 95% Humidity |
| Dimensions (W x H x D) | 10 x 5.7 x 6.7" / 253.5 x 144 x 169 mm |
| Weight | 3.22 lb / 1.46 kg (Body Only) |
| Package Weight | 8.19 lb |
| Box Dimensions (LxWxH) | 13.1 x 10.9 x 8" |
