Description

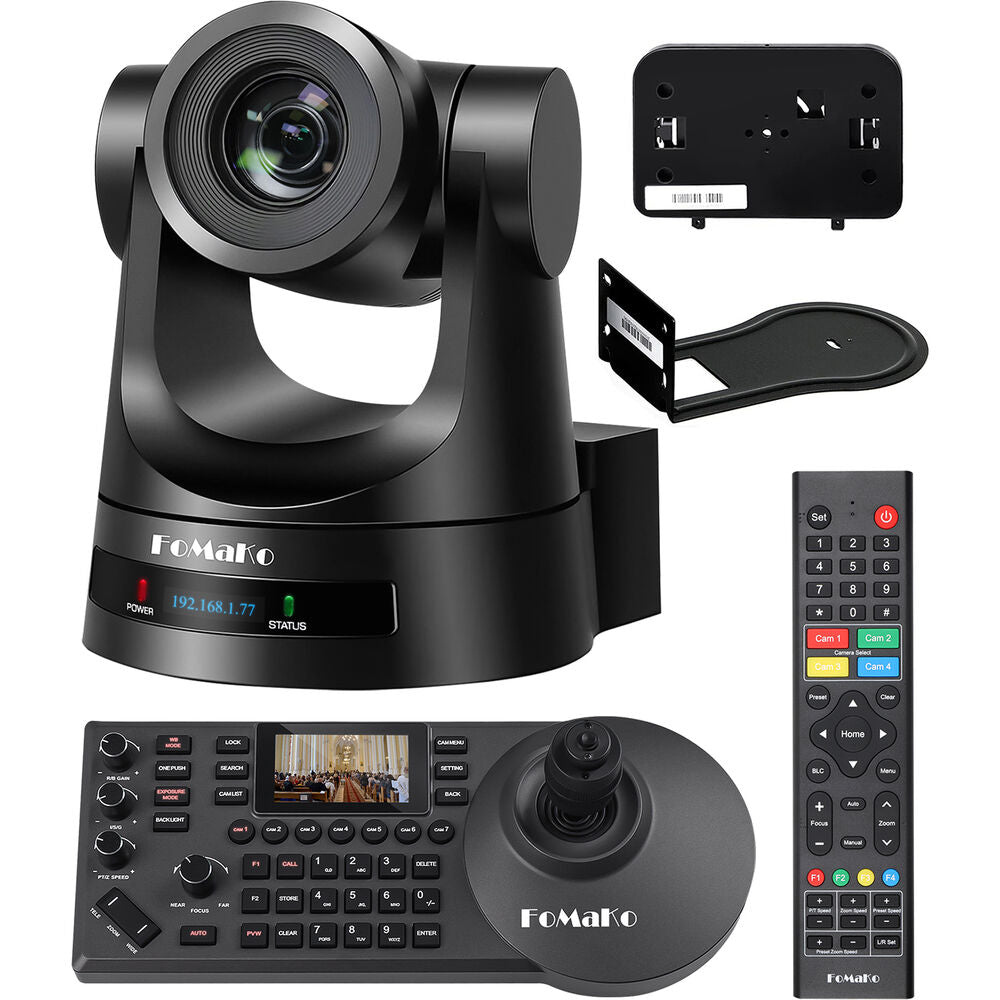

The BH301 HDMI PTZ Camera Bundle with 30x Zoom + PTZ Controller from FoMaKo is ideal for wide video coverage during networked production shoots. The bundle includes one FMK30SDI Pro camera with 30x optical and 10x digital zoom, and one KC608 IP PTZ camera controller.
Add advanced AI automatic tracking to your live production kit with the FMK30SDI Pro HDMI/3G-SDI AI Auto-Tracking PTZ Camera from FoMaKo. Boasting HDMI, 3G-SDI, LAN, and USB 3.0 connectivity and a 30x optical zoom, the versatile PTZ camera can also handle 16x digital zooming and resolutions up to 1080p60. You can power the camera using the included 12 VDC power adapter or via PoE (Power over Ethernet). The camera features an integrated LCD screen that displays the IP address being employed and is compatible with popular streaming/switching software, including vMix and OBS.

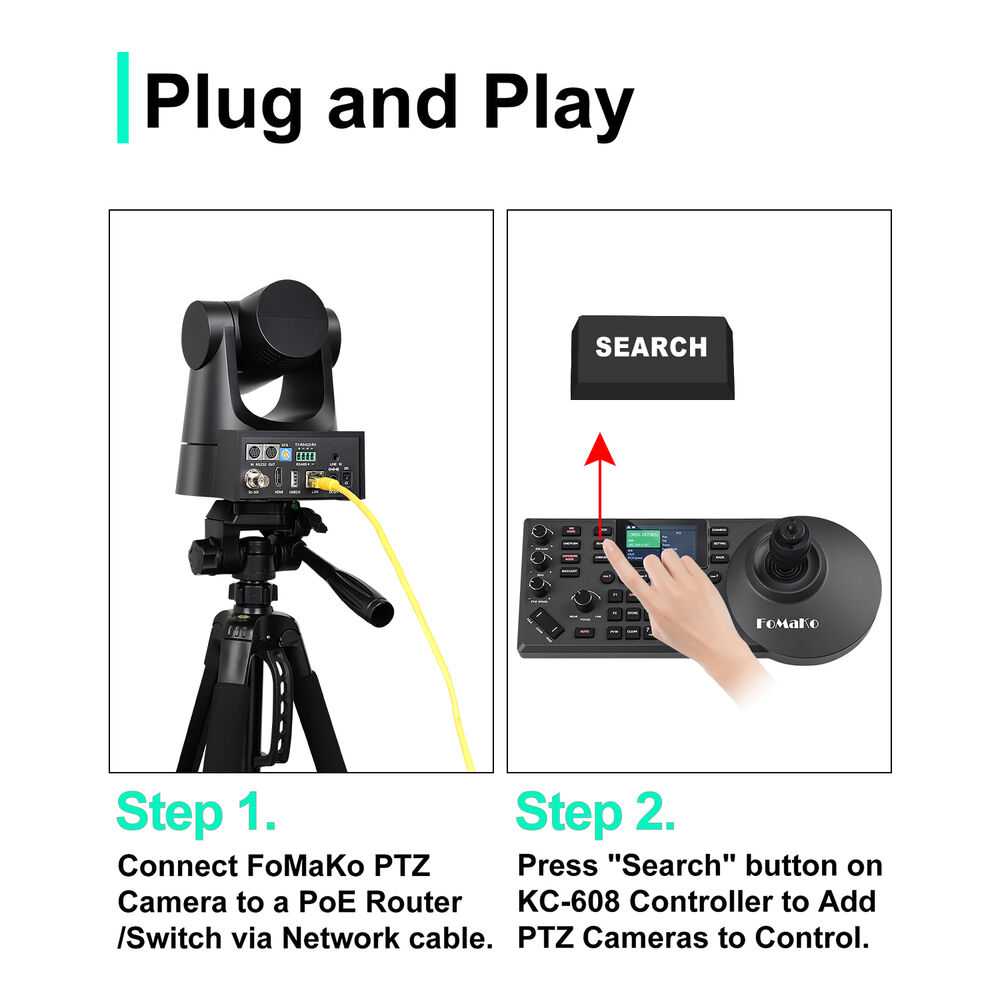

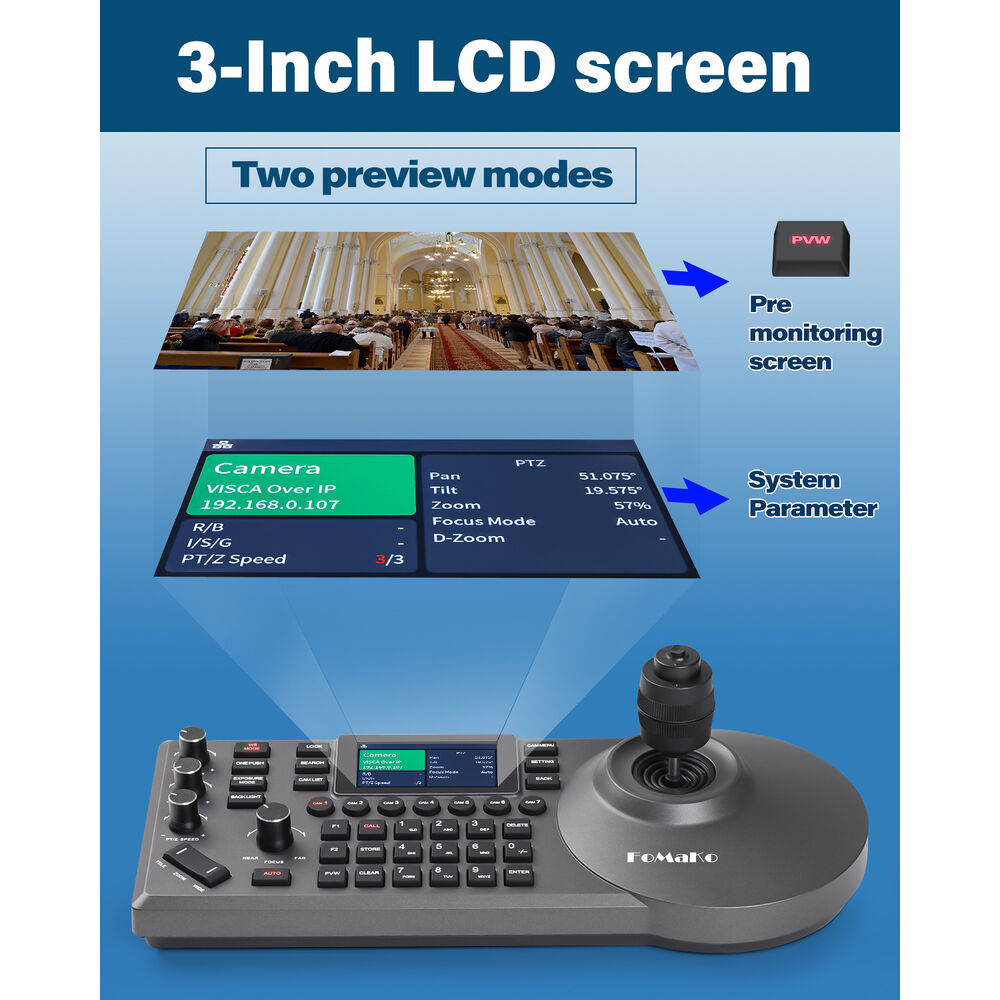

Easily control multiple PTZ cameras using the KC608 Pro PTZ Camera Controller with Joystick from FoMaKo. This compact controller features lives streaming, a 4D joystick, zoom rocker, 3" LCD screen with RTSP video preview, and customizable buttons. Control methods include VISCA, VISCA over IP, PELCO D/P, RS-422, and RS-485.
| Image Sensor | 1/2.8"-Type |
| Effective Sensor Resolution | 2.07 Megapixel |
| Max Optical Zoom | 30x |
| Max Digital Zoom | 16x |
| Max Video Output | via HDMI / RJ45 / SDI/BNC Up to 1080p at 25/30.00/50/60.00 fps via USB Up to 1080p at 10/15/30.00 fps |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Camera Control IR/Pelco-D/Pelco-P/VISCA |
| PoE Support | Yes: PoE Proprietary |
| Mounting | 1x Proprietary for Bracket/Ceiling/Tripod/Wall |
| Image Sensor | 1/2.8"-Type CMOS |
| Horizontal Resolution (TV Lines) | 1080 TV Lines |
| Effective Sensor Resolution | 2.07 Megapixel |
| Focus Control | Autofocus Manual Focus |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux |
| White Balance | Range: 2400 to 7100K |
| Focal Length | 5.2 to 148.4mm |
| Max Optical Zoom | 30x |
| Max Digital Zoom | 16x |
| Field of View | Horizontal: 58.1 to 2.14° |
| Maximum Aperture | f/1.3 to 4.8 |
| Video Output | via HDMI / RJ45 / SDI/BNC 1920 x 1080 at 25/30.00/50/60.00 fps 1280 x 720 at 50/60.00 fps via USB 1920 x 1080 at 10/15/30.00 fps 1280 x 720 at 10/15/30.00 fps 800 x 600 at 10/15/30.00 fps 1024 x 576 at 10/15/30.00 fps 640 x 480 at 10/15/30.00 fps 800 x 448 at 10/15/30.00 fps 640 x 360 at 10/15/30.00 fps 480 x 270p at 10/15/30.00 fps 320 x 180p at 10/15/30.00 fps |
| Embedded Audio | HDMI/IP/LAN (RJ45)/SDI/USB |
| Audio Recording | Yes |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Camera Control IR/Pelco-D/Pelco-P/VISCA |
| Presets | 255 via IP, VISCA, Pelco-P, Pelco-D |
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 1.4 to 40°/s Tilt: 90° (-30 to 90°) at 2.9 to 30°/s |
| Tally Light | No |

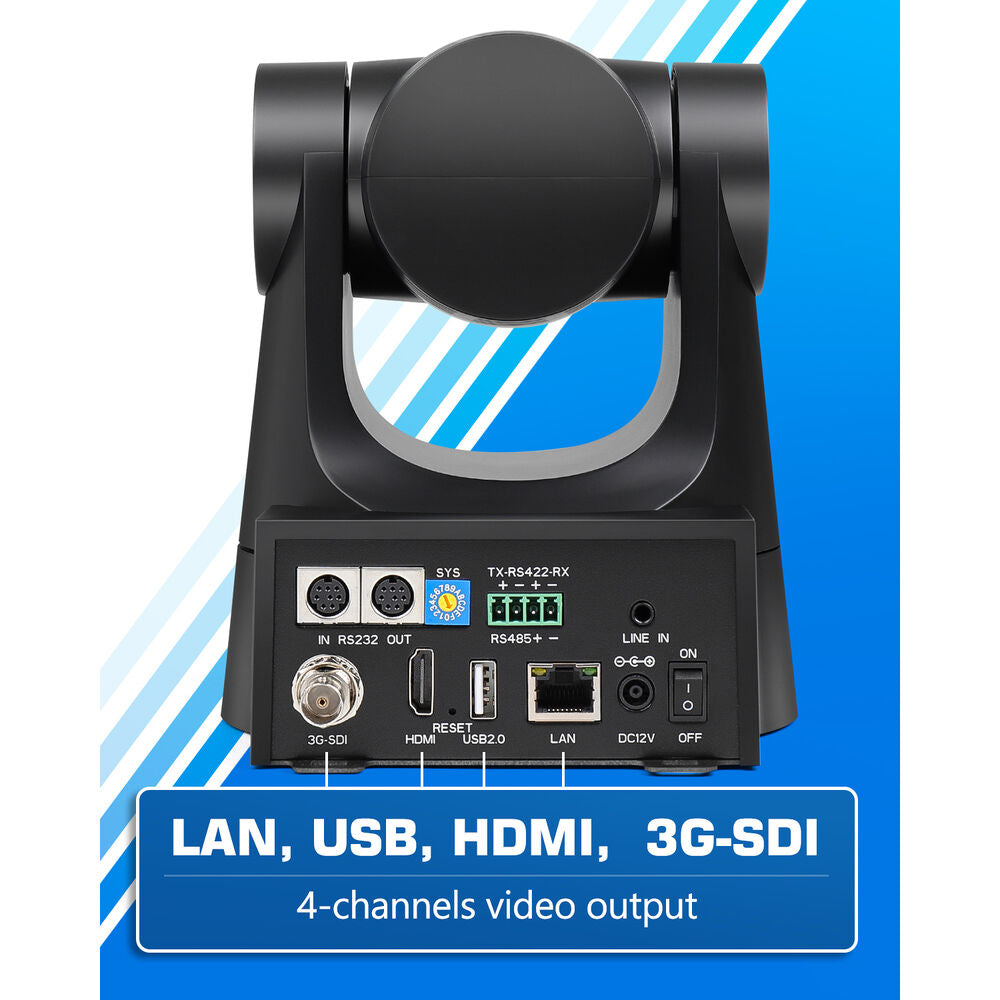

| Video I/O | 1x HDMI Output 1x BNC (3G-SDI) Output 1x RJ45 LAN Input/Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Input |
| Other I/O | 1x D-Sub 9-Pin (RS-232) Input 1x D-Sub 9-Pin (RS-232) Output 1x Block 4-Pin (RS-422, RS-485) |
| Built-In Microphone | No |
| PoE Support | Yes: PoE Proprietary |
| Power I/O | 1x Barrel (110 to 220VAC) Input |
| Power Consumption | 12 W |
| Operating Conditions | 14 to 122°F / -10 to 50°C at 20 to 80% Humidity |
| Storage Conditions | 14 to 158°F / -10 to 70°C at 20 to 95% Humidity |
| Mounting | 1x Proprietary for Bracket/Ceiling/Tripod/Wall |
| Dimensions (W x H x D) | 5.6 x 6.9 x 6.7" / 143 x 176 x 169 mm |
| Weight | 3 lb / 1.2 kg (Body Only) |
| Package Weight | 7.66 lb |
| Box Dimensions (LxWxH) | 13.6 x 10.4 x 7.6" |
