Description

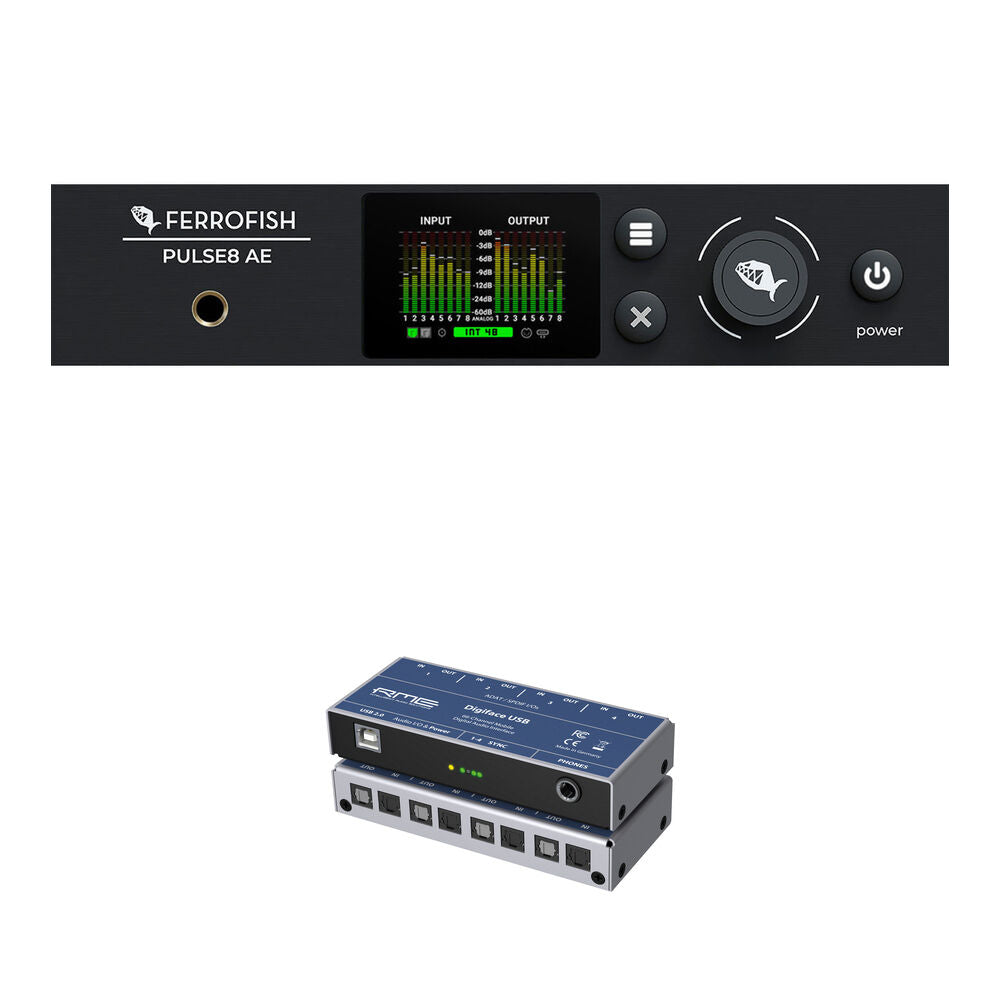

Ideal for pro studios and live rigs, this B&H Kit combines a Ferrofish Pulse8 AE 8x8 AD/DA Converter with ADAT with an RME Digiface 66-Channel ADAT to USB Optical Audio Interface. This setup provides a professional and high-resolution ADAT-based audio capture system that can take in up to 32-bit / 192 kHz audio and pass it to USB systems via convenient and reliable ADAT.

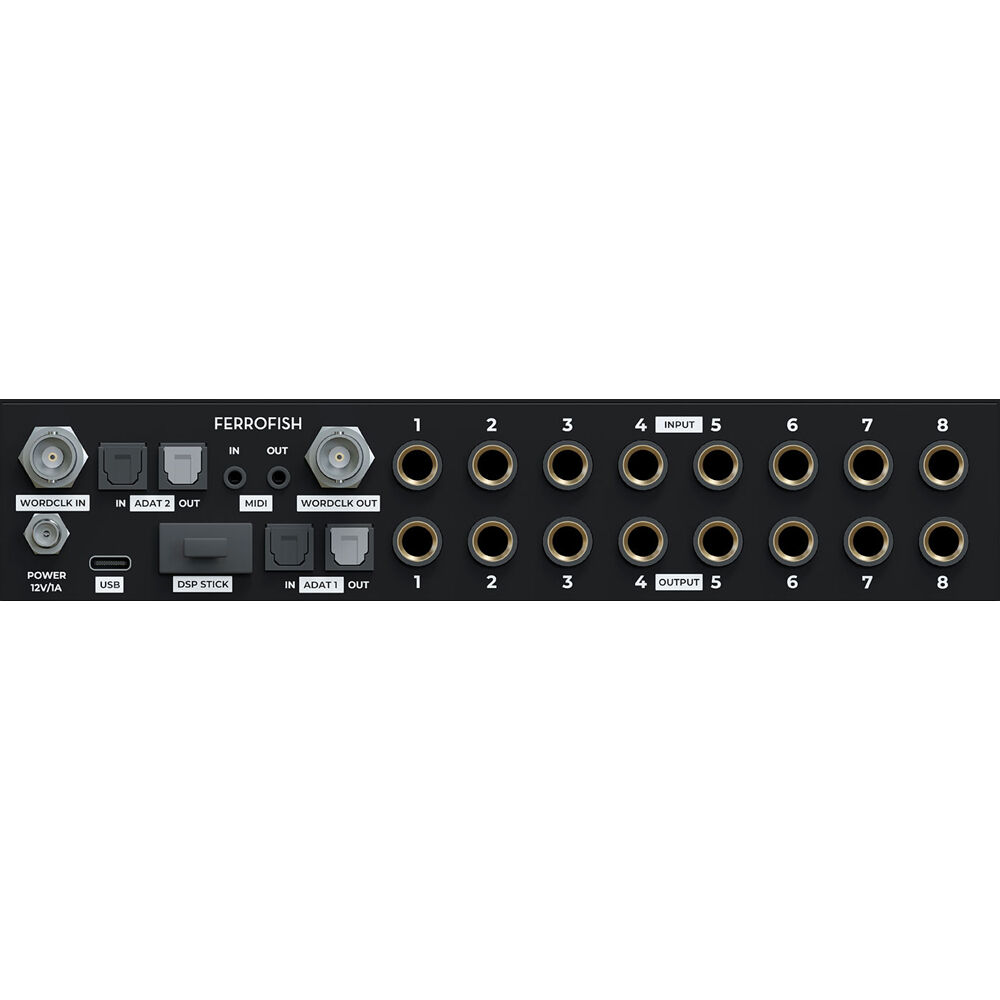

The Ferrofish Pulse8 AE is a high-performance AD/DA converter engineered to deliver studio-grade conversion and routing capabilities for a wide range of professional workflows, from home studios to live productions. Built on the premium 32-bit / 192 kHz ESS conversion technology found in its larger sibling, it ensures exceptional signal clarity and precision. The Pulse8 AE features 8 high-quality balanced analog inputs and outputs, along with comprehensive ADAT connectivity up to 192 kHz (with SMUX support).
The Pulse8 AE's vibrant front-panel display provides intuitive, real-time, visual control, streamlining monitoring and configuration. The unit includes an audiophile-grade, 4-stage headphone amplifier with a dedicated signal path powered by a separate ESS DAC, ensuring pristine audio quality for critical monitoring. Additional features include a USB-C port for streamlined software configuration using the RemoteFish software and 3.5mm MIDI I/O for effortless firmware updates. With robust clocking options and compatibility with standard studio connections, the Pulse8 AE is an indispensable tool for engineers and producers who demand reliability, flexibility, and exceptional audio performance in a space-saving form factor.

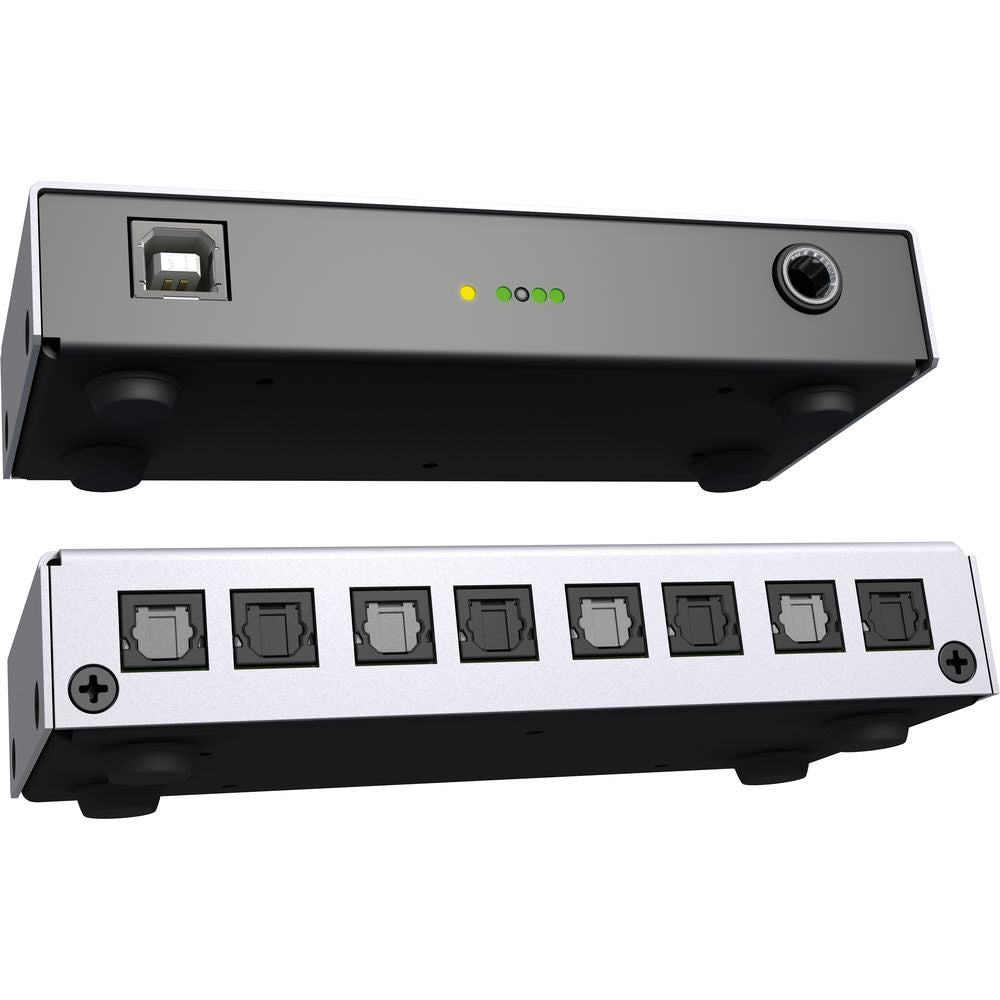

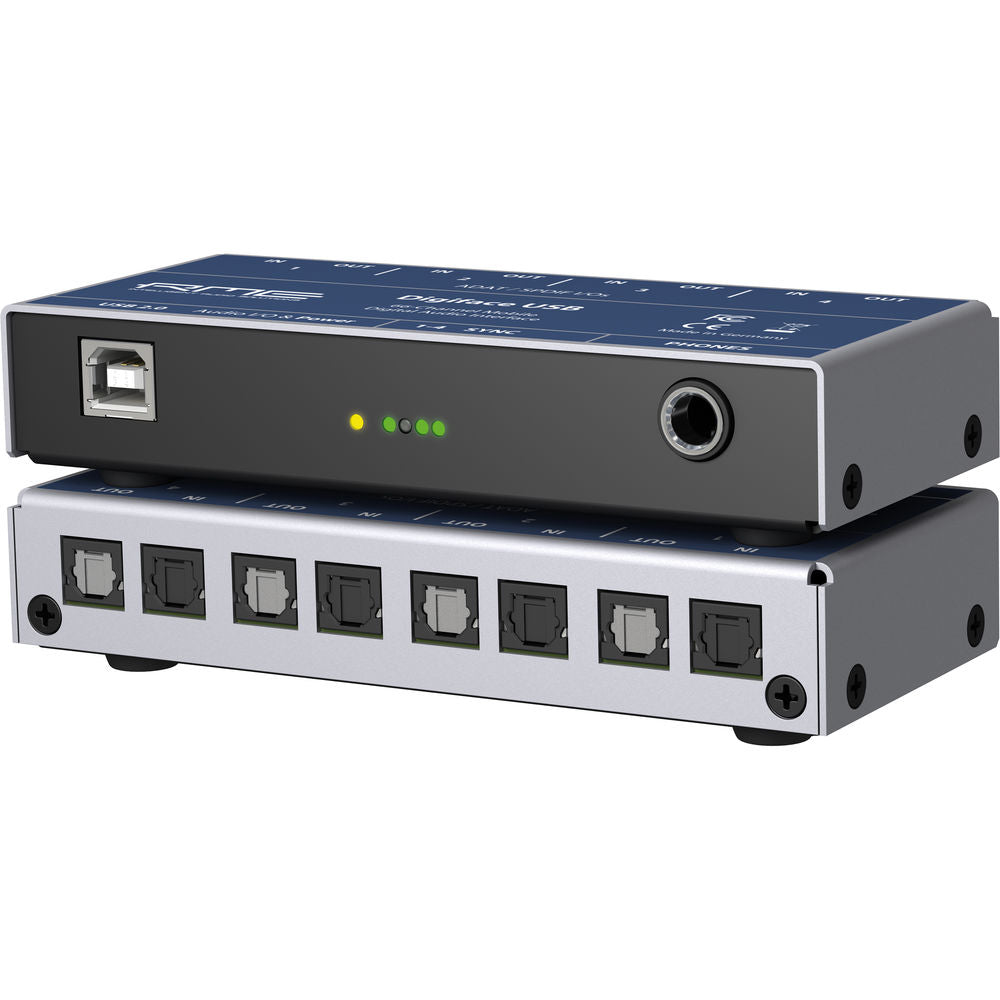

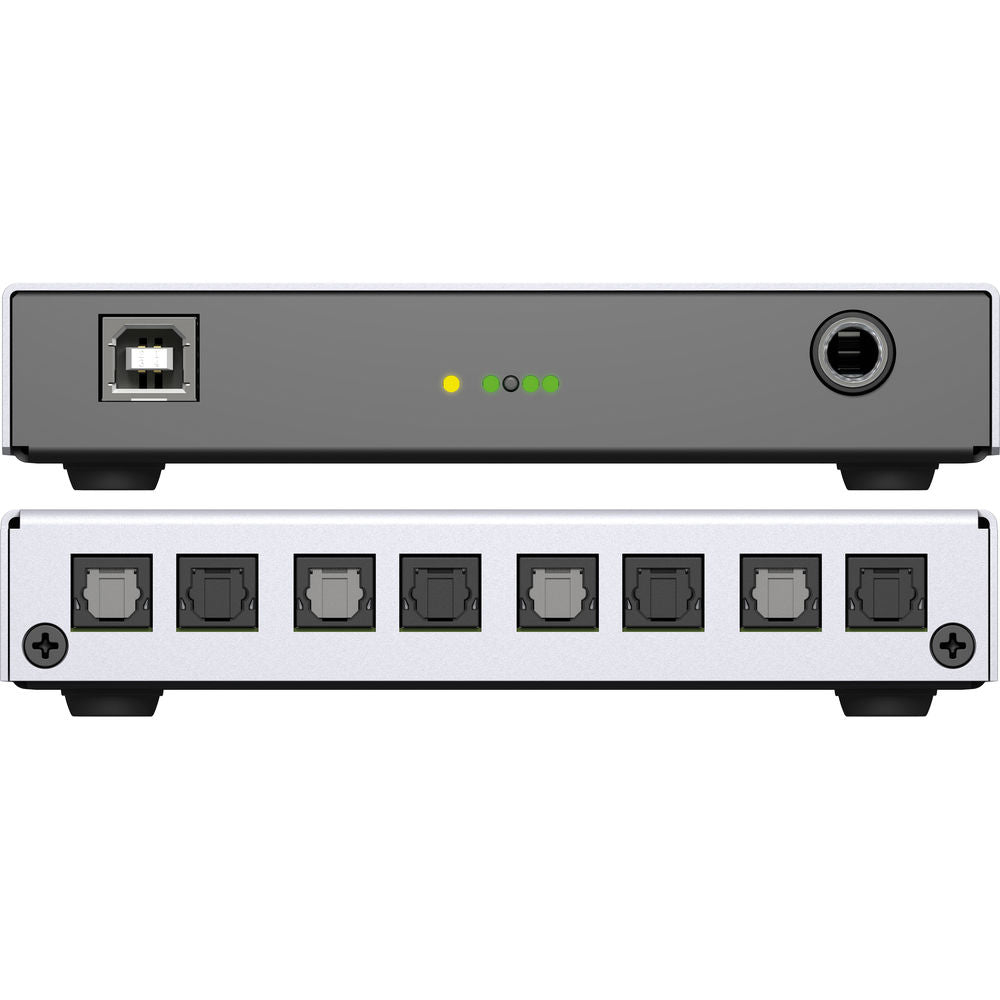

The Digiface USB from RME is a portable USB 2.0 audio interface designed to quickly and efficiently transfer 24-bit / 192 kHz digital audio data in ADAT and S/PDIF format to Windows and Mac computers. Lightweight (at 0.49 lb), compact, and bus-powered, it is well suited for mobile recording/mixing applications or remote monitoring solutions.
The Digiface USB offers four optical ADAT / S/PDIF I/Os and a high-quality analog line/phone stereo output via a 1/4" TRS jack, for a total of 32 inputs and 34 outputs when using ADAT optical. It also comes with the real-time mixer software TotalMix which allows you to mix and route all inputs and playback channels simultaneously, to any hardware outputs. The software features a dedicated Control Room section with Talkback, Main/Phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and more.
The included DIGICheck utility software provides a suite of tools to test, measure, and analyze digital audio streams with a high-precision peak/RMS level meter, a spectral analyzer, a vector audio scope, and more.
| Form Factor | Desktop (Rack-Mountable with Optional Hardware) |
| Converter Type | AD/DA Converter |
| Number of Channels | 8x A/D 8x D/A |
| Maximum Sampling Rate | 192 kHz / 32-Bit |
| Number of Microphone Inputs | No Mic Inputs |
| Analog Audio I/O | 8x 1/4" TRS Line Input 8x 1/4" TRS Line Output |
| Digital Audio I/O | TOSLINK Optical ADAT Input TOSLINK Optical ADAT Output |
| Form Factor | Desktop (Rack-Mountable with Optional Hardware) |
| Converter Type | AD/DA Converter |
| Number of Channels | 8x A/D 8x D/A |
| Conversion Formats | ADAT |
| Display | 1x 3" Color TFT |
| Maximum Sampling Rate | 192 kHz / 32-Bit |
| Number of Microphone Inputs | No Mic Inputs |
| Gain/Trim Range | Line Inputs: 0 dB to +28 dB (in 1 dB Steps) Line Outputs: 0 dB to -28 dB (in 1 dB Steps) |
| Analog Audio I/O | 8x 1/4" TRS Balanced Line Input 8x 1/4" TRS Balanced Line Output |
| Phantom Power | No |
| Digital Audio I/O | 2x TOSLINK Optical ADAT Input (S/MUX4 Support) 2x TOSLINK Optical ADAT Output (S/MUX4 Support) |
| Host Connection / USB | No |
| USB (Non-Host) | 1x USB-C (MIDI I/O, Remote) |
| Sync I/O | 1x BNC Word Clock Input 1x BNC Word Clock Output |
| Network I/O | No |
| MIDI I/O | 1x 1/8" / 3.5 mm TRS Input 1x 1/8" / 3.5 mm TRS Output |
| Expansion Slots | 1x Internal DSP Slot |
| Wireless | No |
| Maximum Input Level | +20 dBu |
| Maximum Output Level | +20 dBu |
| SNR | Line Inputs: 112 dB Line Outputs: 120 dB |
| THD+N | Line Inputs: -108 dB (1 kHz, 48 kHz SR, A-weighted, Typ.) Line Outputs: -115 dB (1 kHz, 48 kHz SR, A-weighted, Typ.) |
| Sample Rates | Up to 192 kHz |
| Bit Depths | 32-Bit |
| Latency | 3 Samples |
| Sync Sources | ADAT, Internal, Word Clock |
| Clocking | Word Clock: Accuracy: ±1.5 ppm |
| OS Compatibility | No |
| Mobile Device Compatibility | No |
| Power Requirements | AC/DC Power Adapter (Included) |
| DC Input Power | 12 VDC at 3A |
| Power Consumption | 12 VA (Typical) 1 VA (Standby) |
| Rackmount Size | 1 U (1/2-Rack) |
| Operating Conditions | 41 to 113°F / 5 to 45°C at 0 to 75% Humidity |
| Dimensions | 8.7 x 5.3 x 1.7" / 22 x 13.5 x 4.4 cm |
| Weight | 2.2 lb / 1.0 kg |
| Package Weight | 4.12 lb |
| Box Dimensions (LxWxH) | 13.2 x 9.1 x 2.9" |
