Description

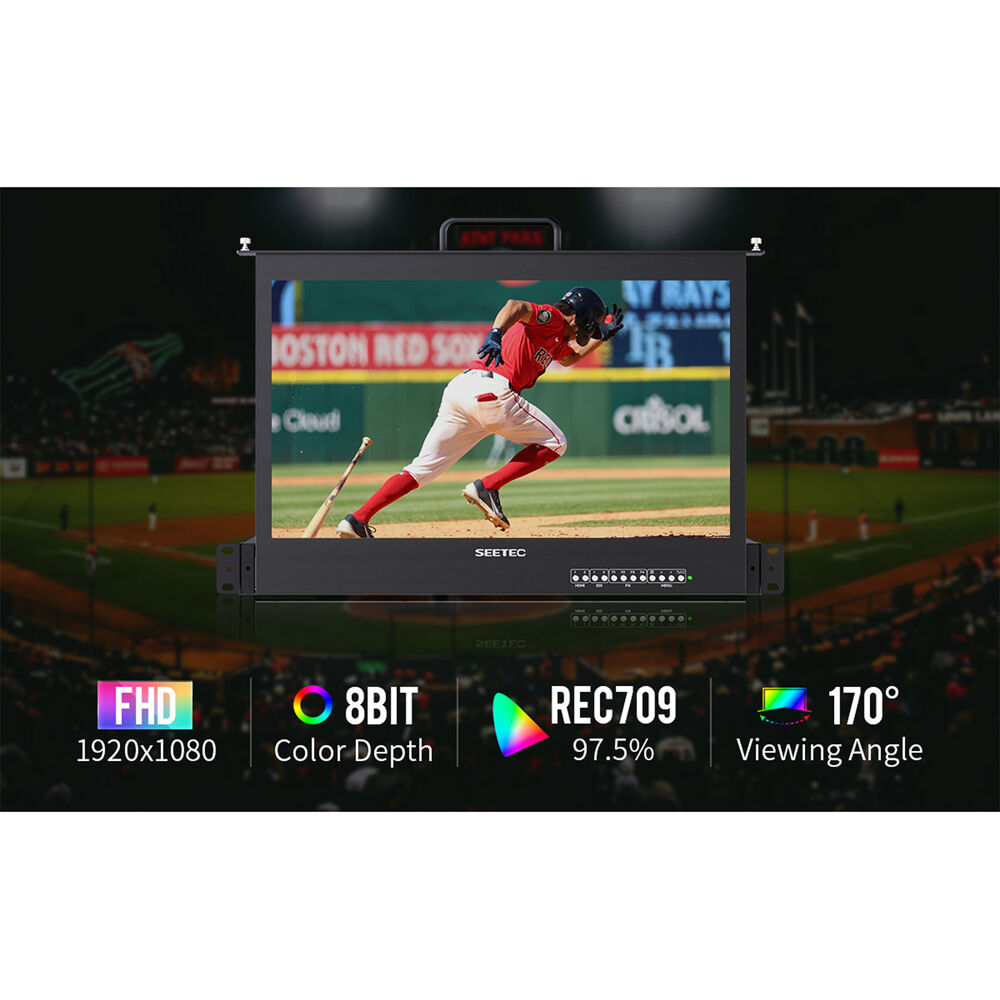

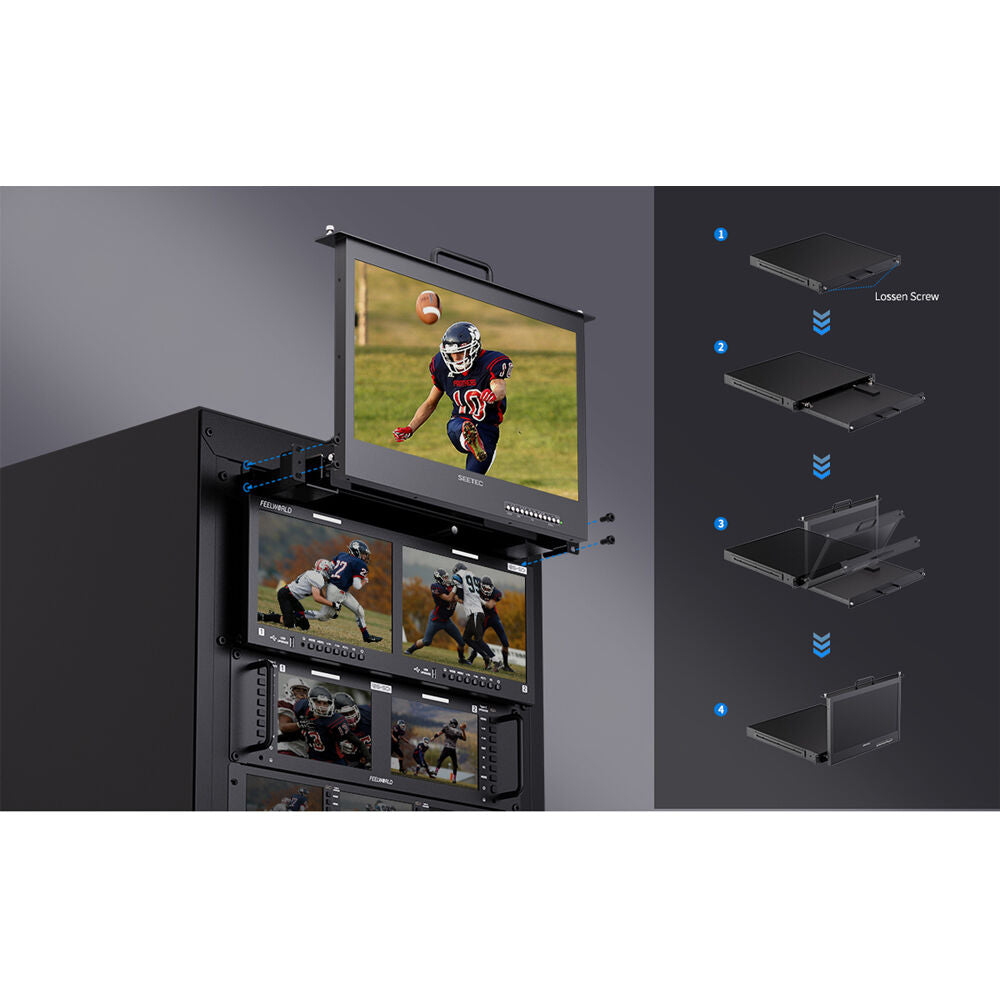

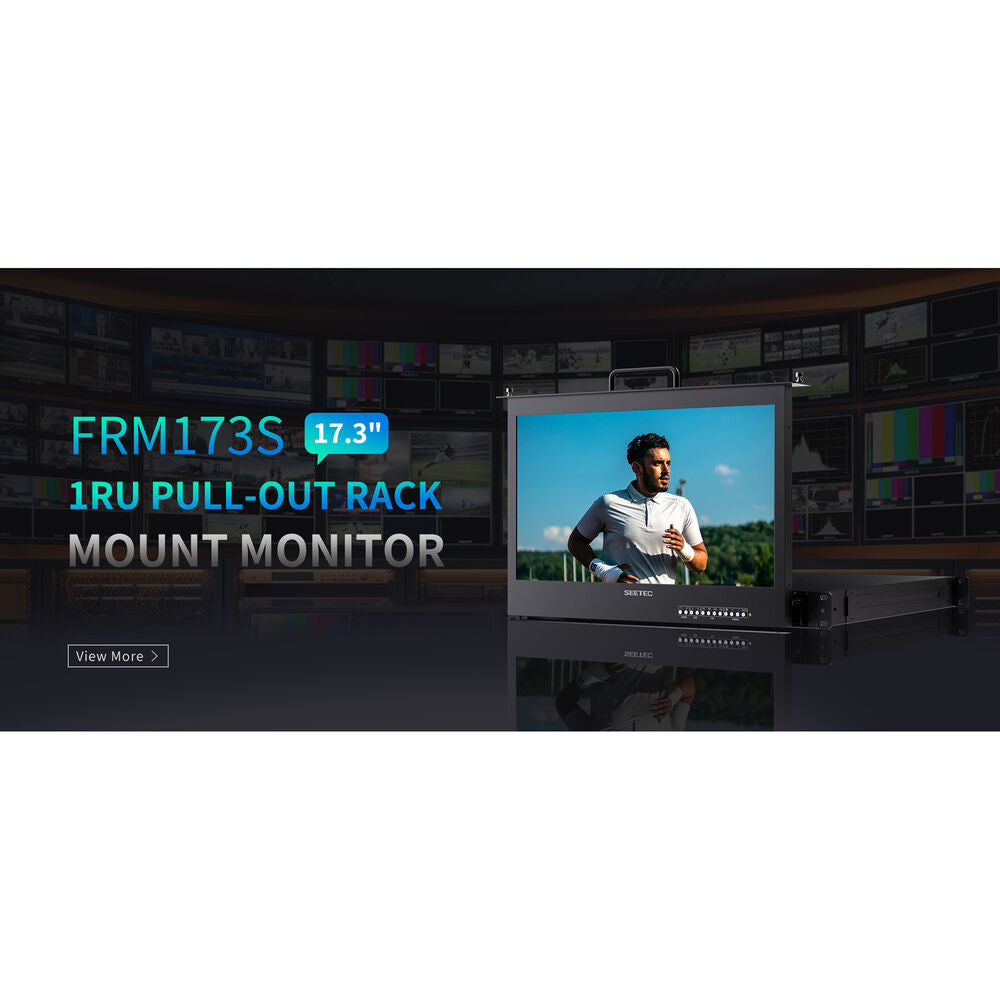

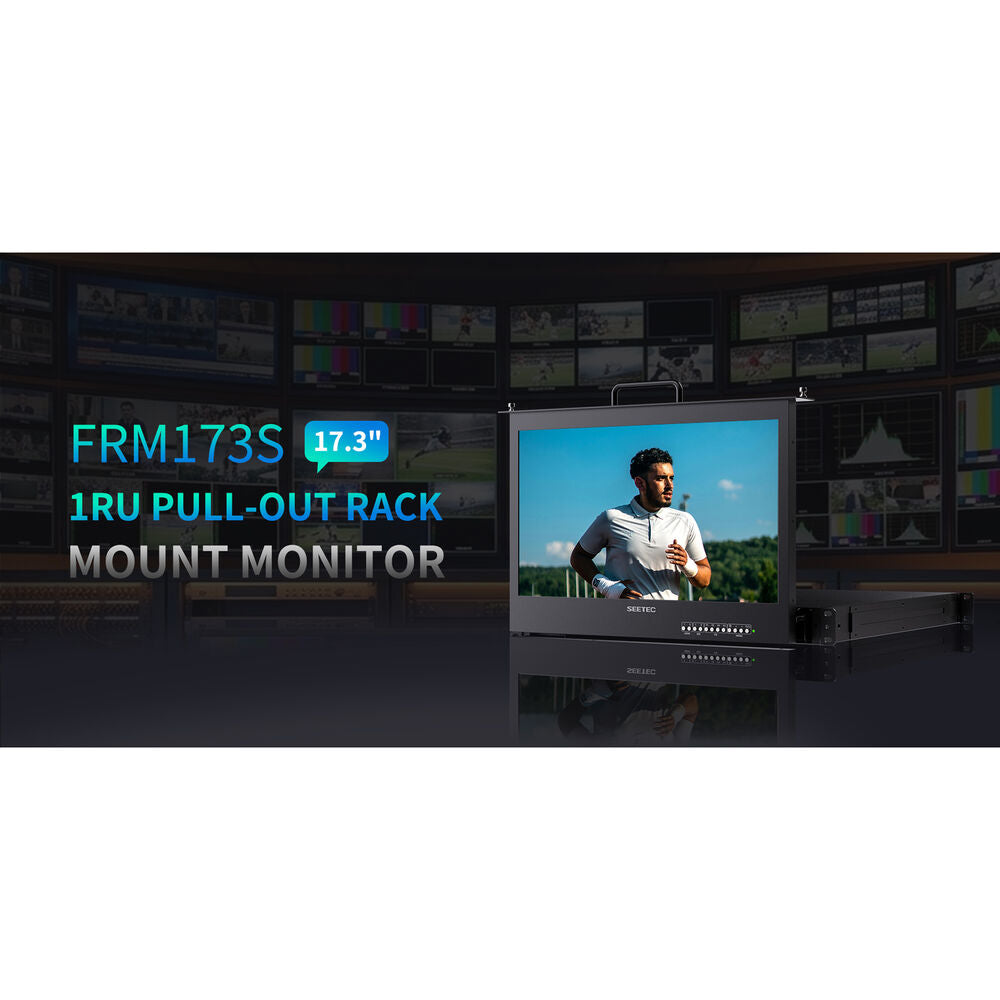

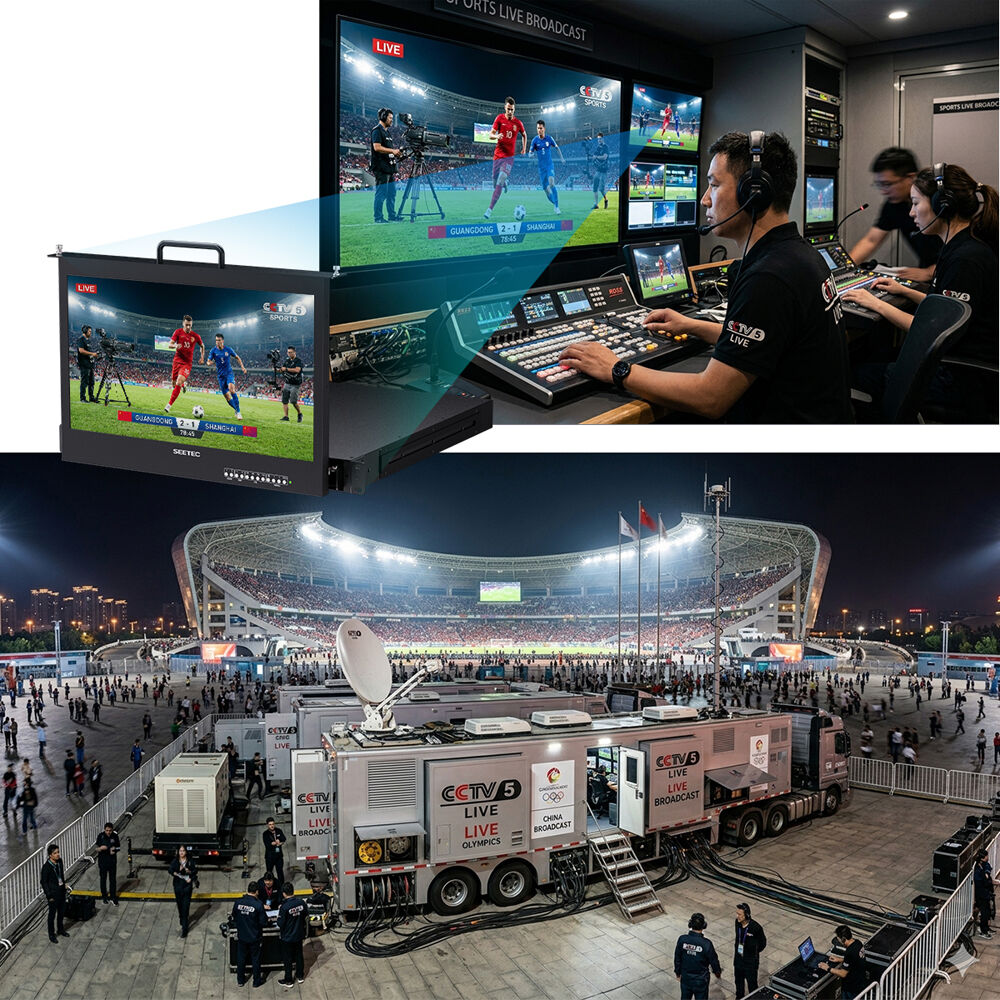

The 1 RU FRM173S 17.3" Pullout 3G-SDI/HDMI 4K Rackmount Monitor from FeelWorld is a rack-mountable display that is easily integrated into any broadcast or live event production, where it may also be used as a standalone option. The 17.3" IPS panel has a native resolution of 1920 x 1080, providing crisp images and sharp color contrast, as well as a wide array of advanced monitoring tools, including focus assist, waveform, vectorscope, and histogram. The FRM173S features two 3G-SDI inputs and outputs, plus HDMI 1.3 and 2.0 inputs and outputs. The HDMI 2.0 port supports up to DCI 4K60 video, while the 3G-SDI port supports up to 2K60 video. Additional connectivity includes RS-485 I/O and a GPI port to facilitate control.
| Display Size | 17.3" / 43.9 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | No |
| HDR Support | Yes |
| Media/Memory Card Slot | No |
| Wireless | No |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/24/23.98 576p 576i 480p 480i SDI DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2Ki: 60/59.94/50 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 |
| Battery | No |
| Power Consumption | 26 W |
| Panel Type | IPS-Type LCD |
| Display Size | 17.3" / 43.9 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 89° Vertical: 89° |
| Touchscreen | No |
| Maximum Brightness | 480 nits / cd/m2 |
| Contrast Ratio | 1100:1 |
| Color Support | 16.7 Million Colors (8-Bit) |
| HDR Support | Yes |

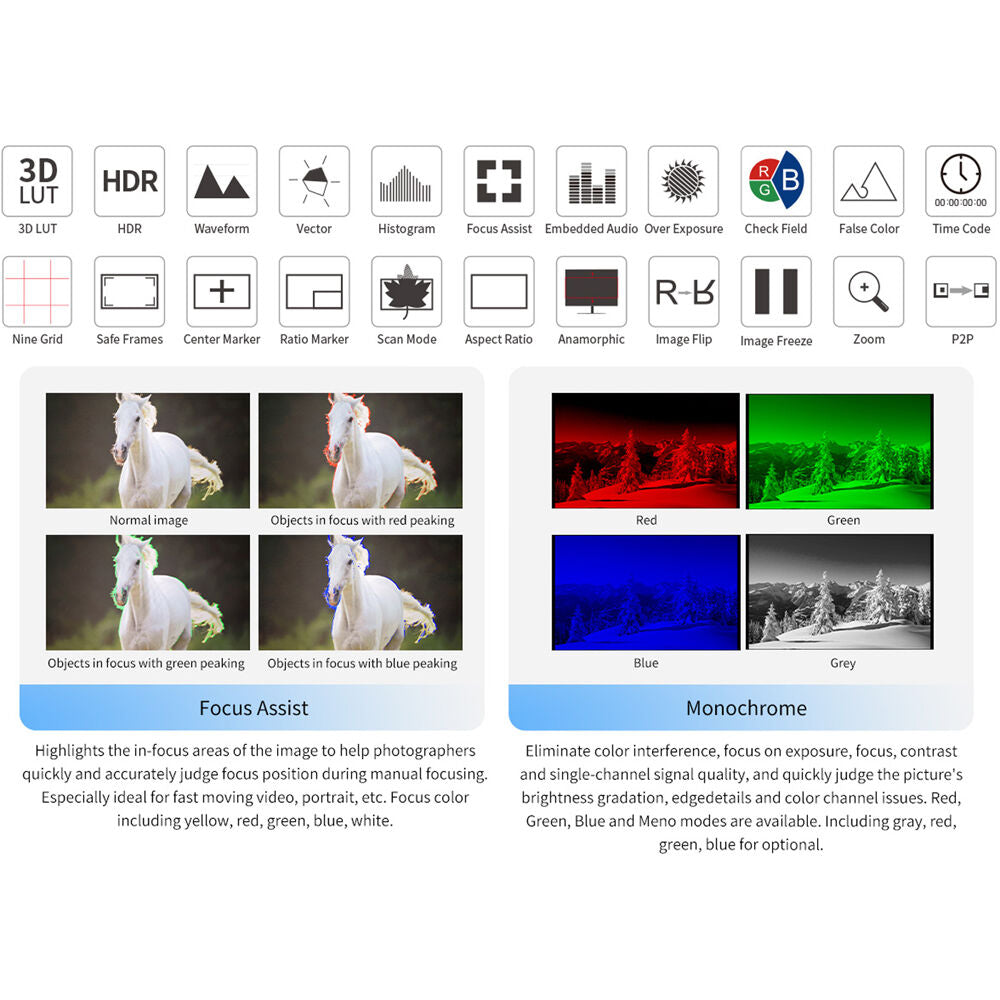

| Image Controls | Focus Assist, Histogram, Vectorscope, Waveform |
| Video I/O | 1x HDMI 1.3 Input 1x HDMI 1.3 Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output 2x BNC (3G-SDI) Input 2x BNC (3G-SDI) Output |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel Input |
| Other I/O | 1x RJ45 (RS-485) Input 1x RJ45 (RS-485) Output 1x RJ45 (GPI) 1x USB-A |
| Media/Memory Card Slot | No |
| Wireless | No |
| Mobile App Compatible | No |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/24/23.98 576p 576i 480p 480i SDI DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2Ki: 60/59.94/50 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 |
| Input Power | 12 to 24 VDC |
| Battery | No |
| Power Consumption | 26 W |
| Rack Form Factor | 1 RU |
| VESA Mounting-Hole Pattern | 100 x 100 mm |
| Environmental Resistance | No |
| Operating Conditions | 14 to 122°F / -10 to 50°C |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Material of Construction | Metal |
| Dimensions | 20 x 19.1 x 1.7" / 508.5 x 485 x 43.5 mm |
| Weight | 17 lb / 7.7 kg |
| Package Weight | 21.225 lb |
| Box Dimensions (LxWxH) | 25.3 x 20.9 x 4" |
