Description

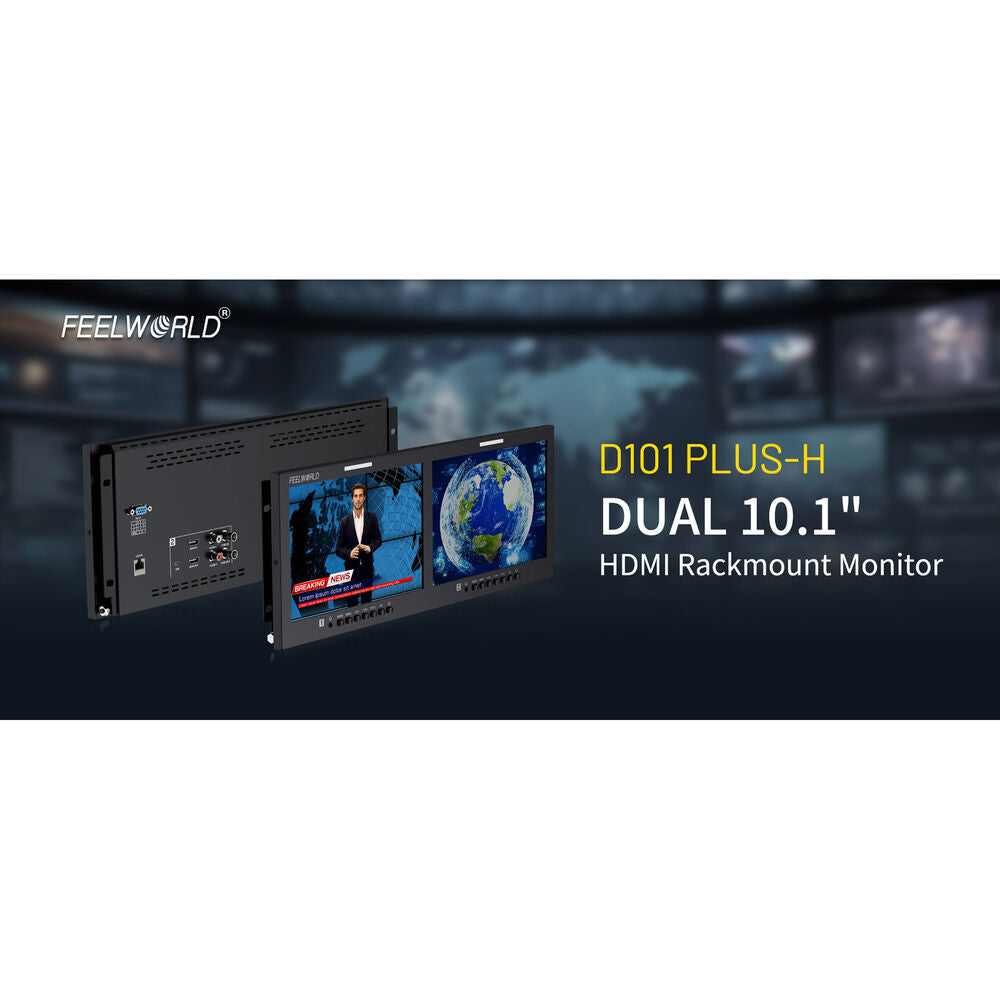

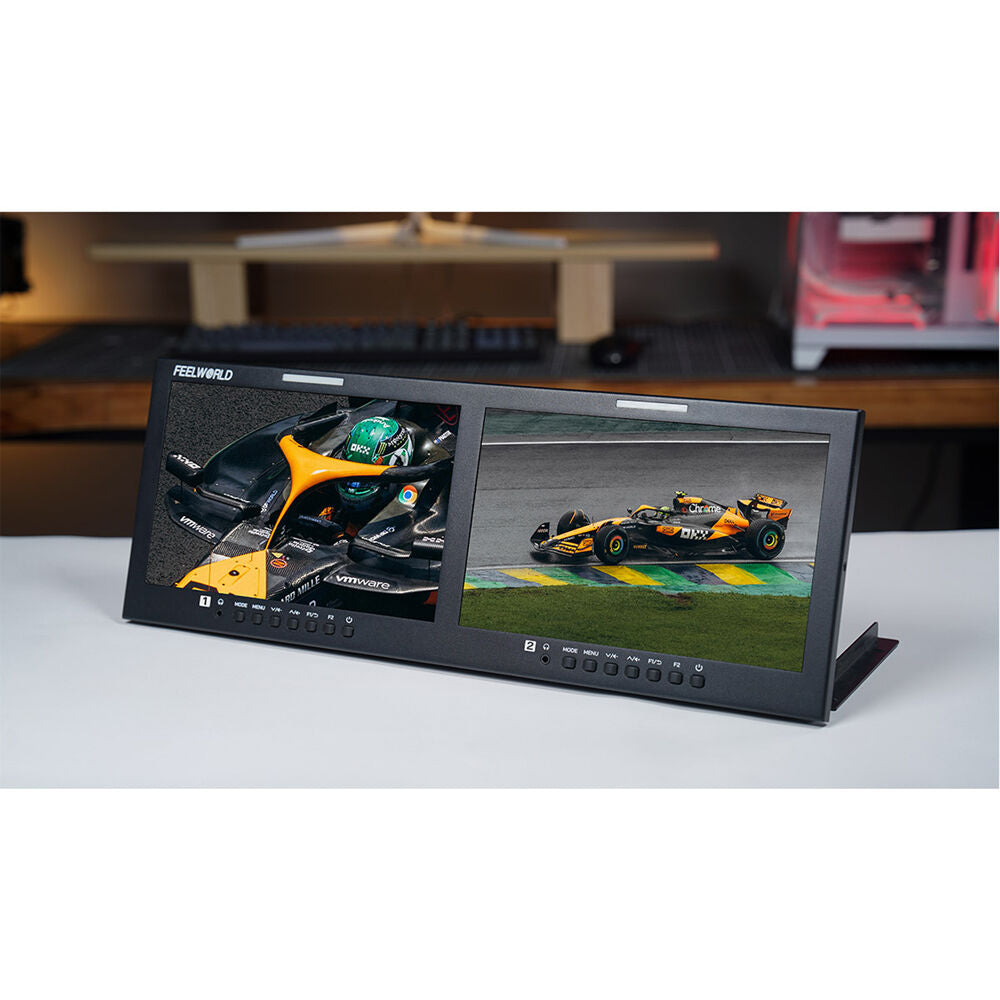

The FeelWorld D101 Plus-H features two 10.1" 1920 x 1200 resolution displays in a slim, 4 RU rackmount unit. The rear panel has HDMI and composite BNC input and output ports, as well as two sets of L/R RCA audio inputs, for each display. HDMI input signals up to 4K60 are supported. A single tally port connects to the 3-color tally light kit to show which stream is live on the front panel.

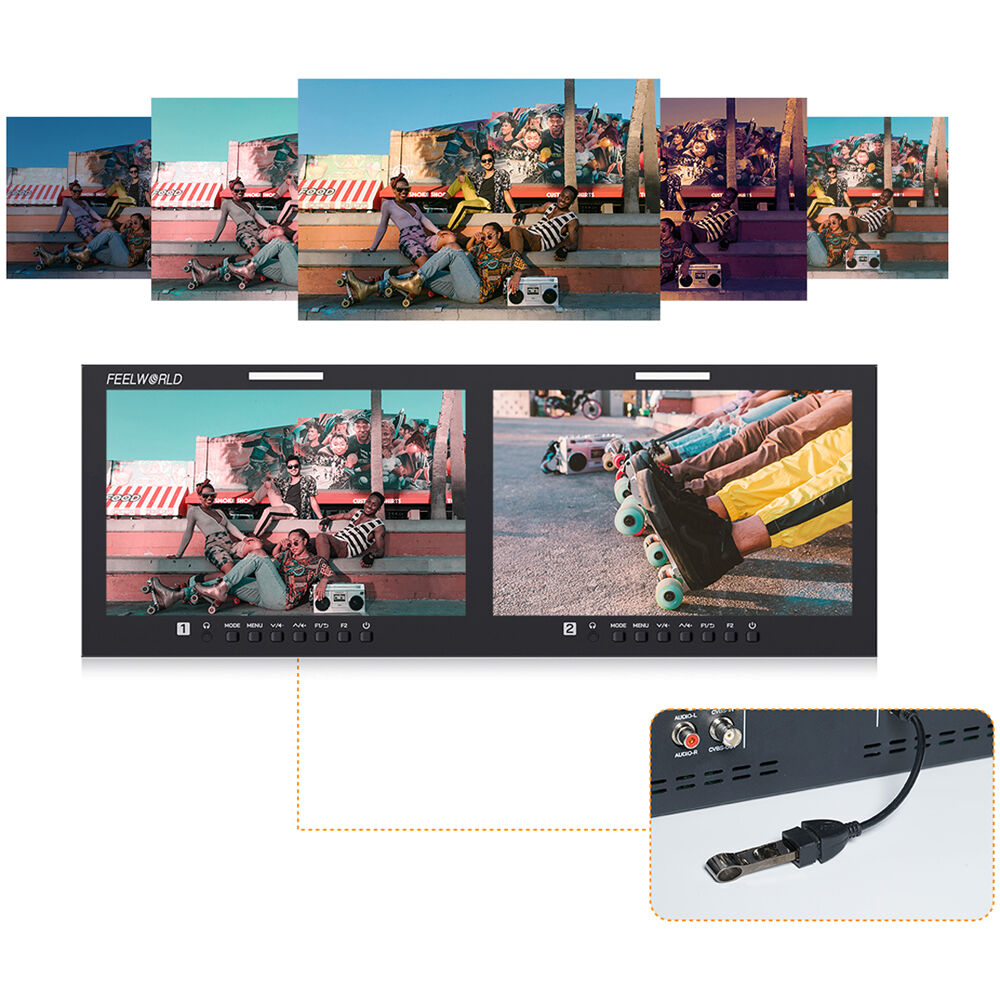

Two headphone outputs make for easy audio monitoring. For power, the D101 Plus-H has both a DC barrel input with an included power adapter and a 4-pin XLR input. Upload custom 3D LUTs or utilize the comprehensive library of video assist functions to ensure your footage achieves your desired look. A redesigned menu interface with onboard buttons makes for intuitive control. A LAN port offers Ethernet connectivity for software control.
| Display Size | 10.1" / 25.7 cm |
| Native Resolution | 1920 x 1200 |
| Touchscreen | No |
| HDR Support | Not Specified by Manufacturer |
| Media/Memory Card Slot | No |
| Wireless | No |
| Video Format | HDMI DCI 4K: 60/50/30/29.97/25/24/23.98 UHD 4K: 60/50/30/29.97/25/24/23.98 1080p: 60/50/30/29.97/25/24/23.98 720p: 60/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 480i 480p 576i 576p |
| Battery | No |
| Power Consumption | 24 W |
| Display Size | 10.1" / 25.7 cm |
| Native Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | 80° |
| Touchscreen | No |

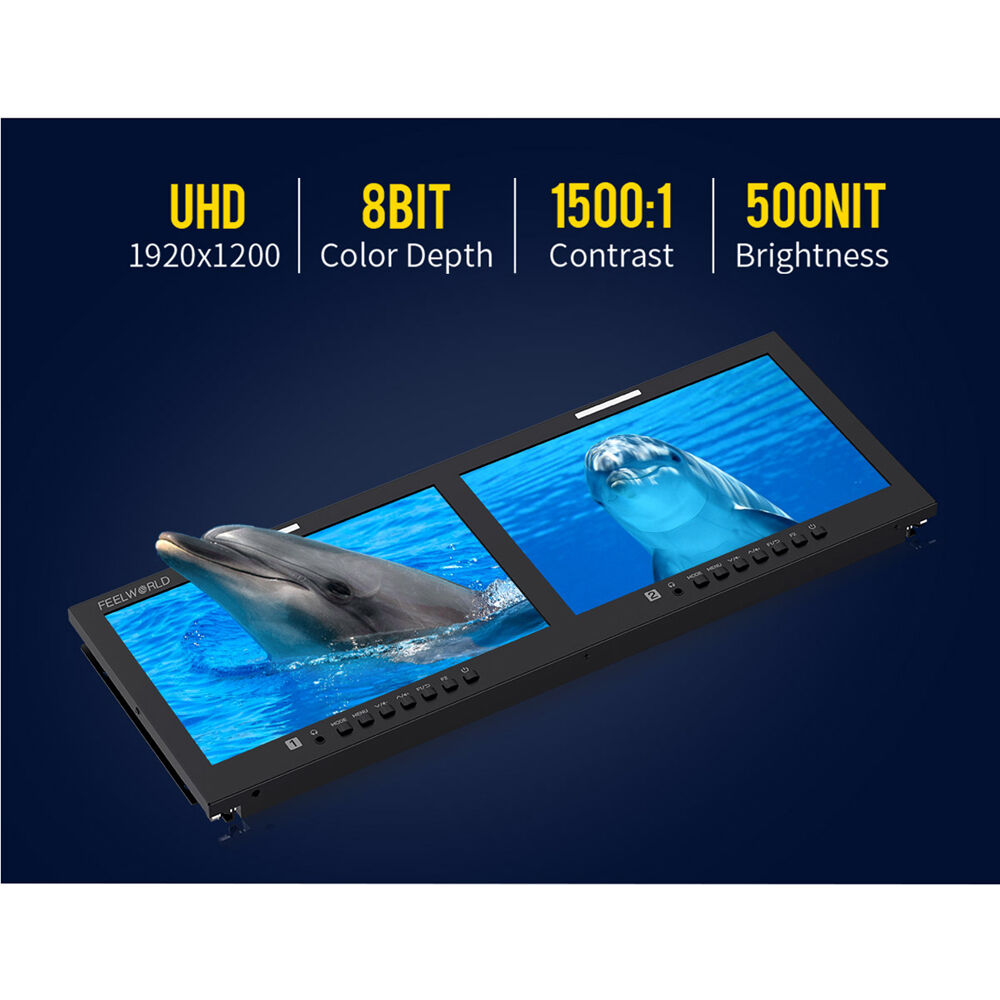

| Maximum Brightness | 500 nits / cd/m2 |
| Contrast Ratio | 1500:1 |
| HDR Support | Not Specified by Manufacturer |
| LUT Support | Yes |

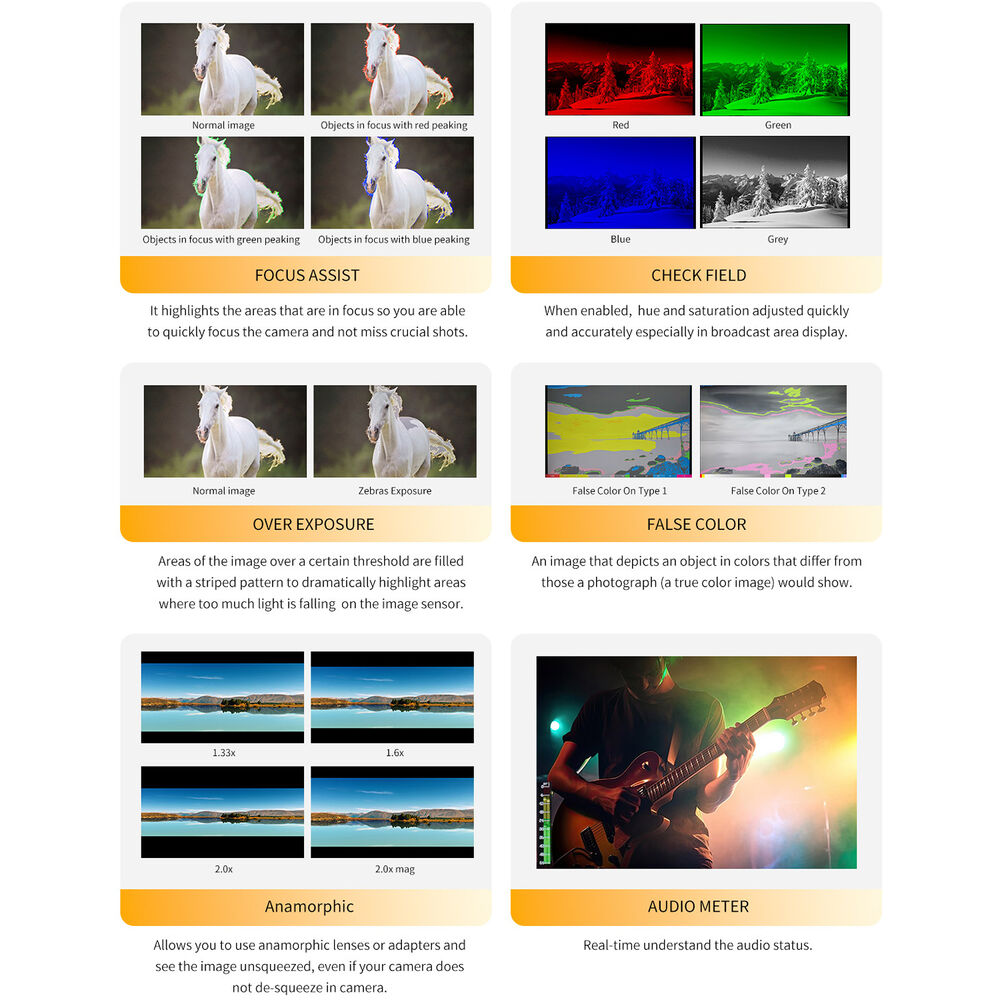

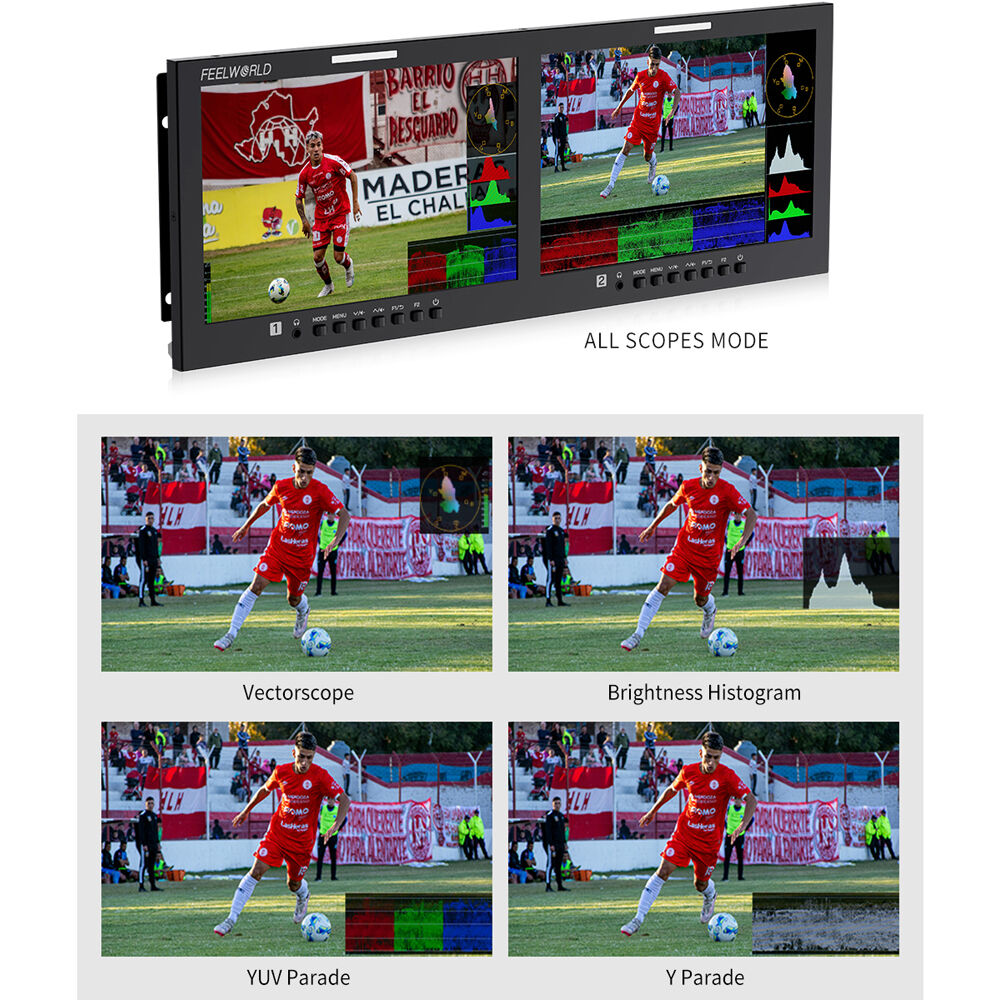

| Image Controls | Anamorphic De-Squeeze, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Freeze, Picture-in-Picture, Vectorscope, Waveform, Zebra |
| Video I/O | 2x HDMI Input 2x HDMI Output 2x BNC (Composite) Output 2x BNC (Composite) Input |
| Embedded Audio | HDMI |
| Audio I/O | 2x RCA Input 2x 1/8" / 3.5 mm Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel (12 VDC) Input 1x XLR 4-Pin Input |
| Other I/O | 1x DE-9/DB-9 (Tally) 1x RJ45 (LAN) 2x Mini-USB (Firmware/LUT Upload) |
| Media/Memory Card Slot | No |
| Wireless | No |
| Mobile App Compatible | No |
| Video Format | HDMI DCI 4K: 60/50/30/29.97/25/24/23.98 UHD 4K: 60/50/30/29.97/25/24/23.98 1080p: 60/50/30/29.97/25/24/23.98 720p: 60/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 480i 480p 576i 576p |
| Input Power | 9 to 24 VDC |
| Battery | No |
| Power Consumption | 24 W |
| Rack Form Factor | 4 RU |
| Environmental Resistance | No |
| Operating Conditions | 14 to 140°F / -10 to 60°C |
| Storage Conditions | -22 to 158°F / -30 to 70°C |
| Material of Construction | Metal |

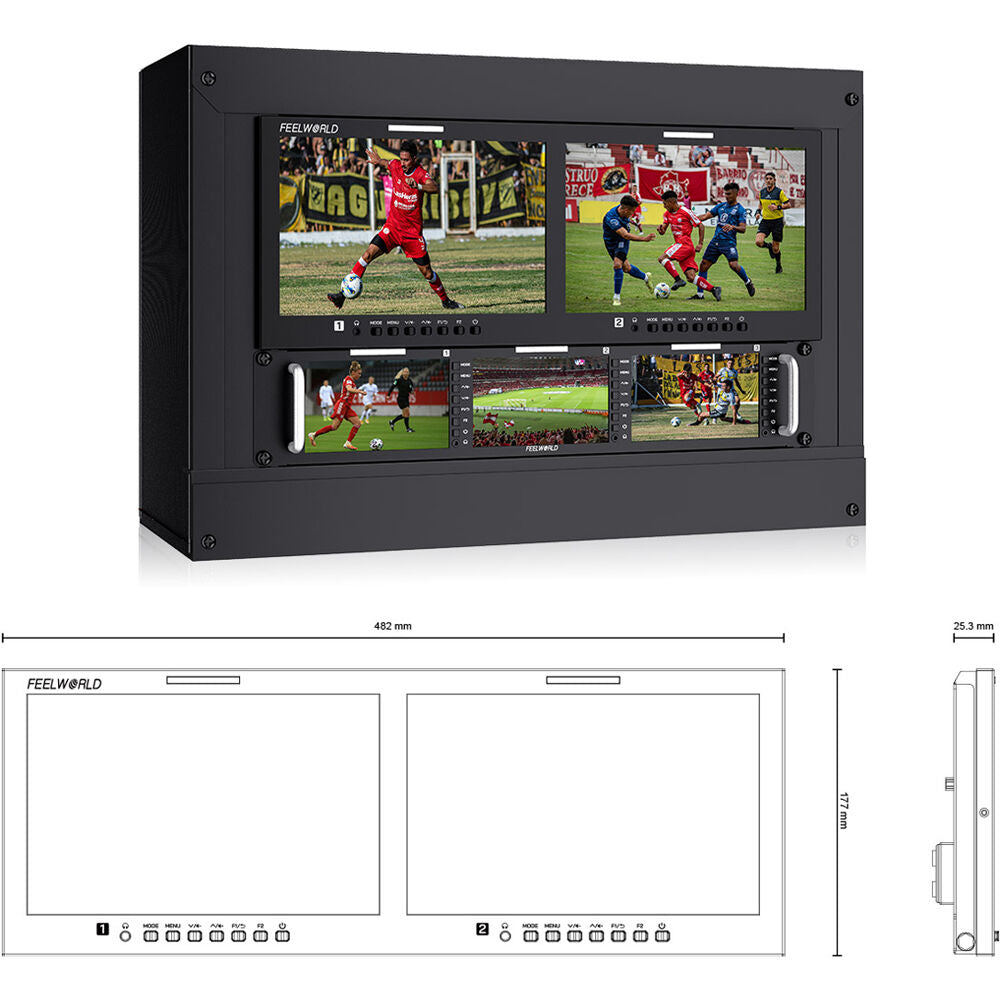

| Dimensions | 19.5 x 7.3 x 1.4" / 495 x 186 x 35 mm |
| Weight | 4.4 lb / 2000.00 g |
| Package Weight | 6.45 lb |
| Box Dimensions (LxWxH) | 21.7 x 10.8 x 2.9" |
