Description

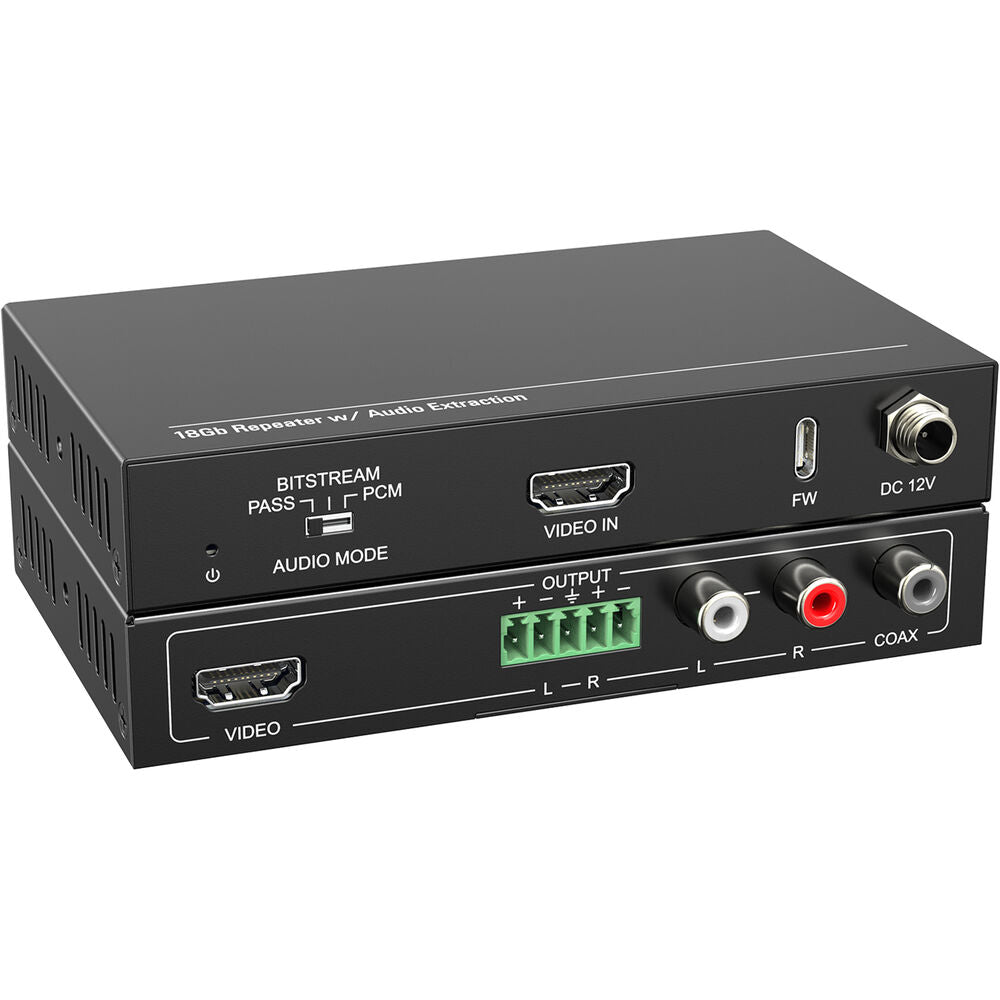

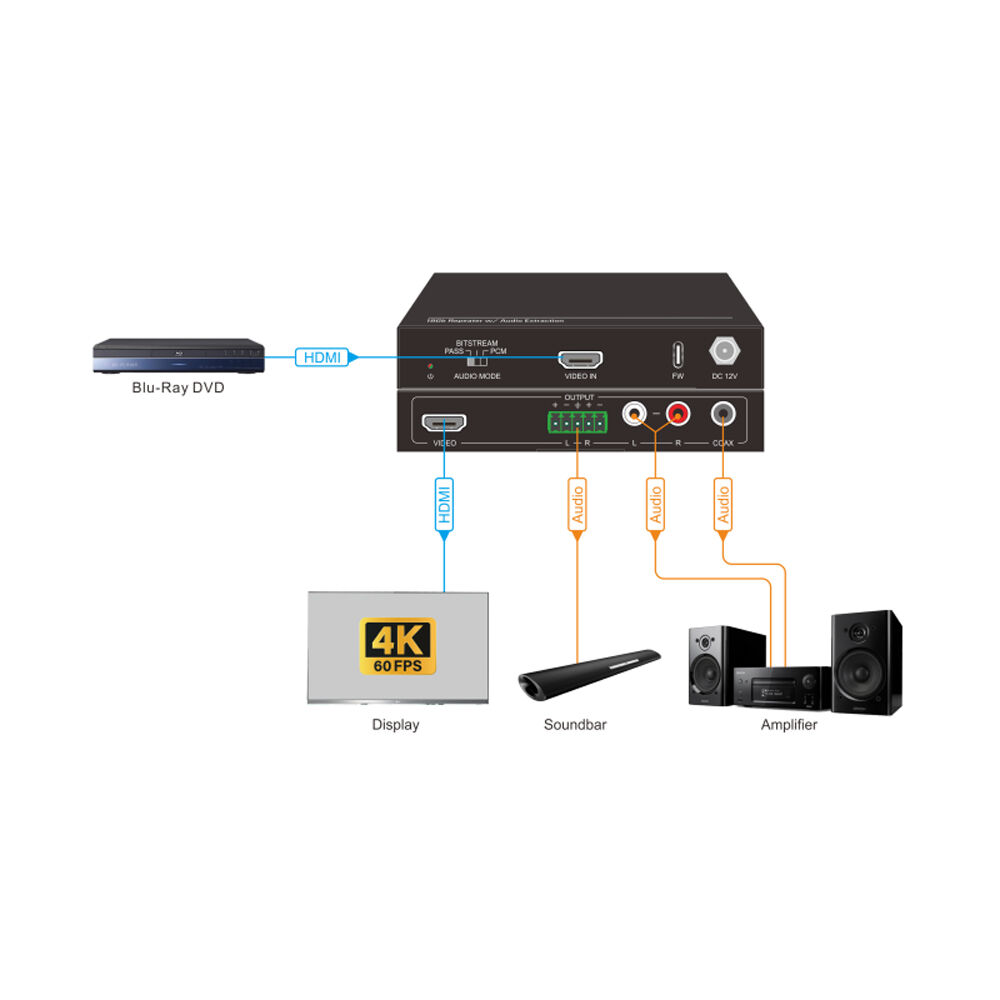

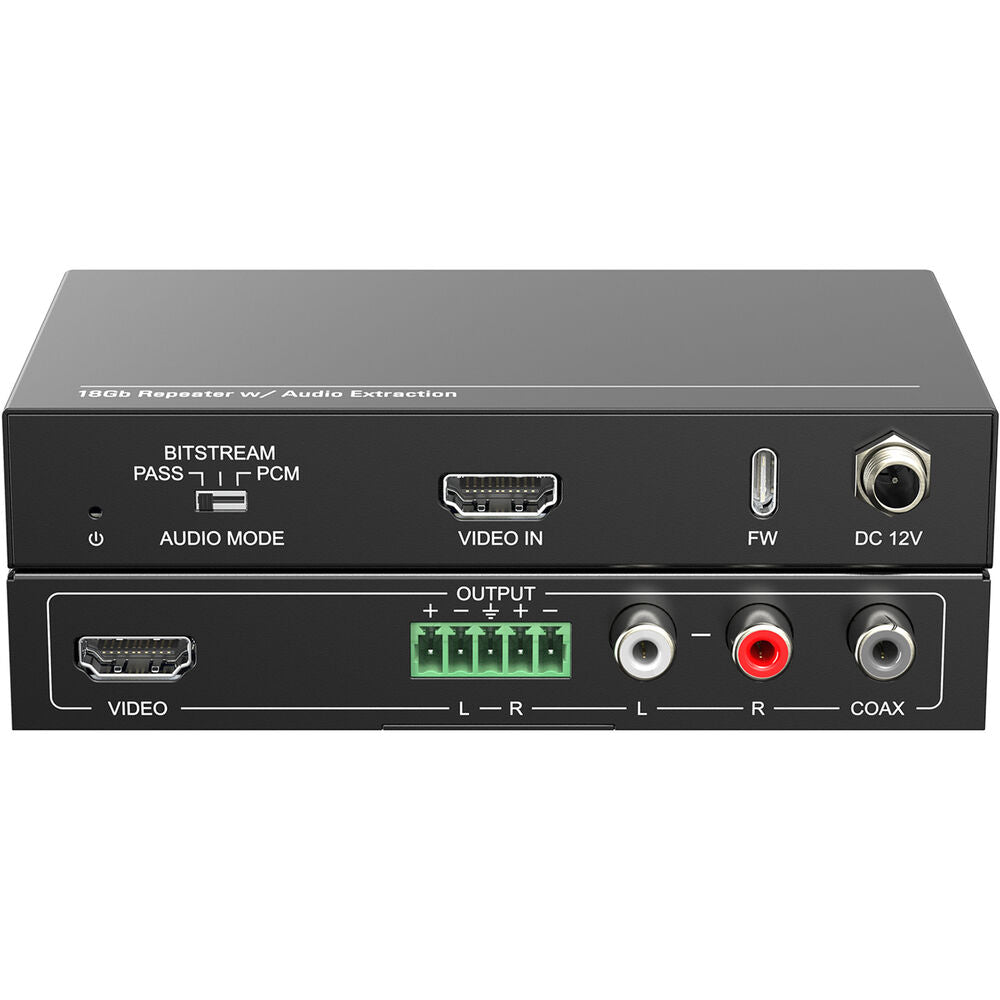

The 4K HDMI 2.0 Audio Extractor with Balanced Audio Output from DVDO allows you to extract digital or analog audio signals for output to a speaker or mixer from a single HDMI source for home theater, digital signage, hospitality, education, house of worship, and more. Audio output options include stereo balanced analog 5-pin terminal block, analog L/R RCA, and coax digital RCA. It also features an HDMI loop output.
The device supports LPCM 2-channel, Dolby Digital, and DTS passthrough digital audio formats. There are three audio modes, including PASS, BITSTREAM, and PCM, adjustable with a front switch to suit your needs. It also provides bitstream audio downmixing to the analog stereo output. The HDMI ports support up to 4K60 4:4:4 video sources. Additional passthrough support includes HDR10, HBR audio, and CEC. The extractor is HDCP 2.2 and EDID compliant for integration into your postproduction or delivery workflow.
| Data Rate | Up to 18 Gb/s |
| Audio Format | Analog: PCM Coaxial: LPCM 2CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH HBR (High Bit Rate) |
| Sample Rate | Analog: 192 kHz Coaxial: 49 kHz |
| Video Format | Up to 4K60 4:4:4 HDR 10+, Dolby Vision, EDID, and CEC Passthrough |
| Compliance | HDCP 2.2, EDID |
| Video I/O | 1x HDMI 2.0 Input 1x HDMI 2.0 Output |
| Audio I/O | 1x RCA Output (Digital Coax) 1x 2RCA Line Output (Analog) 1x Block 5-Pin Line Output (Analog) |
| Power Source | DC Input |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 12 VDC at 1 A |
| Power Consumption | 2.2 W (Maximum) |
| Mounting | 2x Rack Ears |
| Color | Black |
| Material of Construction | Metal |
| Operating Conditions | 23 to 131°F / -5 to 55°C at 10 to 90% Humidity |
| Storage Conditions | -13 to 158°F / -25 to 70°C at 10 to 90% Humidity |
| Dimensions | 5 x 3 x 0.8" / 126 x 77 x 21.5 mm |
| Weight | 7.9 oz / 225 g |
| Package Weight | 1.215 lb |
| Box Dimensions (LxWxH) | 8 x 7.1 x 2.2" |
