Description

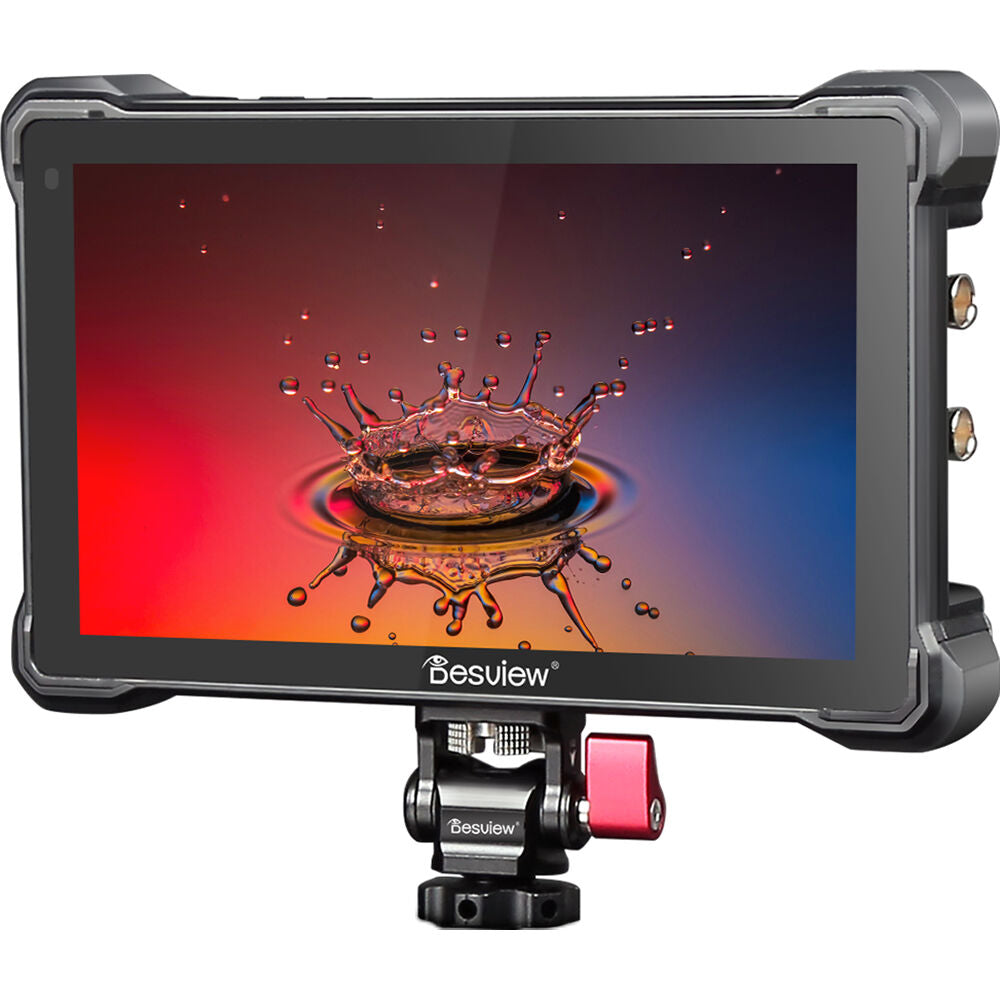

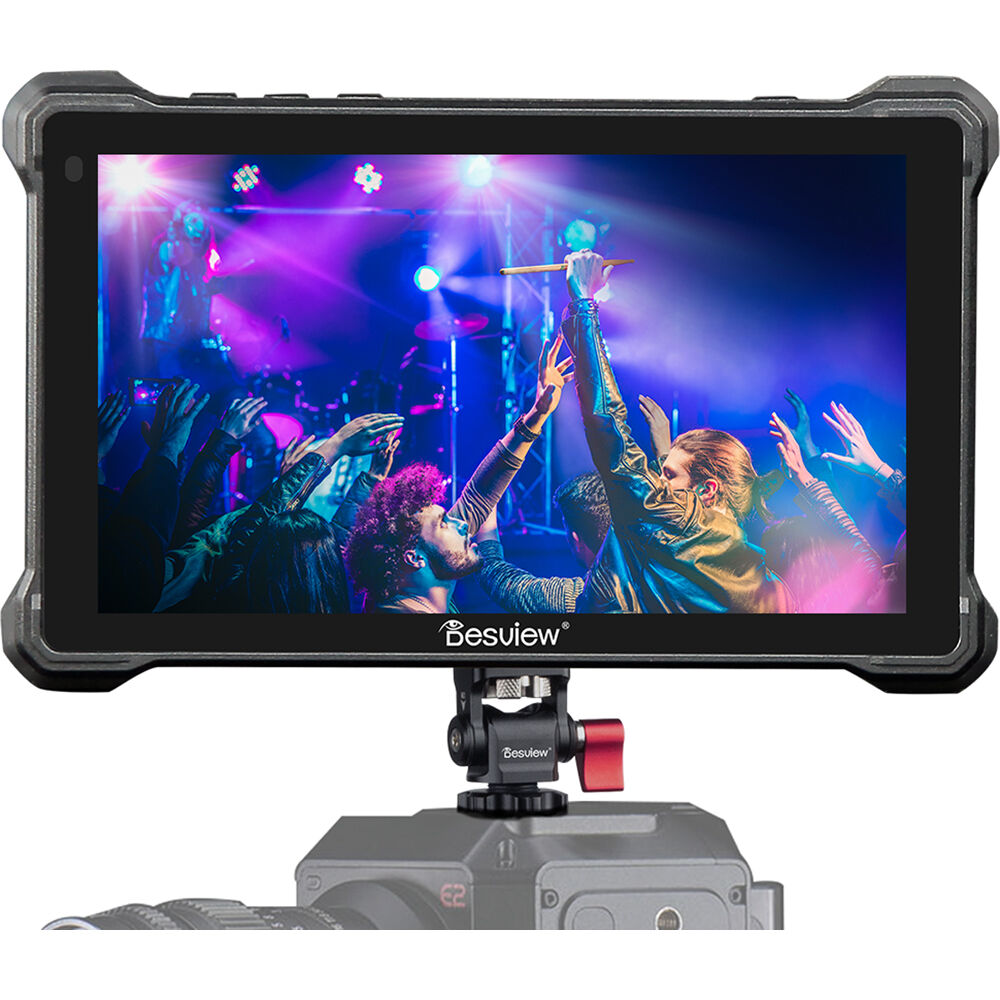

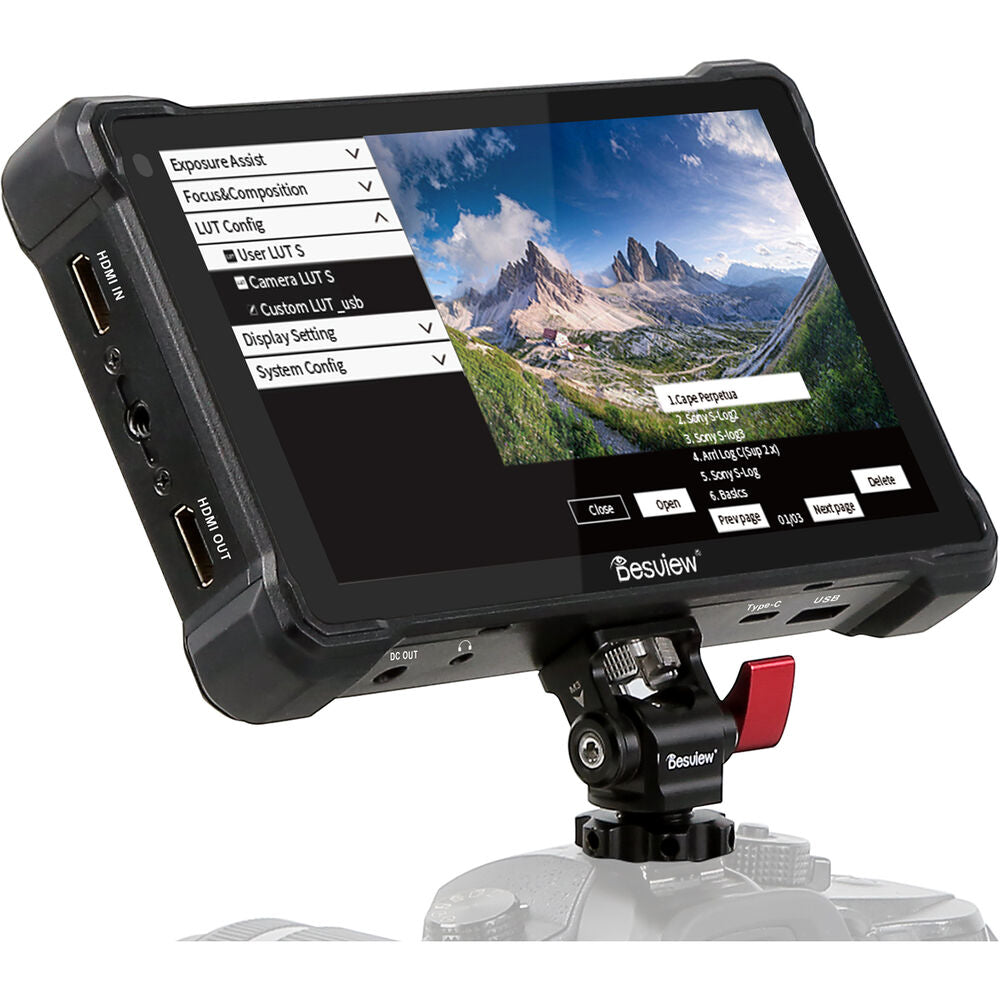

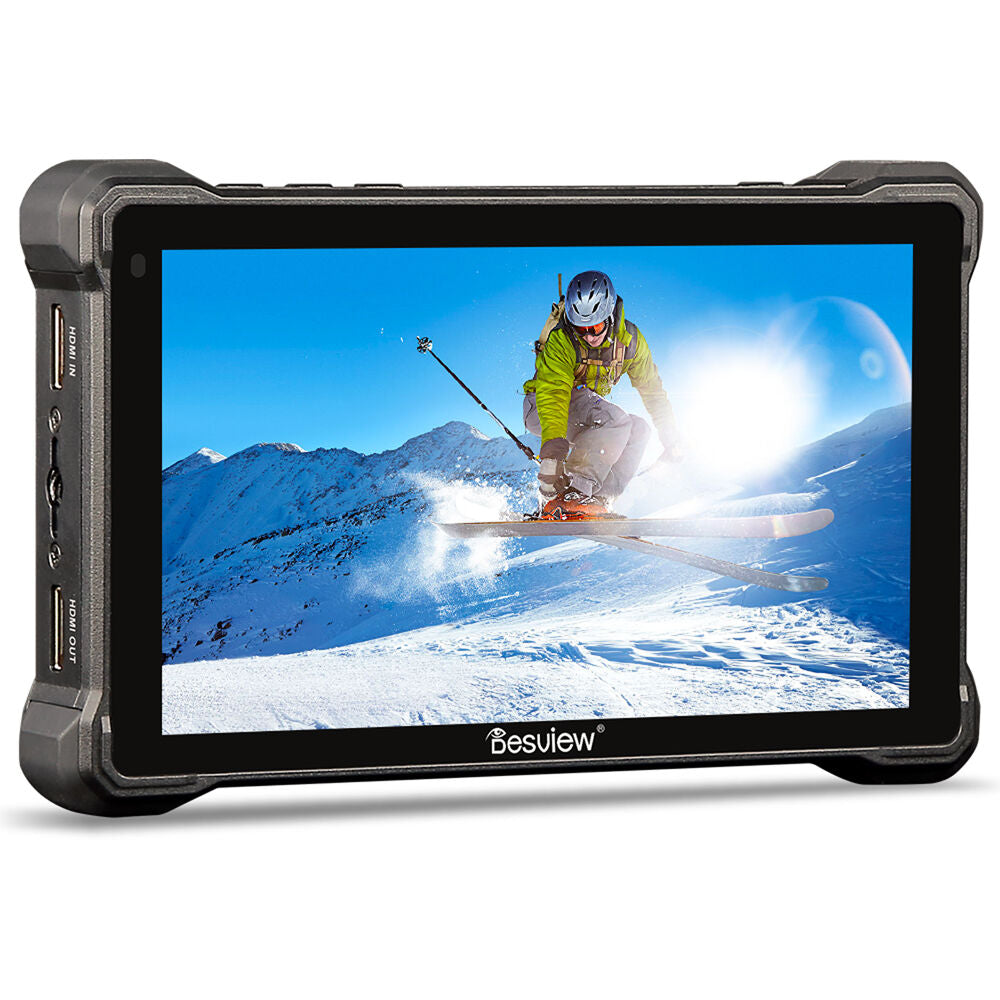

The R7SIII 7" High-Bright 1080p Touchscreen Monitor with 4K60 HDMI/3G-SDI I/O from Desview enables you to view your video capture using a sharp 7" IPS LCD with 1920 x 1080 resolution, 2800 cd/m² of brightness, 1000:1 contrast ratio, 10-bit color, and touchscreen control. Features include a viewing angle of 178°, HDMI 2.0 and 3G-SDI input and output, LUT import via the USB-A port, a 3.5mm headphone output, and support for up to DCI 4K60 HDMI video input and output with embedded audio. There are numerous imaging tools built into the monitor, including vectorscope, waveform, and zebra, among many others.
The R7SIII is powered using the integrated dual L-series battery plate, via USB-C, or via a separately available DC barrel adapter. The monitor also features an 8 VDC barrel output for powering your camera using the camera batteries using a separately available dummy battery or cable. Mount the R7SIII on your rig using the 1/4"-20 bottom or side thread and a support arm or the included tilting monitor mount.
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | Yes |
| HDR Support | No |
| Media/Memory Card Slot | No |
| Wireless | No |
| Video Format | HDMI (10-Bit) DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50 |
| Battery | 2x L-Series Mount on Fixed Plate |
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | Yes |
| Maximum Brightness | 2800 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| Color Support | 1.07 Billion Colors (8-Bit+FRC) |
| HDR Support | No |
| Color Gamut | 100% DCI-P3 |
| LUT Support | Yes |
| Image Controls | Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Vectorscope, Waveform, Zebra |
| Video I/O | 1x HDMI 2.0 Input 1x HDMI 2.0 Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel (30 VDC) Input 1x Barrel 2.1 mm (8 VDC) Output |
| Other I/O | 1x USB-A (Firmware/LUT Upload) Input |
| Media/Memory Card Slot | No |
| Wireless | No |
| Mobile App Compatible | No |
| Video Format | HDMI (10-Bit) DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50 |
| Input Power | 7 to 30 VDC |
| Battery | 2x L-Series Mount on Fixed Plate |
| Tripod/Accessory Mounting | Bottom/Left 1x 1/4"-20 Female |
| Environmental Resistance | No |
| Dimensions | 7.5 x 4.6 x 2.1" / 190.2 x 117.7 x 52.3 mm |
| Weight | 17.64 oz / 500.00 g |
| Package Weight | 2.51 lb |
| Box Dimensions (LxWxH) | 9.4 x 6.7 x 3.2" |
