Description

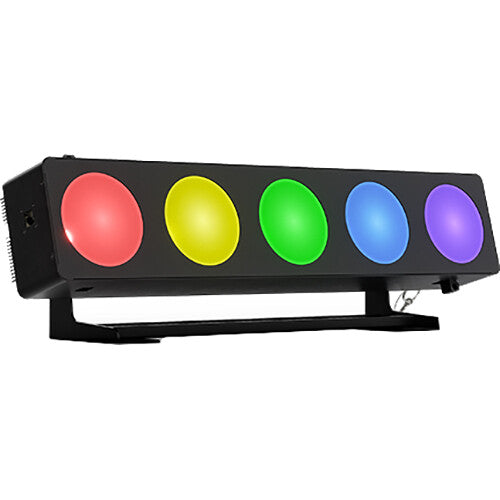

The multi-purpose Core 5X1 ILS RGB+WW LED Effect Light from CHAUVET DJ provides natural color tones to live setups by offering pixel-mapped looks, chase effects, blinder bursts, and color washes. With COB technology and a large reflector design, the Core 5X1 ILS has a broad spectrum of colors and helps you create custom shapes, while an optional D-Fi USB lets you wirelessly sync it with multiple ILS-compatible fixtures. The Integrated Lighting System (ILS) is a complete lighting ecosystem technology that delivers an advanced, coordinated light show across multiple fixture types. The Core 5X1 ILS's floor mounting design enables uplighting, or you can attach up to six fixtures together thanks to its built-in toolless connecting hardware. Its robust housing ensures safe transportation from gig to gig.
| Item Type | 1x Linear/Bar Light |
| Light Source | LED Light Engine • 5x Red, Green, Blue, Warm White (35 W / 1.2 A) |
| Pixel Zones | 5 |
| Control Protocols | DMX512, ILS |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power / Current Consumption | 120 VAC, 60 Hz: 120 W / 1.8 A 230 VAC, 50 Hz: 113 W / 1.13 A |
| Mounting | Floor Base |
| Item Type | 1x Linear/Bar Light |
| Light Source | LED Light Engine • 5x Red, Green, Blue, Warm White (35 W / 1.2 A) |
| Expected Lamp Life | 50,000 Hours |
| Pixel Zones | 5 |
| Photometrics | 54°: 89 fc / 953 Lux at 6.6' / 2 m |
| Color Temperature | 2700 to 8000K |
| Lumen Output | 2875 Lumens |
| Beam Angle | 54° |
| Field Angle | 75° |
| Shutter / Strobe | Electronic |
| Iris | No |
| Focus | Manual |
| Zoom Adjustment | No |
| Dimming | Electronic, 0 to 100% |
| Operating Modes | DMX, Primary/Secondary, Standalone |
| Strobe Rate | 0 to 20 Hz |
| Gobos | No |
| Control Protocols | DMX512, ILS |
| DMX Channel Modes | 3 Mode(s): 4 / 8 / 22-Channel |
| Remote Control | D-Fi USB (with Optional Equipment) RF Remote (with Optional Equipment) |
| Mobile App Compatible | No |
| Inputs/Outputs | 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| Wireless | 2.4 GHz Radio/RF *Built-In Proprietary Wireless *Via Optional Adapter |
| AC Power Connector | Input: 1x powerCON Output: 1x powerCON Plug Type: NEMA 5-15 Cord Length: 5' / 1.5 m |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Fuse | T 3.5 A L 250 V |
| Power / Current Consumption | 120 VAC, 60 Hz: 120 W / 1.8 A 230 VAC, 50 Hz: 113 W / 1.13 A |
| Power Linking | 6 Units at 120 VAC 10 Units at 230 VAC Total Current: 8 A |
| Environmental Resistance | No |
| Operating Conditions | Up to 104°F / 40°C |
| Mounting | Floor Base |
| Included Accessories | 1x Power Cable |
| Duty Cycle | No |
| Exterior Color | Black |
| Cooling | Convection |
| Certifications | CE, RoHS |
| Dimensions | 23.6 x 4.7 x 3.1" / 59.9 x 11.9 x 7.9 cm |
| Weight | 11 lb / 5 kg |
| Package Weight | 14.68 lb |
| Box Dimensions (LxWxH) | 26.3 x 8.7 x 8.6" |
