Description

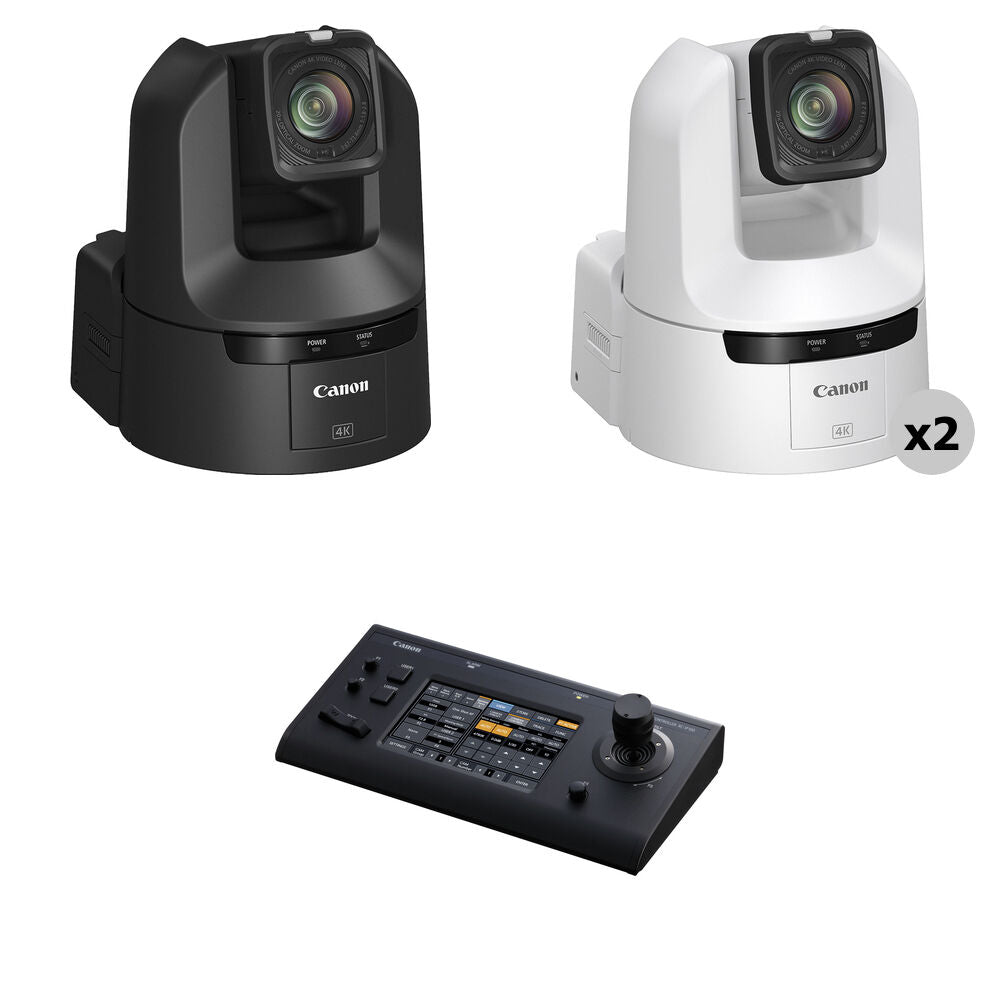

Control your Canon PTZ cameras using IP or serial control with precision controls and a touchscreen display with the RC-IP100 Touchscreen PTZ Joystick Controller from Canon. The controller is compatible with the Canon CR-N300 and CR-N500 PTZ cameras and allows a single operator to control up to 100 cameras from a remote location. The 7" touchscreen provides configuration and camera settings control.
The IP100 is compatible with the proprietary Canon XC IP protocol, not a standard LAN, so you can create a private, secure network to control your cameras using the LAN port. It also features a second RJ45 port that allows you to control the cameras via RS-422 serial protocol. The bright 7" touchscreen allows you to control and configure up to 100 cameras and it can create and store up to 100 presets.
The precision joystick controls fine pan and tilt movements, and on the other side of the controller is a zoom rocker, providing an ergonomic layout to control pan, tilt, and zoom simultaneously with two hands. It also features four customizable buttons and knobs to make accessing settings and controls quick and easy. The DB-9 input/output port on the back allows you to monitor camera tally information. The unit is powered using a 12V barrel power adapter.

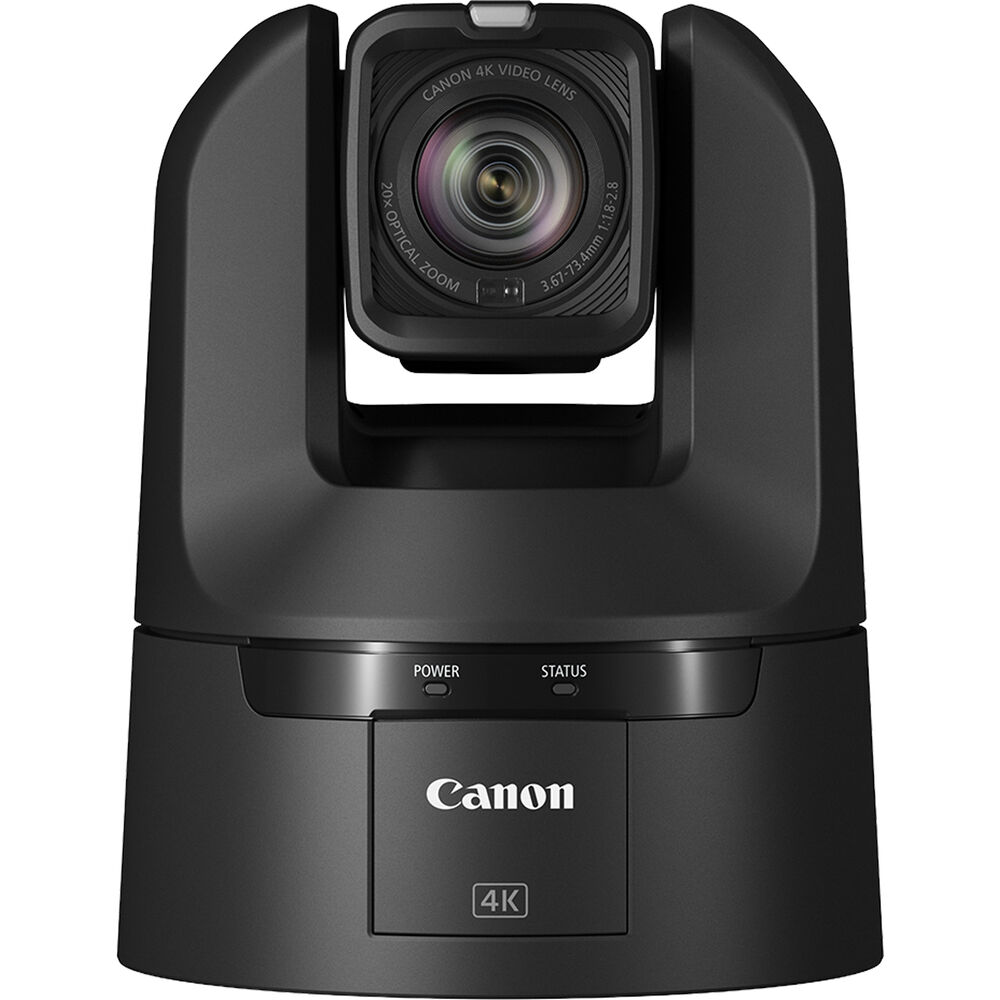

| Image Sensor | 1/2.3"-Type |
| Effective Sensor Resolution | 8.29 Megapixel (3840 x 2160) 7.88 Megapixel (3744 x 2104) |
| Shutter Speed | 1/2000 to 1/3 Second |
| Max Optical Zoom | 20x |
| Max Digital Zoom | 20x ( in UHD 4K) 40x ( in 1080p) |
| Max Video Output | 4:2:0 8-Bit via RJ45 Up to UHD 4K at 5/5.99/11.99/12.50/14.99/23.98/25/29.97/50/59.94 fps 4:2:2 10-Bit via HDMI Up to UHD 4K at 23.98/25/29.97 fps 4:2:2 10-Bit via SDI/BNC Up to 1080p at 23.98/25/29.97/50/59.94 fps |
| Max Recording Modes | No |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Camera Control Canon XC/FreeD/NDI/HX2 |
| IP Streaming | H.264 via NDI HX/RTMP/RTMPS/RTP/RTSP/SRT 640 x 360 to 3840 x 2160 at 5.00p, 12.5p, 14.99p, 29.97p, 50p, 59.94p |
| Wireless | IR |
| PoE Support | Yes: PoE++ 802.3bt |
| Mounting | 1x 1/4"-20 Female for Tripod |
| Image Sensor | 1/2.3"-Type CMOS |
| Sensor Resolution | Effective: 8.29 Megapixel (3840 x 2160) Actual: 21.14 Megapixel Effective: 7.88 Megapixel (3744 x 2104) Actual: 21.14 Megapixel |
| IR Cut Filter | No |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/2000 to 1/3 Second |
| Minimum Illumination | 3 Lux at 1/60 Shutter Speed 1.5 Lux at 1/30 Shutter Speed |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Range: 2000 to 15,000K Presets: AWB, Daylight, Manual, Set A, Set B, Tungsten |
| Focal Length | 3.7 to 73.4mm (35mm Equivalent: 29.3 to 601mm) |
| Max Optical Zoom | 20x |
| Max Digital Zoom | 20x ( in UHD 4K) 40x ( in 1080p) |
| Field of View | Horizontal: 63.3 to 3.5° Vertical: 38.9 to 2° Horizontal: 65.6 to 3.6° Vertical: 39.8 to 2° |
| Maximum Aperture | f/1.8 to 2.8 |
| Minimum Focus Distance | 0.4" / 1 cm (Wide) to 23.6" / 60 cm (Tele) |
| Video Output | 4:2:0 8-Bit via RJ45 3840 x 2160 at 5/5.99/11.99/12.50/14.99/23.98/25/29.97/50/59.94 fps 1920 x 1080 at 5/5.99/11.99/12.50/14.99/23.98/25/29.97/50/59.94 fps 1280 x 720 at 5/5.99/11.99/12.50/14.99/23.98/25/29.97/50/59.94 fps 640 x 360 at 5/5.99/11.99/12.50/14.99/23.98/25/29.97/50/59.94 fps 4:2:2 10-Bit via HDMI 3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 720 x 576 at 50 fps 720 x 480 at 59.94 fps 4:2:2 10-Bit via SDI/BNC 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Embedded Audio | HDMI/IP/NDI/SDI |
| Internal Recording | No |
| Audio Recording | Yes |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Camera Control Canon XC/FreeD/NDI/HX2 |
| IP Streaming | H.264 via NDI HX/RTMP/RTMPS/RTP/RTSP/SRT 640 x 360 to 3840 x 2160 at 5.00p, 12.5p, 14.99p, 29.97p, 50p, 59.94p |
| Presets | 100 via IP/IR/RS-422 |
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 0.1 to 200°/s Tilt: 130° (-30 to 100°) at 0.1 to 180°/s |
| Tally Light | Yes |
| Wireless | IR |

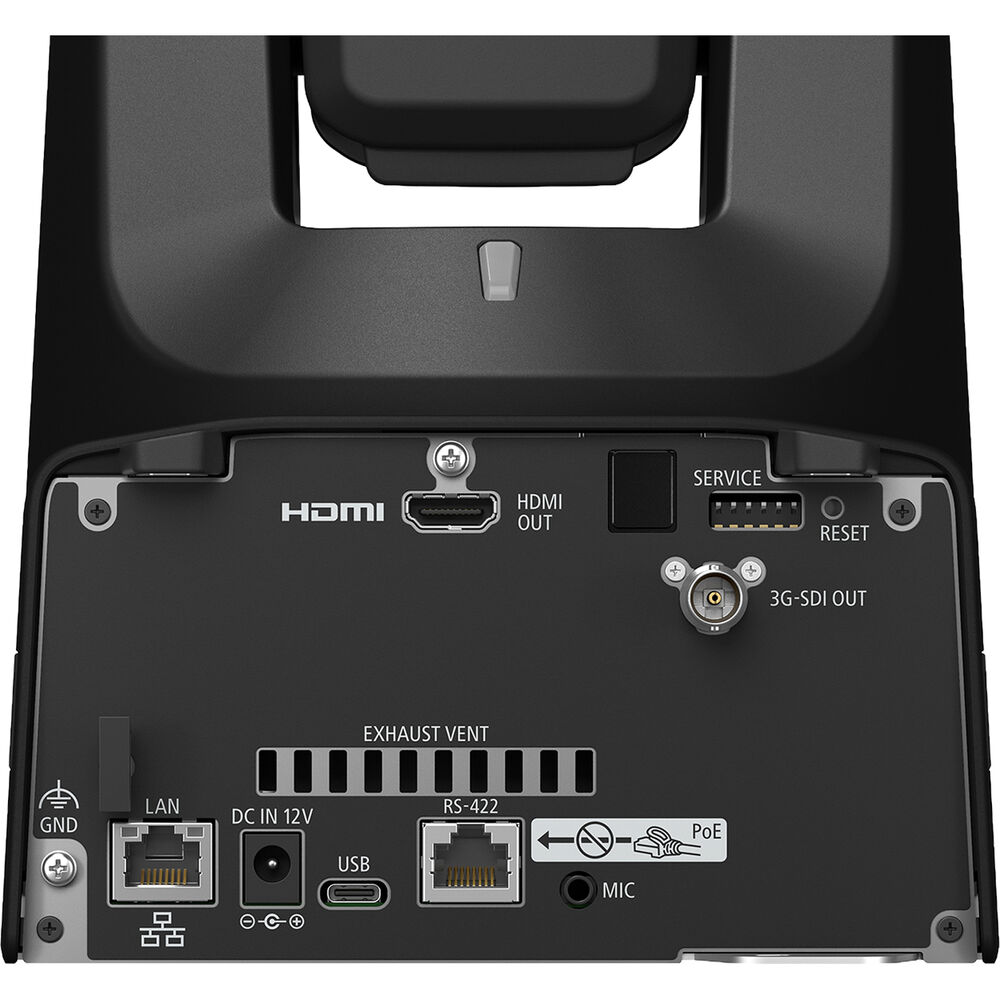

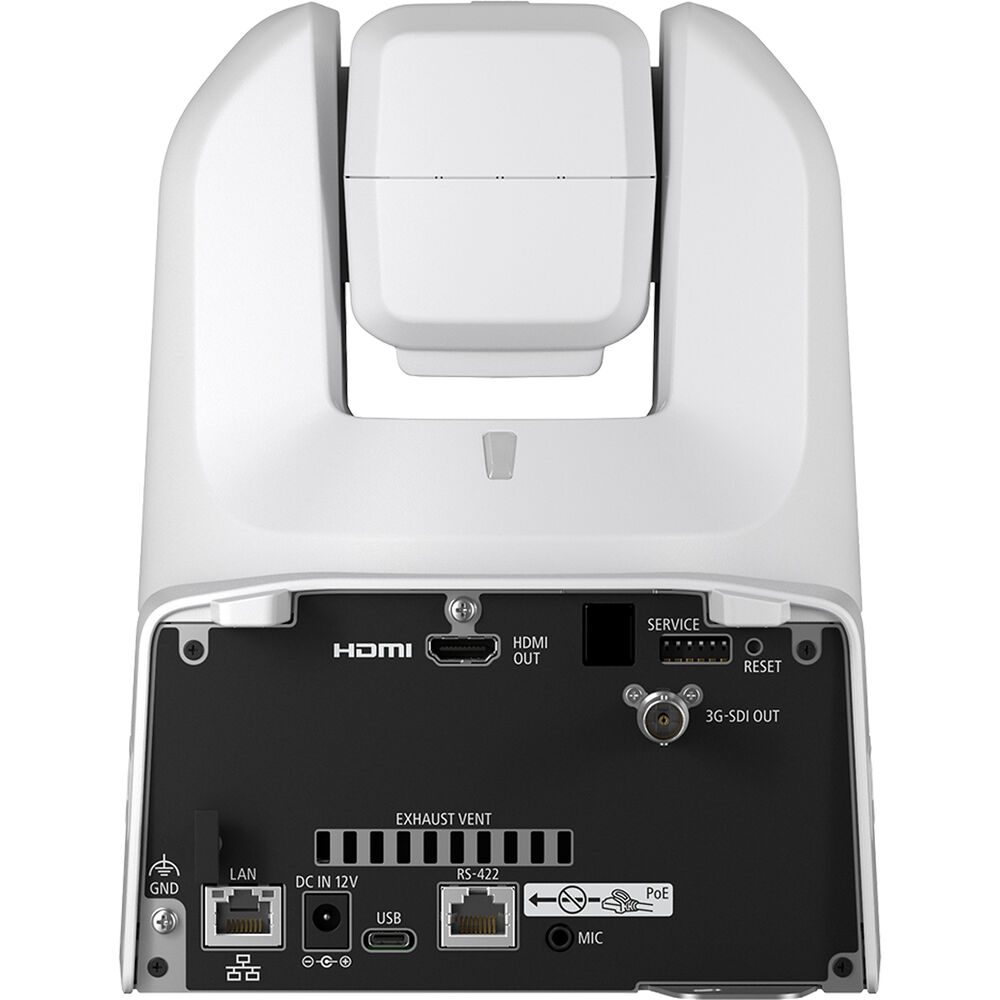

| Video I/O | 1x BNC (3G-SDI) Output 1x HDMI Output 1x RJ45 (NDI) Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Other I/O | 1x RJ45 (RS-422) Control 1x USB-C 1x BNC (Timecode) (Shared with Video Output) |
| Built-In Microphone | No |
| Built-In Speaker | No |
| PoE Support | Yes: PoE++ 802.3bt |
| Power I/O | 1x Barrel (12VDC) Input |
| Power Consumption | PoE: 26.1 W Device: 24 VDC 23.6 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 10 to 90% Humidity |
| Storage Conditions | 32 to 104°F / 0 to 40°C at 10 to 90% Humidity |
| Impact Resistance | No |
| Environmental Resistance | No |
| Mounting | 1x 1/4"-20 Female for Tripod |
| OS Compatibility | Computer: Windows 10 or Later / macOS 11 Only Mobile: Android/iOS |
| Dimensions (W x H x D) | 8.7 x 7.6 x 6.9" / 220 x 194 x 176 mm (Without Protrusions) |
| Weight | 7 lb / 3 kg (Body Only) |
| Package Weight | 12.675 lb |
| Box Dimensions (LxWxH) | 16.2 x 14.7 x 13.6" |
