Description

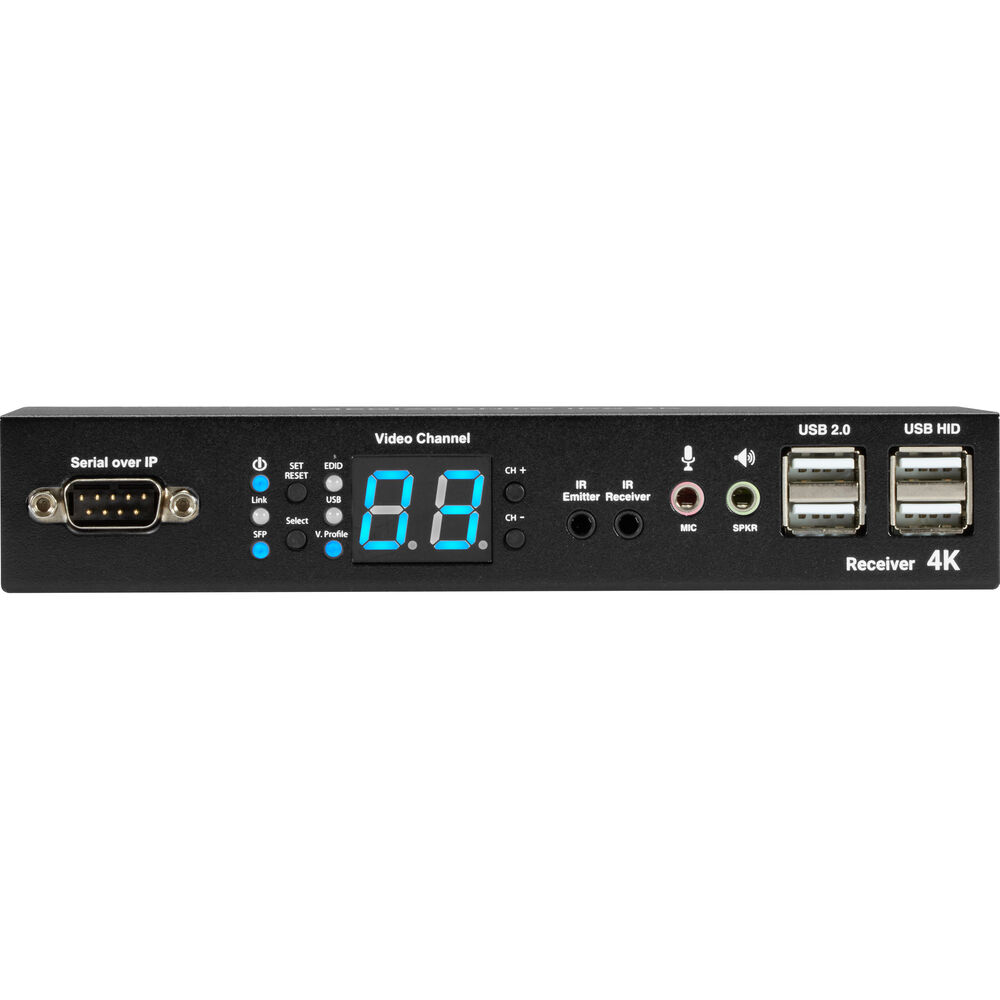

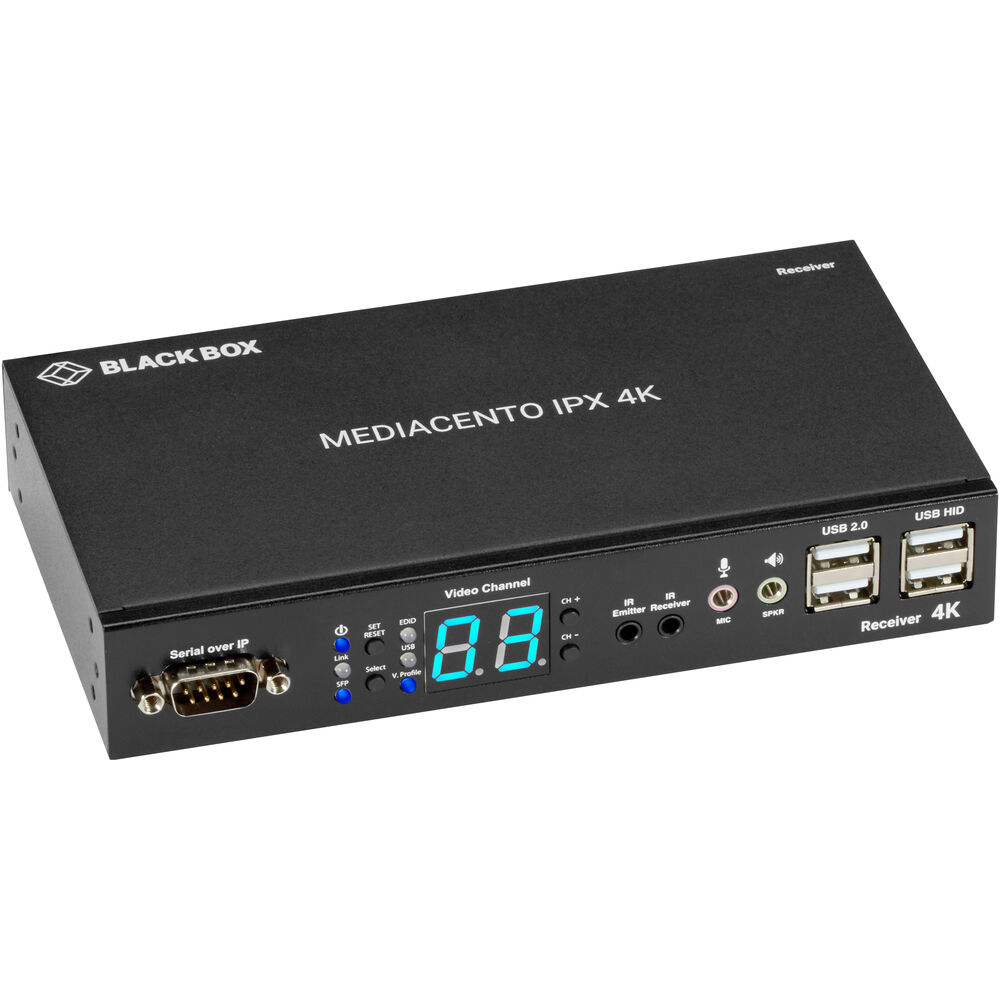

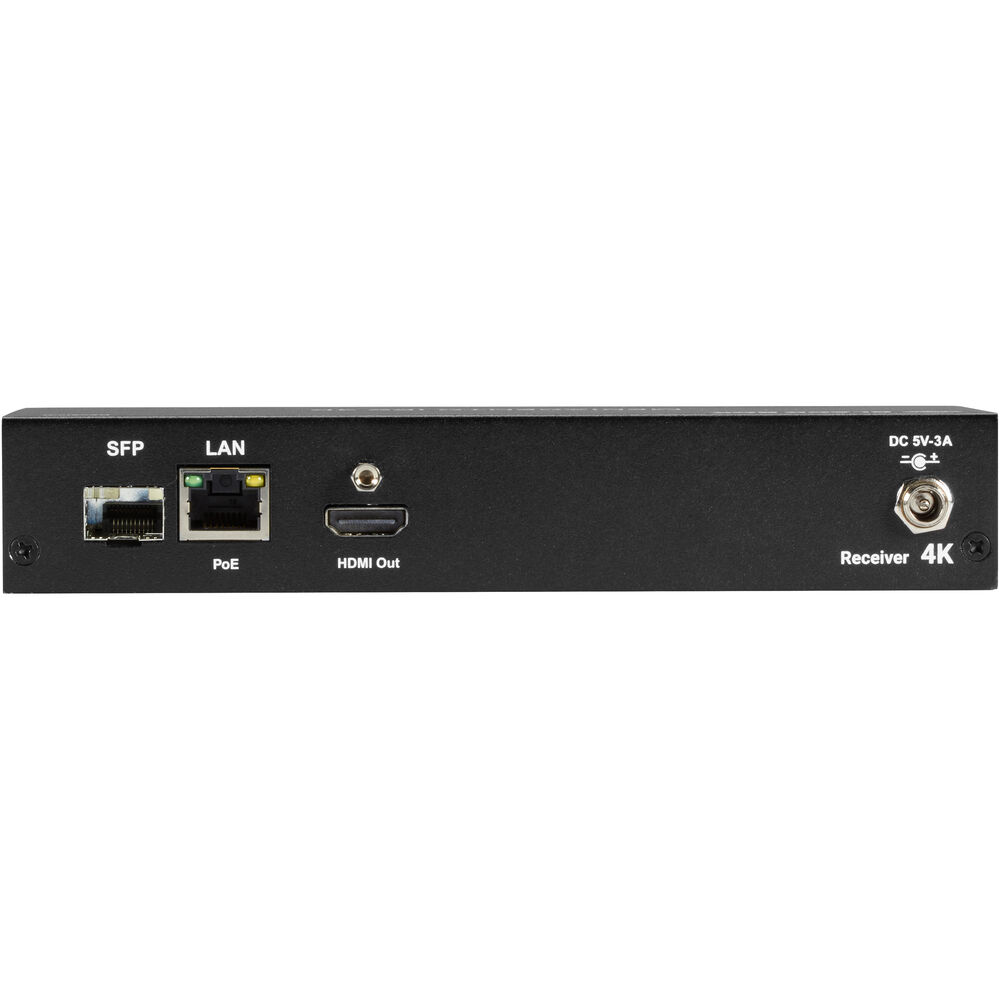

The MediaCento IPX 4K Receiver with HDMI, USB, Serial, IR, Audio from Black Box provides long-range Ethernet extension of features and functions such as DCI/UHD 4K30 video, audio, USB, bidirectional IR, and RS-232. The receiver works with a separately available transmitter to extend these AV and control features via Gigabit Ethernet over RJ45 up to 328' away or single-mode fiber via an optional SFP module up to 18 miles away with low latency.
The 4-port USB 2.0 hub enables KVM extension, it outputs video via HDMI, and it supports embedded audio output or 3.5mm analog audio passthrough. The unit can support video walls with up to 8x8 displays. The unit can be powered via the included power supply or via PoE to reduce cabling.
| Transmission I/O | 1x HDMI Female Output 1x DB-9 Female (RS-232) Output 1x RJ45 Female (Data / LAN) Input/Output 1x SFP Module Included Output 4x USB-A Female (2.0 / Data) Output 1x 1/8" / 3.5 mm TRS Female (IR) Input 1x 1/8" / 3.5 mm TRS Female (IR) Output 1x 1/8" / 3.5 mm TRS Female (Line) Output 1x 1/8" / 3.5 mm TRS Female (Mic) Output |
| Embedded Audio | HDMI RJ45 |
| Power I/O | 1x Barrel (5 VDC at 3 A) Input 1x RJ45 (36 to 57 VDC) Input |
| HDCP Support | Yes: Version 2.2 |
| Max Transmission Distance | DCI 4K, UHD 4K, and 1080p: 328' / 100 m (via Cat 5e/6) DCI 4K, UHD 4K, and 1080p: 98425.2' / 30 km (via Single-Mode Fiber) |
| Video Format | HDMI/RJ45/Fiber : 4096 x 2160p: 30 fps |
| Supported Cable Types | Cat 5e/6 or higher Single-Mode Fiber |
| PoE Support | Yes: PoE 802.3af |
| Power Consumption | 10.5 W |
| Certifications | CE, RoHS |
| Operating Conditions | 32 to 122°F / 0 to 50°C up to 80% Humidity |
| Storage Conditions | -4 to 140°F / -20 to 60°C up to 80% Humidity |
| Dimensions | 7.1 x 3.9 x 1.3" / 18 x 9.8 x 3.2 cm |
| Weight | 1 lb / 471 g |
| Package Weight | 2.81 lb |
| Box Dimensions (LxWxH) | 12.5 x 10 x 3.8" |
