Description

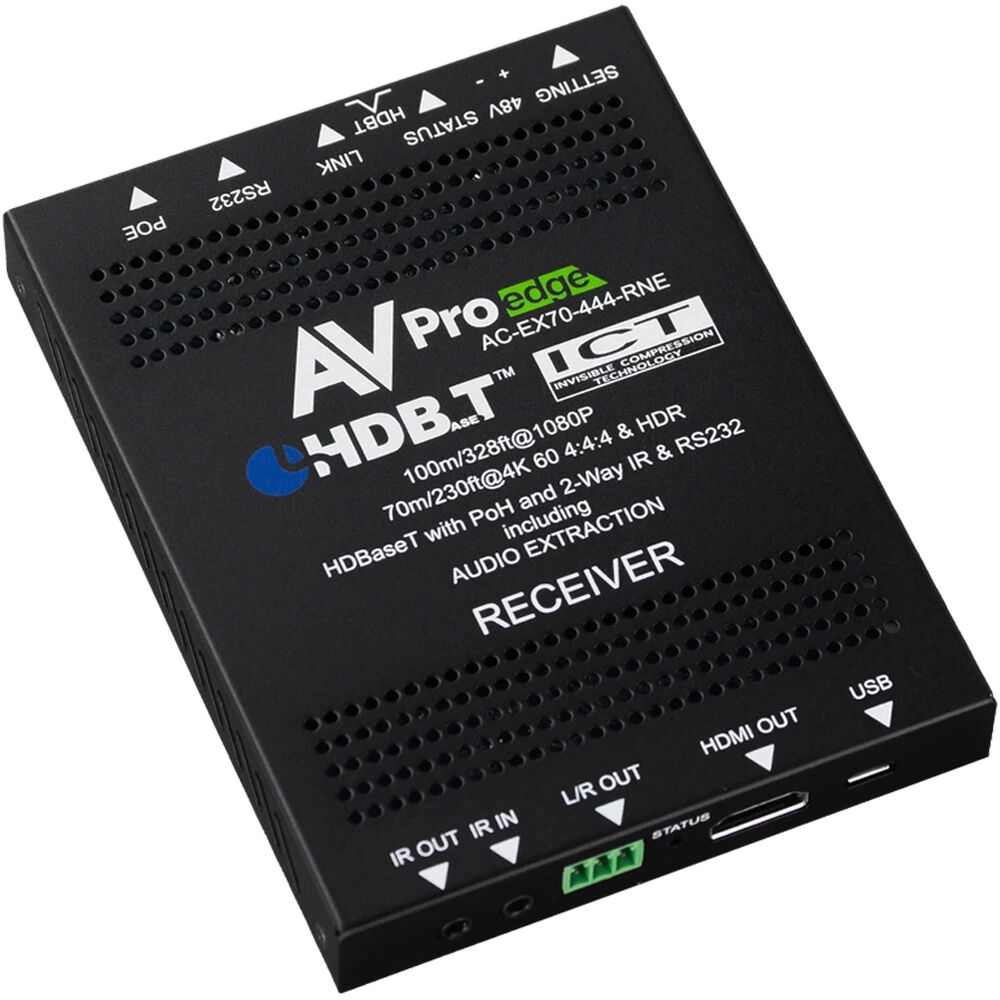

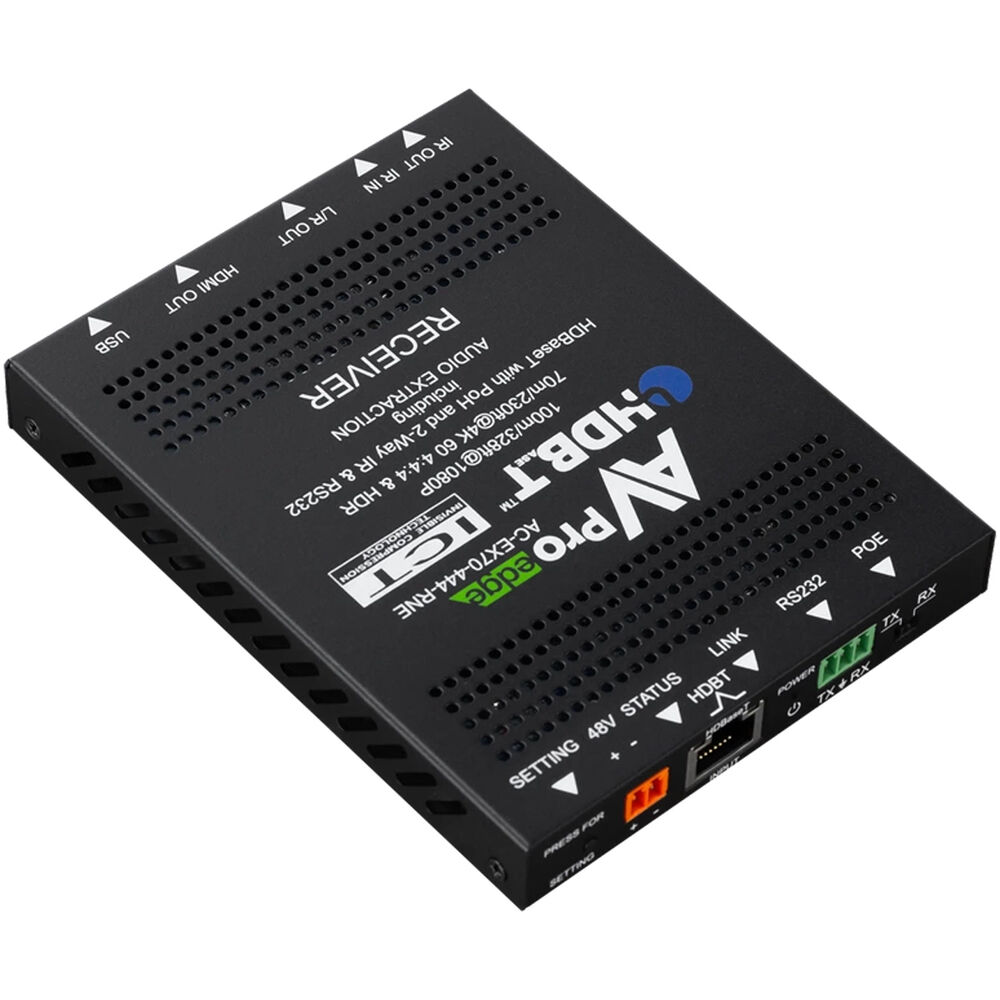

This 4K 4:4:4 HDMI 2.0 over HDBaseT Receiver from AVPro Edge enables the receiving transmissions of 4K60 4:4:4 video signals up to 230' and 1080p60 video signals up to 328' from a separately available AVPro Edge HDBaseT 18 Gb/s ICT matrix switcher. It supports HDR10 and dynamic metadata formats like Dolby Vision, HDR10+, and HLG over Cat 6a cable, ensuring pristine image fidelity from source to display.

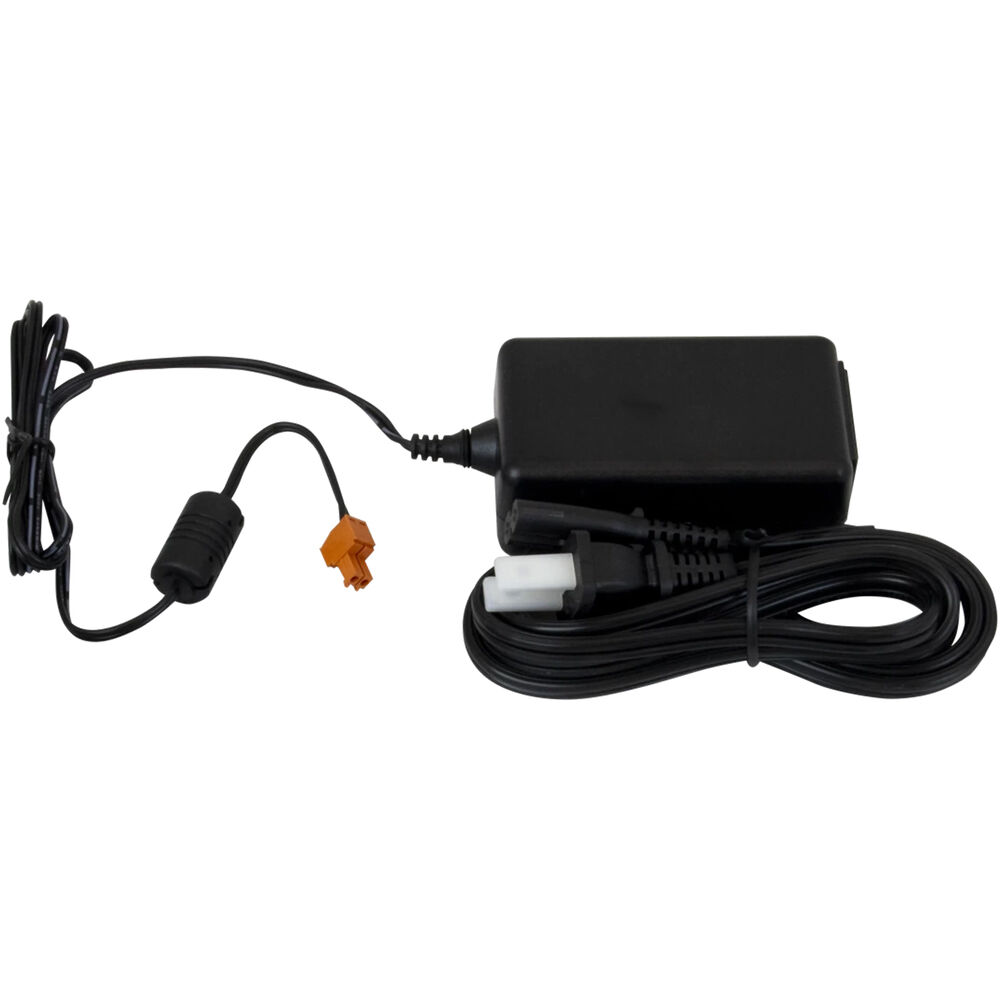

Various advanced features include EDID management, resolution downscaling, bidirectional IR and RS-232 signal control, onboard test pattern generation, dual 10/100 Ethernet ports for LAN extension, and left/right audio extraction from PCM 2-channel input signals. This model includes a 48V power supply.

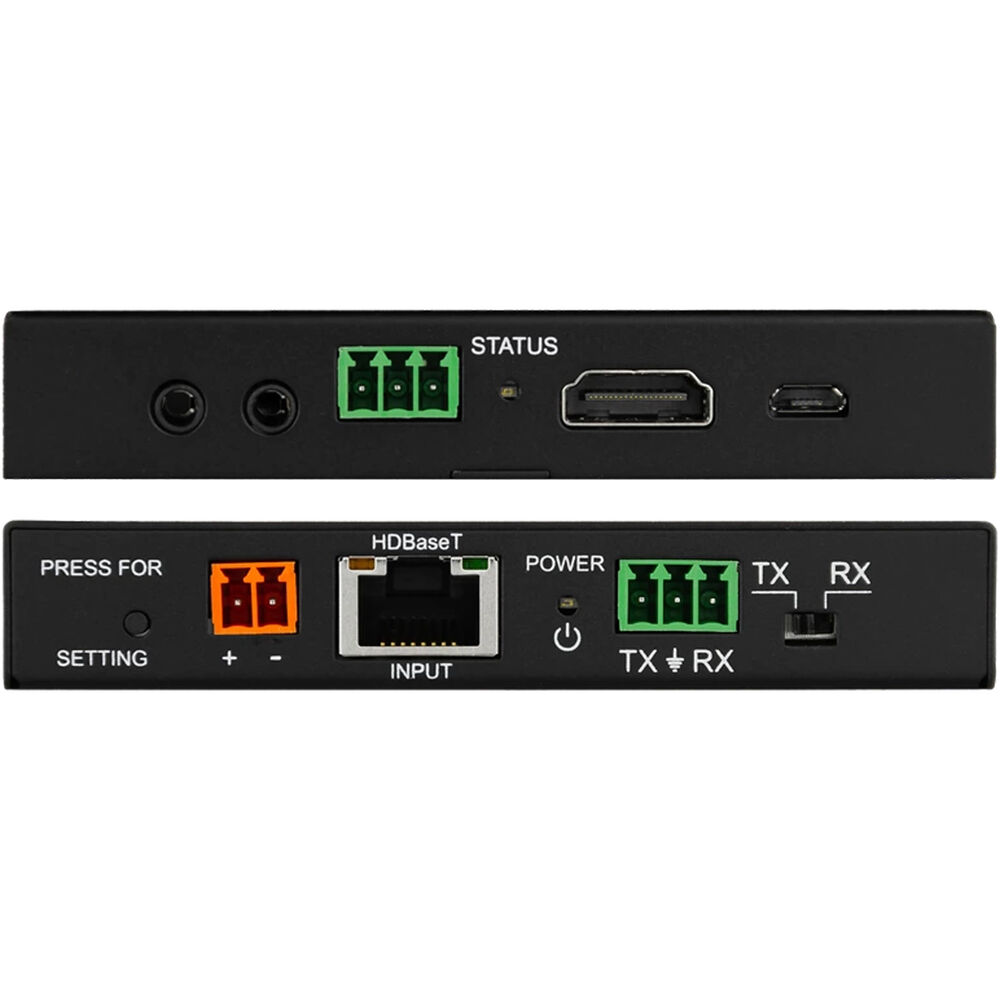

| Transmission I/O | 1x RJ45 (HDBaseT) Input 1x HDMI (2.0a / 2.0b) Output 1x Block 3-Pin (Analog Audio) Output 1x Block 3-Pin (RS-232) 1x 1/8" / 3.5 mm TS (IR) Input 1x 1/8" / 3.5 mm TRS (IR) Output 1x USB-C (Firmware) |
| Embedded Audio | HDMI |
| Power I/O | 1x Block 2-Pin (48 VDC at 0.5 A) Input/Output |
| Video Standard Compliance | ITU -R BT.601/BT.709/BT.2020 |
| HDR Support | Yes |
| Reclocking | Yes |
| HDCP Support | Yes: Version 2.3 |
| EDID Support | Yes (Unspecified Control Method) |
| Max Transmission Distance | 1080p: 492.1' / 150 m (via Cat 6a) DCI 4K: 229.7' / 70 m (via Cat 6a) |
| Video Format | HDMI/RJ45 (4:4:4): 4096 x 2160p: 60 fps |
| Supported Audio System | DTS/DTS-HD Master Audio/DTS:X/Dolby Atmos/Dolby Digital/Dolby Digital Plus/Dolby TrueHD |
| Supported Cable Types | Cat 5e/6/6a |
| Video Bandwidth | 18 Gb/s |
| PoE Support | Yes: PoE Proprietary |
| Power Consumption | 12 W |
| Operating Conditions | 23 to 124°F / -5 to 51°C at 5 to 90% Humidity |
| Storage Conditions | -4 to 140°F / -20 to 60°C at 5 to 90% Humidity |
| Dimensions | 5.2 x 3.9 x 0.7" / 132 x 100 x 18 mm |
| Weight | 0.4 lb / 0.2 kg |
| Package Weight | 1.37 lb |
| Box Dimensions (LxWxH) | 7.6 x 5.5 x 3.4" |
