| ₹ 484725.0 includes GST and import duties. | |
| B2B customers can avail ₹ 73920.56 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

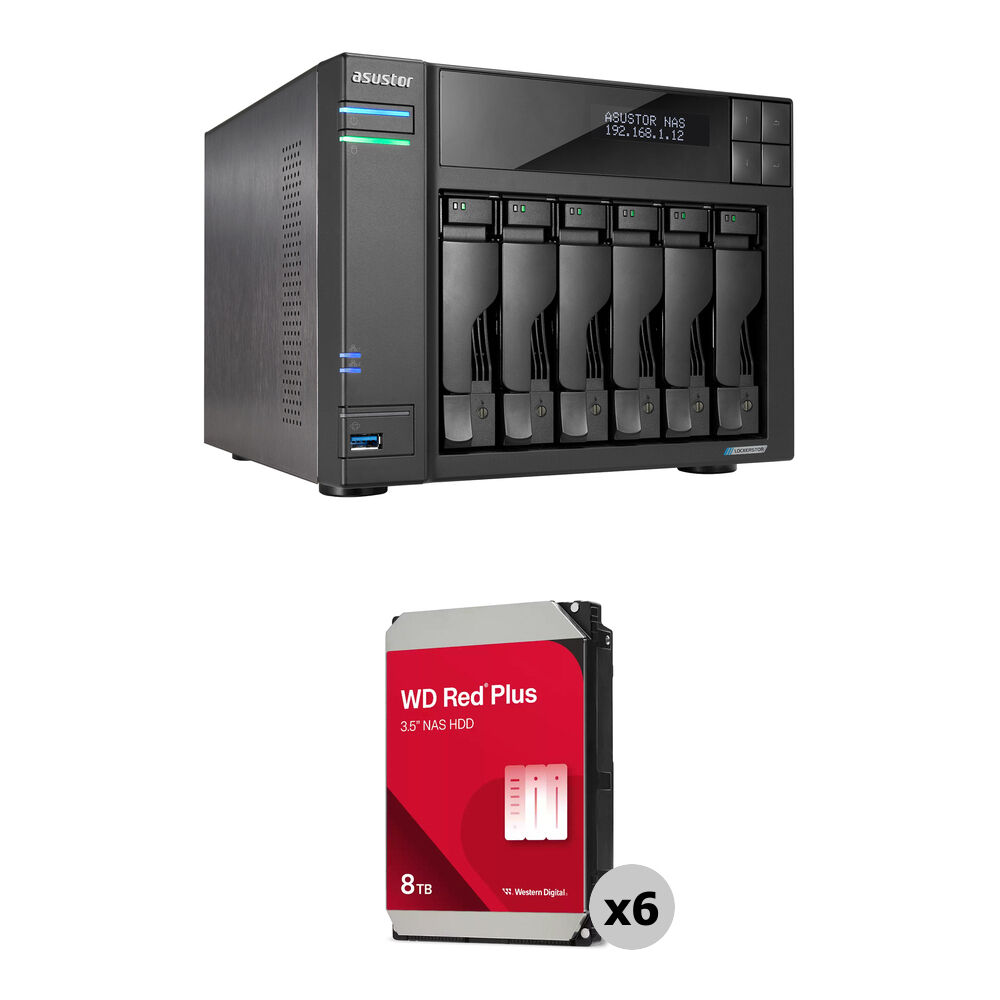

This B&H Kit combines the Asustor Lockerstor 6 Gen2 6-Bay NAS Enclosure with six WD 8TB Red Plus 5640 rpm SATA III 3.5" Internal NAS HDDs for a storage capacity of 48TB.

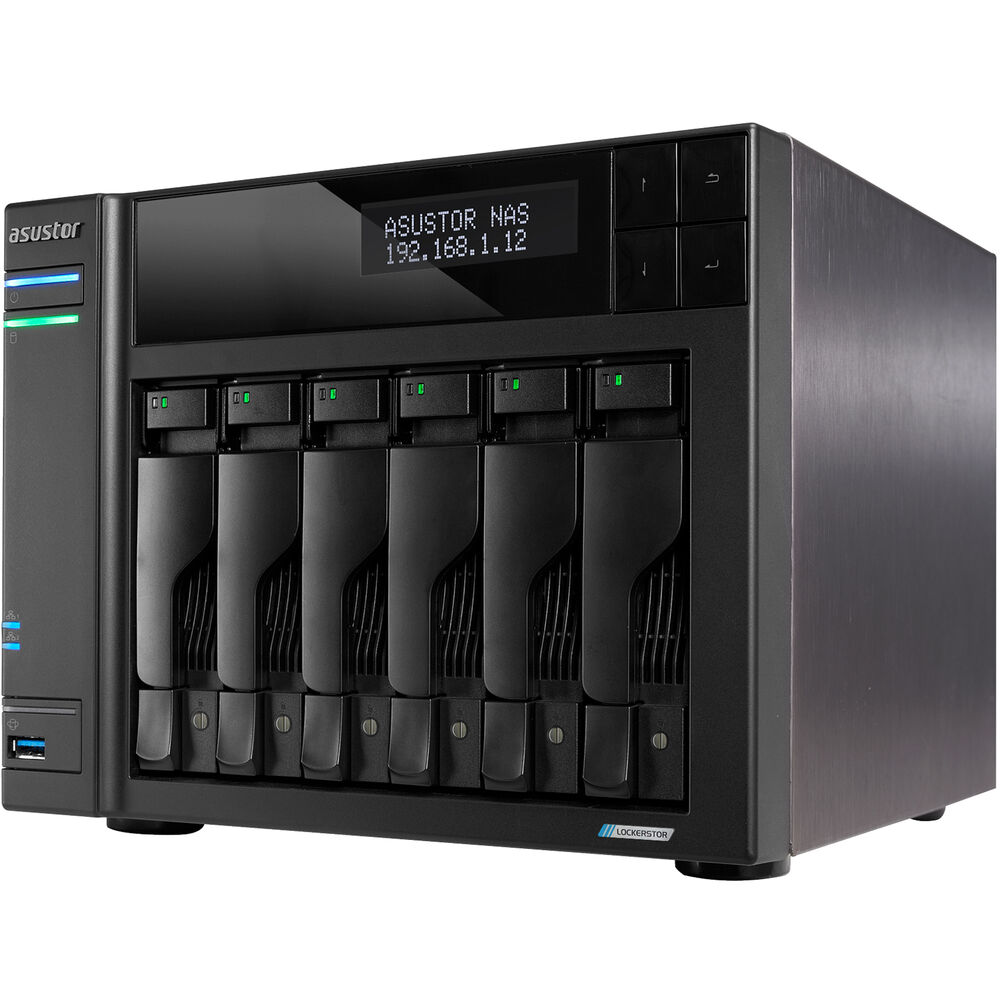

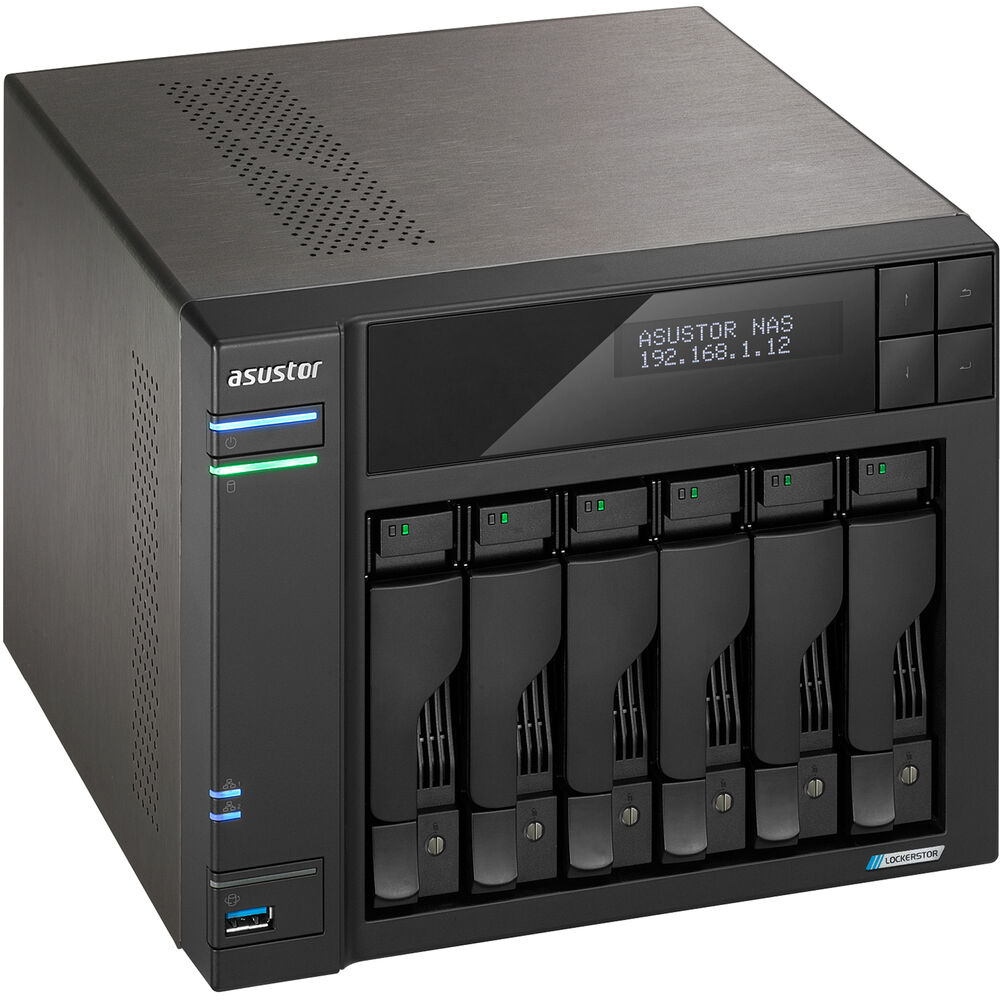

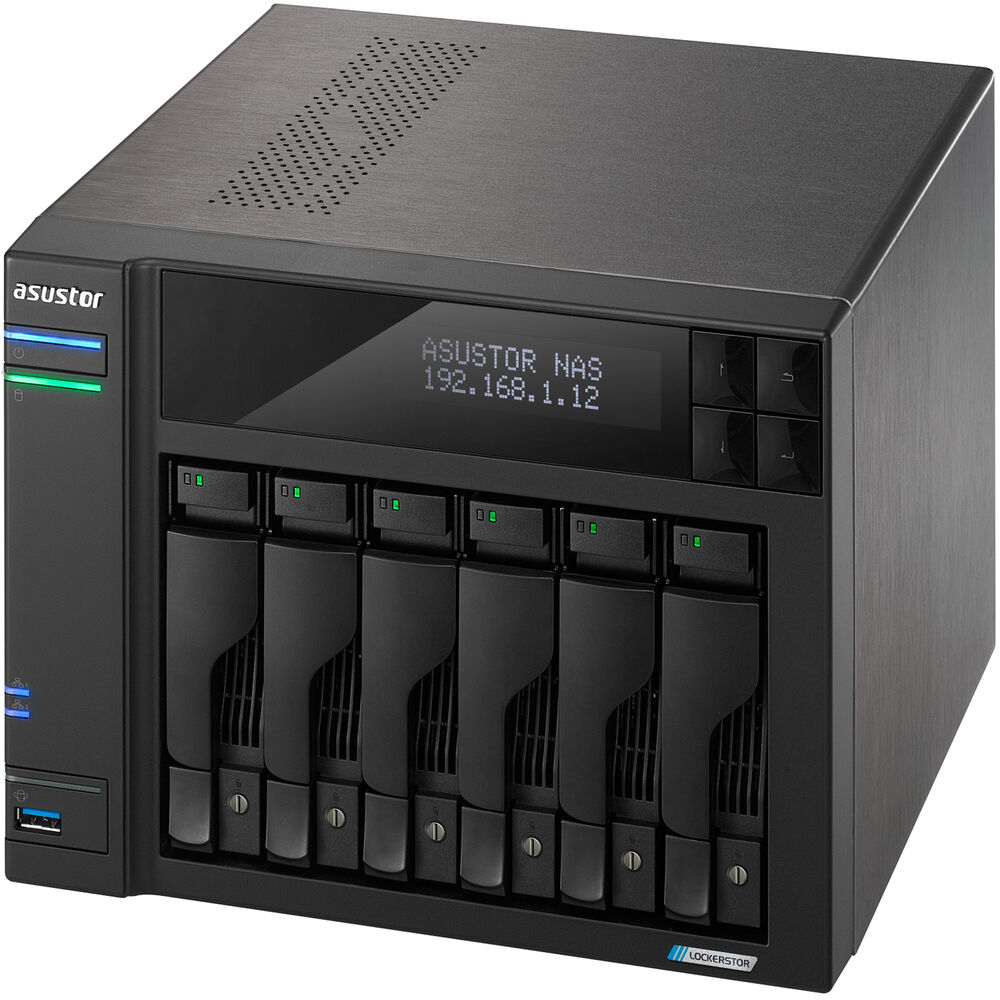

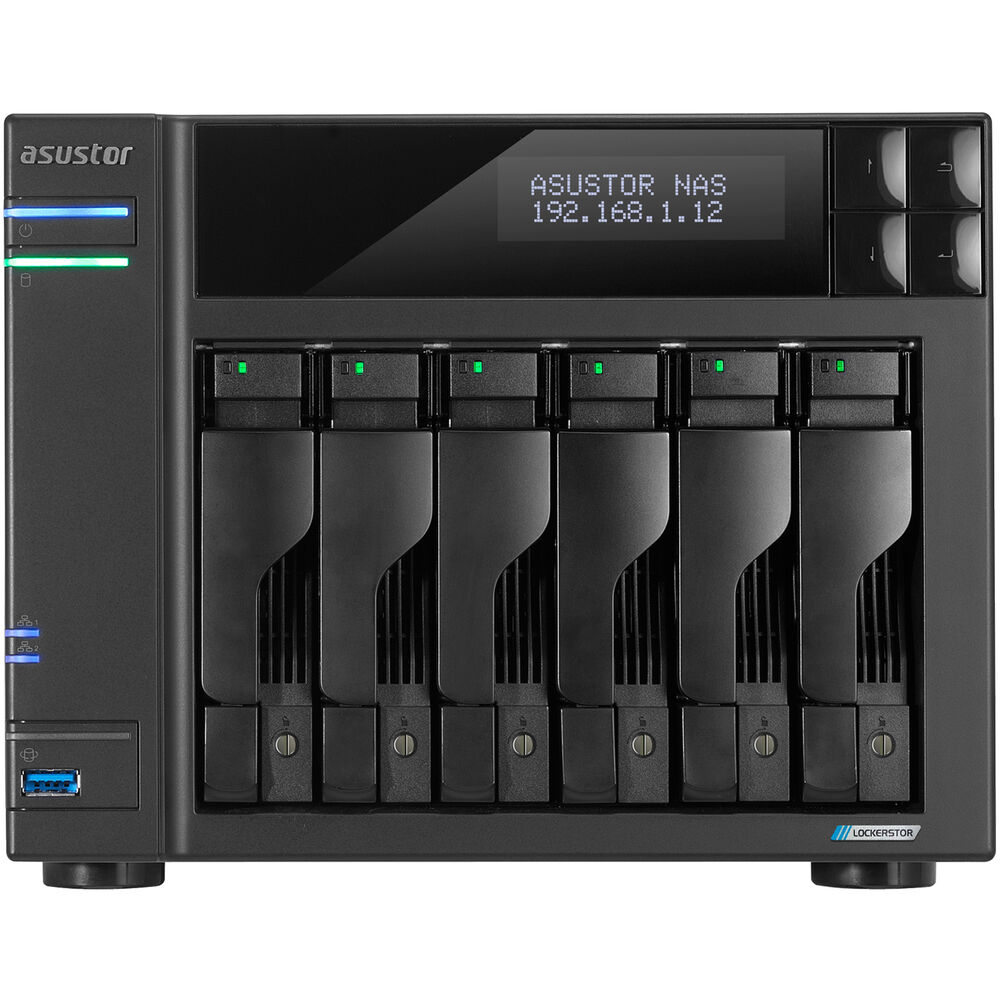

Designed to handle intensive tasks such as direct video editing, the Lockerstor 6 Gen2 6-Bay NAS Enclosure from Asustor offers the speed and capabilities to take on almost any project. In addition to featuring six 3.5"/2.5" SATA drive bays, this high-performance network storage enclosure has four M.2 2280 NVMe PCIe 3.0 SSD slots that may be configured for cache or storage. You can also mix and match M.2 configurations and set up RAID modes depending on your needs. The dual 2.5G Ethernet ports support SMB multichannel technology, which allows you to combine their throughput to reach 5G speeds with compatible devices, giving you the bandwidth to share massive files with your team. Powered by a 2.0 GHz Intel Celeron N5105 quad-core processor with 8GB of DDR4-2933 memory, the Lockerstor 6 Gen2 can deliver up to 590 MB/s read and 562 MB/s write speeds in RAID 5 configuration.
Install a 10G Ethernet network adapter into the PCIe 3.0 slot for even greater performance. Please note that the PCIe slot is occupied by an M.2 daughter board with all four of the system's M.2 SSD slots. Installing an expansion card requires its removal. The two memory slots support up to 16GB total. Other features include two USB-A 3.2 Gen 2 ports that can transfer data at up to 10 Gb/s with compatible devices.
The 8TB Red Plus 5640 rpm SATA III 3.5" Internal NAS HDD from WD is built to handle the workloads of RAID-optimized NAS systems with up to 8 drive bays, including home offices and power users, small to medium businesses, and consumer and commercial NAS systems. This 8TB drive operates using a SATA III 6 Gb/s interface, a 256MB cache, and a rotational speed of 5640 rpm, which all help to ensure uninterrupted data transfers with a rate of up to 215 MB/s. This drive also features high levels of reliability, with 600,000 load/unload cycles, < 1 in 1014 non-recoverable read errors per bits read, a workload rate of 180TB per year, dual-plane balance control technology, and a 1 million hours MTBF. WD's NASware helps increase system compatibility, allowing Red Pro drives to be more easily integrated with your existing network infrastructure, while noise and vibration protection is provided by Rotation Vibration (RV) sensors.
| RAID | Yes: Supported RAID Modes: 0 / 1 / 5 / 6 / JBOD |
| Number of Bays | 4x M.2 (2280) NVMe 6x 2.5"/3.5" SATA (Unspecified Version) (Hot-Swap) |

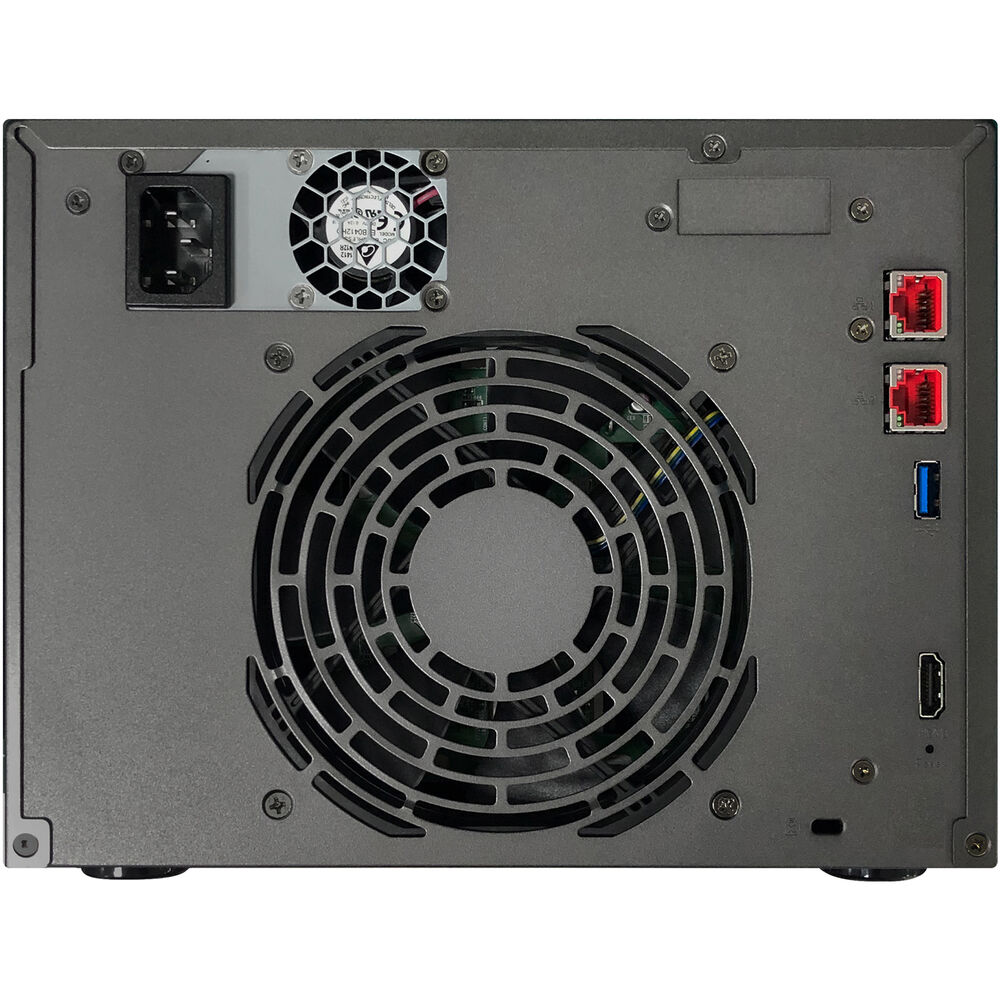

| Inputs/Outputs | 2x USB-A 3.1/3.2 Gen 2 1x HDMI 2.0b 2x RJ45 2.5GbE |
| CPU | Quad-Core: 2 to 2.9 GHz |
| Processor | Intel Celeron N5105 (11th Gen) |
| GPU | Intel UHD Graphics |
| Memory | 8 GB 2 MT/s DDR4 |
| RAM Configuration / Capacity | 1x User-Replaceable 8 GB Module / 2 Slots Supporting up to 16 GB |
| RAID | Yes: Supported RAID Modes: 0 / 1 / 5 / 6 / JBOD |
| Number of Bays | 4x M.2 (2280) NVMe 6x 2.5"/3.5" SATA (Unspecified Version) (Hot-Swap) |
| Inputs/Outputs | 2x USB-A 3.1/3.2 Gen 2 1x HDMI 2.0b 2x RJ45 2.5GbE |
| Media Card Slots | No |
| PCI Expansion | 1x PCIe 3.0 |
| Link Aggregation and Failover Support | Yes |
| iSCSI Support | Yes: 256 LUN / 256 Target |
| OS Compatibility | Windows XP or Later Windows Server 2008 or Later macOS UNIX Linux FreeBSD |
| Mobile App Compatible | No |
| Encryption | Yes, 256-Bit AES |
| Security Features | No |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 48.5 W (Typical) 27.7 W (Idle) 0.81 W (Standby) |
| PSU | 1 x 250 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 5 to 95% Humidity |
| Certifications | BIS, BSMI, C-Tick, CCC, CE, FCC, Kcc, UKCA, VCCI |
| Cooling | 1x 120 mm Fan |
| Noise Level | 18.1 dBA |
| Dimensions | 9.2 x 9.1 x 7.3" / 233 x 230 x 185.5 mm |
| Weight | 9.7 lb / 4.4 kg (without Drives) |
| Package Weight | 12.055 lb |
| Box Dimensions (LxWxH) | 12.7 x 12.3 x 11.8" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 475030.5 |
| 3-5 | ₹ 470183.25 |
| 5-10 | ₹ 460488.75 |
| 10+ | ₹ 450794.25 |
Bulk discount will be automatically applied during checkout based on quantity.
