| ₹ 243740.0 includes GST and import duties. | |
| B2B customers can avail ₹ 37170.35 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

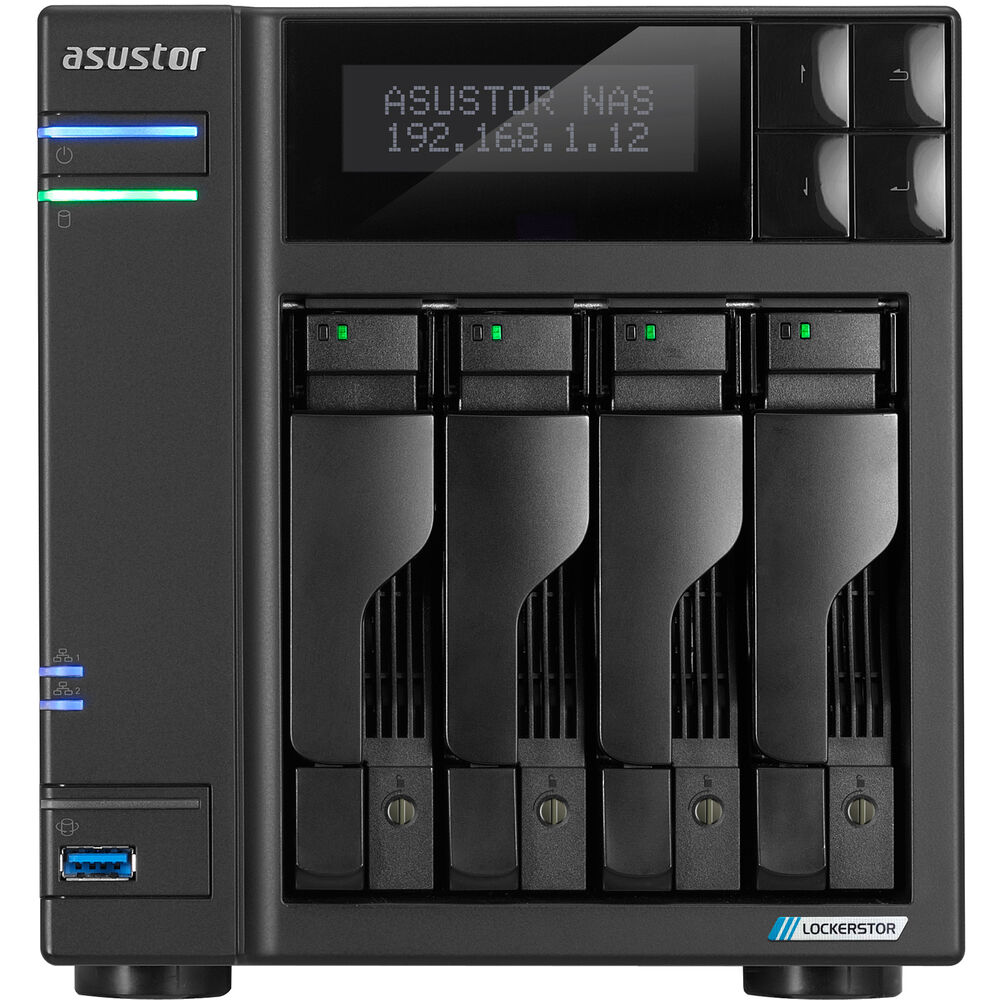

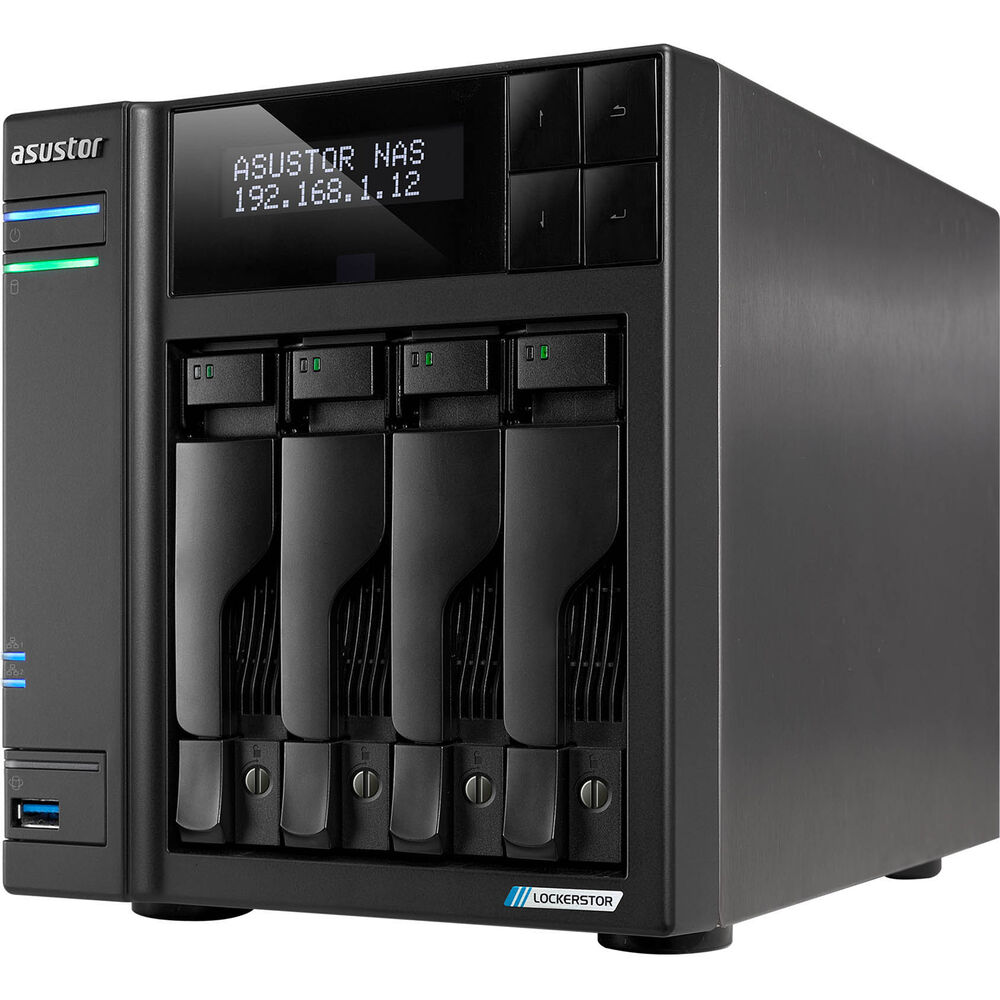

This B&H Kit combines the Asustor Lockerstor 4 Gen2+ 4-Bay NAS Enclosure with four Seagate 4TB IronWolf 5400 rpm SATA III 3.5" Internal NAS HDDs for a storage capacity of 16TB.
Designed to handle intensive tasks such as direct video editing, the Lockerstor 4 Gen2+ 4-Bay NAS Enclosure from Asustor offers the speed and capabilities to take on almost any project. In addition to featuring four 3.5"/2.5" SATA drive bays, this high-performance network storage enclosure has four M.2 2280 NVMe PCIe 3.0 SSD slots that may be configured for cache or storage. You can also mix and match M.2 configurations and set up RAID modes depending on your needs. The dual 5GbE Ethernet ports support SMB multichannel technology, which allows you to combine their throughput to reach 10G speeds with compatible devices, giving you the bandwidth to share massive files with your team. Powered by a 2.0 GHz Intel Celeron N5105 quad-core processor with 4GB of DDR4-2933 memory, the Lockerstor 4 Gen2+ can deliver up to 590 MB/s read and 555 MB/s write speeds in RAID 5 configuration.
Install a 10G Ethernet network adapter into the PCIe slot for even greater performance. Please note that the PCIe slot is occupied by an M.2 daughter board with all four of the system's M.2 SSD slots. Installing an expansion card requires its removal. The two memory slots support up to 16GB total. Other features include two USB-A 3.2 Gen 2 slots that can transfer data at up to 10 Gb/s with compatible devices. There is also an extra USB-A 2.0 port.
Designed for use in 1-8 bay NAS systems within home, SOHO, and small business environments, the 4TB IronWolf 5400 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or up to 180TB per year / 8760 hours per year. This 4TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 5400 rpm, a 3.5" form factor, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 202 MB/s. The IronWolf also has an MTBF rating of 1.0 million hours, a workload rate of up to 180TB per year, a non-recoverable read error rate of 1 per 1014, supports 600,000 load/unload cycles, and an annualized failure rate (AFR) of 0.87%. Protection is provided by a limited 3-year warranty.
| RAID | Yes: Supported RAID Modes: 0 / 1 / 5 / 6 / JBOD |
| Number of Bays | 4x M.2 (2280) NVMe 4x 2.5"/3.5" SATA (Unspecified Version) (Hot-Swap) |

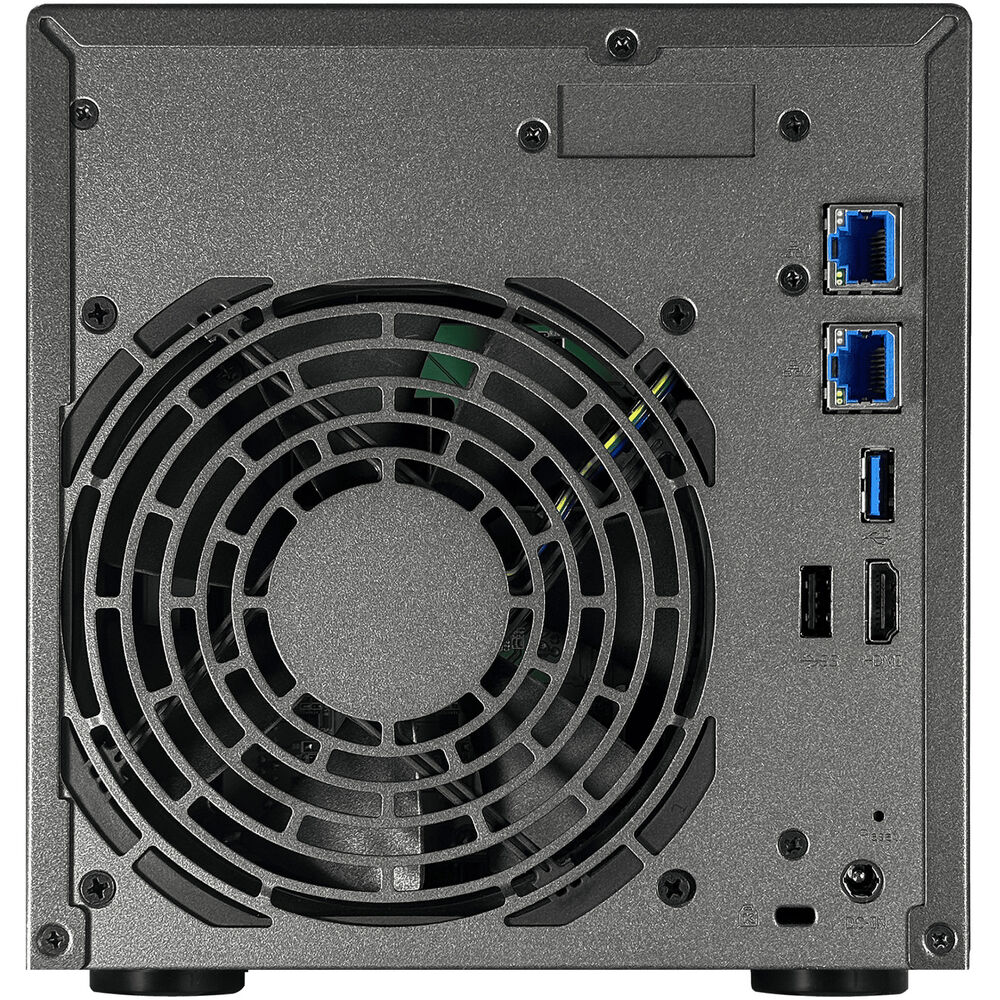

| Inputs/Outputs | 2x USB-A 3.1/3.2 Gen 2 1x USB-A 2.0 1x HDMI 2.0b 2x RJ45 5GbE |
| CPU | Quad-Core: 2 to 2.9 GHz |
| Processor | Intel Celeron N5105 |
| GPU | Intel UHD Graphics |
| Memory | 4 GB 2 MT/s DDR4 |
| RAM Configuration / Capacity | 1x User-Replaceable 4 GB Module / 2 Slots Supporting up to 16 GB |
| RAID | Yes: Supported RAID Modes: 0 / 1 / 5 / 6 / JBOD |
| Number of Bays | 4x M.2 (2280) NVMe 4x 2.5"/3.5" SATA (Unspecified Version) (Hot-Swap) |
| Inputs/Outputs | 2x USB-A 3.1/3.2 Gen 2 1x USB-A 2.0 1x HDMI 2.0b 2x RJ45 5GbE |
| Media Card Slots | No |
| PCI Expansion | No |
| Link Aggregation and Failover Support | Yes |
| iSCSI Support | Yes: 256 LUN / 256 Target |
| Installed Operating System | No |
| OS Compatibility | Windows 10 to 11 Windows Server 2016 to 2022 macOS UNIX Linux FreeBSD |
| Mobile App Compatible | No |
| Encryption | Yes, 256-Bit AES |
| Security Features | No |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 35 W (Typical) 17.3 W (Idle) 0.88 W (Standby) |
| PSU | 1 x 90 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 5 to 95% Humidity |
| Storage Conditions | -4 to 158°F / -20 to 70°C |
| Certifications | BIS, BSMI, C-Tick, CCC, CE, FCC, Kcc, UKCA, VCCI |
| Cooling | 1x 120 mm Fan |
| Noise Level | 17.6 dBA |
| Dimensions | 9.1 x 7.3 x 6.7" / 231.1 x 185.4 x 170.2 mm |
| Weight | 6.4 lb / 2.9 kg (without Drives) |
| Package Weight | 9.47 lb |
| Box Dimensions (LxWxH) | 13.1 x 11.8 x 9.6" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 238865.2 |
| 3-5 | ₹ 236427.8 |
| 5-10 | ₹ 231553.0 |
| 10+ | ₹ 226678.2 |
Bulk discount will be automatically applied during checkout based on quantity.
