Description

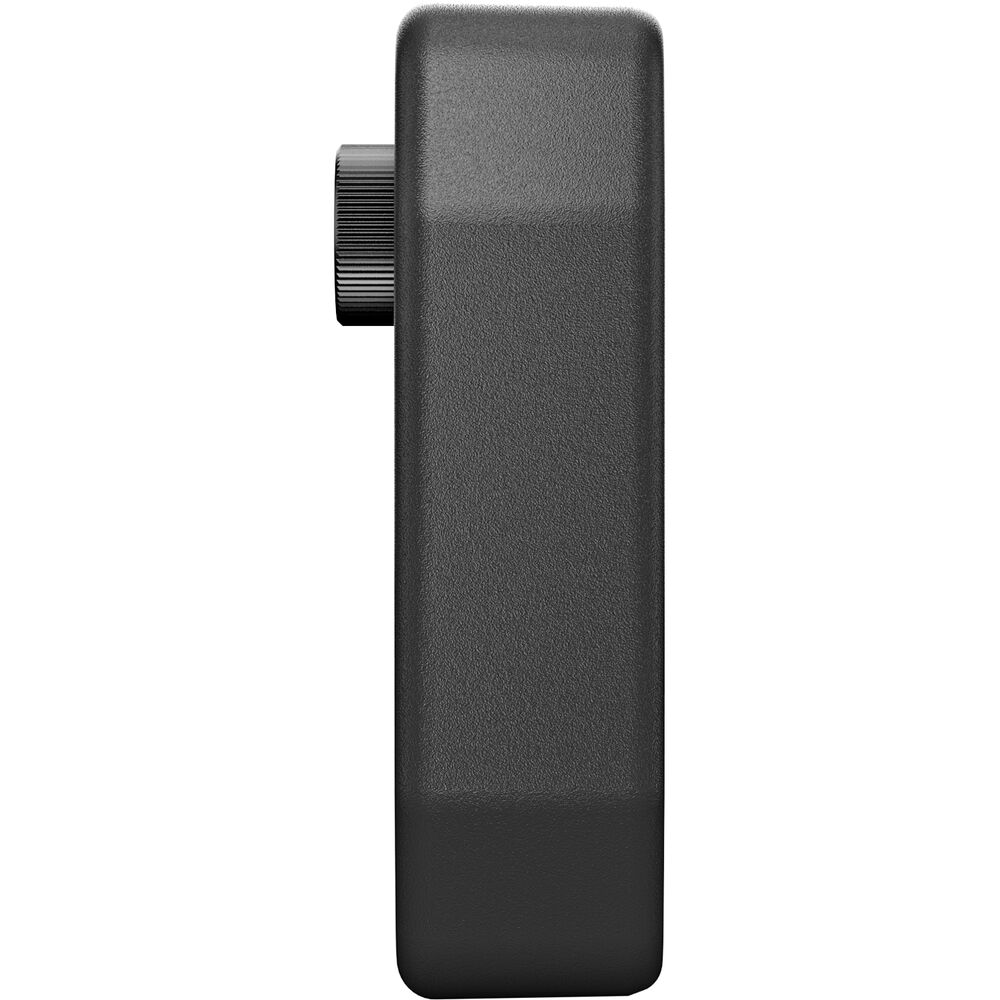

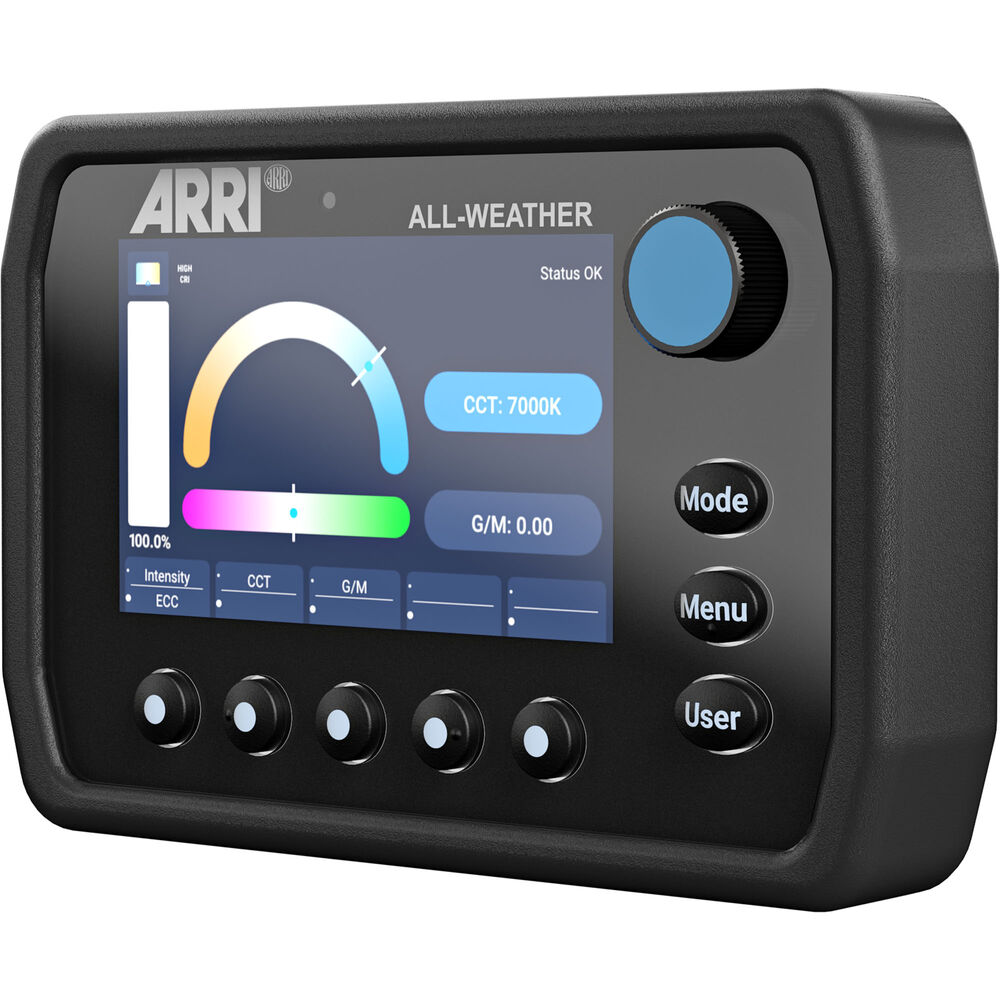

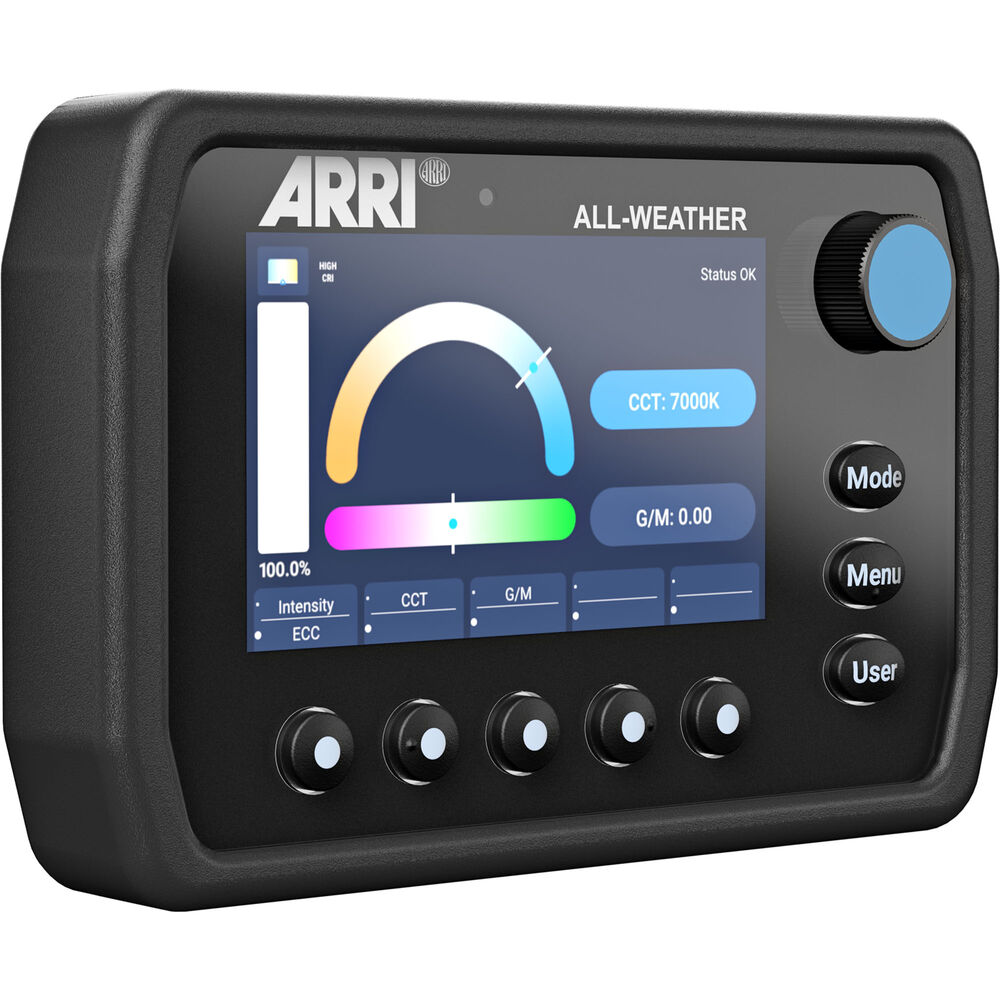

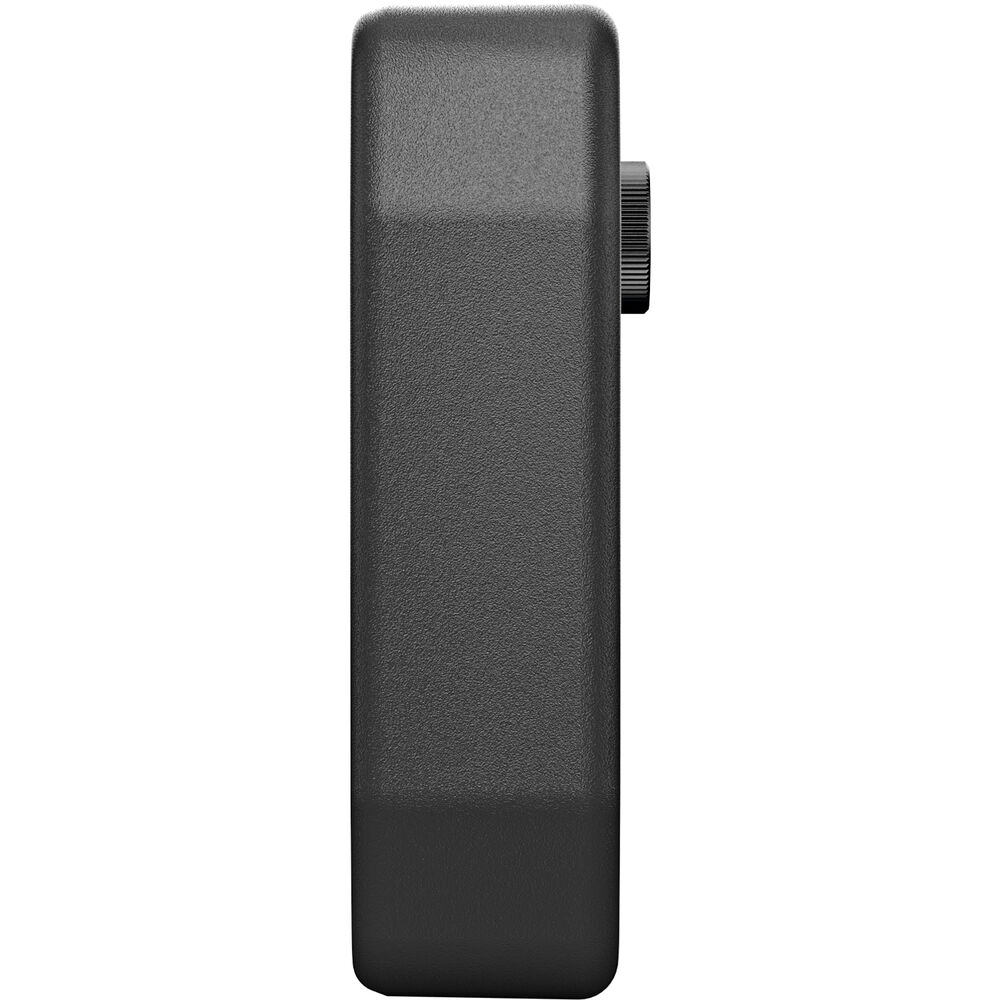

Designed for maximum flexibility, the All-Weather Control Panel from ARRI is a robust IP66-rated device that allows you to adjust the functions of the SkyPanel X. The control panel has an onboard screen, quick navigation buttons, and can be separated from the fixture and used remotely via an optional 16.4' or 49.2' cable. This is a great tool for centralized control, allowing you to easily change settings and create presets on the fly.
Ideal for hanging fixtures or lights mounted on tall stands, this 49' ARRI Cable for Orbiter Control Panel connects the removable panel to the light to control its functions.

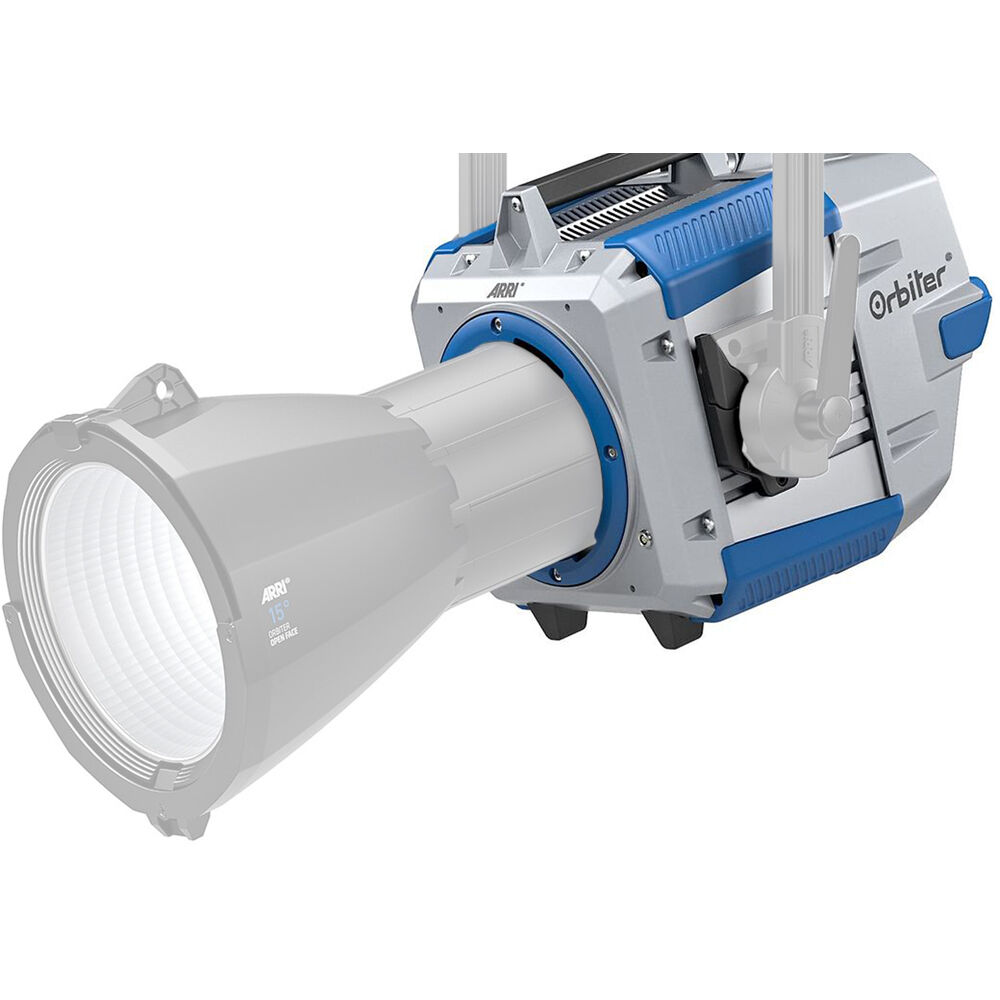

The Manual Yoke with Spigot for Orbiter from ARRI replaces the light's pole-operated yoke or provides one for Orbiters purchased without a yoke. Panning and tilting are done manually on the fixture. The yoke has a spigot for mounting onto a stand or clamp.
This ARRI Mains Cable is designed to connect an ARRI S30, S60, or S120 SkyPanel to a mains power outlet (110 to 50V AC, 50 to 60 Hz). Measuring 9.84', it features a built-in line switch as well as a powerCON TRUE1 TOP connector on one end while the other end can be wired to an electrical plug.

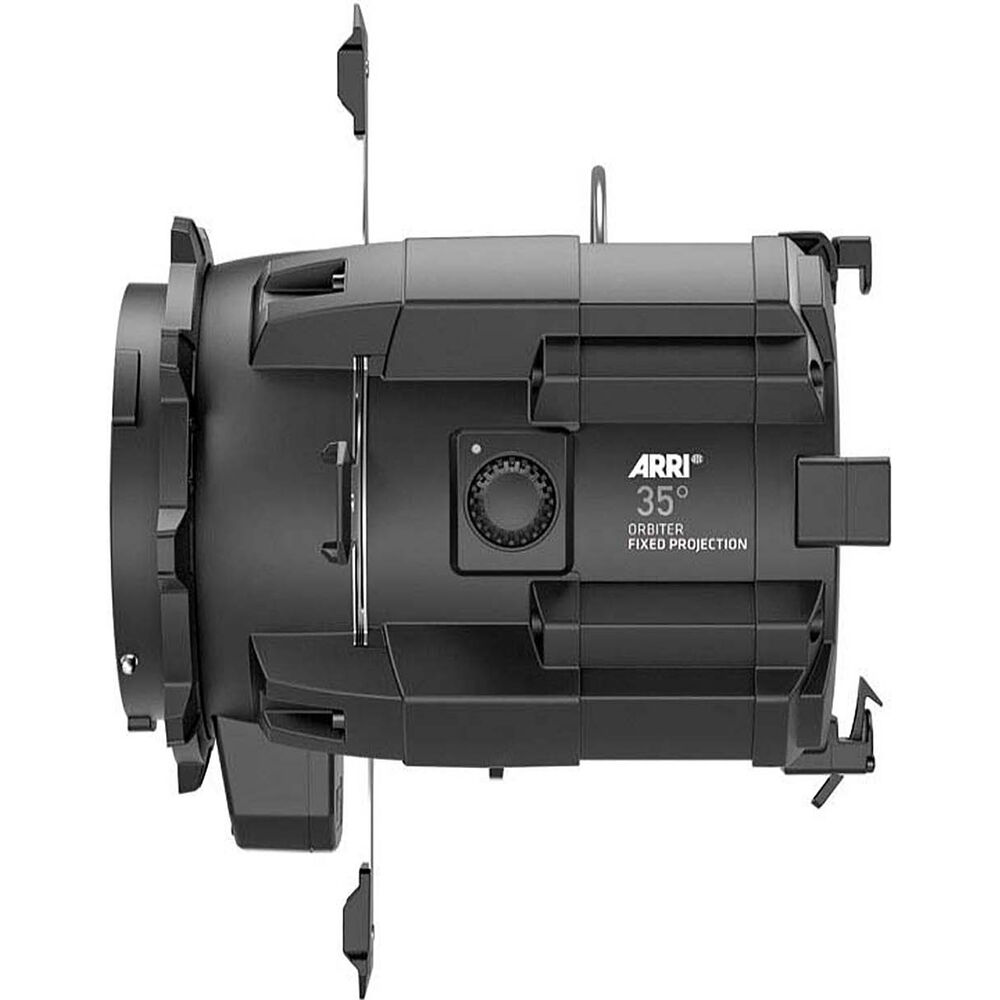

The Orbiter 35° Projection Optic from ARRI allow for the crisp projection of a light spot, as well as gobo projection and precise shutter cuts. It has no visible hot spot or drop to the edge and features a standard iris slot. Thanks to the LiOS 2 operating system, the focus can be controlled locally via Orbiter's Control Panel, or remotely by DMX/RDM or IP based (ArtNet or sACN). Once set, the focus is kept in place and not subverted by locking the lens tube into place. A standard B-size metal or glass gobo can also be added. The genuine ARRI gobo holder is made to keep the gobo securely in place and the produced gobo pattern is clearly visible. Any focus adjustment between gobo and shutter is barely necessary; focus adjustment between gobo and open gate is not necessary at all. Additional ARRI accessories like a snoot or color filter frames can be added in front enabling fine-tuning when needed. The Orbiter Projection Optics are a great addition to the already existing Orbiter Fresnel Lens 15-65°
| Item Type | 1x LED Flood Light |
| Included Storage Case | No |
| Photometrics at 3.3' / 1 m | 30° at 3200K: 4153 fc / 44,700 Lux (with Reflector) 30° at 5600K: 5388 fc / 58,000 Lux (with Reflector) |
| Color Temperature | 2000 to 20,000K |
| Color Modes | RGB, Daylight, Tungsten |
| Color Accuracy Standard | CRI 98 CRI 95 |
| Dimming | Controller Not Included / DMX / RDM (Continuous) • 0 to 100% |
| Front Accessory Mount | ARRI QLM |
| Wireless Remote Control Type | CRMX |
| Power Source | AC Power (Cable Not Included) Battery (Not Included) |
| Battery | 1x Battery Power Station (Not Included) |
| Input Power | 48 to 52 VDC 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 500 W |
| Item Type | 1x LED Flood Light |
| Included Storage Case | No |
| Photometrics | 30° at 3200K: 4153 fc / 44,700 Lux at 3.3' / 1 m (with Reflector) 462 fc / 4970 Lux at 9.8' / 3 m (with Reflector) 166 fc / 1790 Lux at 16.4' / 5 m (with Reflector) 30° at 5600K: 5388 fc / 58,000 Lux at 3.3' / 1 m (with Reflector) 599 fc / 6445 Lux at 9.8' / 3 m (with Reflector) 216 fc / 2320 Lux at 16.4' / 5 m (with Reflector) |
| Color Temperature | 2000 to 20,000K |
| Color Modes | RGB, Daylight, Tungsten |
| Color Accuracy Standard | CRI 98 CRI 95 |
| Dimming | Controller Not Included / DMX / RDM (Continuous) • 0 to 100% |
| Cooling System | No |
| Expected Lamp Life | 50,000 Hours (L70) |
| Beam Angle | 80° Unmodified |
| Built-In Flash | No |
| Umbrella Mount | No |
| Front Accessory Mount | ARRI QLM |
| Wireless Remote Control Type | CRMX |
| Mobile App Compatible | No |
| Power Source | AC Power (Cable Not Included) Battery (Not Included) |
| Inputs/Outputs | 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output 1x etherCON/RJ45 Network Input 1x etherCON/RJ45 Network Output 2x USB-A Remote Input 1x USB-C Service Input 1x XLR 3-Pin Power Input 1x powerCON TRUE1 TOP AC Power Input |
| Battery | 1x Battery Power Station, 48 to 52 VDC (Not Included) |
| Input Power | 48 to 52 VDC 100 to 240 VAC, 50 / 60 Hz |
| Power Pass-Thru | Yes |
| Power Consumption | 500 W |
| Display | LCD |
| Environmental Resistance | Dust-Resistant (IP20) |
| Operating Conditions | -4 to 113°F / -20 to 45°C |
| Certifications | CB, CE, ENEC, FCC, ICES, KC, PSE, RCM, UKCA, cNRTLus |
| Materials | Aluminum (Housing) |
| Dimensions | 16.1 x 13 x 12" / 40.9 x 33 x 30.5 cm |
| Weight | 25.8 lb / 11.7 kg |
| Package Weight | 29.44 lb |
| Box Dimensions (LxWxH) | 18.2 x 15.1 x 14.5" |
