ARRI ALEXA 35 Production Expansion Set (19mm)

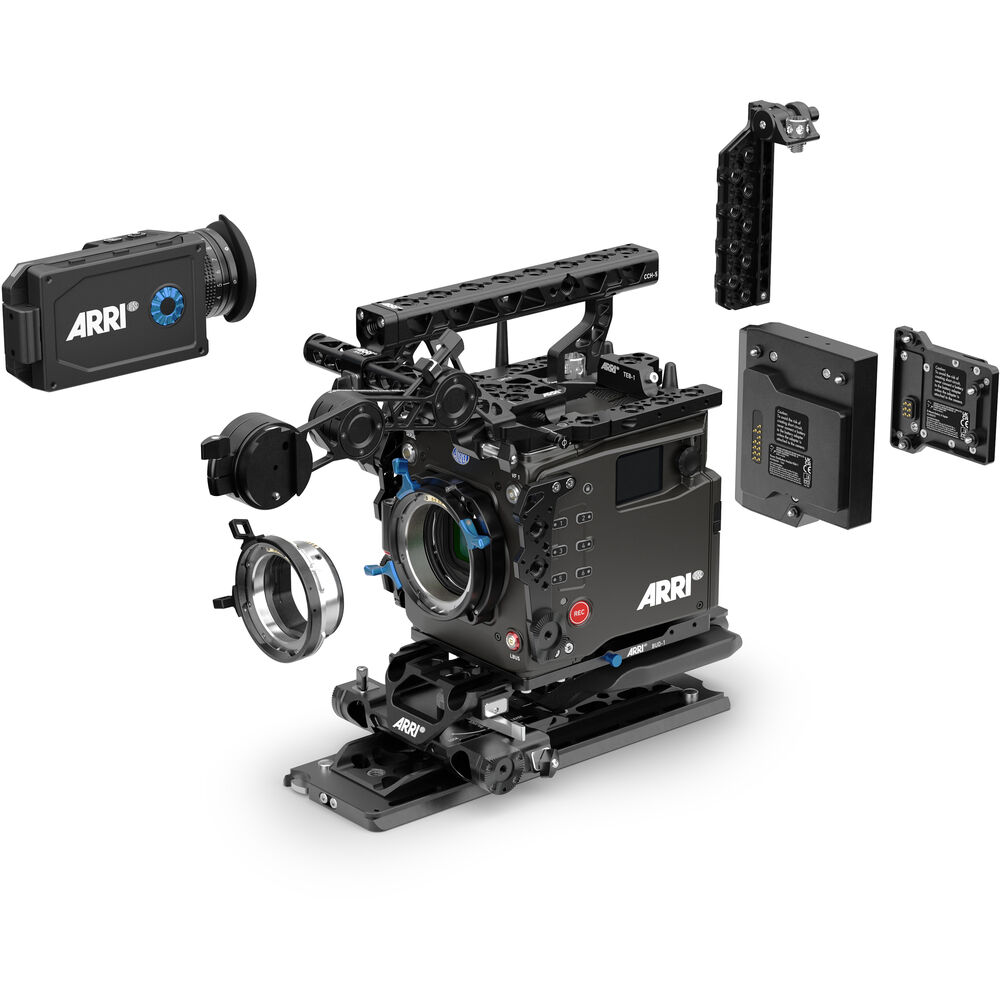

The 19mm ALEXA 35 Production Expansion Set from ARRI enables ALEXA 35 Lightweight Camera Set users to convert their rig to a 19mm Studio rod setup. This set includes components like the PDM-1 Distribution Module, the CCH-5 Center Handle, the 19mm CBP-5 compact bridge plate, the 12" Bottom Dovetail, and more. Read more below about each of the items in this set.

Add power outputs to your ALEXA 35 cinema camera with this ARRI Power Distribution Module PDM-1. The module mounts directly onto the back of the camera without the use of additional cables, and it is powered by a separately available nested B-mount battery adapter that passes power through to the module and the camera. The low-profile module provides four 3-pin 24 VDC outputs, two 2-pin 12 VDC outputs, and one 12 VDC twist D-Tap output.

The ARRI Low Mode Support Plate LMS-4 is a top plate designed for the ALEXA 35 cinema camera for use in handheld and low-mode mounting scenarios. The LMS-4 features an updated quick release system that provides easy mounting and unmounting of the CCH-5 top handle without using any tools. It features 15mm rod clamps for optional standard 15mm rods, allowing you to mount a variety of accessories such as a motor or an EVF using the MVB-1 mounting bracket. It can also be extended using the TEB-1 top extension bracket.

The ARRI Center Camera Handle CCH-5 mounts onto the top of your camera using the optional LMS-4 low-mode support plate and provides a comfortable, stable top handle for the ALEXA 35 cinema camera. The full-size handle mounts quickly and easily without tools using a large captive thumb lever. It is compatible with various gimbal top plates and provides multiple accessory threads to mount front/rear HEB/HEX handle extensions, VF mounting brackets, rod mounts, and more.

The ARRI Viewfinder Mounting Bracket VMB-5 is designed to mount a viewfinder onto your ARRI camera and provide a longer extension than standard viewfinder mounts. Its friction clamp provides quick and easy 360° rotation by using a simple thumbscrew. The VMB-5 is compatible with all ARRI viewfinder extension brackets and viewfinder adapters. The bracket requires the SAS-1 Square Accessory Sleeve for attachment to a camera.

Mount your VMB-5 viewfinder bracket onto your ALEXA 35 cinema camera rig with the ARRI Square Accessory Sleeve SAS-1. This square mount is shaped so the optional VMB-5 bracket doesn't fall when loosening and adjusting. It mounts onto any plate, accessory, or cage with two M4 threads that are 20mm apart, such as the CCH-5 center top handle.

The ARRI Articulated Mounting Plate AMP-1 provides accessory mounting for your ALEXA 35 cinema camera without blocking access to the camera's ports. The plate is hinged and provides up/down adjustment for the best position. Multiple 1/4"-20, 3/8"-16, and M4 threads are available to mount a variety of accessories such as wireless transmitters, extensions, or focus motors.

The compact, lightweight ARRI Compact Bridge Plate CBP-5 is designed for use with the ALEXA 35 cinema camera and provides a sliding bridge plate and a shoulder pad. The bridge plate mounts onto the BUD-1 utility dovetail, and its sliding function provides balance and support, especially when using long lenses. The quick release system has been improved from previous bridge plate models, and it also allows lifting the camera straight off the dovetail. It features 19mm Studio rod ports and supports both 15mm LWS and 19mm studio rods as an option.

Less is more when you're lugging your rig around, so opt for this 12" Bottom Dovetail Plate from ARRI with a weight-reducing cutout design for balancing your camera setup. This updated dovetail offers a medium travel range suitable for prime lenses, and it sports several features that distinguish it from earlier models.

Safety release buttons are located both at the front and back of the dovetail. The front release is especially helpful when using accessories like lens motors that may hang below the level of the baseplate, preventing an easy backward slide off the dovetail. Two removable stopper screws provide additional security when desired and can be parked on the plate when not in use.

Constructed of a robust aluminum alloy, this dovetail has built-in 3/8"-16 and 1/4"-20 threads for mounting on a tripod or quick release plate.
