Description

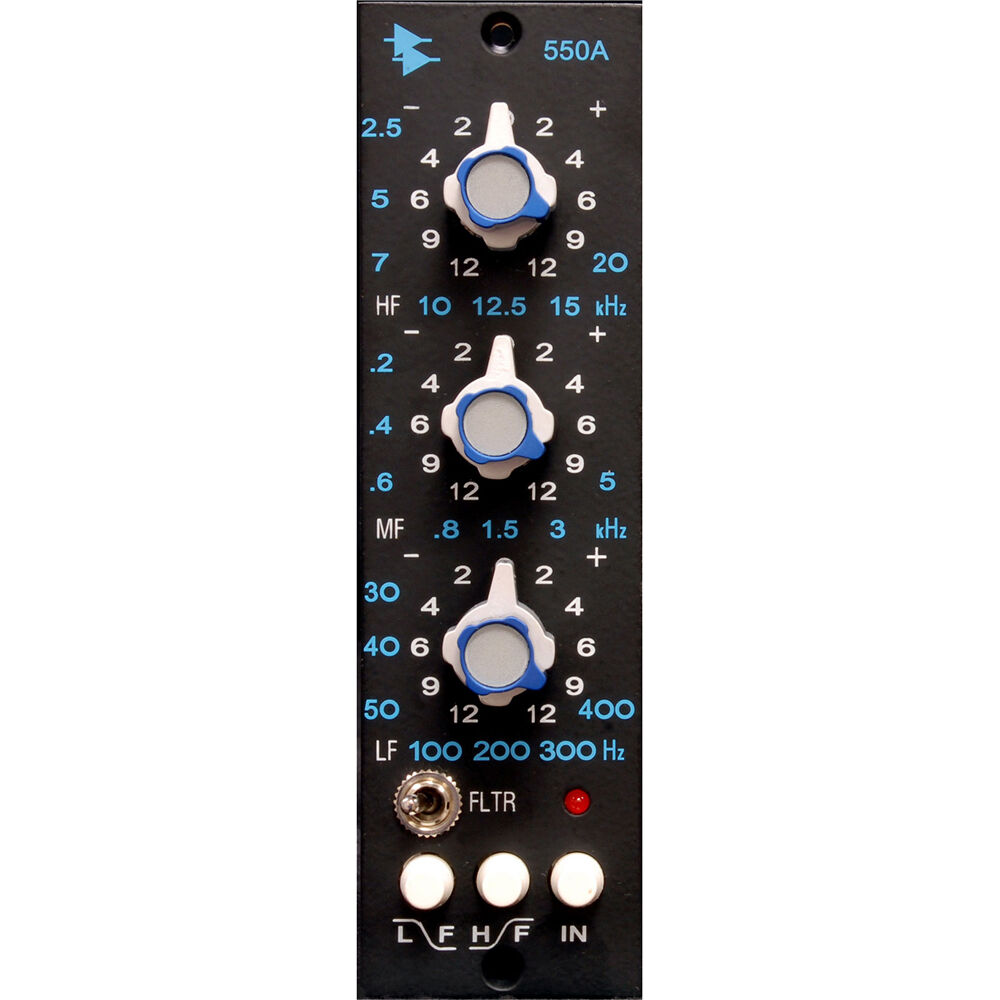

Experience the simplicity and acoustic superiority of a legendary EQ with the API Audio 550A, a 3-band EQ module for 500-series racks with ±12 dB of boost/cut per band. With switchable shelf/peak operation on the low and high bands and proportional Q circuitry for narrowing the filter bandwidth at the extremes, the 550A is a versatile and intuitive EQ module.
Each band provides seven selectable frequency centers and 21 steps of EQ adjustment. The 550A sports high-headroom discrete circuitry, offering up to 30 dB of input gain before clipping. A small toggle switch can be used to inset a bandpass filter to the 550A signal path, and the bandpass filter can be inserted independently of all other EQ settings.
| Input Impedance | High Level: 66 Kilohms Low Level: 17 Kilohms |
| Output Impedance | <85 Ohms |
| Insertion Loss | None (Bridging) |
| Frequency Response | 30 Hz to 20 kHz (±0.5 dB) |
| Noise | -90 dBm |
| THD | 0.05% (at +4 dBm) 0.07% (at +18 dBm) |
| Maximum Input Level | +30 dBm |
| Power Source | Proprietary Interface |
| Operating Current | 70 mA |
| Mounting | Front: 2x 500-Series Rack Screw |
| Color | Tan/Beige |
| Material of Construction | Metal |
| Dimensions | 7.75 x 5.25 x 1.5" / 19.69 x 13.34 x 3.8 cm |
| Weight | 2 lb / 0.9 kg |
| Package Weight | 2.455 lb |
| Box Dimensions (LxWxH) | 10.2 x 6.2 x 4.7" |
